S125D Air Compressor with 410KW Cummins Engine for 300-400m Drilling

S125D Air Compressor with 410KW Cummins Engine for 300-400m Drilling

410KW Air Compressor

300-400m Air Compressor

S125D Air Compressor

Place of Origin:

China

Brand Name:

Zhigao

Certification:

CE, ISO 9001:2000

Model Number:

S125D

Contact Us
Request A Quote
S125D Air Compressor with 410KW Cummins Engine for 300-400m Drilling
S125D Air Compressor with 410KW Cummins Engine for 300-400m Drilling S125D Air Compressor with 410KW Cummins Engine for 300-400m Drilling S125D Air Compressor with 410KW Cummins Engine for 300-400m Drilling
Product Details
Name:
Diesel Screw Air Compressor
Model:
S125D
Nominal Displacement:
36m³/min
Rated Discharge Pressure:
30Bar
Dimensions:
4220*2000*2300mm
Fuel Tank Capacity:
600L
Engine Output:
410KW Cummins Engine
Highlight:

410KW Air Compressor

,

300-400m Air Compressor

,

S125D Air Compressor

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
It can be shipped by one 20" container
Delivery Time
10-15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
RELATED PRODUCTS
Good price KAISHAN LGCY Diesel Small Screw Air Compressor for Mining and Water Well Drilling online Video

KAISHAN LGCY Diesel Small Screw Air Compressor for Mining and Water Well Drilling

Get Best Price
Good price 1107CFM 25bBar Diesel Engine Screw Compressors Portable Air Compressors For 2.5-1.8 Mpa Pressure online Video

1107CFM 25bBar Diesel Engine Screw Compressors Portable Air Compressors For 2.5-1.8 Mpa Pressure

Get Best Price
Good price 1400kg Portable Diesel Screw Air Compressor 55KW For Single Compression Stage online Video

1400kg Portable Diesel Screw Air Compressor 55KW For Single Compression Stage

Get Best Price
Good price 1107CFM 25bBar Diesel Engine Screw Compressors Portable Air Compressors For Construction Work Mining Industry online Video

1107CFM 25bBar Diesel Engine Screw Compressors Portable Air Compressors For Construction Work Mining Industry

Get Best Price
Contact Us
Contact Now
Product Description

S125D Air Compressor with 410KW Cummins Engine for 300-400m Drilling



Product Description



S125D diesel high-pressure air compressor is widely used in driving water well drilling, high-rise foundation construction, geothermal development and other industries. Due to fierce market competition, customers have higher and higher drilling requirements for drilling rig products, and the corresponding drilling rig air source equipment is also Need to be upgraded and optimized,the S125D cummins diesel air compressor with larger air supply and higher pressure is launched, and the pressure can reach 30bar.



Product Specifications



Name Unit S125D Diesel screw air compressor
Nominal displacement m³/min 36
Rated discharge pressure Bar 30
Screw machine oil volume L 120
Compressed series step 2
Engine type Tin firewood QSZ13-C550-30
Engine output kw 410 cummins engine
Fuel tank capacity L 600
Dimensions mm 4220*2000*2300
Total weight kg 5820
Air evacuation valve inch 1-G2” 1-G1”



Product Features



1) Greater fuel efficiency and energy saving

2) Air filtration system with vacuum indication for dust environments

3) Compressor oil and engine coolant coolers to optimize performance and extend engine life

4) Efficient compressor oil filter

5) Fuel filter with water separator 6)Easy to remove, translucent PE fuel tank

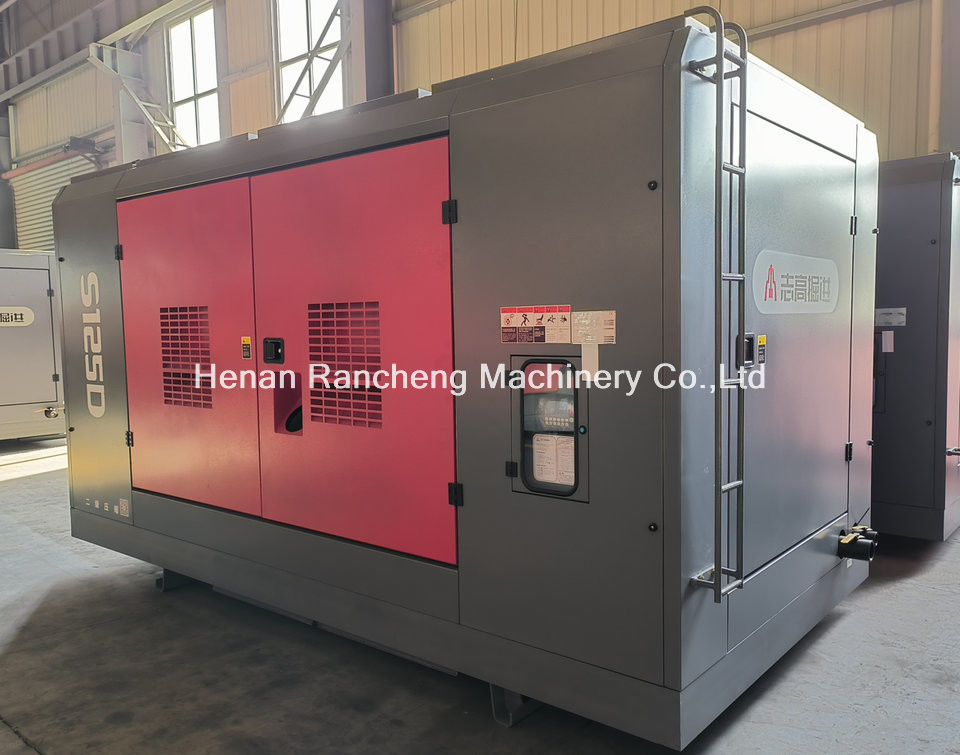

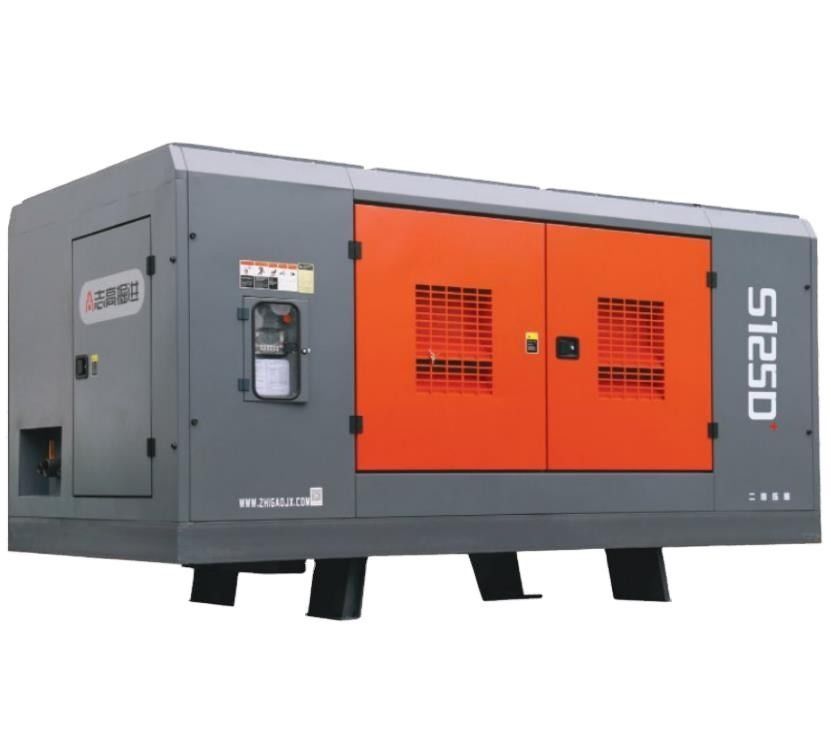

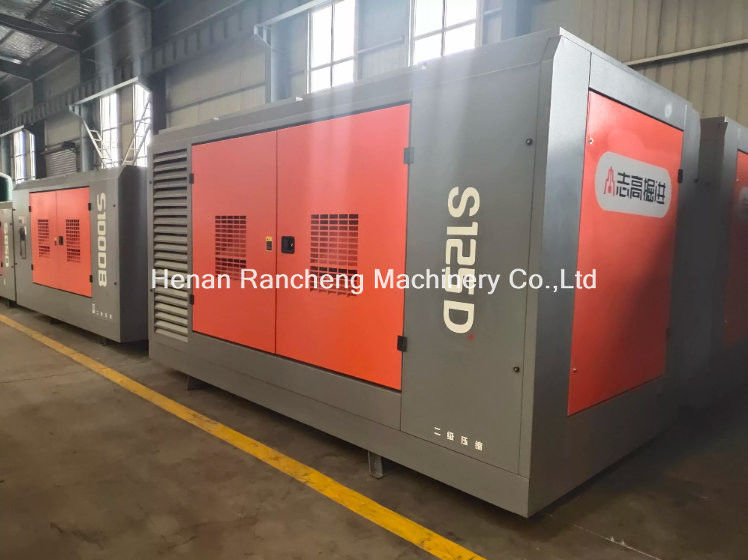

Product Image



S125D Air Compressor with 410KW Cummins Engine for 300-400m Drilling 0S125D Air Compressor with 410KW Cummins Engine for 300-400m Drilling 1S125D Air Compressor with 410KW Cummins Engine for 300-400m Drilling 2

S125D Air Compressor with 410KW Cummins Engine for 300-400m Drilling 3
