RCF500C Water Well Drilling Rig 500m Deep Crawler Water Well New Model
Product Description
The RCF500C ydraulic crawler mounted water well drilling machine widely used in industrial and agriculture water project, testing well and other exploration borehole.
In particular, drilling hole for geothermal heating, it can also meet the engineering basis for reinforcement,
loose gravel drilling rock information connected with a variety of engineering. Our drilling rigs are more efficiency
and with low failure rate, more economic and durable, and with a high comprehensive cost performance.
The RCF500C hydraulic crawler mounted water well drilling machine is an efficient and multifunctional down - the - hole water well drilling equipment, suitable for drilling water wells, agricultural irrigation wells, geothermal wells and other types of wells. It performs particularly well in water intake projects in mountainous areas and rock formations.
Technical Parameters
| Model |
RCF500C |
| Weight(kg) |
11500 |
Drill pipe diameter(mm) |
Φ102 Φ108 Φ114 |
| The hole diameter(mm) |
140-350 |
Drill pipe length(m) |
1.5m 2.0m 3.0m 6.0m |
| Drilling depth(m) |
500 |
Rig lifting force(T) |
26 |
| One-time advance length(m) |
6.6 |
Rapid rise speed(m/min) |
20 |
| Walking speed(km/h) |
2.5 |
Fast feeding speed(m/min) |
40 |
| Climbing angles(Max.) |
30° |
Width of loading(m) |
2.85 |
| Equipped capacitor(kw) |
118 |
Hoisting force of winch(T) |
2 |
| Using air pressure(MPA) |
1.7-3.5 |
Swing torque(N.m) |
7500-10000 |
| Air consumption(m³/min) |
17-42 |
Dimension(mm) |
6200×2200×2650 |
| Swing speed(rpm) |
40-130 |
Equipped with hammer |
Medium and high wind pressure series |
| The penetration efficiency(m/h) |
15-35 |
High leg stroke(m) |
1.7 |
| The engine brand |
Yuchai engine |
Feature:
1.Hydraulic oil pump; parallel transmission design (patent) oil pump single body, power supply adequate distribution
reasonable, hydraulic system unique design, simple maintenance cost small.
2.Used with air compressor, can drill 180M, 200M, 300M, 400M, 500M etc.
3.Usually drilling diameter is 6'', 8'', 10'', 12'', 14'',etc. According to your needs, we can configure the suitable drill pipe,
drill bit and the right model.
4. Power head device; gearbox casting, double motor power supply, torque, durability, maintenance costs are small.
5. Drilling rig chassis; Professional excavator chassis, durable, heavy load bearing, wide chain board, little damage
to hard road surface.
Our service
1. Before the sale, we will serve as your advisor and assistant to ensure you make informed investment decisions:
① Assist you in selecting the equipment model that best suits your needs;
② Design and manufacture products according to your special requirements;
③ Provide you with training technical personnel services.
2. During the sales process, we will provide the following services:
① Conduct pre-acceptance before shipment;
② Help you develop solutions.
3. After the sale, we will provide considerate services to minimize your worries:
① Provide comprehensive after-sales service, our professional engineers can repair machinery for you at home and abroad;
② 24 - hour technical support via email;
③ Provide other necessary technical services.

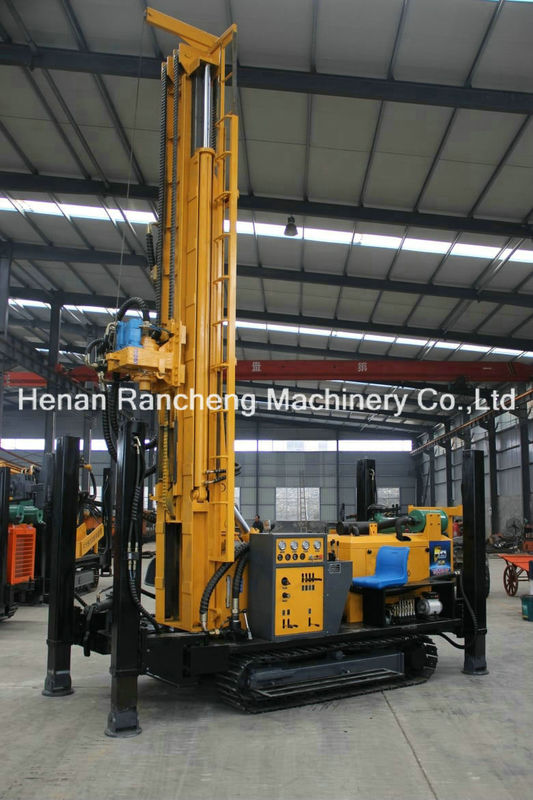

Machine Picture Display
