Powerful 180m Mini Crawler Water Well Drilling Rig with 77.3KW YuChai Engine for Borehole Drilling

Powerful 180m Mini Crawler Water Well Drilling Rig with 77.3KW YuChai Engine for Borehole Drilling

77.3KW Water Well Drilling Rig

Borehole Drilling Water Well Drilling Rig

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCF180S

Contact Us
Request A Quote
Product Details
Model:
RCF180S Mini Well Drilling Rig
Drilling Deep:
180m
Diameter:
90-300mm Diameter
Power:
77.3KW Yuchai Engine
Drilling Method:
Mud Pump, Air Compressor Drilling
Type:
Hydraulic Rubber Crawler Mounted
Push Force:
4T
Highlight:

77.3KW Water Well Drilling Rig

,

Borehole Drilling Water Well Drilling Rig

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
It can be shipped by one 20" container
Delivery Time
10-15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
Product Description

Powerful 180m Mini Crawler Water Well Drilling Rig with 77.3KW YuChai Engine for Borehole Drilling

Machine Description

RCF180S mini well drilling rig is a small crawler water well drilling rig. It can drill up to 180 meters and the diameter is up to 300 mm. This mini well drilling rig has high drilling efficiency, easy operation, energy saving, and durability which is suitable for water well drilling, borehole drilling, farmland irrigation drilling, borehole drilling, etc.

RCF180S water well drilling machine uses a 2-meter-long drill pipe, making it very convenient to load and unload the drill pipe. It is not only suitable for general water well drilling, but also can be used for geothermal wells, ground source heat pump wells and other projects. This drilling rig is easy to operate and has a wide range of applications. It is a small water drilling rig with excellent performance.

Made of high-quality materials and advanced manufacturing processes, mini well drilling rig has a sturdy structure that can withstand harsh drilling conditions and can be used for many years with minimal maintenance.


Technical Parameters


Bore diameter(hammer) 90-300mm
Bore depth 180m
Air consumption 17-31m³/min
Air pressure 1.7-2.5Mpa
Once-time advance length 2.4m
Pipe diameter 76mm/89mm
Pipe length 2m
Push force 4T
Lifting force 15T
Max torque of rotary 4000-4600Nm
Rotary speed 45-65r/min
Mud Pump flow 200L/min (option)
Feeding efficiency 10-35m/h
Travel speed 2.5Km/h
Climb ability 30°
Dimension(L*W*H) 2300×1200×1900mm
weight 2700kg
Diesel engine 77.3KW Yuchai engine


Advantage


This mini water well drilling rig features a low-emission diesel engine and an energy-efficient hydraulic system. This combination not only reduces fuel consumption but also minimizes emissions, offering both environmental protection and cost savings. With its powerful hydraulic system and advanced drilling tools, the rig can drill to a depth of up to 180 meters, making it ideal for small water well projects or home use.

The crawler chassis ensures excellent stability and outstanding maneuverability, allowing the rig to operate smoothly across various challenging terrains and difficult drilling conditions. This design enhances safety and reliability by enabling efficient operation even on uneven ground.

Additionally, the rig is equipped with an ergonomic control panel and an intuitive user interface, which simplifies operation and improves work efficiency. This thoughtful design enhances operator comfort and makes it easy to monitor and manage drilling progress.

Overall, this mini water well drilling rig excels in performance, environmental friendliness, and ease of use, making it an excellent choice for water well drilling projects.



Image Display

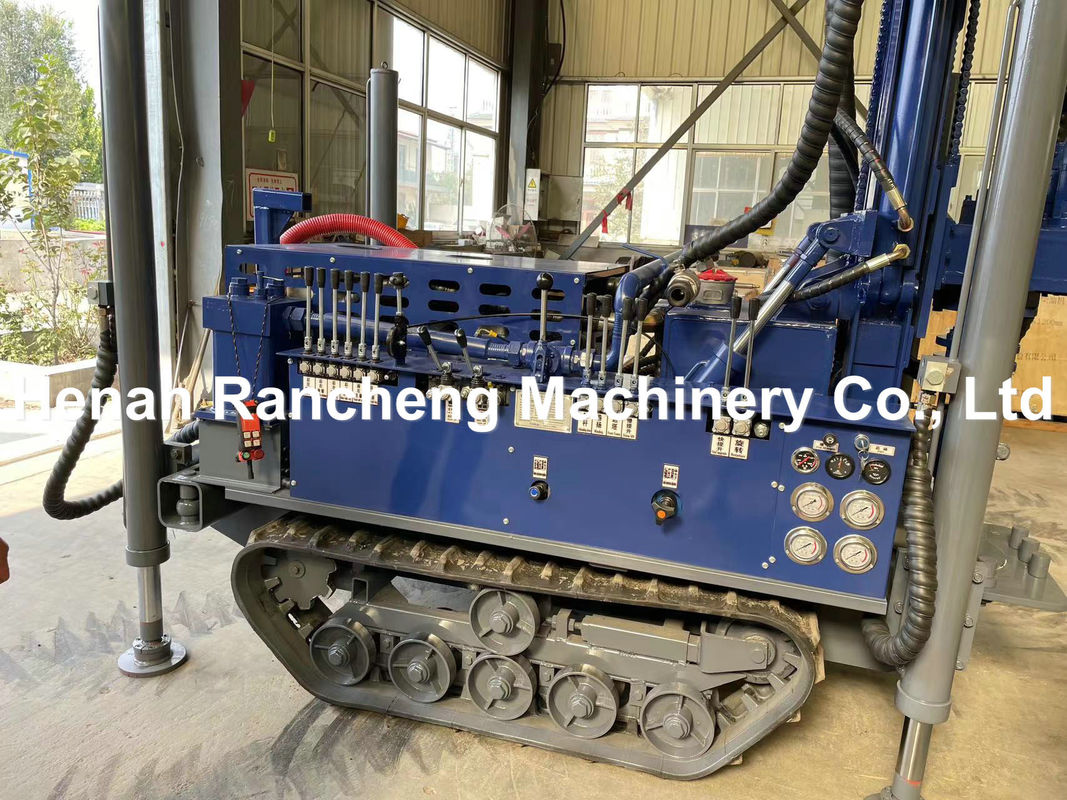

Powerful 180m Mini Crawler Water Well Drilling Rig with 77.3KW YuChai Engine for Borehole Drilling 0

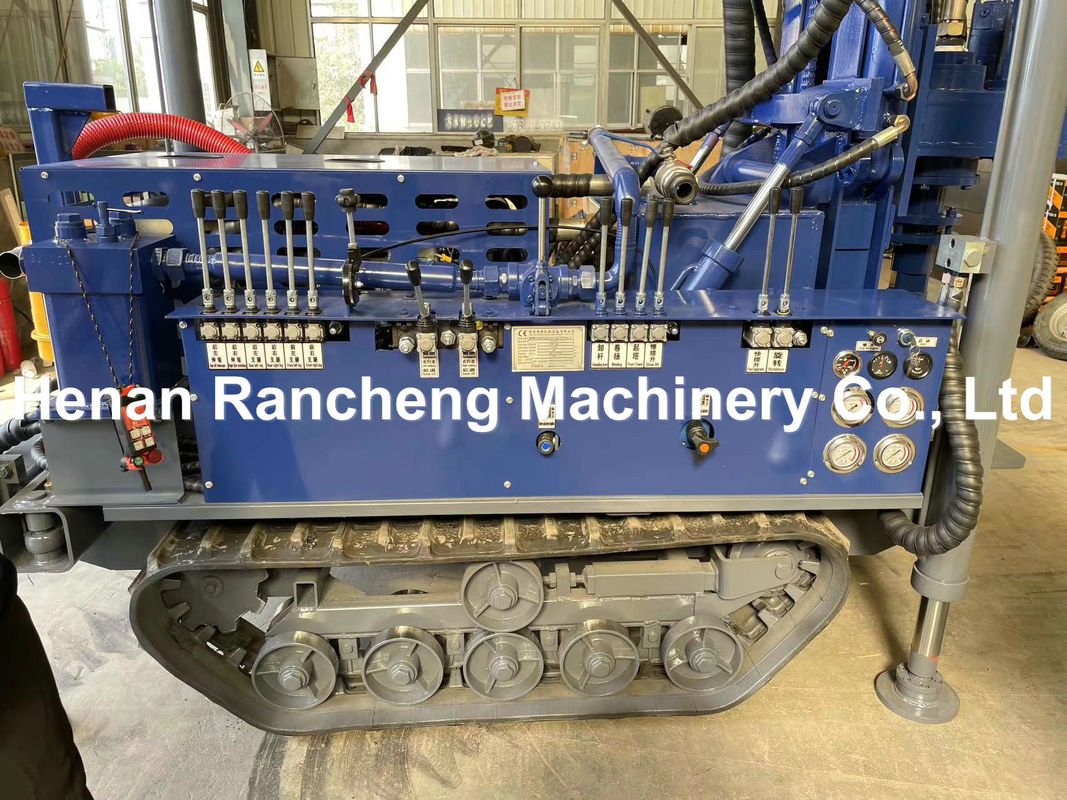

Powerful 180m Mini Crawler Water Well Drilling Rig with 77.3KW YuChai Engine for Borehole Drilling 1

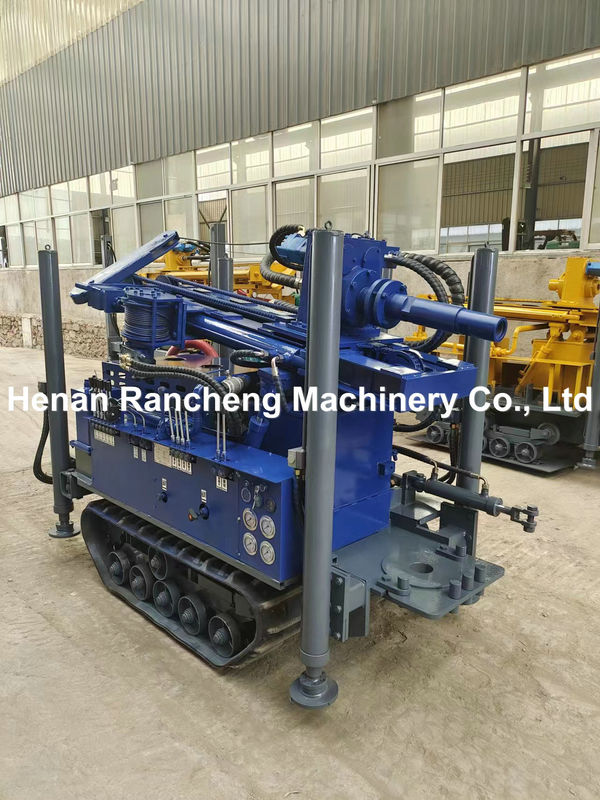

Powerful 180m Mini Crawler Water Well Drilling Rig with 77.3KW YuChai Engine for Borehole Drilling 2

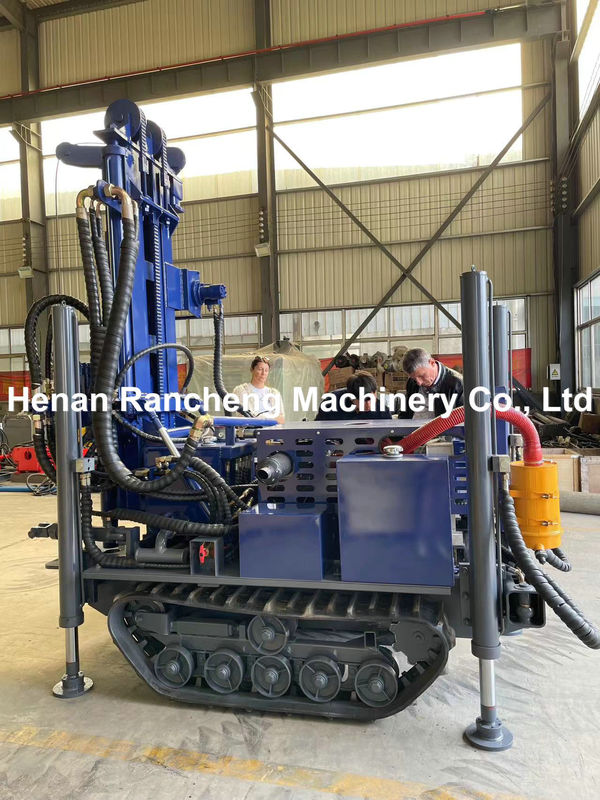

Powerful 180m Mini Crawler Water Well Drilling Rig with 77.3KW YuChai Engine for Borehole Drilling 3

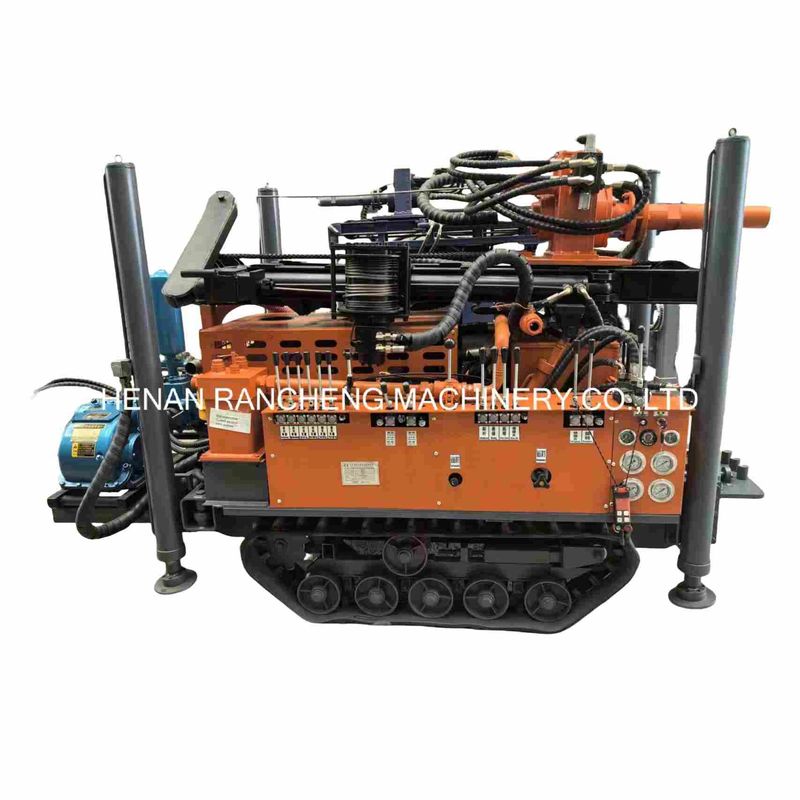

Powerful 180m Mini Crawler Water Well Drilling Rig with 77.3KW YuChai Engine for Borehole Drilling 4
Powerful 180m Mini Crawler Water Well Drilling Rig with 77.3KW YuChai Engine for Borehole Drilling 5

Powerful 180m Mini Crawler Water Well Drilling Rig with 77.3KW YuChai Engine for Borehole Drilling 6
