Name: Portable 150m Small Hydraulic Water Well Drilling Machine Wheel Mounted Rig
Brand: Henan Rancheng Machinery Co., Ltd.
SKU: RCS200P
Availability: InStock

Home > products > Portable Water Well Drilling Machine >

Portable 150m Small Hydraulic Water Well Drilling Machine Wheel Mounted Rig

150m Water Well Drilling Machine

Wheel Mounted Water Well Drilling Machine

Small Water Well Drilling Machine

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCS200P

Request A Quote

Product Details

Name:

Portable Water Well Drilling Machine

Model:

RCS200P

Weight:

1000kg

Drill Rod Length:

1500mm

Rod Change Method:

Full Automatic Screw Thread

Drilling Depth:

150m

Drilling Diameter:

100-450mm

Highlight:

150m Water Well Drilling Machine

Wheel Mounted Water Well Drilling Machine

Small Water Well Drilling Machine

Payment & Shipping Terms

Minimum Order Quantity

Price

Negotiable

Packaging Details

Generally this machine is shipped by LCL shipping

Delivery Time

10-15 working days

Payment Terms

T/T, Western Union

Supply Ability

100sets per Month

Drill Depth 100m Electric Portable Water Well Drilling Rig Main Machine With 22HP Engine

Get Best Price

Video

150m DTH Hydraulic Water Well Drilling Rig Machine Portable Pneumatic trailer Mounted Drilling Rig

Get Best Price

Video

Small Hydraulic Drill Cylinder 160m Depth Water Digger Machine Crawler Mounted Water Well Drilling Rig For Sale

Get Best Price

Video

100m Deep Electric Portable Water Well Drilling Rig With 22 HP Engine 40kg Maximum Load

Get Best Price

Contact Now

Product Description

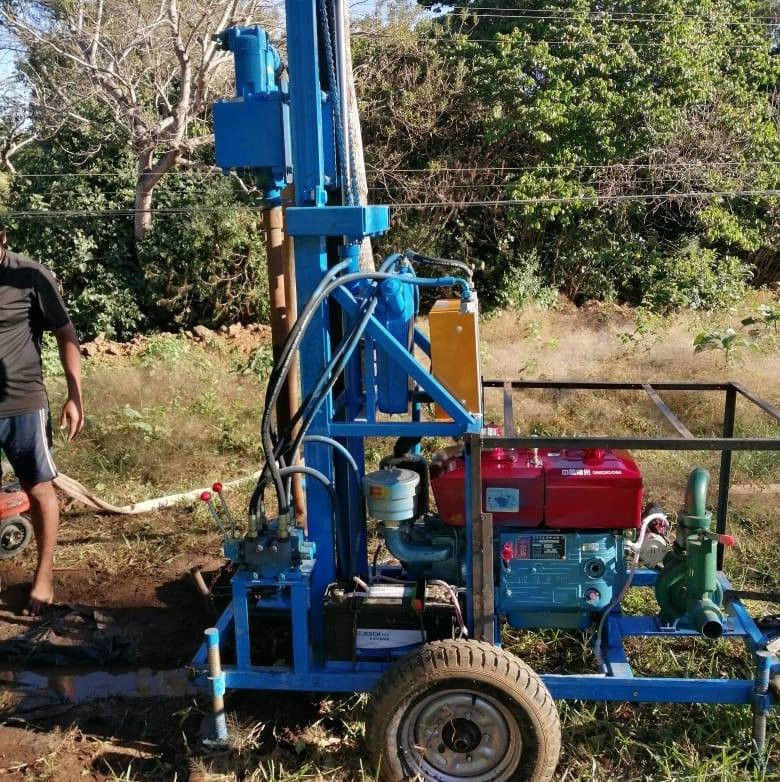

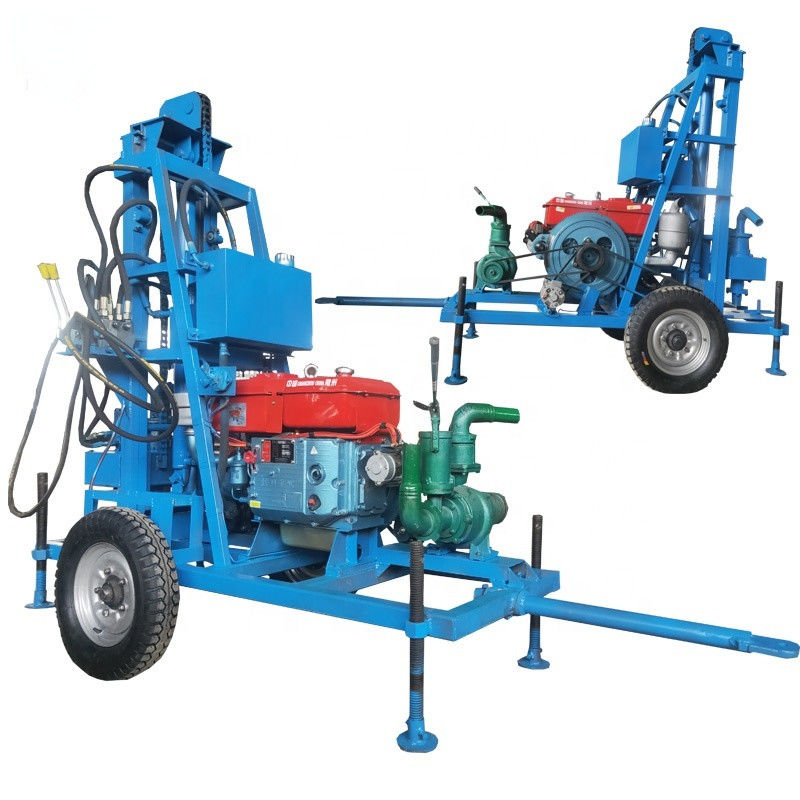

Portable 150m Small Fully Hydraulic Water Well Drilling Rig

Product Description

This RCS200Pwater well drilling rig can drill 70-450mm in diameter and 150m in maximum depth, and can be applied to different strata, such as sand, soil, clay, soft rock, etc. It is mainly suitable for geothermal drilling, farmland irrigation, courtyards, gardens, water well drilling and drilling, etc. It can also be used for piling in small buildings, such as farmhouses or factories.

Features and Advantages

1. Light weight, energy saving.

2. Patented product, unique design and simple drilling structure;

3. Easy to transport and can learn how to handle the machine in short time;

4. Can drill through hard stratum, unless thick rock layer ;

5. One person operation, reduce the labor intensity ;

6. High efficiency and work fast;

7. Assure easily operation and long life service life.

Technical Parameters

Model of drilling machine	RCS200P
Drilling machine overall dimension(mm)	180010002000
Weight of Drilling machine (kg)	1000
Drill rod diameter (mm)	Ø50
Drill rod length(mm)	1500
Rod change method	Full automatic screw thread
Drilling depth(m)	150
Diesel Motor Power (Hp/kw)	22 / 16.2
Drilling method	Percussive and rotating type
Drilling hole diameter(mm)	Within Ø 450mm
Stroke distance (mm)	2000
Hosting capacity (kg)	1500KG


Portable 150m Small Hydraulic Water Well Drilling Machine Wheel Mounted Rig 0

Portable 150m Small Hydraulic Water Well Drilling Machine Wheel Mounted Rig 2

Portable 150m Small Hydraulic Water Well Drilling Machine Wheel Mounted Rig 3
