Name: 200m 300m 400m Water Drilling Machine Automatic Hydraulic Borehole Water Well Drilling Rig
Brand: Henan Rancheng Machinery Co., Ltd.
SKU: RCF400C
Availability: InStock

Home > products > Water Well Drilling Machine >

200m 300m 400m Water Drilling Machine Automatic Hydraulic Borehole Water Well Drilling Rig

Borehole Water Well Drilling Rig

Automatic Hydraulic Water Drilling Machine

400m Water Drilling Machine

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCF400C

Request A Quote

Product Details

Feeding Speed:

0.5-5m/min

Lifting Force:

22T

High Hydraulic Leg:

1.4m

Dimension(L*W*H):

6000×2100×2550mm

Diesel Engine:

92KW Yuchai Engine

Rotary Speed:

66-135r/min

Max Torque Of Rotary:

6200-9000Nm

Highlight:

Borehole Water Well Drilling Rig

Automatic Hydraulic Water Drilling Machine

400m Water Drilling Machine

Payment & Shipping Terms

Minimum Order Quantity

Price

Negotiable

Packaging Details

It can be shipped by one 20" container

Delivery Time

10-15 working days

Payment Terms

T/T, Western Union

Supply Ability

100sets per Month

Max 150 Meters Protable RCF150S Water Well Drilling Machine

Get Best Price

Video

350m Drilling Depth Rubber Caterpillar Track Water Well Drilling Rig Pneumatic Rubber Crawler Drilling Rig

Get Best Price

Video

350m Drilling Depth 91KW Yuchai Engine Water Well Drilling Rig 22T Lifting Force

Get Best Price

Video

Compact And High Efficiency 150 Meter Water Well Drilling Rig

Get Best Price

Contact Now

Product Description

200m 300m 400m Water Drilling Machine Automatic Hydraulic Borehole Water Well Drilling Rig

Machine Introduction

The portable drilling rigs are not only designed for water, they can also be used in all conditions based on pore-forming purpose. This series of water well drilling machine has the characteristics of standardized configuration, compact and reasonable structure, fast drilling speed, economical and durable, low failure rate, etc. It has been recognized by the market once it is launched, and has been widely used in mining engineering construction, civil drilling, geothermal drilling and other fields.
Overall, the RCF400C water well drilling machine is a reliable and efficient drilling machine and is the first choice for all types of drilling projects.

Technical Parameters

Bore diameter(Hammer)	140-350mm
Bore depth	400m
Air consumption	17-36m³/min
Air pressure	1.7-3.5Mpa
Pipe diameter	89mm/102mm
Pipe length	1.5m/2m/3m/6m
Lifting force	22T
Lifting speed	3m/min
feeding speed	0.5-5m/min
Fast lifting speed	20m/min
Fast feeding speed	40m/min
Max torque of rotary	6200-9000Nm
Rotary speed	66-135r/min
Hoist lifting capacity	2T
Mud Pump flow	450L/min (option)
High hydraulic leg	1.4m
Feeding efficiency	15-35m/h
Travel speed	2.5Km/h
Climb ability	30°
Dimension(LWH)	6000×2100×2550mm
Weight	9200Kg
Diesel engine	92KW Yuchai engine
Drilling way	Air compressor drilling or mud pump drilling

Our service

1. Before the sale, we will serve as your advisor and assistant to ensure you make informed investment decisions:
① Assist you in selecting the equipment model that best suits your needs;
② Design and manufacture products according to your special requirements;

2. During the sales process, we will provide the following services:
① Conduct pre-acceptance before shipment;
② Help you develop solutions.

3. After the sale, we will provide considerate services to minimize your worries:
① Provide comprehensive after-sales service, our professional engineers can repair machinery for you at home and abroad;
② 24 - hour technical support via email;
③ Provide other necessary technical services.

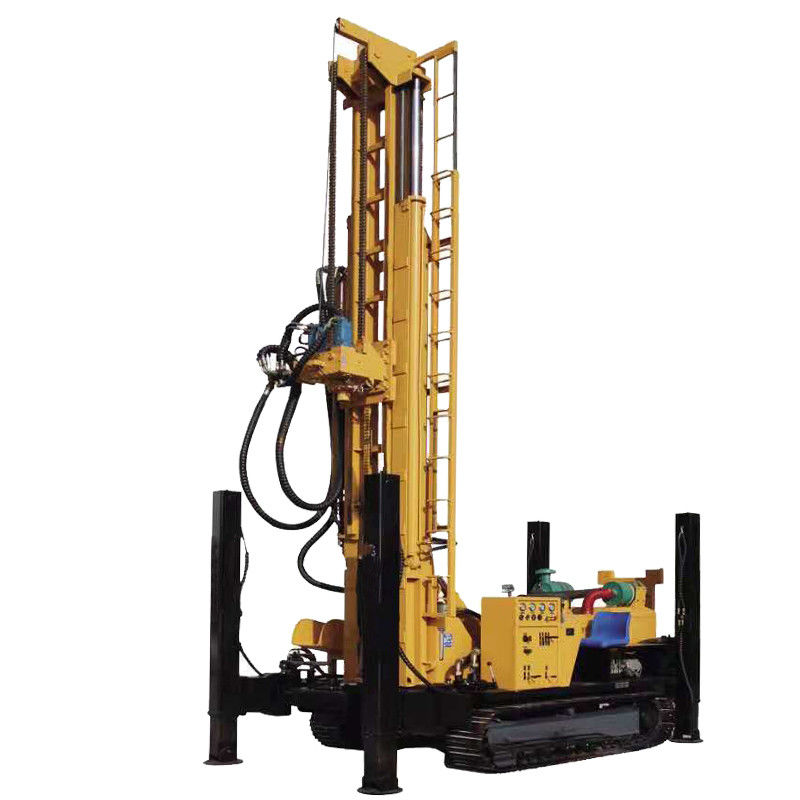

Machine Pictures

200m 300m 400m Water Drilling Machine Automatic Hydraulic Borehole Water Well Drilling Rig 0
