Name: Engineering Equipment RCQ530 Rotary Drilling Rig Crawler Type Machine
Brand: Henan Rancheng Machinery Co., Ltd.
SKU: RCQ530
Availability: InStock

Home > products > Rotary Drilling Rig >

Engineering Equipment RCQ530 Rotary Drilling Rig Crawler Type Machine

RCQ530 Rotary Drilling Rig

Rotary Drilling Rig Crawler Type Machine

Crawler Type Rotary Drilling Rig

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCQ530

Request A Quote

Product Details

Name:

Crawler Type Hydraulic Rotary Drilling Rig

Model:

RCQ530

Drilling Depth:

30m

Drilling Diameter:

500-1500mm

Dimension:

12000X3000X3500mm

The Total Weight:

26T

Diesel Engine:

Cummins 150KW

Max Working Pressure:

28Mpa

Highlight:

RCQ530 Rotary Drilling Rig

Rotary Drilling Rig Crawler Type Machine

Crawler Type Rotary Drilling Rig

Payment & Shipping Terms

Minimum Order Quantity

Price

Negotiable

Packaging Details

It can be shipped by one 40" container

Delivery Time

10-15 working days

Payment Terms

T/T, Western Union

Supply Ability

100sets per Month

RCQ515M Mini Pile Drilling Rig Drilling Depth 15m Hydraulic Small Rotary Drilling Machine

Get Best Price

Video

Hydraulic Compact Mini Rotary Pile Drilling Rig For Small Scale Drilling Operations

Get Best Price

Video

RCQ-10C Hydraulic Mini Pile Drilling Rig 10m Depth With 36KW Kubota Engine Sany SY60C Excavator Chassis

Get Best Price

Video

RCQ-10C Hydraulic Mini Pile Drilling Rig 10m Depth With 10-45RPM R/Min Rotary Speed

Get Best Price

Contact Now

Product Description

High Quality Engineering Equipment RCQ530 Rotary Drilling Rig Crawler Type Machine

Machine Introduction

RCQ530 hydraulic small rotary drilling rig adopt pressurized drilling mode, enabling rotary drilling depth is max 30m. matching the different specifications of drilling tools, pile hole diameter range up to 500-1500mm.

This hydraulic piling rig has high drilling efficiency ,and After construction, It can quickly move to next work site . flexible, convenient and efficient, is a national high-speed rail construction-specific piling machinery equipment.

Technical Parameters

Model	RCQ530
Working mode	Hydraulic oil cylinder pressure
Drilling diameter	Φ500-Φ1500mm
Drilling depth	30m
Kelly bar diameter	340mm
Dimension	12000X3000X3500mm
The total weight	26T
Powerhead max output torque	130KN.m
Rotary speed	10-50r/min
Pressurized oil cylinder max pressure	130KN
Pressurized oil cylinder max lifting force	130KN
Main winch max lifting force	130KN
Main winch max lifting speed	70m/min
Assisting winch max lifting force	30KN
Assisting winch max lifting speed	60m/min
Pressurized oil cylinder max stroke	2500mm
Mast sidewards inclination	±4°
Mast forwards inclination	4°
Max working pressure	30Mpa
pilot pressure	3.5Mpa
Travelling speed	5km/h
Working height	13500mm
Working width	3600mm
Diesel engine power	150KW ,Cummins

Machine Advantages

1,Flexible: the whole tonnage is small, simple operating, moving fast, convenient transition, etc features.

2,High returns: small investment, quick gains, economic advantages can not be replaced.

3,famous brand components ,Cummins engine,Kawasaki hydraulic pump ,HYUNDAI or LONGGONG motor ,Sany rotary reducer,China famous winch

4,power head

This bored piling rig Rotary head is with durable double motor ,with both strength and high speed ,it obtains many advantages in all working conditions ,working efficiency is 50% higher than other similar product

6,chassis

This rotary drilling rig adopts the self-developed hydraulic crawler type professional chassis,makes the machine working more steadily ,realizes 360 degree operation and ensures center balance

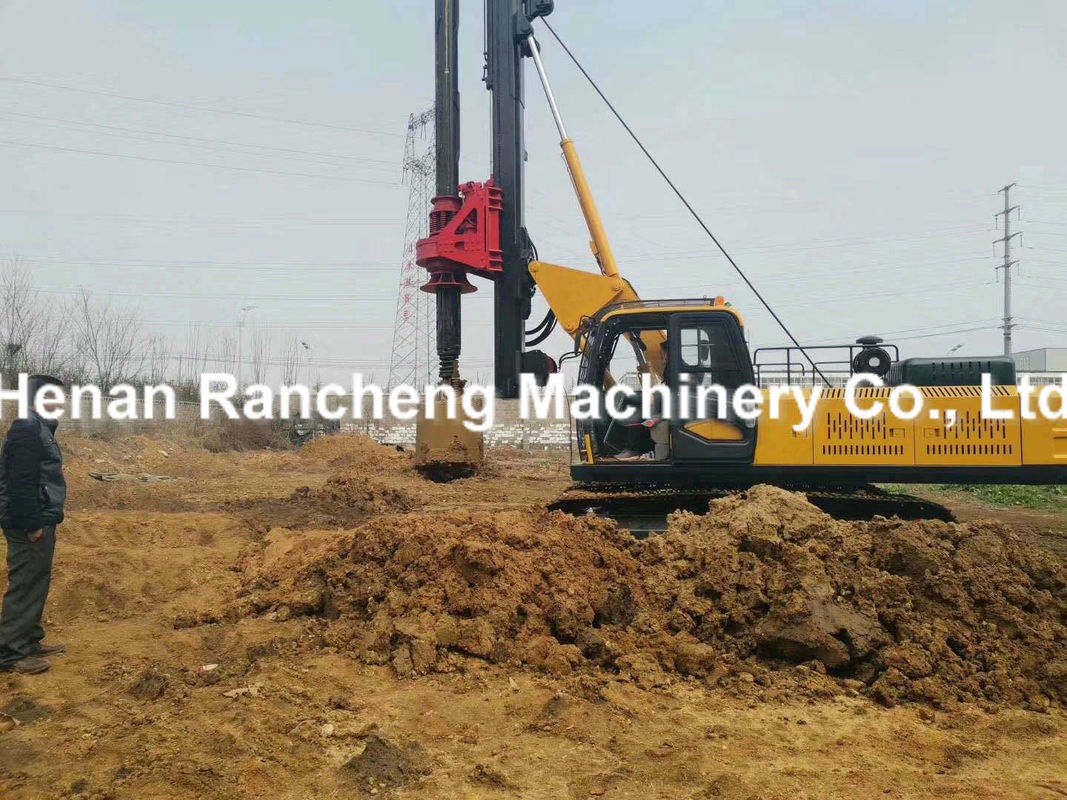

Machine Pictures
