Place of Origin:
China
Brand Name:
RanCheng
Certification:
CE, ISO 9001:2000
Model Number:
RCF350C
High-Performance 350m Bore Depth Crawler-Mounted Water Well Drilling Machine with 91KW Yuchai Engine
Product Description
The RCF350C hydraulic crawler water well drilling machine is built with advanced technology and premium materials, ensuring superior quality and reliability. This rig is user-friendly, offers excellent drilling performance and stability, and is well-suited for water well drilling across various geological conditions. It is competitively priced, offering great value, and has garnered significant customer praise. In European and American markets, its high efficiency and reliability have made it a top seller. The machine accommodates a wide range of drilling diameters, catering to diverse project needs. Additionally, its top rotary drive design allows for use with mud pumps and air compressors, enhancing the efficiency and versatility of drilling operations.
Technical Parameters
Model | RCF350C |
Bore diameter(Hammer) | 140-350mm |
Bore depth | 350m |
Air consumption | 17-35m³/min |
Air pressure | 1.7-3.5Mpa |
Pipe diameter | 89mm/102mm |
Pipe length | 1m/2m/3m/6m |
Lifting force | 22T |
Lifting speed | 3m/min |
feeding speed | 0.5-5m/min |
Fast lifting speed | 30m/min |
Fast feeding speed | 50m/min |
Max torque of the rotary | 6200-8500Nm |
Rotary speed | 55-115r/min |
Hoist lifting capacity | 2T |
Mud Pump flow | 450L/min (option) |
High hydraulic leg | 1.5m |
Feeding efficiency | 10-35m/h |
Travel speed | 2.5Km/h |
Climb ability | 30° |
Dimension(L*W*H) | 6000×2000×2550mm |
Weight | 8600Kg |
Diesel engine | 91KW Yuchai engine |
Drilling way | Air compressor drilling or mud pump drilling |
Operating system | Full hydraulic operation |
After service
We offer 24 / 7 online chat and phone support to ensure you're always ready for help. In addition, we also provide lifetime free technical support, as well as overseas services, if you need it, we can send engineers to your site to provide support.

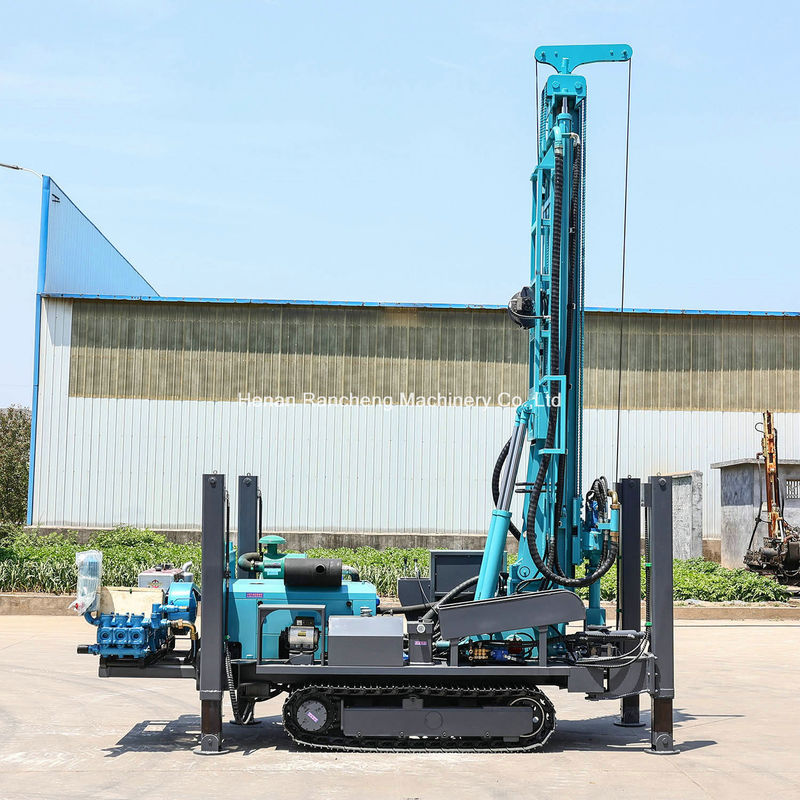

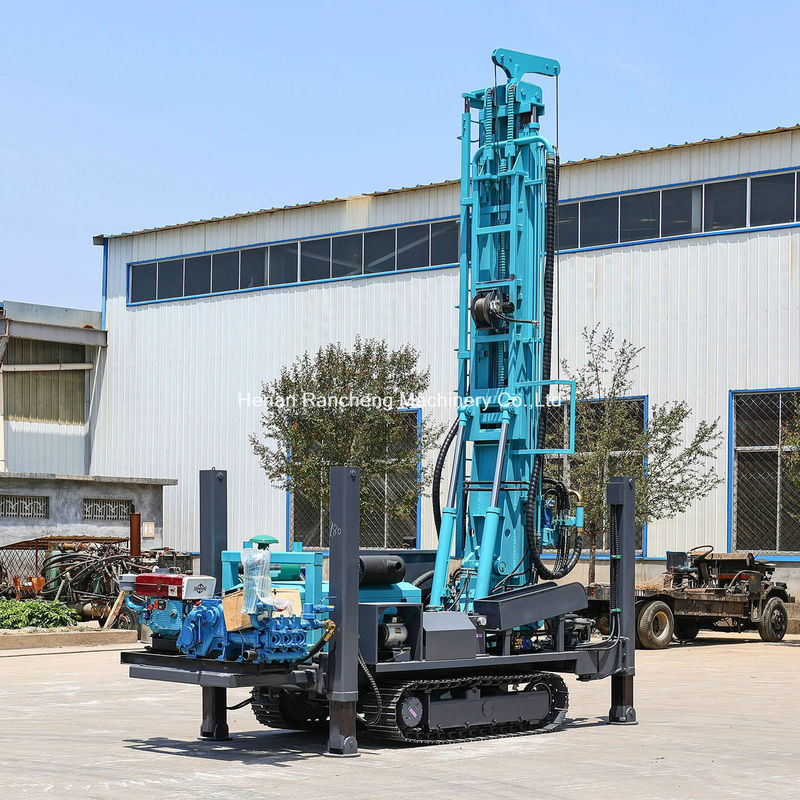

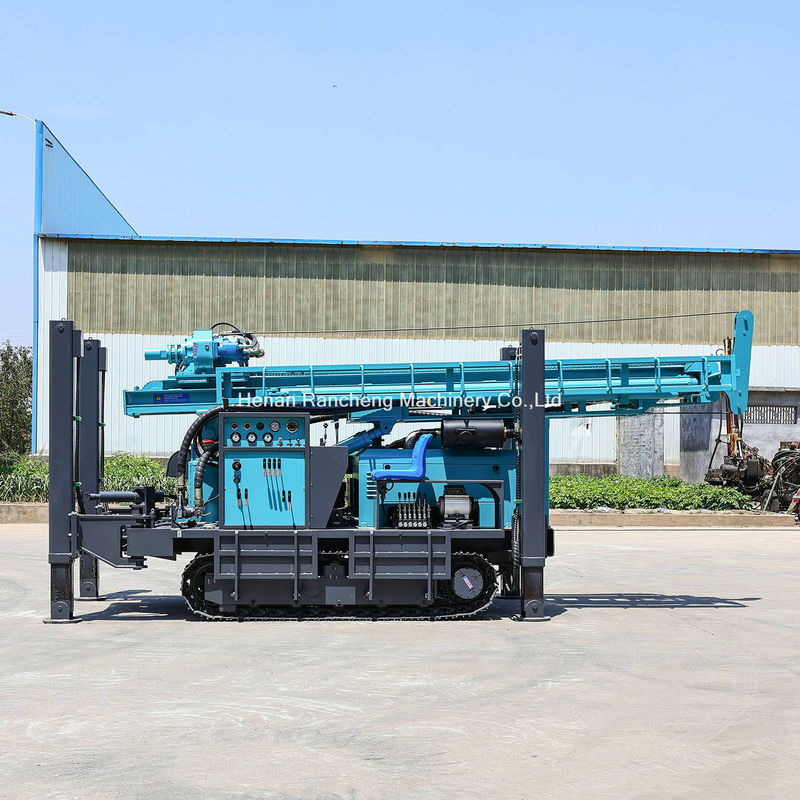

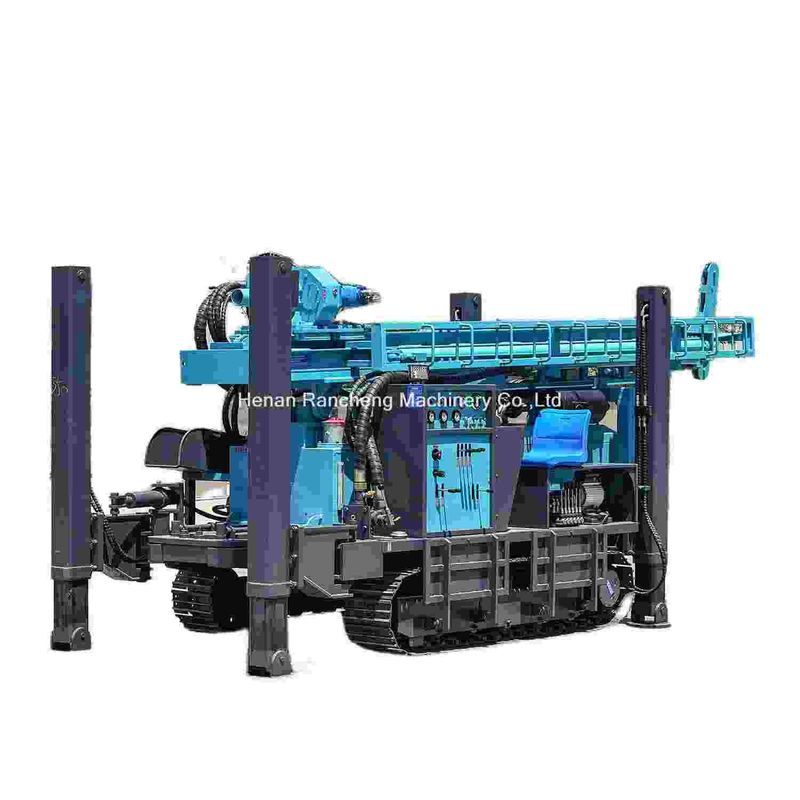

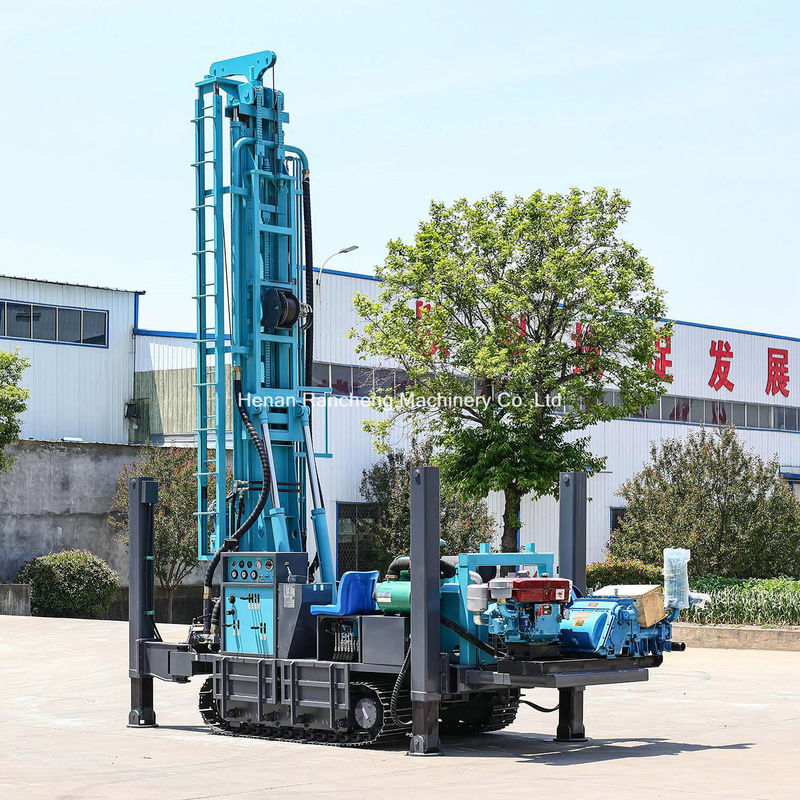

Machine picture display
Company Information
Henan Rancheng Machinery Co.,LTD is one professional supplier drilling rigs in China ,we are dedicated in designing and manufacture water well drilling rig ,rotary drilling rig ,anchor drilling rig ,core drilling rig,DTH drilling rig ,solar pile driver,mud pump ,air compressor and drilling tools etc,we have advanced technology ,Modern equipment, first-class team and rich experience ,our products passed ISO9001 ,CE etc certificated ,they are exported to around 200 countries and areas in the world ,get very good feedbacks from our clients.
We Pursue the principle of "Customer First, Integrity First", we are sincerely expecting to cooperate with you!!!
