RCS200C Crawler Mounted 150m Portable Small Rotary Water Well Drilling Rig

RCS200C Crawler Mounted 150m Portable Small Rotary Water Well Drilling Rig

Small Rotary Water Well Drilling Rig

150m Portable Water Well Drilling Rig

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCS200C Portable Water Well Drilling Machine

Contact Us
Request A Quote
RCS200C Crawler Mounted 150m Portable Small Rotary Water Well Drilling Rig
RCS200C Crawler Mounted 150m Portable Small Rotary Water Well Drilling Rig RCS200C Crawler Mounted 150m Portable Small Rotary Water Well Drilling Rig RCS200C Crawler Mounted 150m Portable Small Rotary Water Well Drilling Rig
Product Details
Name:
Portable Water Well Drilling Machine
Model:
RCS200C
Drill Rod Length:
1500mm
Bore Deep:
150m
Drilling Diameter:
With 400mm
Highlight:

Small Rotary Water Well Drilling Rig

,

150m Portable Water Well Drilling Rig

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
Standard shipping
Delivery Time
10-15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
RELATED PRODUCTS
Good price Drill Depth 100m Electric Portable Water Well Drilling Rig Main Machine With 22HP Engine online Video

Drill Depth 100m Electric Portable Water Well Drilling Rig Main Machine With 22HP Engine

Get Best Price
Good price 150m DTH Hydraulic Water Well Drilling Rig Machine Portable Pneumatic trailer Mounted Drilling Rig online Video

150m DTH Hydraulic Water Well Drilling Rig Machine Portable Pneumatic trailer Mounted Drilling Rig

Get Best Price
Good price Small Hydraulic Drill Cylinder 160m Depth Water Digger Machine Crawler Mounted Water Well Drilling Rig For Sale online Video

Small Hydraulic Drill Cylinder 160m Depth Water Digger Machine Crawler Mounted Water Well Drilling Rig For Sale

Get Best Price
Good price 100m Deep Electric Portable Water Well Drilling Rig With 22 HP Engine 40kg Maximum Load online Video

100m Deep Electric Portable Water Well Drilling Rig With 22 HP Engine 40kg Maximum Load

Get Best Price
Contact Us
Contact Now
Product Description

RCS200C Crawler Mounted 150m Portable Small Rotary Water Well Drilling Rig



Product Description



This water well drilling rig is mainly suitable for geothermal drilling, farmland irrigation, house courtyard, garden, water well drilling and drilling, etc. It can drill holes with a diameter of 70-450 mm and a maximum depth of 150 meters. It can also be used for piling in small buildings, such as farmhouses or factories, with a drilling diameter of up to 450 mm. It can be applied to different strata, such as sand, soil, clay, soft rock, etc.



Product Specifications



Model of drilling machine RCS200C
Walking way Rubber crawler mounted
Drilling machine overall dimension(mm) 2300*1080*2000
Weight of Drilling machine (kg) 800
Drill rod diameter (mm) Ø50
Drill rod length(mm) 1500
Rod change method Full automatic screw thread
Drilling depth(m) 150
Diesel Motor Power (Hp/kw) 22/16.2
Drilling method Percussive and rotating type
Drilling hole diameter(mm) Within Ø 450mm
Stroke distance (mm) 2000
Hosting capacity (kg) 1500



Product Features



1, It is 25HP diesel engine, very convenient to work in where is no electric.

2, It drill max 100-150m depth, max 450mm diameter, small machine, but big drilling capacity.

3, It is hydraulic operation system, very easy to operate, one person can operate it, save labor.



Product Image

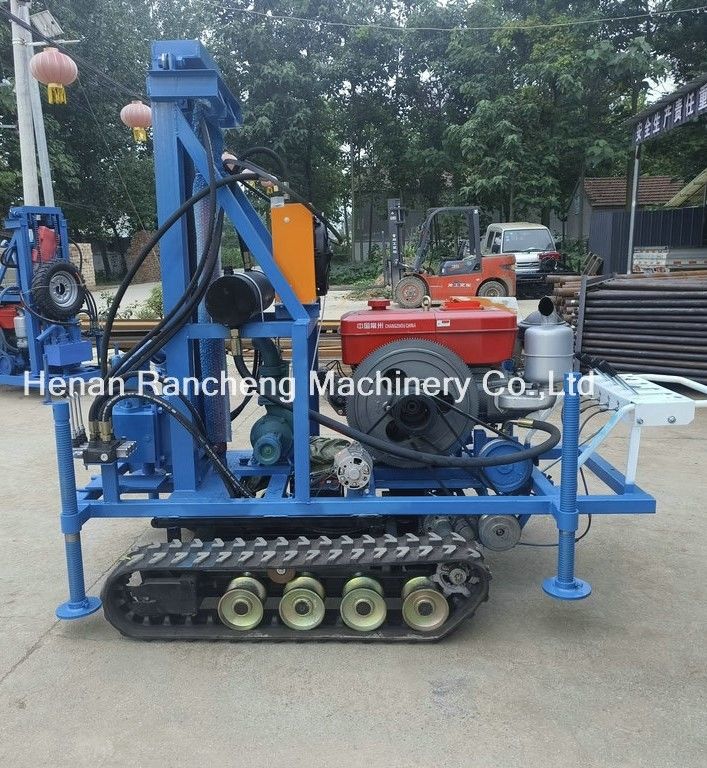

RCS200C Crawler Mounted 150m Portable Small Rotary Water Well Drilling Rig 0

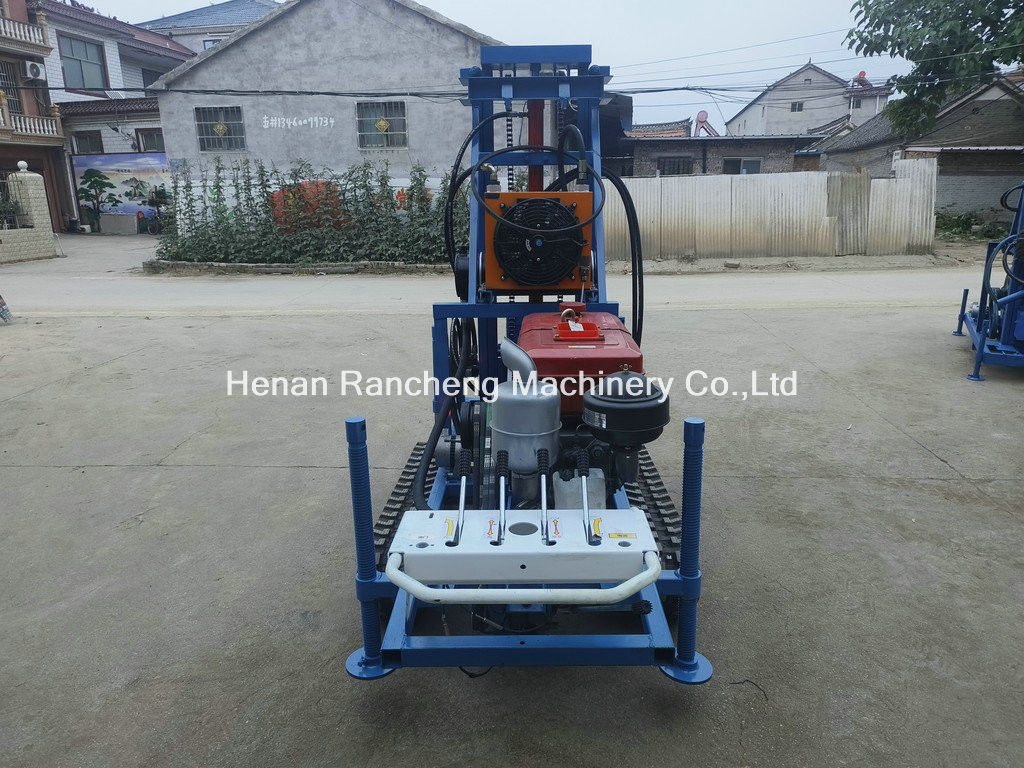

RCS200C Crawler Mounted 150m Portable Small Rotary Water Well Drilling Rig 1

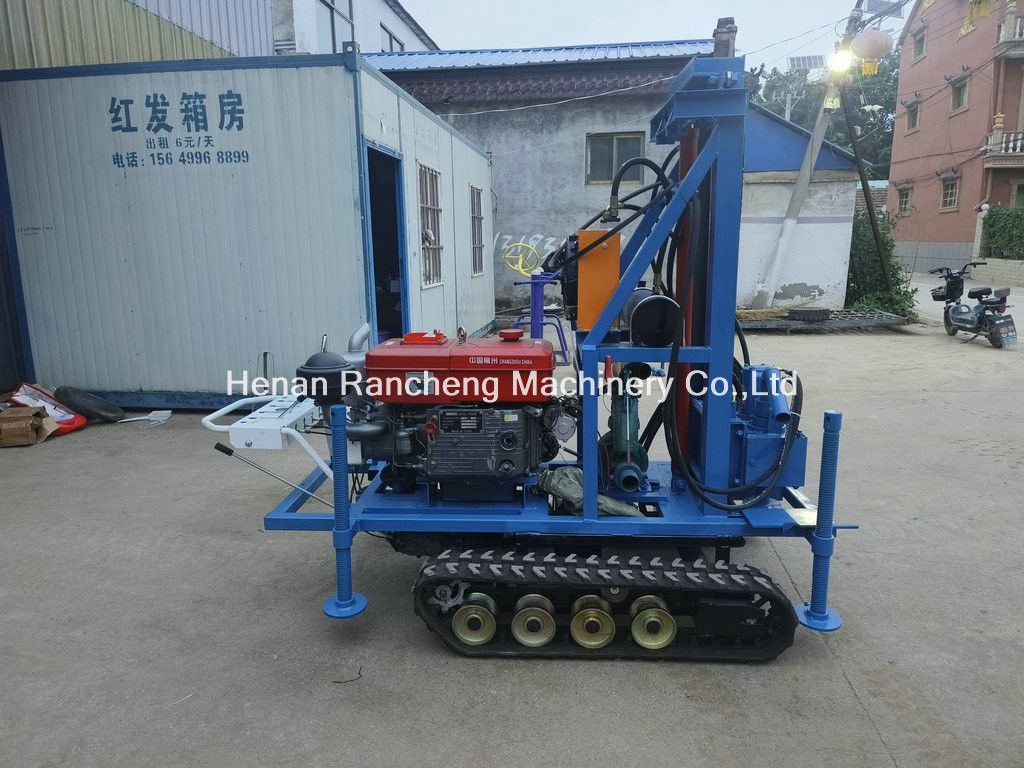

RCS200C Crawler Mounted 150m Portable Small Rotary Water Well Drilling Rig 2
