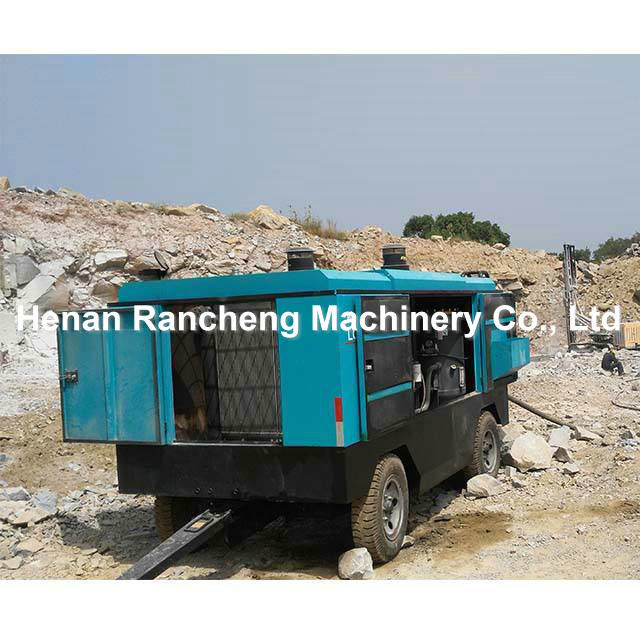

25-27m³/Min Air Capacity LGCY Two-Stage Diesel Screw Type Air Compressor For Jack Hammer/Drilling Rig
Product Description:
LGCY-25/23-27/18K is a powerful, fuel-efficient portable screw air compressor suitable for high-performance operations in abrasive blasting, construction and mining, with advanced filtration, cooling and oil-gas separation systems for reliable use in harsh environments. It adopts a triple oil-gas separation system to reduce the impact of too much or too little oil in the separator on the oil content of the compressed air. Clean compressed air is conducive to the safe operation of the host equipment.
Specific performance:
1.SKY Patented screw host
Patented rotor profile, maximum efficiency, heavy duty design, SKY bearing, direct drive, principle skills, innovative design.
2.Special engine strong power
Equipped with Cummins 360HP heavy-duty special diesel engines, to achieve the best combustion state in the whole range of engine operation, so that the product has higher reliability, stronger power, better fuel economy.
3.Multiple air filtration systems
Effectively prevent the impact of harsh dust environment on the engine, the precision filter layer of the main air filter filters the remaining dust to ensure that the machine does not wear, and the safety filter element can make the machine do not stop the air filter maintenance to ensure the safe operation of the machine.
4.Efficient cooling system
Independent oil, water and air coolers with large diameter fan design for cold and hot weather.
5.Triple oil-gas separation system
Reduce the impact of too much or too little oil in the separator on the oil content of the compressed air, clean compressed air is conducive to the safe operation of the courage equipment.
6.Low temperature starting system (optional)
The pump of the fuel heater pumps the coolant in the engine body to the heat exchange, the oil pump pumps the fuel in the tank to the burner and burns, through the continuous circulation of heat transfer, so that the temperature of the coolant and the lubricating oil of the whole machine continues to increase, to ensure the starting performance of the diesel engine in the cold and plateau environment.
Technical Parameters:
| Model |
LGCY-25/23-27/18K
|
| Weight of complete machine |
4500KG
|
| Outer dimensions |
4600×1950×2650mm |
| Working pressure |
2.3-1.8 Mpa
|
| Air Consumption |
25-27 m³/min
|
| Matching engine power |
Cummins 360HP |
| Supply valve Specification × Quantity |
G2∗1,G¾∗1 |
Applications:
LGCY Series Portable Screw Air Compressor are designed for a variety of segments like abrasive sandblasting, construction and mining where they are used to drive heavy pneumatic tools like jack hammer, pavement breaker, chipping hammer, pneumatic pumps, down-the-Hole drills, drilling rigs, water well drilling, sand blasting etc.
FAQ:
Q:Are you the manufacturer?
A: Yes, we are the factory with more than 10 years of manufacturing experience.
Q:What is the warranty of our machine?
A:Our main machine enjoys a 1 year warranty. And we provide videos for machine install and operation.
Q: How long is your delivery time?
A: About 10-15 work days after receipt of the payment.
Q:How do you make our business long-term and good relationship?
A:We keep good quality and competitive price to ensure our customers benefits;
Q:Do you have any certificates for your machine?
A: All of our products coming with the certificates of CE and ISO 9001:2000.
