Place of Origin:
China
Brand Name:
RanCheng
Certification:
CE, ISO 9001:2000
Model Number:
RCF350C
Efficiency and Reliability Depth 350m Crawler Mounted Water Well Drilling Machine with 91KW Yuchai Engine
Product Description
The RCF350C hydraulic crawler water well drilling machine is engineered with cutting-edge technology and premium materials, ensuring exceptional quality and reliability. Designed for ease of use, it delivers outstanding drilling performance and stability, making it ideal for water well drilling in diverse geological conditions. Competitively priced, the RCF350C offers excellent value and has received widespread acclaim from customers. In the European and American markets, its high efficiency and reliability have made it a top seller. The machine supports a wide range of drilling diameters, meeting the needs of various projects. Additionally, its top rotary drive design is compatible with both mud pumps and air compressors, further enhancing the efficiency and versatility of drilling operations.
Technical Parameters
Model | RCF350C |
Bore diameter(Hammer) | 140-350mm |
Bore depth | 350m |
Air consumption | 17-35m³/min |
Air pressure | 1.7-3.5Mpa |
Pipe diameter | 89mm/102mm |
Pipe length | 1m/2m/3m/6m |
Lifting force | 22T |
Lifting speed | 3m/min |
feeding speed | 0.5-5m/min |
Fast lifting speed | 30m/min |
Fast feeding speed | 50m/min |
Max torque of the rotary | 6200-8500Nm |
Rotary speed | 55-115r/min |
Hoist lifting capacity | 2T |
Mud Pump flow | 450L/min (option) |
High hydraulic leg | 1.5m |
Feeding efficiency | 10-35m/h |
Travel speed | 2.5Km/h |
Climb ability | 30° |
Dimension(L*W*H) | 6000×2000×2550mm |
Weight | 8600Kg |
Diesel engine | 91KW Yuchai engine |
Drilling way | Air compressor drilling or mud pump drilling |
Operating system | Full hydraulic operation |
After service
We offer 24 / 7 online chat and phone support to ensure you're always ready for help. In addition, we also provide lifetime free technical support, as well as overseas services, if you need it, we can send engineers to your site to provide support.

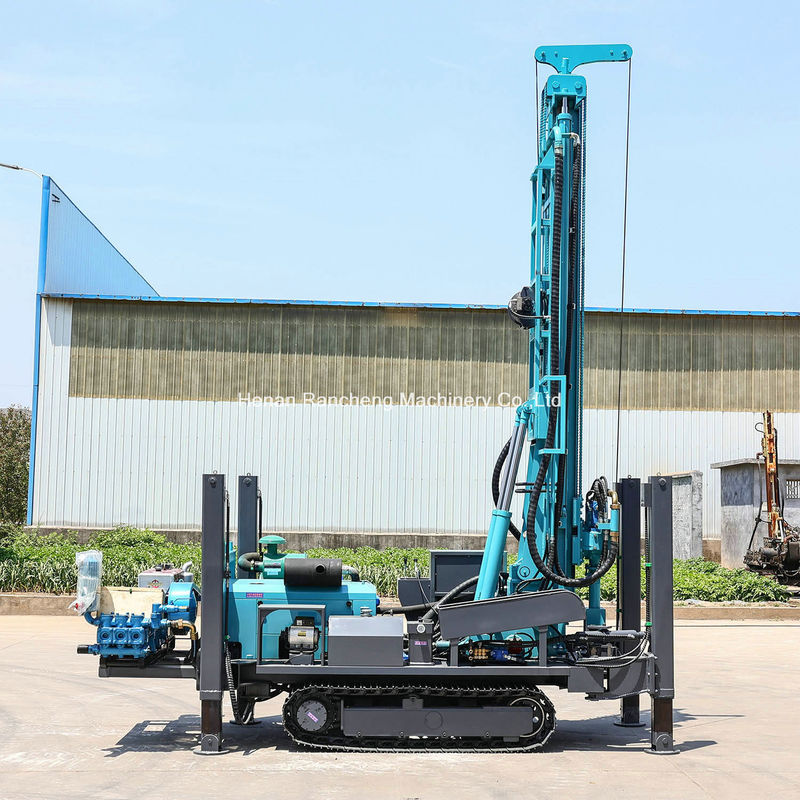

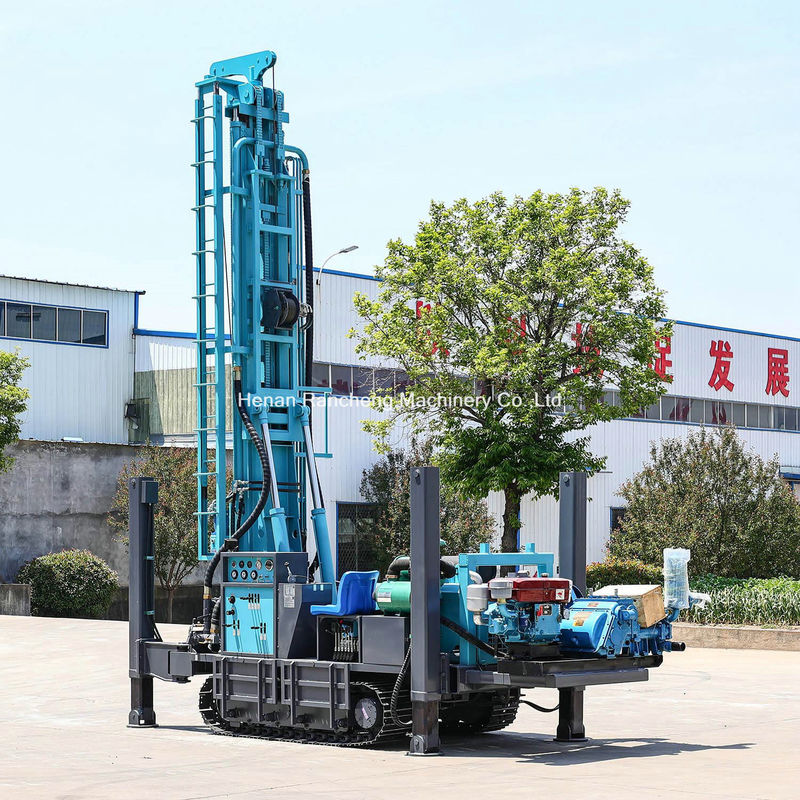

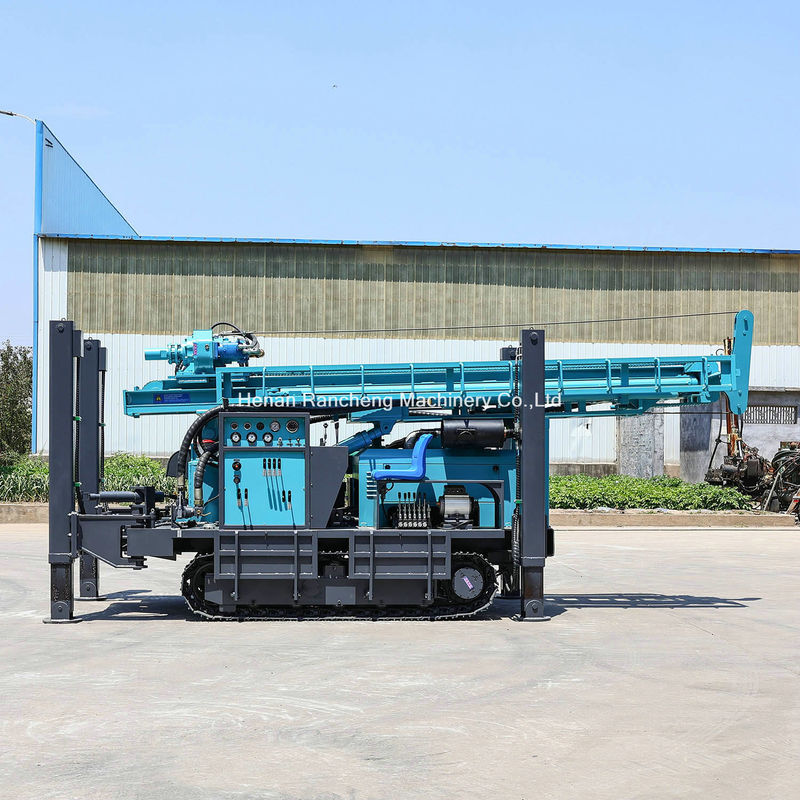

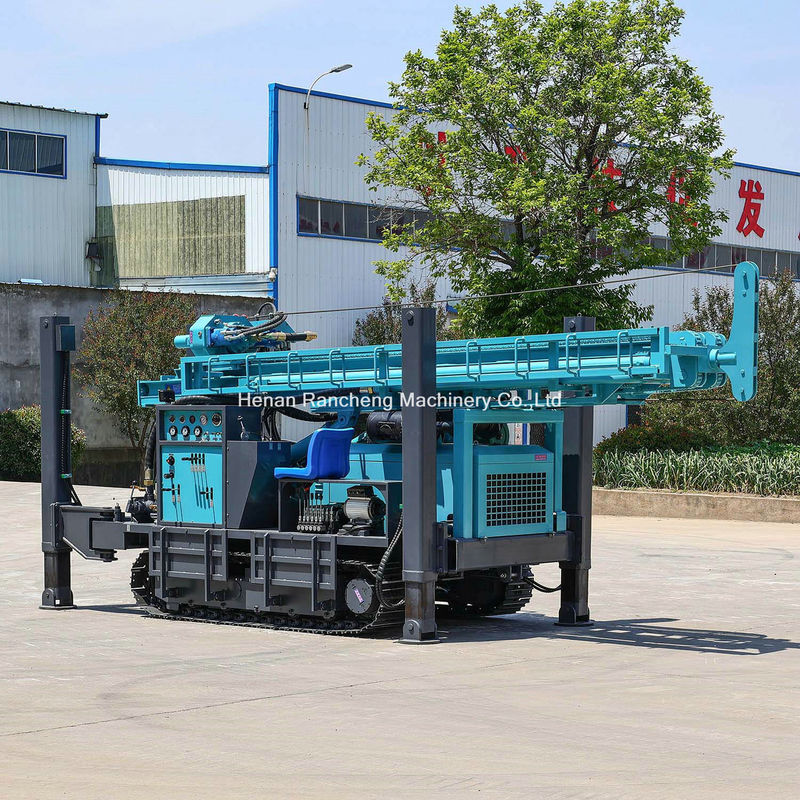

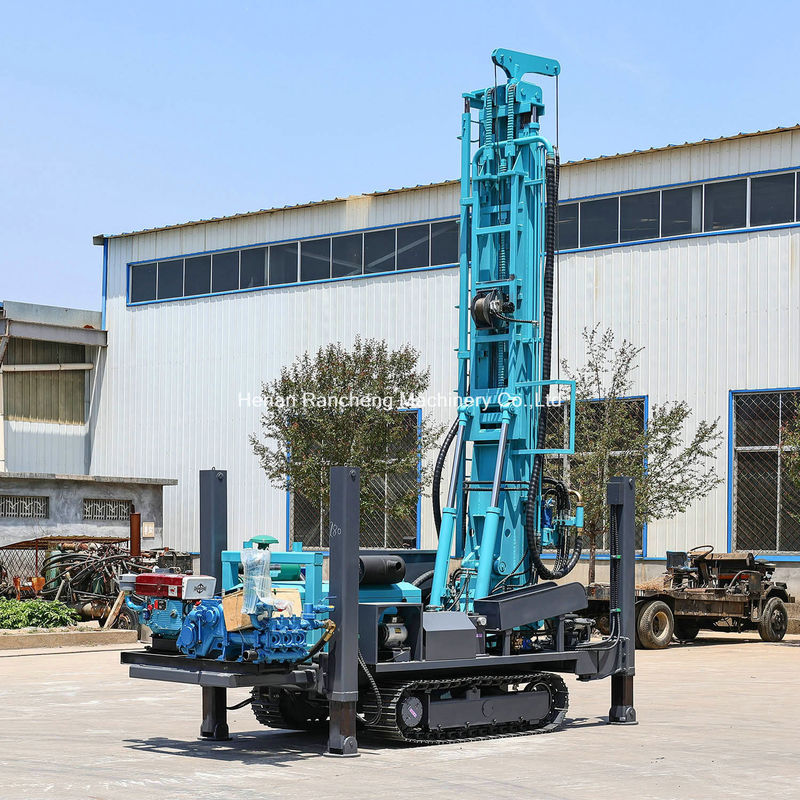

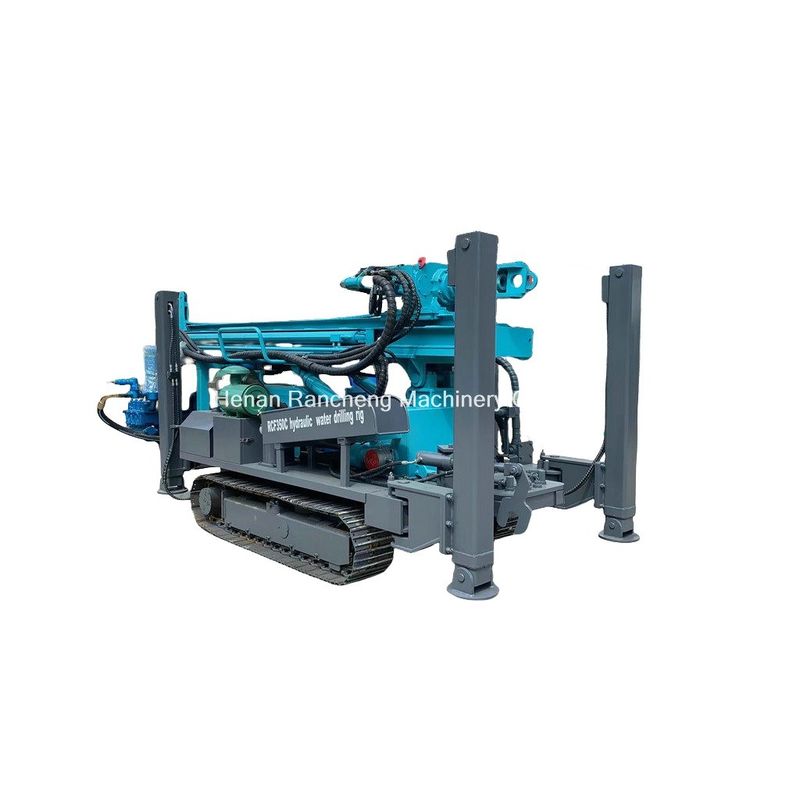

Machine picture display
Company Information
Henan Rancheng Machinery Co.,LTD is one professional supplier drilling rigs in China ,we are dedicated in designing and manufacture water well drilling rig ,rotary drilling rig ,anchor drilling rig ,core drilling rig,DTH drilling rig ,solar pile driver,mud pump ,air compressor and drilling tools etc,we have advanced technology ,Modern equipment, first-class team and rich experience ,our products passed ISO9001 ,CE etc certificated ,they are exported to around 200 countries and areas in the world ,get very good feedbacks from our clients.
We Pursue the principle of "Customer First, Integrity First", we are sincerely expecting to cooperate with you!!!
