BW450 Horizontal Three Cylinder Reciprocating Single Acting Piston Pump For Water And Mining Drilling

BW450 Horizontal Three Cylinder Reciprocating Single Acting Piston Pump for Water and Mining Drilling

Machine Introduction

BW450 / 5 diesel engine mud pump is a powerful and durable device for deep well drilling, with a displacement of 450 litres per minute and a maximum operating pressure of 5 mpa, powered by a 28 HP diesel engine. This horizontal three - cylinder reciprocating single - action mud pump can provide flushing fluids for core drilling or hole drilling. It can discharge clean water and thick mud. Because of its small size and light weight, it is particularly suitable for mountain transport. With three holes and four speeds, the BW450 / 5 mud pump can adjust the displacement and hole depth according to the actual needs, and is also suitable for cement filling. The mud pump is widely used for pumping abrasive and high density slurries in mining, heavy industry, civil construction and municipal applications.

Technical Parameters

Machine Advantages

BW450 type mud pump is horizontal on triplex reciprocating single

This mud pump is horizontal tri-cylinder dual role penthouse Detroit piston pump. It is mainly used to supply flushing fluid to the drilling well in core drilling or hole drilling. The pump can discharge not only clear water, but also thick mud. And for the specialty of small external dimension, light weight, the pump is suitable for transportation in mountain.

BW450/5 type mud pump has three bore and four gear speed. Displacement and hole depth can be adjusted according to the application,it also can be used cement perfusion.

Drilling rig and mud pump application range:

1.Projects: Construction drilling of the projects e.g. prospection, geotechnical investigation(geological exploring), railway, road, port, bridge, water conservancy and hydropower, tunnel, well, industrial and civil construction;
2. Exploration: Coal mining exploration, Ore exploration;
3. Water well : Small hole diameter water well drilling;
4. Pipe-installing : Geothermal pipe-installing for heat pump;
5. Foundation piling: Small-diameter hole foundation piling drilling.

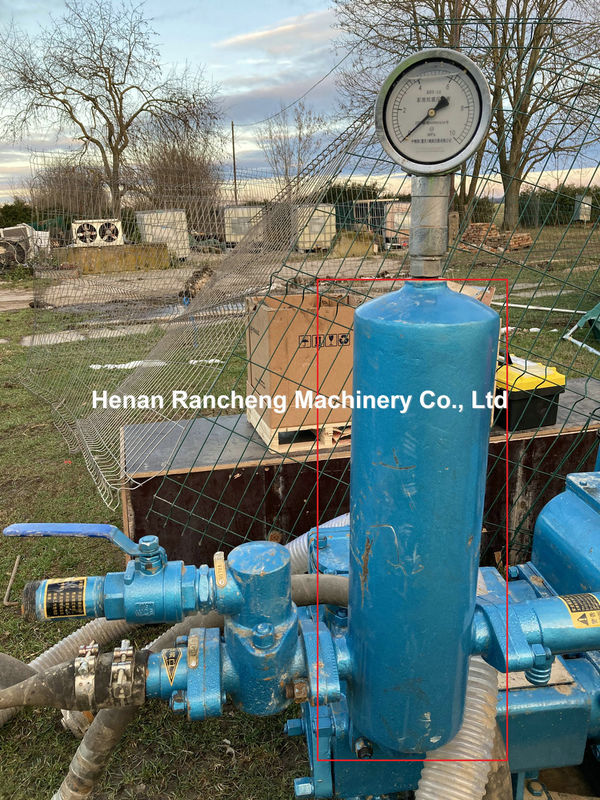

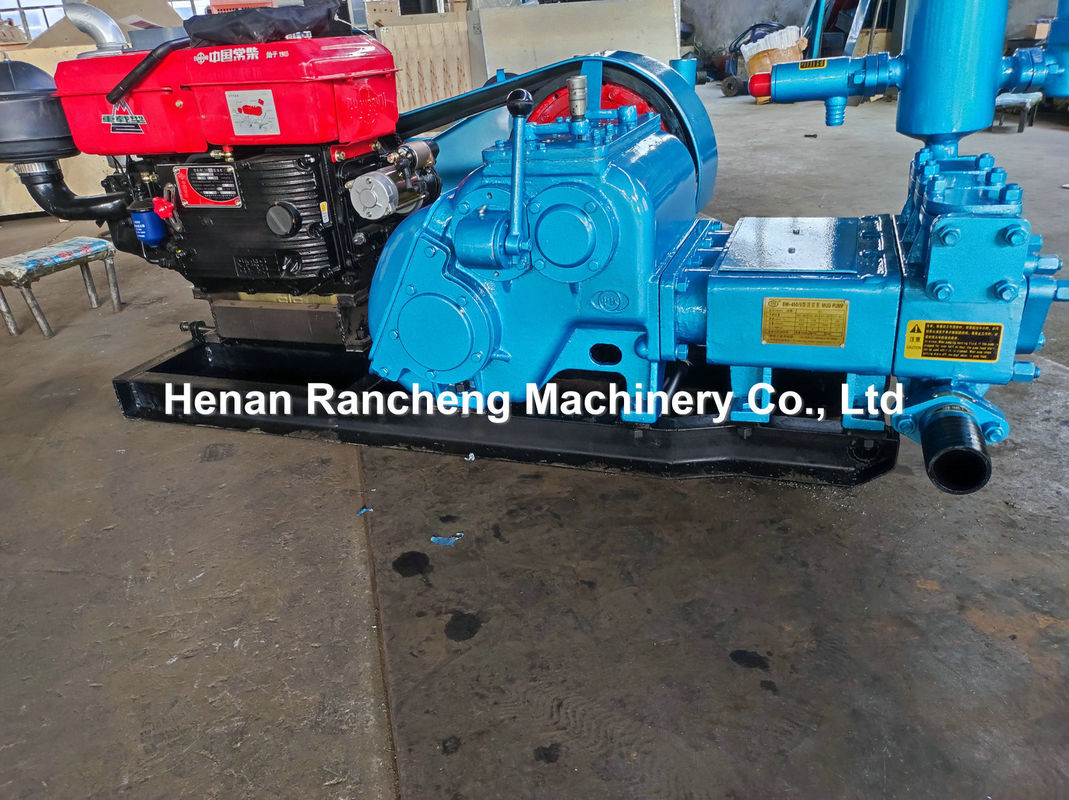

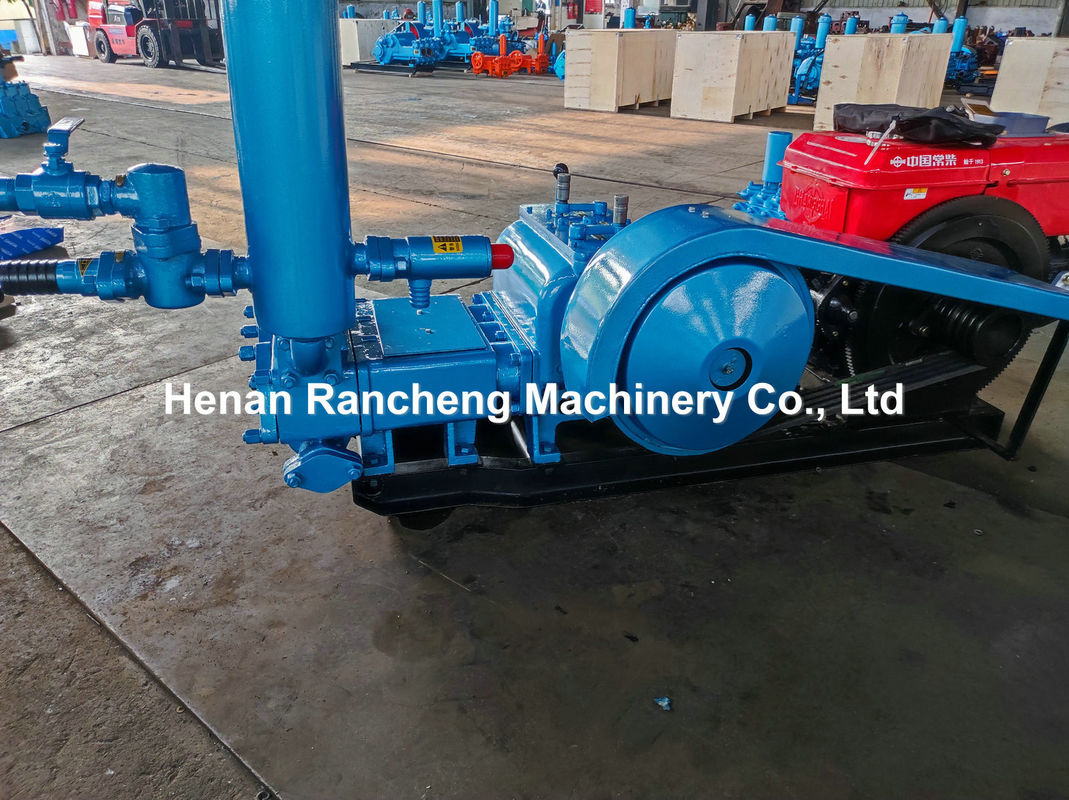

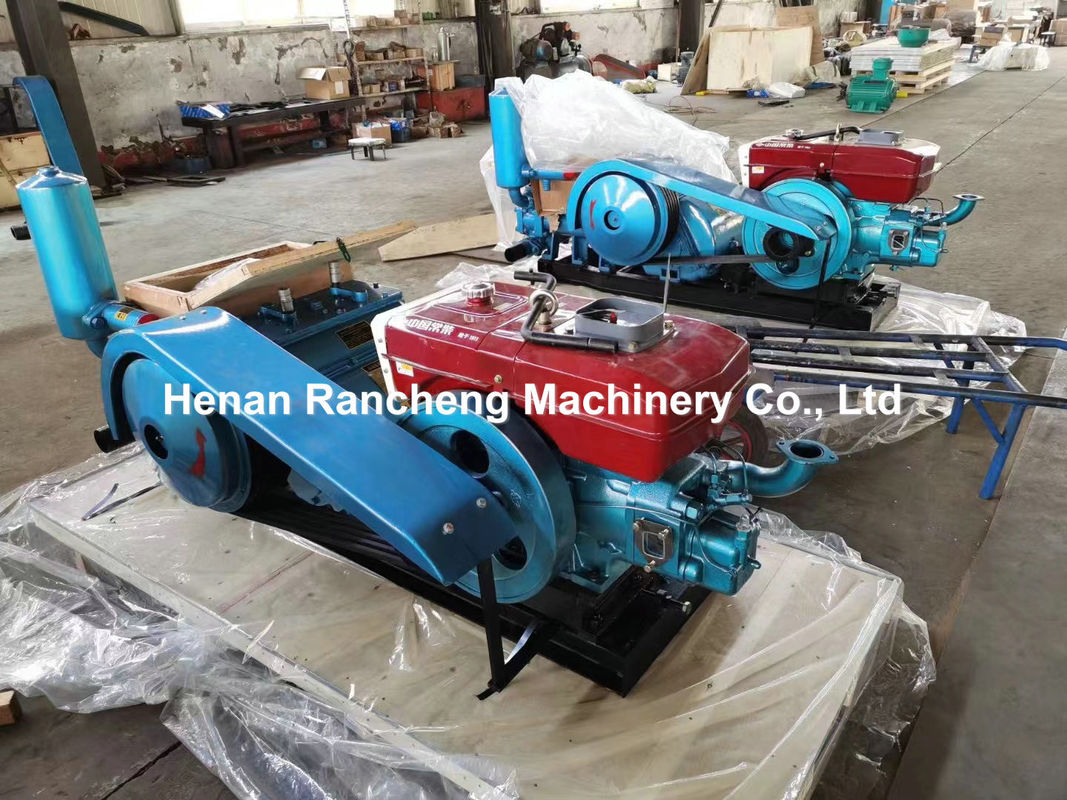

Machine Pictures
