Kaishan Kscy-220/8 High Quality 55kw 75HP Diesel Driven Portable Screw Air Compressor
Machine Introduction
Air volume automatic control system, low noise operation, special engine, strong power, SKY patented line, high energy saving, reasonable design, low operating cost, convenient design and maintenance when opening
Technical Parameters
| KSCY-220/8 Diesel Driven portable Screw Air Compressor |
| Air compressor |
| Model No: |
KSCY-220/8 |
| Air capacity(m³/min/cfm) |
6 (220) |
| Work pressure(Bar/Psig) |
8 (116) |
| Compression Stage |
Single |
| Diesel Engine |
| Engine Model No. |
Wuxi engine |
| Rated RPM (r/min) |
1800 |
| Unload RPM(r/min) |
1400 |
| Rated Power (KW/hp) |
55 (75) |
| Fuel Capacity(L) |
130 |
| Package |
| Noise level db (a) |
80±3 |
| Outlet connection |
G3/4×1,G1 1/2×1 |
| Wheel size * Qty |
6.5-16x4 |
| Dimension/mm |
2175*1760*1785 |
| Weight(KG) |
1400 |
Machine Advantages
1.Low operating sound and less vibration design.Easy serviceability.
2.Low fuel consumption to realize far distance outdoor usage;Full protection system,energy saving.
3.High efficient Airend:Large diameter rotor, airend connect with diesel engine through coupling and no reduction gear inside, more reliability, the rotate speed is same with the diesel engine's, more longer lifespan.
4.Diesel Engine of Famous Brand:Select the diesel engine of COMMINS and YUCHAI brand, satisfy the emission requirement of Europe, low oil consumption, after sale service system all over China.
5.Good adaptability:The Portable Air Compressor automatically control the air delivery of diesel engine by matching the demand of air consumption,which equals to frequency conversion control in motor power screw air compressor.
Specific performance
1. Main engine: The large-diameter rotor design of the patented profile, the main engine and the diesel engine are directly connected through a highly elastic coupling, there is no speed-up gear in the middle, the main engine speed is the same as the diesel engine, higher efficiency, better reliability and longer life.
2. Diesel engine: Choose Cummins, Yuchai and other domestic and foreign famous brand diesel engines, which meet the national II emission requirements, strong power, low fuel consumption, and a nationwide after-sales service system, users can receive prompt and complete services.
3. The air volume control system is simple and reliable. According to the size of the gas consumption, the air intake volume is automatically adjusted from 0 to 100%, and the diesel oil valve is automatically adjusted to save diesel fuel to the greatest extent.
4. The microcomputer intelligently monitors the air compressor exhaust pressure, exhaust temperature, diesel engine speed, oil pressure, water temperature, fuel tank liquid level and other operating parameters, with automatic alarm and shutdown protection functions.
5. Multi-stage air filter, suitable for dusty working environment; multi-stage fuel filter, suitable for domestic oil quality status; super large oil-water cooler, suitable for high temperature and plateau environment.

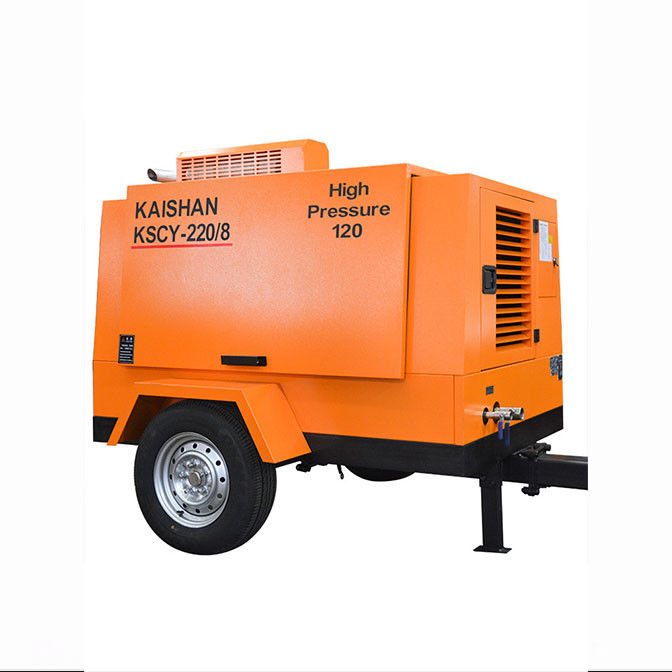

Machine Pictures
