Crawler Type 150m Drill Depth Multifunctional Engineering Drill Rig with 125KW cummins engine
Product Description
The RCJ150RC drilling rig is a fully hydraulic crawler drilling rig that is good at drilling vertical or inclined holes and supports a variety of drilling technologies, such as auger drilling and down - the - hole hammer drilling. It is suitable for processing complex geology, such as soft layers and broken layers, so it is suitable for a variety of drilling projects, including RC drilling, water wells, geothermal holes and small foundation pile holes.
The drilling rig is able to resolve the difficulty of boring in the soft and loose cover ground condition, the screes and gravels area and also the fragmentation stratum according to different drilling techniques ways. Therefore, it is widely used in varieties of the boring work.
The drilling rig is mainly applied in RC drill/water well and observation well, geothermal hole,mini foundation pile hole.
Product Specifications
| Model |
RCJ150RC |
| Drill rig weight(crawler mounted) |
kg |
9000 |
| Engine Power |
kW |
125 |
| Length × Width × Height (normal) |
mm |
6750x2200x2950 |
| Ambient Temperature Range |
°C |
-10～38 |
| Drill Ability |
| Nominal Drill Depth |
m |
150 |
| End-hole Diameter |
mm |
110-250 |
| Drill angle |
° |
-10-90 |
| Horizontal hole height |
m |
1.85-2.8 |
| Drill head output |
| Max Output Torque |
N.m |
8000 |
| Output Rotation Speed(continuity) |
rpm |
30 / 60, 54/108rpm |
|
Output Rotation Speed(interval)
|
rpm |
62 / 124
105/210rpm
|
| Feeding |
mm |
3500 |
| Thrust Force |
kN |
45 |
| Lifting Capacity |
kN |
65 |
| Pipe-puller Device Output |
| Output Rotation Speed |
rpm |
40 |
| Max Output Torque |
N.m |
30000 |
| Hole-through Diameter |
mm |
370 |
| Auxiliary Winch |
| Pull Force of the first Layer |
kN |
11 |
| Rope Diameter |
mm |
14 |
| Rope Capacity |
m |
60 |
| Engine(Cummins) |
6BTA5.9-C125 |
| Power |
kW |
125 |
| Rotary Speed (Max.) |
rpm |
2200 |
| Track Chassis Base |
| Walk Speed |
Km/h |
1.2 |
| Unit Pressure |
MPa |
＜0.05 |
| Climb Ability |
° |
≯20 |
Product Features
● The rig has large output torque and wide speed range, which can meet various drilling methods and has a wide range of applications.
● The rig’s feeding stroke is large, with no active drilling rod, which reduces the auxiliary time of reducing or adding rod, so that can improve the drilling efficiency.
● The rig’s thrust force and lifting force are very large, which can meet the effective drill and have a super ability to handle accidents.
● The rig is equipped with pipe puller device which can meet the requirements of twisting the drill rod, and reduces the labor strength.
● The rig is crawler mounted, which makes the machine move easily.
● Important hydraulic parts on the drilling rig are selected from the world high-end technical products or well-known brand products, and the corresponding monitoring system is configured to ensure the good reliability of the system and the low failure rate.
● It can be used by various drilling methods, such as: Non-cycle liquid dry auger drill DTH hammer drill in rock layer by air Mud circulation drill in sand soil layer DTH hammer with tube drill in broken rock area by air,wireline core drilling

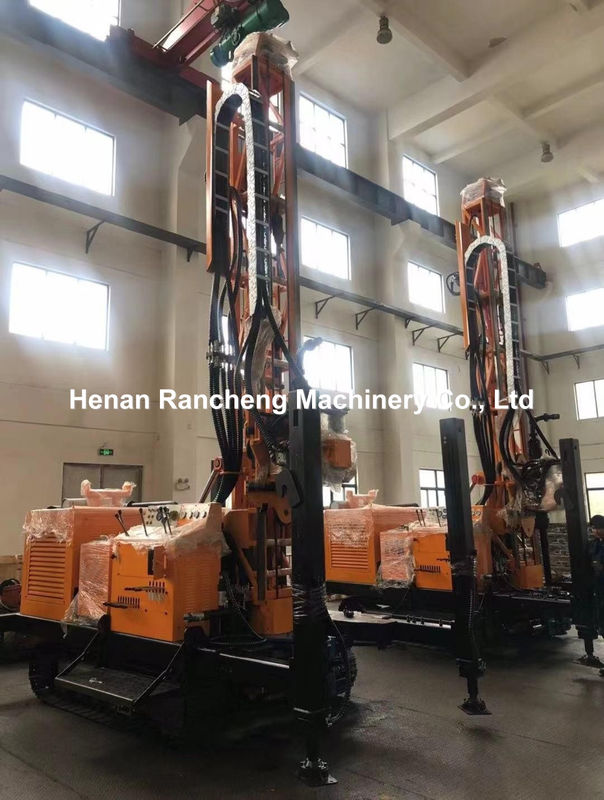

Product Image
