High Efficient Lightweight 160m Small Portable Water Well Drilling Rig with 35HP Engine
Product Description:
The RCS260C portable water well drill is suitable for a variety of scenarios, including geothermal drilling, farm irrigation, residential yards, gardens, water well drilling and exploration boreholes. It can drill holes from 70mm to 450mm in diameter and has a maximum drilling depth of 160 meters. The RCS260C drill is versatile and can also be used for small building pile foundation projects such as farmhouses or factories, with a maximum drilling diameter of 450mm. The equipment is suitable for drilling operations in different strata such as sand, soil, clay and soft rock.
Features:
1. Lightweight and energy-efficient.
2. Patented design with a unique, simple drilling structure.
3. Easy to transport and quick to learn how to operate.
4. Capable of drilling through hard strata, except for very thick rock layers.
5. Operable by one person, reducing labor intensity.
6. Highly efficient with fast working speed.
7. Ensures ease of operation and a long service life.
Technical Parameters:
| Model of drilling machine | RCS260C |
| Walking way | Rubber crawler mounted |
| Drilling machine overall dimension(mm) | 2300*1080*2000 |
| Weight of Drilling machine (kg) | 1000 |
| Drill rod diameter (mm) | Ø64 |
| Drill rod length(mm) | 1500 |
| Rod change method | Full automatic screw thread |
| Drilling depth(m) | 160 |
| Diesel Motor Power (Hp/kw) | 35HP /25.8KW |
| Drilling method | Percussive and rotating type |
| Drilling hole diameter(mm) | Within Ø 450mm |
| Stroke distance (mm) | 2000 |
| Hosting capacity (kg) | 4000KG |
Applications:
RCS260C portable water well drilling machine is mainly used to geothermal drilling, farm irrigation,house yard, gardens ,water well drilling and boring drilling etc which can drill 160m depth. And it also can be used in small building piling, like farmhouse or factory.
Support and Services:
1,24/7 service by chat online and phone.
2,Lifelong and free technical support.
3,Service overseas: if you need, we can dispatch an engineer to your door.
Packing and Shipping:
delivery time :10-15days
standard exporting packing
FAQ
Q:Are you the manufacturer?
A: Yes, we are the factory with more than 10 years of manufacturing experience.
Q:What is the warranty of our machine?
A:Our main machine enjoys a 1 year warranty. And we provide videos for machine install and operation.
Q: How long is your delivery time?
A: About 10-15 work days after receipt of the payment.
Q:How do you make our business long-term and good relationship?
A:We keep good quality and competitive price to ensure our customers benefits;
Q:Do you have any certificates for your machine?
A: All of our products coming with the certificates of CE and ISO 9001:2000.

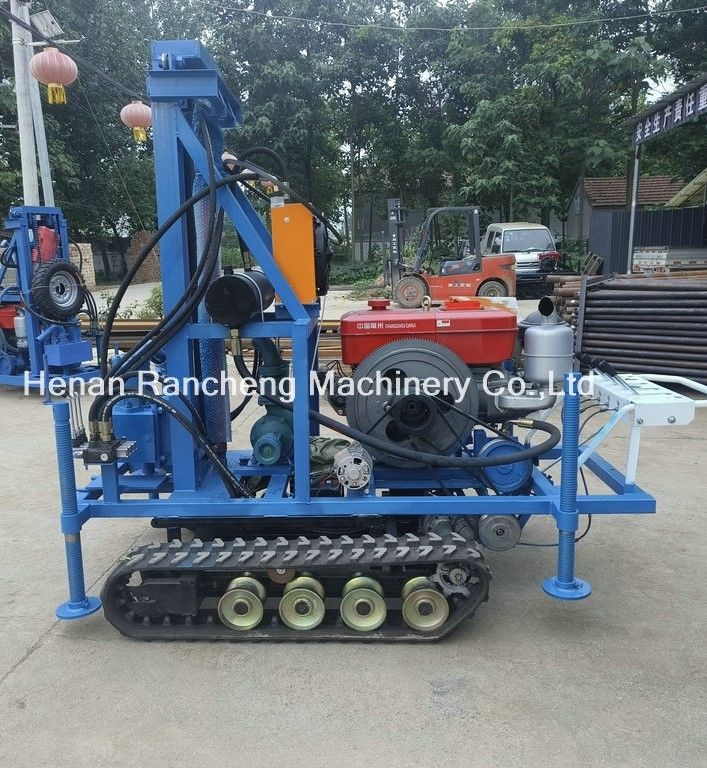

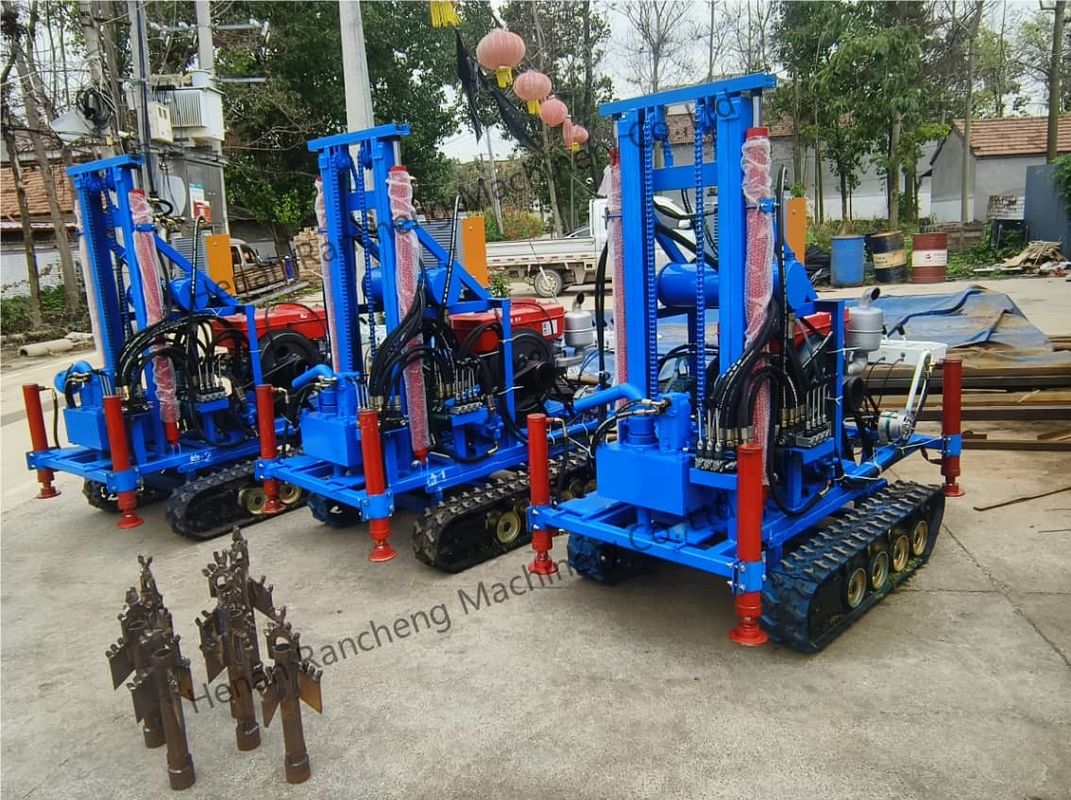

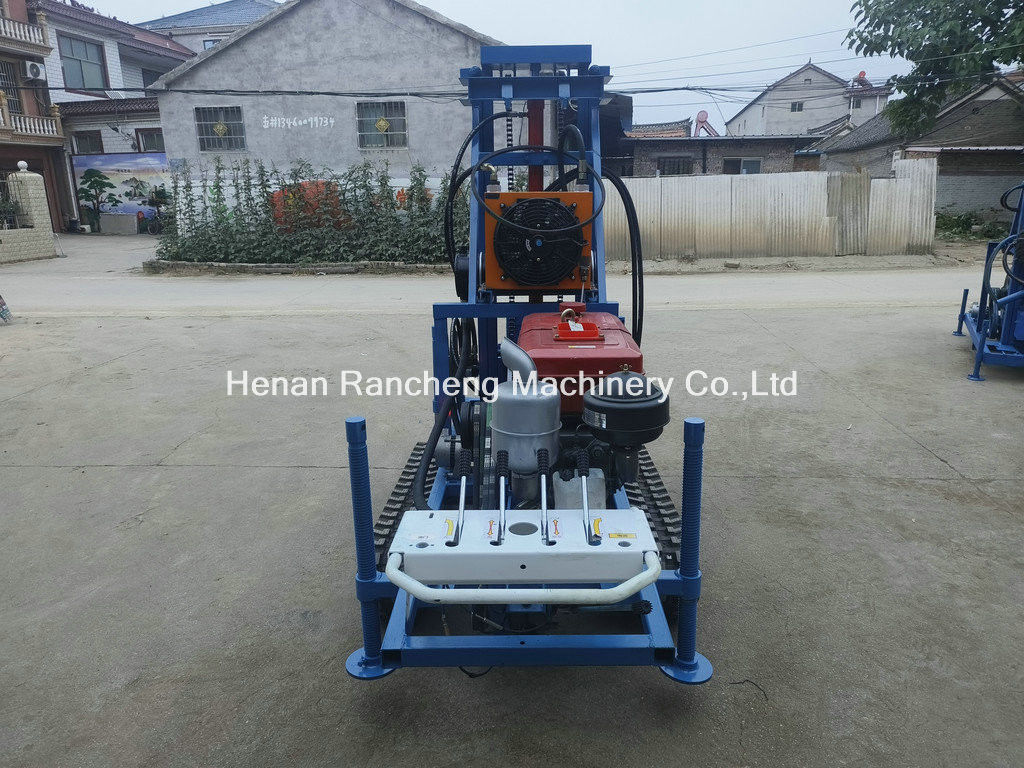

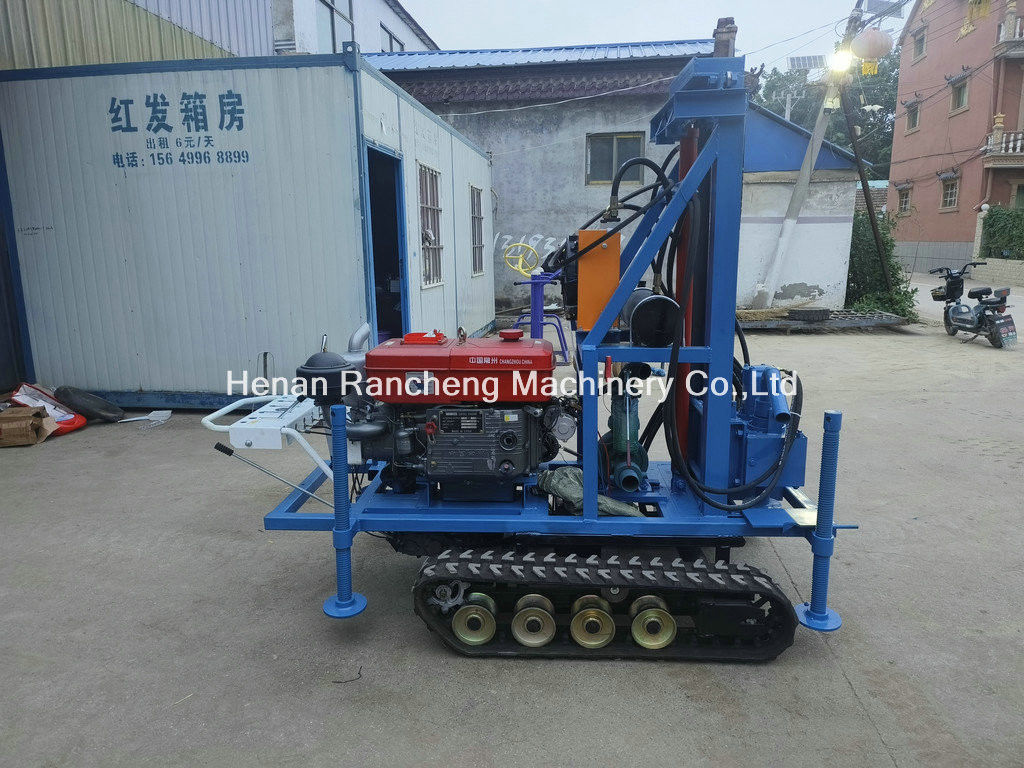

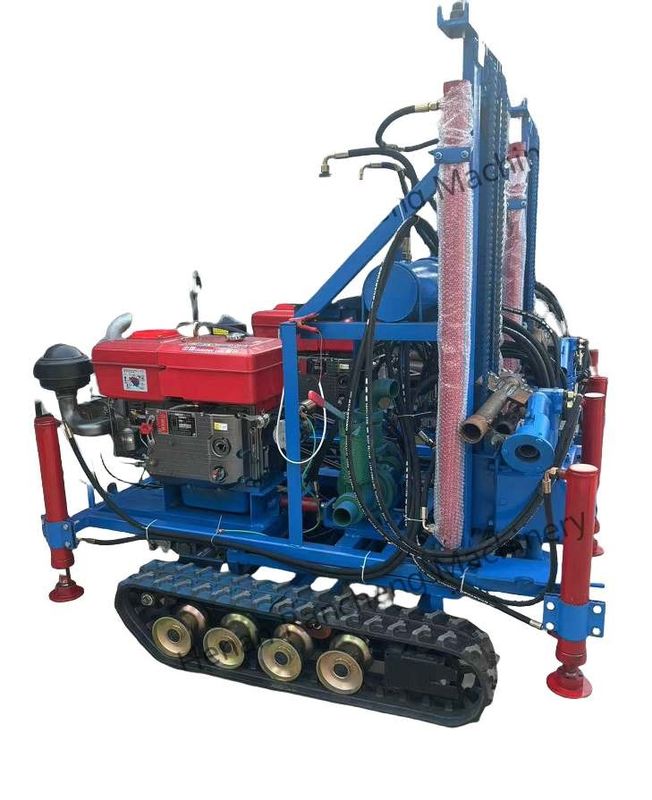

Machine pictures
