Air Reverse Circulation RC Drilling Rig For DTH Mning Drilling In Depth 150m

Air Reverse Circulation RC Drilling Rig for DTH Mning Drilling in Depth 150m

Product Description

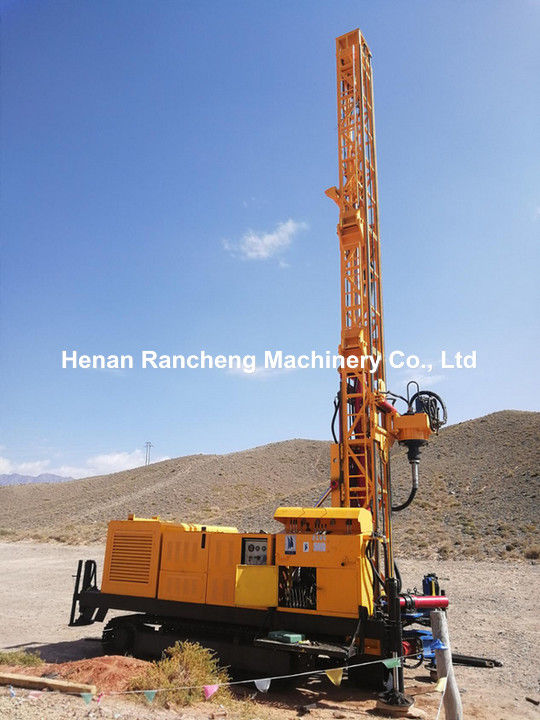

The RCJ150RC drilling rig is a fully hydraulic crawler drilling rig that is good at drilling vertical or inclined holes and supports a variety of drilling technologies, such as auger drilling and down - the - hole hammer drilling. It is suitable for processing complex geology, such as soft layers and broken layers, so it is suitable for a variety of drilling projects, including RC drilling, water wells, geothermal holes and small foundation pile holes.

The drilling rig can be used in a variety of compressed air on the ground hole reverse circulation drilling. The lifting system,guide compensation, drill pipe loading and unloading, rotation and feed, legs, winch, walking and other system to achieve all of the hydraulic system to significantly reduce the labor intensity and improve the efficiency and quality of construction .

Product Specifications

Product Features

1.Diesel engine mounted hydraulic system, all the system include the walking, rotation, feed, lifting, Leg, lifting, compensation system, rod change is hydraulic.
2:Reverse circulation system working together with DTH technology, air compressor provide pressed air for impact and dust collect.
3.During working, use the reverse circulation hammer, double tube, pressed air enter between two tube and dust out from the inner tube.
4.Also it's available to positive circulation use normal drilling tool.
5.The working system composed of feed system, guide(mast),rotary head, compensation system, centralizer, rod exchange system, winding and so on.
6.Axes pressure, feed speed, rotary speed is adjustable.

Product Image
