High-Performance 200m Depth Crawler Water Well Drilling Rig with 58KW YuChai Diesel Engine
Product Description
This versatile down-the-hole pneumatic water well drilling rig combines efficiency and adaptability. It features dual motors with top rotation capabilities and works seamlessly with both mud pumps and air compressors. With a maximum drilling depth of 200 meters and a diameter range of 100-300 mm, it’s powered by a robust 58KW diesel engine. This rig is designed to handle various ground conditions, including hard rock, clay, soil, and sand. Mounted on hydraulic rubber crawlers, it’s easy to maneuver, and its four 1.7-meter-high hydraulic outriggers make truck transportation more convenient.
Application
The RCF200C is primarily used for drilling various types of wells, including those for irrigation, household drinking water, geothermal applications, hydrological studies, civil projects, and industrial purposes.
Technical Parameters
| Model |
RCF200C |
| Bore diameter(Hammer) |
90-350mm |
| Bore depth |
200m |
| Air consumption |
17-35m³/min |
| Air pressure |
1.7-3.0Mpa |
| Pipe diameter |
76mm/89mm |
| Pipe length |
3m |
| Push force |
4T |
| Lifting force |
12T |
| Lifting speed |
2.5m/min |
| feeding speed |
0.5-5m/min |
| Fast lifting speed |
18m/min |
| Fast feeding speed |
35m/min |
| Max torque of the rotary |
3500-4800Nm |
| Rotary speed |
45-70r/min |
| Mud Pump flow |
250L/min (option) |
| High hydraulic leg |
1.4m |
| Feeding efficiency |
10-35m/h |
| Travel speed |
2.5Km/h |
| Climb ability |
30° |
| Dimension(L*W*H) |
4000X1800X2300mm |
| Weight |
5000Kg |
| Diesel engine |
58KW Yuchai
|
Product advantages
It delivers impressive drilling power, effortlessly cutting through rocks and soil layers. Crafted to high manufacturing standards, it offers exceptional durability and longevity. Its efficient power system ensures low fuel consumption, while the compact and flexible design enhances portability. Advanced safety features and compliance with environmental standards further elevate its appeal. Overall, it’s an excellent choice for drilling professionals seeking both reliability and high performance.

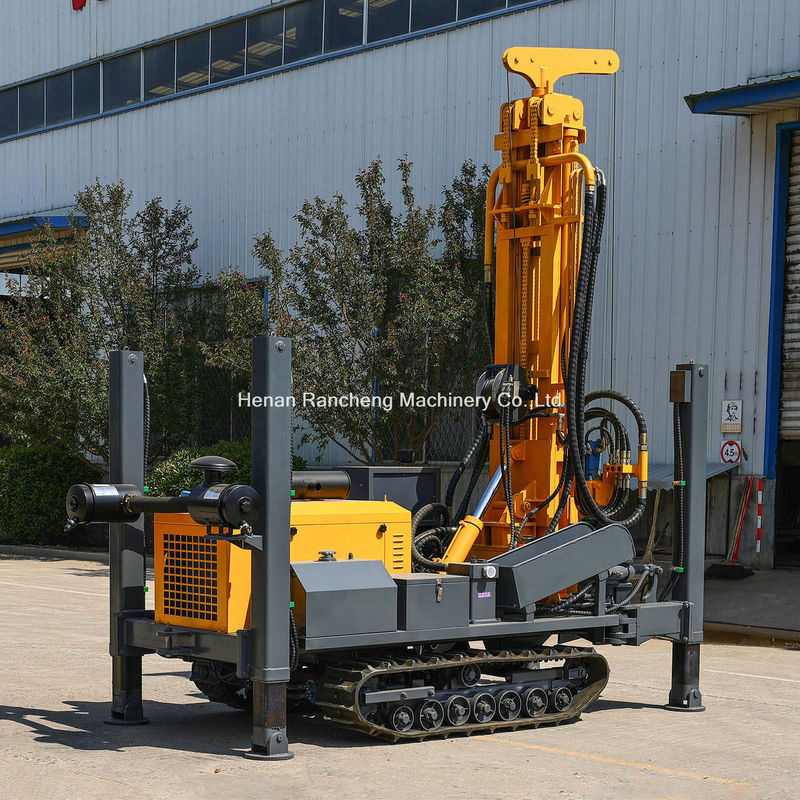

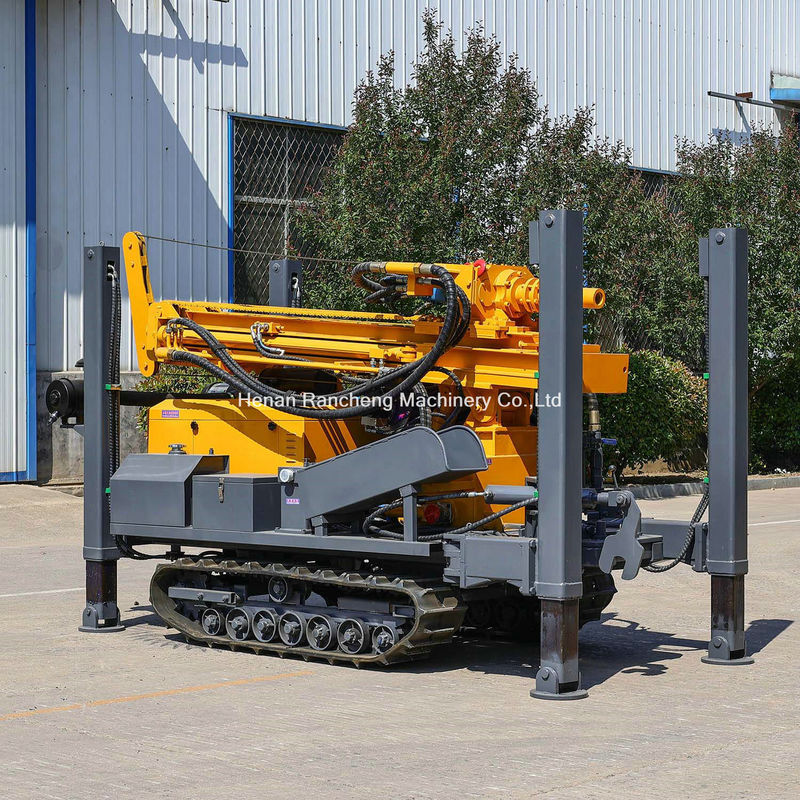

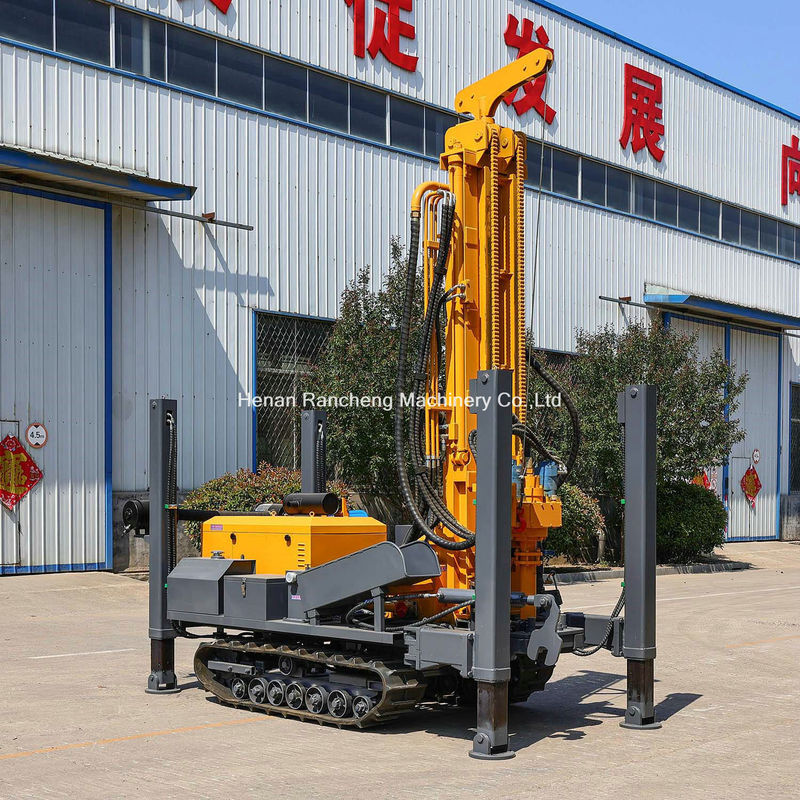

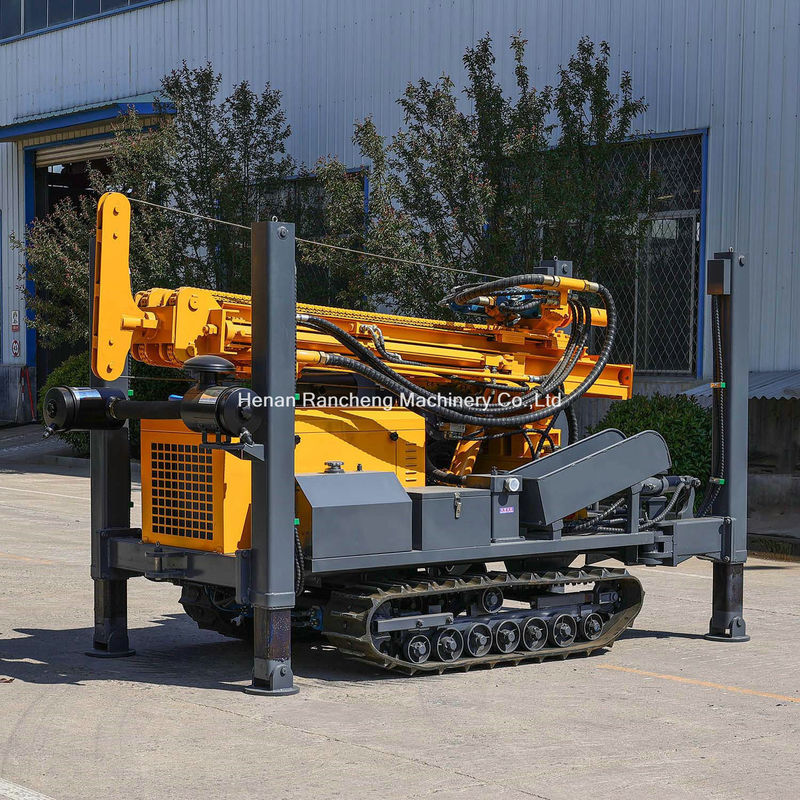

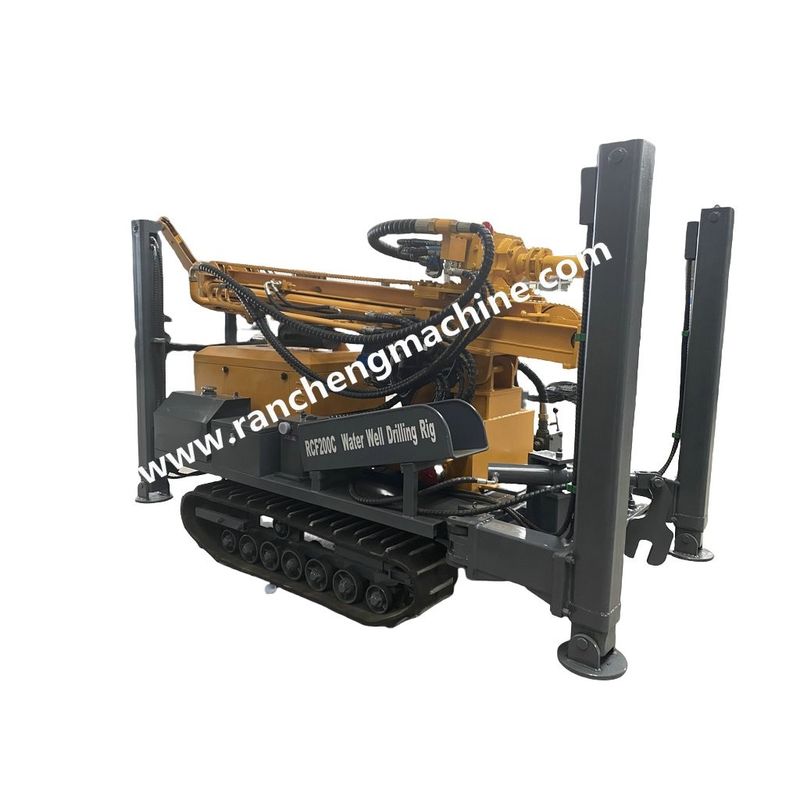

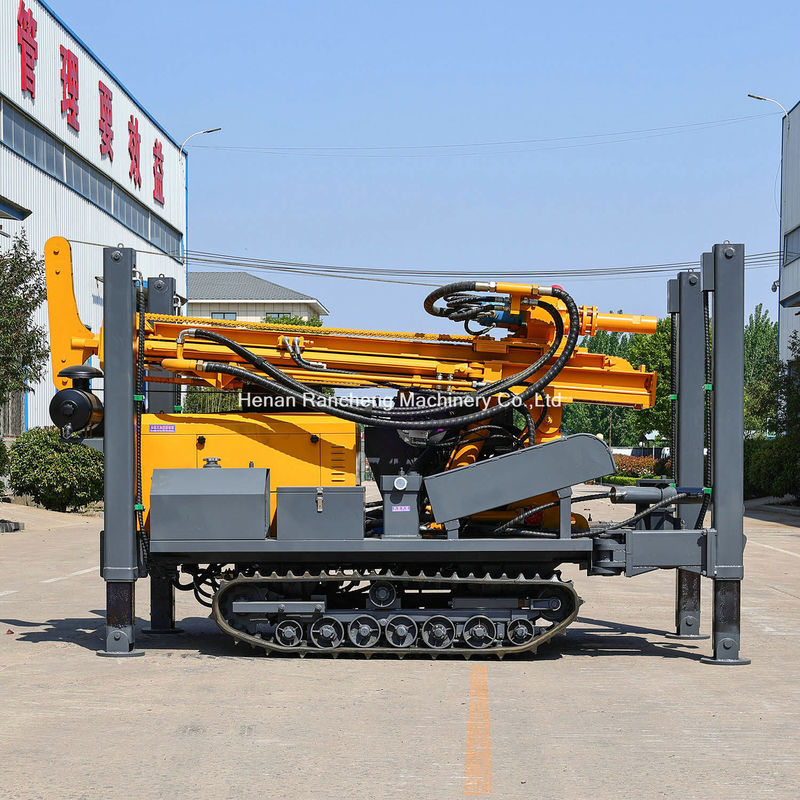

Machine picture display
Company Information
Henan Rancheng Machinery Co.,LTD is one professional supplier drilling rigs in China ,we are dedicated in designing and manufacture water well drilling rig ,rotary drilling rig ,anchor drilling rig ,core drilling rig,DTH drilling rig ,solar pile driver,mud pump ,air compressor and drilling tools etc,we have advanced technology ,Modern equipment, first-class team and rich experience ,our products passed ISO9001 ,CE etc certificated ,they are exported to around 200 countries and areas in the world ,get very good feedbacks from our clients.
We Pursue the principle of "Customer First, Integrity First", we are sincerely expecting to cooperate with you!!!
