Name: RCJ500RC Hydraulic RC DTH Blasthole Drilling Rig / Reverse Circulation Drilling / Hard Rock Mining Drilling Rig
Brand: Henan Rancheng Machinery Co., Ltd.
SKU: RCJ500RC
Availability: InStock

Home > products > RC Drilling Rig >

RCJ500RC Hydraulic RC DTH Blasthole Drilling Rig / Reverse Circulation Drilling / Hard Rock Mining Drilling Rig

Reverse Circulation Drilling Rig

Hard Rock Mining Drilling Rig

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCJ500RC

Request A Quote

Product Details

Name:

RC Drilling Rig

Model:

RCJ500RC

Nominal Drill Depth:

500m

End-hole Diameter:

150mm

Drill Rig Weight:

12000kg

Length × Width × Height:

7650x2250x3217mm

Highlight:

Reverse Circulation Drilling Rig

Hard Rock Mining Drilling Rig

Payment & Shipping Terms

Minimum Order Quantity

Price

Negotiable

Packaging Details

It can be shipped by one 40" container

Delivery Time

10-15 working days

Payment Terms

T/T, Western Union

Supply Ability

100sets per Month

RCJ150RC Hydraulic Engineer Drilling Rig For 125W Engine Power 8000N.M Max Output Torque

Get Best Price

Video

RCJ150RC Hydraulic Engineer Drilling Rig 150m Drill Depth Crawler Type Hydraulic RC Drilling Machine

Get Best Price

Video

RCJ500RC RC Drilling Machine Equipment Reverse Circulation Drilling Rig Equipment Machine

Get Best Price

Video

132KW Hydraulic Crawler RC Drilling Rig 300m Drill Depth 2km/h Walk Speed

Get Best Price

Contact Now

Product Description

RCJ500RC Hydraulic RC DTH Blasthole Drilling Rig/Reverse Circulation Drilling/ Hard Rock Mining Drilling Rig

Machine Introduction

Our RCJ500RC hydraulic RC DTH blasthole drilling rig is one crawler mounted drilling rig ,it is reverse circulation drilling with air compressor ,for hard rock mining blasthole drilling

this rig is 132KW cummins disel engine ,very big power ,it drill max 500m depth for RC drilling ,also can be used for wireline core drilling

Technical Parameters

Model			RCJ500RC
Drill rig weight(crawler mounted)		kg	12000
Engine Power		kW	132
Length × Width × Height (normal)		mm	7650x2250x3217
Ambient Temperature Range		°C	-10～38
Drill Ability
Nominal Drill Depth		m	500
End-hole Diameter		mm	150
Drill head output
Max Output Torque		N.m	12000
Output Rotation Speed(continuity)		rpm	30 / 60
) Output Rotation Speed(interval)		rpm	52 / 104
Feeding		mm	7000
Thrust Force		kN	100
Lifting Capacity		kN	160
Pipe-puller Device Output
Output Rotation Speed		rpm	40
Max Output Torque		N.m	30000
Hole-through Diameter		mm	370
Main Winch
Pull Force of the first Layer		kN	70
Rope Diameter		mm	19
Rope Capacity		m	80
Auxiliary Winch
Pull Force of the first Layer		kN	20
Rope Diameter		mm	14
Rope Capacity		m	60
Clamp Device Hole-through Diameter		mm	340
Oil Pump Output Volume		ml/r	87+63+25
Max Pressure		MPa	25
Tank Capacity		L	320
Engine(Cummins)			6BTA5.9-C180
Power		kW	132
Rotary Speed (Max.)		rpm	2200
Track Chassis Base
Walk Speed		Km/h	1.2
Unit Pressure		MPa	＜0.05
Climb Ability		度	≯20
Wire line core drilling unit head
Drilling depth	NQ	m	1200
	HQ	m	850
	PQ	m	600

Application

RCJ500RC drilling rig is mounted on a crawler chassis,driven by full hydraulic system, power head type drilling rig, which is used to drill vertical or inclined hole, and also the drilling techniques way of the following:

Drill auger drill

Down-The-Hole hammer drill

Mud forward circle drill

ODEX tools(casing pipe following) drill with DTH hammer

Medium reverse circle drill

Wireline core drilling after change core drilling rotary unit head

the drilling rig is able to resolve the difficulty of boring in the soft and loose cover ground condition, the screes and gravels area and also the fragmentation stratum according to different drilling techniques ways. Therefore, it is widely used in varieties of the boring work.

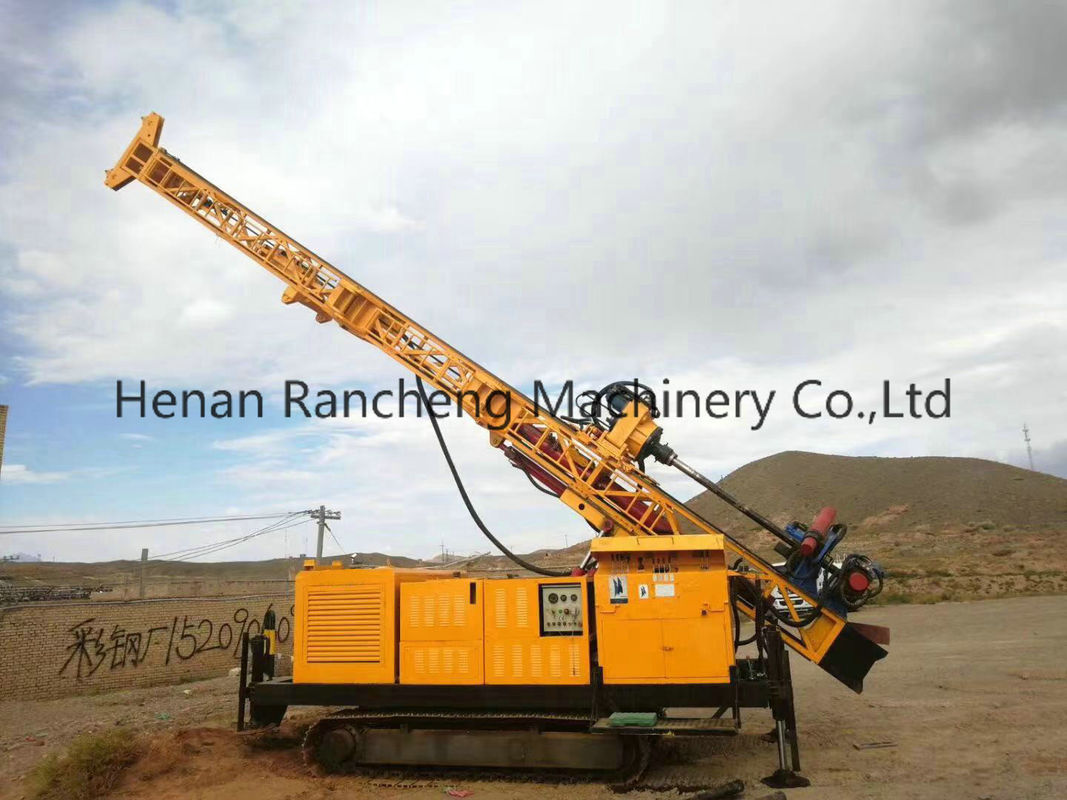

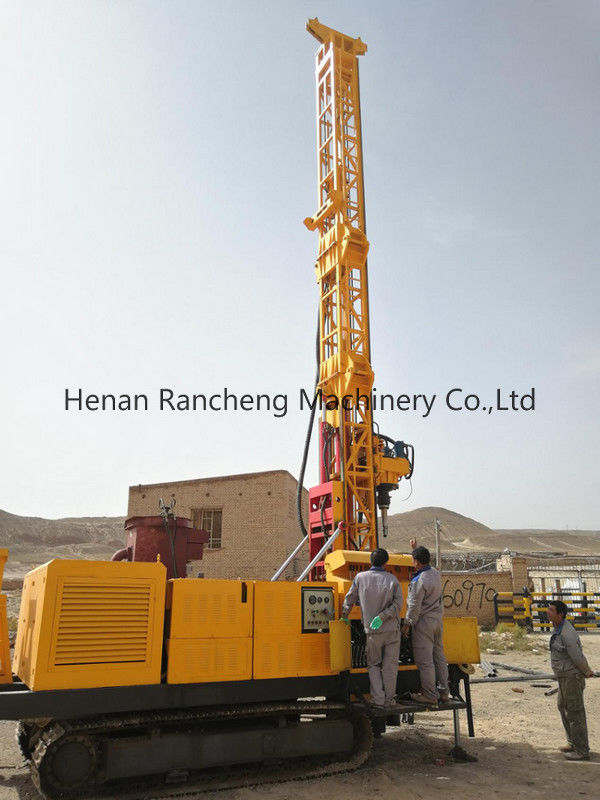

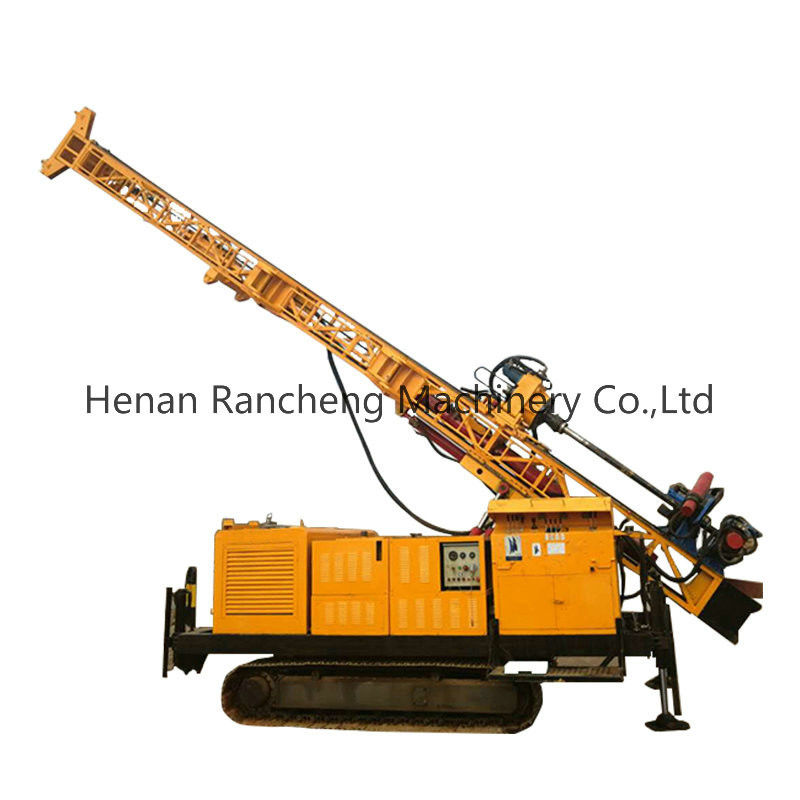

Machine Pictures
