Name: Full Hydraulic Crawler Core Drilling Rig With 74KW Cummins Engine
Brand: Henan Rancheng Machinery Co., Ltd.
SKU: RCDX-2A
Availability: InStock

Home > products > Core Drilling Rig >

Full Hydraulic Crawler Core Drilling Rig With 74KW Cummins Engine

Full Hydraulic Crawler Core Drilling Rig

Crawler Core Drilling Rig

74KW Cummins Engine Core Drilling Rig

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCDX-2A

Request A Quote

Product Details

Name:

Core Drilling Rig

Model:

RCDX-2A

Power:

74KW Cummins Diesel Engine

Speed:

2200rpm

Overall Dimensions:

3500*1500*1300 Mm

Mud Pump:

BW-100A

Highlight:

Full Hydraulic Crawler Core Drilling Rig

Crawler Core Drilling Rig

74KW Cummins Engine Core Drilling Rig

Payment & Shipping Terms

Minimum Order Quantity

Price

Negotiable

Packaging Details

It can be shipped by one 20" container

Delivery Time

10-15 working days

Payment Terms

T/T, Western Union

Supply Ability

100sets per Month

100-240RPM Winch Rated Rotary Speed Small Core Drilling Rig 96L/Min Hydraulic System Rated Flow

Get Best Price

Video

100-240RPM Winch Rated Rotary Speed Small Core Drilling Rig Portable Core Drilling Equipment For Intensity Drilling

Get Best Price

Portable Type RCH-3A Underground Core Drilling Rig Exploration Tunnel Mine Drilling Rig

Get Best Price

Video

Portable Hydraulic Core Drilling Rig Equipment For Geological / Gold / Rock Exploration

Get Best Price

Contact Now

Product Description

Full Hydraulic Crawler Core Drilling Rig With 74KW Cummins Engine

Product Description

RCDX-2A full hydraulic portable drill rig is a kind of light rig designed for geological exploration in remote area difficult to enter. This portable drill rig is mainly suitable for diamond drilling with wireline coring technique. The rig consists of diesel power unit, hydraulic system, control panel, mast, and main winch, wire line winch, drill head, feed system, foot clamp, etc. The RCDX-2A hydraulic core drilling rig is completely hydraulic driven for all its surface coring function. Fission style design makes the rig in good assemblability and disassemble ability, facilitating transportation to most inaccessible areas. Robust structure plus exact control system ensures high penetration rate and outstanding reliability.

Product Specifications

Power unit	Power	74KW Cummins diesel engine
Power unit	Speed	2200rpm
Drilling capacity	BQ	400m
	NQ	230m
	HQ	120m
Drill head capacity	Max. spindle torque	334~1030Nm
Drill head capacity	Max. Spindle speed	0~900rpm
Feeding system (feed with hydraulic cylinder)	Feeding stroke	1700mm
	Lifting capacity	50kN
	Feeding capacity	25kN
The capacity of the main hoist	Lifting capacity	18kN (single-wire)
	Lifting speed	84m/min
	Rope capacity	30m
	Steel wire diameter	12mm
The capacity of wireline winch	Lifting capacity	8.4kN (bare drum)
	Lifting speed	90~240m/min
	Rope capacity	500m
	Steel wire diameter	6mm
Mud pump	model	BW-100A
Overall dimensions	LWH in transport position	350015001300 mm
Dimensions of the disassembled parts (without mud pump)		The largest part not more than 100kg

Product Features

1.Full hydraulic and drill head model: the drill head rotation is realized with duplex gear pump and four hydraulic pumps driven by 74KW diesel engine; this also makes the feeding hydraulic cylinder system realize its full stroke feeding in both higher and lower speed;

2.Crawler mounted, has good climbing ability, easy to move and can work in rugged ground operations; the rig can be applied and performed in narrow space for drilling of hole at 45 degree~90 degree with stronger adaptability;

3.Strong techniques adaptability: besides diamond drilling with wire line coring technique, it is in strong techniques adaptability, it is applicable for the drilling and feeding requirements of any other stratum;

Product Image

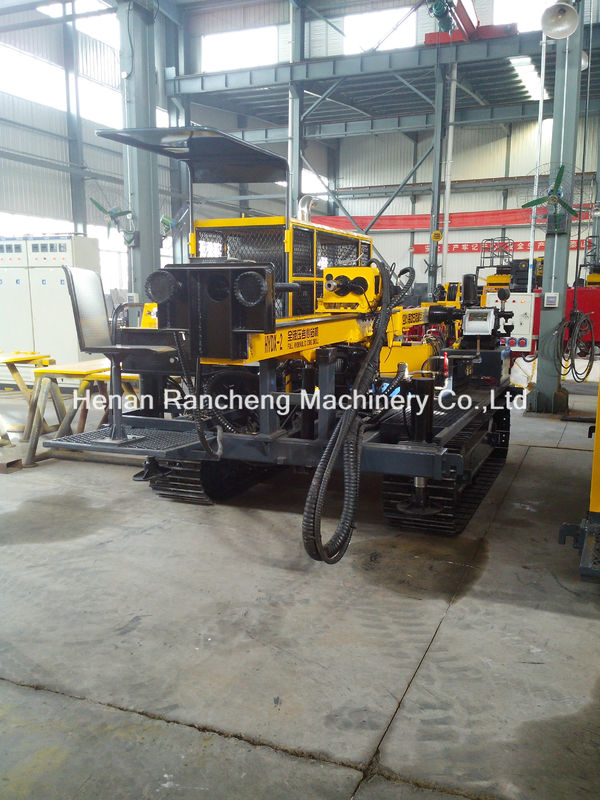

Full Hydraulic Crawler Core Drilling Rig With 74KW Cummins Engine 0
