60-80m Depth Crawler Hydraulic DTH Drilling Rig 90-165mm Diameter Both Rotary And Hammer Drilling

60-80m Depth Crawler Hydraulic DTH Drilling Rig 90-165mm Diameter Both Rotary And Hammer Drilling

Hammer DTH Drilling Rig

90-165mm Diameter DTH Drilling Rig

60-80m Depth DTH Drilling Rig

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RC140Y

Contact Us
Request A Quote
60-80m Depth Crawler Hydraulic DTH Drilling Rig 90-165mm Diameter Both Rotary And Hammer Drilling
60-80m Depth Crawler Hydraulic DTH Drilling Rig 90-165mm Diameter Both Rotary And Hammer Drilling
Product Details
Name:
DTH Drilling Rig
Model:
RC140Y
Drilling Diameter:
115-150mm
Drilling Depth:
Down 62m
Once Promotion Distance:
3000mm
Dimension:
5270x1950x2400mm
Highlight:

Hammer DTH Drilling Rig

,

90-165mm Diameter DTH Drilling Rig

,

60-80m Depth DTH Drilling Rig

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
It can be shipped by one 20" container
Delivery Time
10-15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
RELATED PRODUCTS
Good price Automatic Blast Hole Drilling Machine 20m Depth 115mm Diameter For 58KW Power online Video

Automatic Blast Hole Drilling Machine 20m Depth 115mm Diameter For 58KW Power

Get Best Price
Good price RCZ412B-1 Separated DTH Surface Drill Rig with 58KW Power 20m Depth In Stock online Video

RCZ412B-1 Separated DTH Surface Drill Rig with 58KW Power 20m Depth In Stock

Get Best Price
Good price Blast Hole Drilling Machine 20m Depth 115mm Diameter Blast Hole Drilling Machine online Video

Blast Hole Drilling Machine 20m Depth 115mm Diameter Blast Hole Drilling Machine

Get Best Price
Good price 60-80m Depth Crawler Hydraulic DTH Drilling Rig Both Rotary Drilling And Ramming online Video

60-80m Depth Crawler Hydraulic DTH Drilling Rig Both Rotary Drilling And Ramming

Get Best Price
Contact Us
Contact Now
Product Description

60-80m Depth Crawler Hydraulic DTH Drilling Rig 90-165mm Diameter Both Rotary And Hammer Drilling

Generally introduction



RC140Y High Air Pressure DTH Drilling rig with a low energy consumption, high efficiency, easy to transport and field construction superior technical performance, full hydraulic control and adopt famous brand hydraulic system, operation and comfortable



This DTH drilling rig Rotary organizations to adopt a new dual-motor turret ,it assure the drilling rig to maintain a strong rotary torque output when drilling large holes in the open air blast hole drilling projects,it has the mobile and flexible and climbing ability, suitable for rugged venue operations, perforation shift convenience features.



Application



This hydraulic drilling rig is one multi functional drilling machine ,widely used for open pit mining blasthole drilling ,quarry blasthole drilling , highway blasthole drilling , water conservancy, power station construction , anchor drilling ,soil nailing ,slope supporting and other drilling projects


Technical Parameters

Wind pressure(Mpa) 1.2--2.46
Air consumption(m³/min) 10--20
Drilling diameter(mm) 115---150
Drilling depth(m) down 62m
Once promotion distance(mm) 3000
Drill diameter(mm) 76
Skid compensation(mm) 1200
Maximum lift force(N) 26000
Guide shell lutting(°) up and down total 100
Guide shell swing angle(°) Left and right total 100
Boom lift angle(°) up and down total 70
Boom swing angle(°) 70
Grade ability(°) 30
Chassis ground clearance(mm) 300
Travelling speed(Km/h) 0-2.5
Back to the transit speed(r/min) 0--90
Rotary torque(N.m) 3100
Host Power(kW) 56
For rock 6---20
Total Weight(kg) 4800
Dimension (L * W * H) 5270*1950*2400


Advantages



1,it drill 60-80m depth ,90-168mm diameter.

2,it is our mature product ,all components and hydraulic system use famous brand and good quality ,assure the machine very stable performance and good quality .

3,it use 56KW Yuchai engine ,famous brand engine in China ,it is convenient to use in the place without electricity.

4,it use steel crawler same as excavator chassis ,less maintenance and long using life.

5,it use advanced technology ,compact structure ,little wearing parts ,easy to maintain.

6,it has big drilling angle ,widely used for anchor drilling ,soil nailing ,slope supporting ,mini pile ,DTH blasthole drilling etc projects.


Pictures

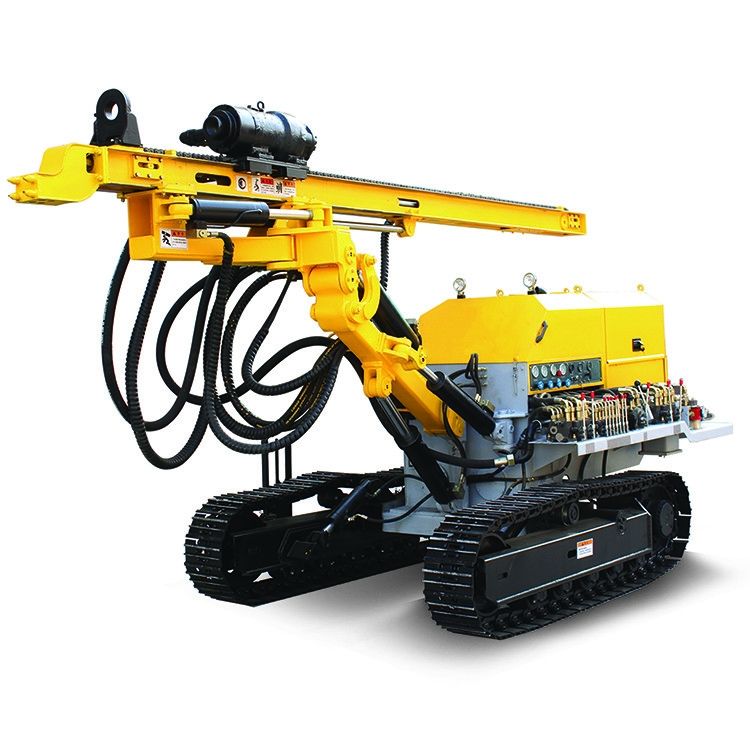

60-80m Depth Crawler Hydraulic DTH Drilling Rig 90-165mm Diameter Both Rotary And Hammer Drilling 060-80m Depth Crawler Hydraulic DTH Drilling Rig 90-165mm Diameter Both Rotary And Hammer Drilling 1
60-80m Depth Crawler Hydraulic DTH Drilling Rig 90-165mm Diameter Both Rotary And Hammer Drilling 2
60-80m Depth Crawler Hydraulic DTH Drilling Rig 90-165mm Diameter Both Rotary And Hammer Drilling 3

Tags：

Down The Hole Drilling Equipment

DTH Drilling Equipment

Down The Hole Drilling Rig
