RCF200T Hydraulic Water Well Drilling Machine/200m Truck Mounted Water Well Drilling Rig/6X4 Truck Mounted Rig

RCF200T Hydraulic Water Well Drilling Machine/200m Truck Mounted Water Well Drilling Rig/6X4 Truck Mounted Rig

Hydraulic Water Well Drilling Machine

Truck Mounted Water Well Drilling Machine

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCF200T Truck Mounted Water Well Drilling Rig

Contact Us
Request A Quote
RCF200T Hydraulic Water Well Drilling Machine/200m Truck Mounted Water Well Drilling Rig/6X4 Truck Mounted Rig
RCF200T Hydraulic Water Well Drilling Machine/200m Truck Mounted Water Well Drilling Rig/6X4 Truck Mounted Rig RCF200T Hydraulic Water Well Drilling Machine/200m Truck Mounted Water Well Drilling Rig/6X4 Truck Mounted Rig
Product Details
Name:
Water Well Drilling Rig
Model:
RCF200T Truck Mounted Water Well Drilling Rig
Bore Diameter:
140-350mm
Bore Depth:
200m
Dimension:
8900*2100*3300mm
The Total Weight:
12T
Feed Stroke:
3400mm
Travel Speed:
80km/h
Highlight:

Hydraulic Water Well Drilling Machine

,

Truck Mounted Water Well Drilling Machine

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
It can be shipped by ro-ro ship
Delivery Time
10-15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
RELATED PRODUCTS
Good price Full Hydraulic Water Well Drill Machine Bore Hole 500m Deep Truck Mounted Water Well Drill Rig online Video

Full Hydraulic Water Well Drill Machine Bore Hole 500m Deep Truck Mounted Water Well Drill Rig

Get Best Price
Good price 280m 6X4 Depth Dongfeng Truck Mounted Water Well Drilling Rig online Video

280m 6X4 Depth Dongfeng Truck Mounted Water Well Drilling Rig

Get Best Price
Good price 200m Deep Water Well Drill Rig With 118HP Cummins For 115-350mm Bore online Video

200m Deep Water Well Drill Rig With 118HP Cummins For 115-350mm Bore

Get Best Price
Good price 300m Deep Borehole Drilling Rig Truck Mounted Water Well Drilling Rig Machine online Video

300m Deep Borehole Drilling Rig Truck Mounted Water Well Drilling Rig Machine

Get Best Price
Contact Us
Contact Now
Product Description

RCF200T Hydraulic Water Well Drilling Machine/200m Truck Mounted Water Well Drilling Rig/6X4 Truck Mounted Rig

Product Description



RCF200T deep water well drilling rig is our independent research and development products. These new generation DTH are coupled to higher air power, and thus play a significant role in leading to faster drilling rates.

Adopting newest model & advanced hydro technology, low consumption, large rotary torque, convenient hole deflection,our water well drilling machine are mainly used for well drilling in resource exploration and hydrology wells, civil use water well, agriculture irrigation etc projects.


Technical Parameters



Drilling type Mud pump drilling and air DTH drilling
Geology drilled All kind
Drill system and operation Hydraulic
Drilling diameter (mm) 115～350
Drilling depth (m) 200
Work Pressure(Mpa) 1.05～3.5
Consumption (m³/min) 16～40
Drill pipe length (m) 3
Drill pipe diameter (mm) 89
Axle pressure (N) 57000
Lifting power (T) 12T
Rotary torque (Nm) 5600
Rotary speed 0～100
Truck Chassis DONGFENG
Diesel engine Model Cummins
Discharge standard Euro III
Horsepower 180HP
Rated speed 2500r/min
Fuel type diesel
Tire size 90.00-20R
Drive form 4*2
Dimension (mm) 8900*2100*3300
The total weight (T) 12


Machine Advantages



Made from high quality materials, with fashion and compact design, that keeps our drilling rigs more efficiency and with low failure rate, more economic and durable, and with a high comprehensive cost performance. Our water drilling rigs have received the real market validation as the majority of our customers’ positive feedback.

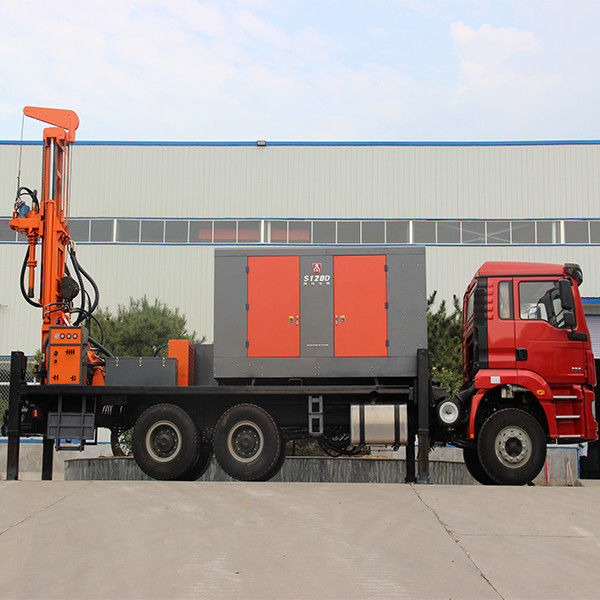

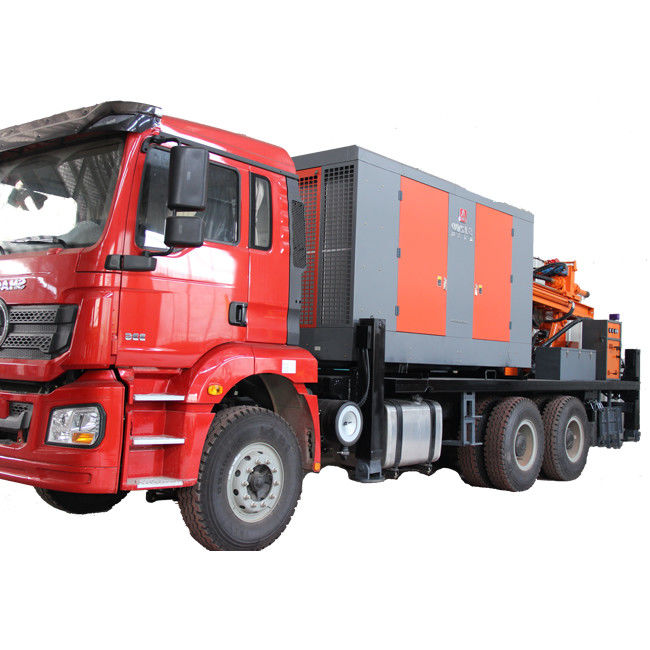

Machine picture display


RCF200T Hydraulic Water Well Drilling Machine/200m Truck Mounted Water Well Drilling Rig/6X4 Truck Mounted Rig 0RCF200T Hydraulic Water Well Drilling Machine/200m Truck Mounted Water Well Drilling Rig/6X4 Truck Mounted Rig 1

RCF200T Hydraulic Water Well Drilling Machine/200m Truck Mounted Water Well Drilling Rig/6X4 Truck Mounted Rig 2
