150m Deep Mini Portable Crawler Water Well Drilling Machine For Water Drilling Projects

150m Deep Mini Portable Crawler Water Well Drilling Machine For Water Drilling Projects

Crawler Water Well Drilling Machine

150m Deep Water Well Drilling Machine

Portable Water Well Drilling Machine

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCF150S

Contact Us
Request A Quote
Product Details
Dimension(L*W*H):
2300×1200×1900MM
Pipe Diameter:
76mm/89mm
Travel Speed:
2.5Km/h
Power:
42KW Yuchai Engine
Model:
RCF150S MINI CRAWLER
Max Depth(m):
150
Bore Diameter(mm):
90-300
Highlight:

Crawler Water Well Drilling Machine

,

150m Deep Water Well Drilling Machine

,

Portable Water Well Drilling Machine

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
It can be shipped by one 20" container
Delivery Time
10-15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
Product Description

150m Deep Mini Portable Crawler Water Well Drilling Machine and Solution for Water Drilling Projects

Products Description

The RCF150S Small Water Boring Machine is a reliable and versatile solution for various drilling needs. With a lightweight design of just 2300 kg, it is highly portable and easy to maneuver.

This machine is ideal for a range of applications, including farm irrigation, yard wells, geothermal wells, and industrial water drilling projects. It can drill holes up to 150 meters deep and 90-300 mm in diameter, making it suitable for diverse water well drilling tasks.

The RCF150S features two rotary motor head drives and can be equipped with mud pumps and air compressors. This ensures smooth and efficient drilling across different soil types.


Machine Specifications


Bore diameter(hammer) 90-300mm
Bore depth 150m
Air consumption 17-31m³/min
Air pressure 1.7-2.5Mpa
Once-time advance length 2.4m
Pipe diameter 76mm/89mm
Pipe length 2m
Push force 4T
Lifting force 12T
Max torque of rotary 3500-3800Nm
Rotary speed 40-65r/min
Mud Pump flow 200L/min (option)
Feeding efficiency 10-35m/h
Travel speed 2.5Km/h
Climb ability 30°
Dimension(L*W*H) 2300×1200×1900MM
weight 2300kg
Diesel engine 42KW Yunnei engine


Machine Advantages


The RCF150S Small Rubber Track Walking Water Well Drilling Rig boasts several outstanding features. Its compact size, lightweight design, and flexible operation make it an excellent choice for various drilling needs. Weighing only 2300 kg and measuring 2300 x 1200 x 1900 mm, it is highly portable and easy to deploy.

The rig utilizes a down-the-hole pneumatic design and features a dual-motor rotating head with a top drive, along with a mud pump and air compressor. The dual rotating motors enhance both rotation torque and speed, ensuring efficient drilling.

Powered by a robust 42 kW Yunnei engine, the RCF150S can achieve a maximum drilling depth of 150 meters, accommodating diameters from 90 to 300 mm. Its rubber track-mounted design facilitates smooth movement, while the fully hydraulic legs and operating system provide stability and ease during drilling operations.

Additionally, the rig’s hydraulic system, supporting configuration, and overall design have been optimized to enhance performance and work efficiency. Its compact and versatile nature makes it well-suited for operations in courtyards and narrow spaces.


Machine Pictures

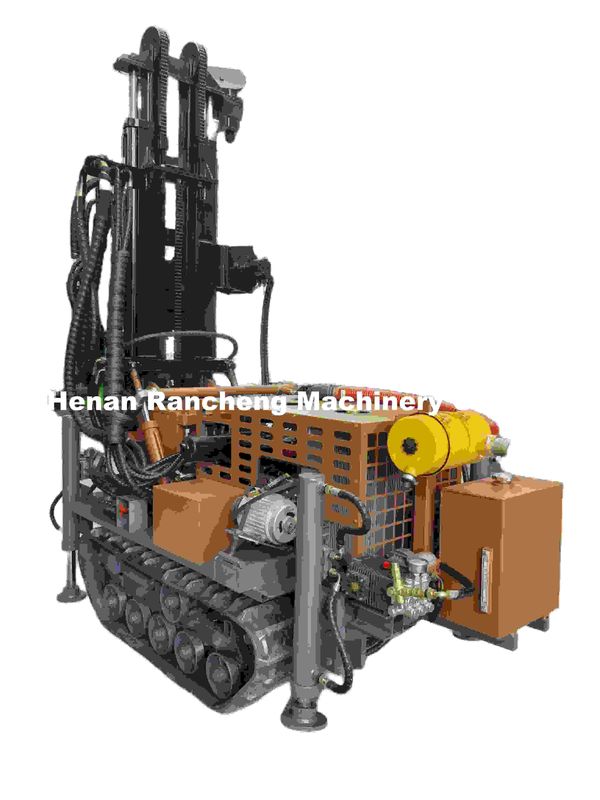

150m Deep Mini Portable Crawler Water Well Drilling Machine For Water Drilling Projects 0

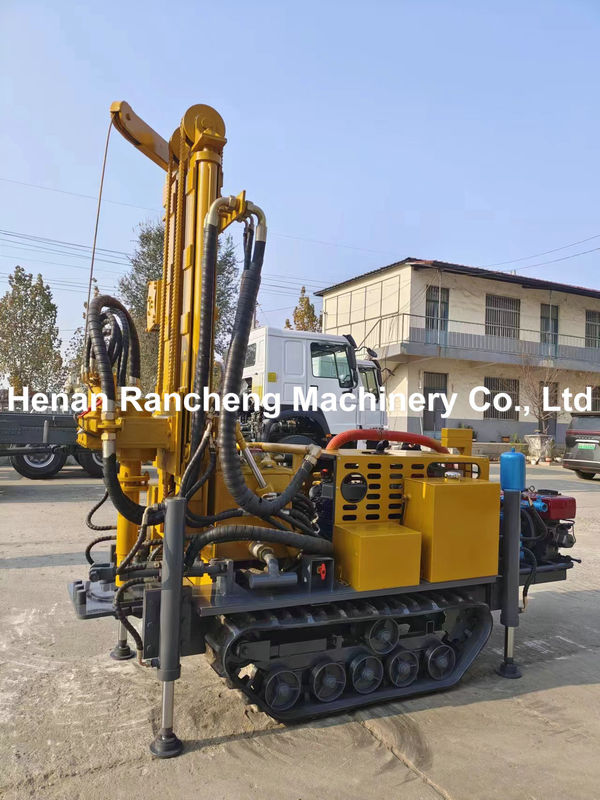

150m Deep Mini Portable Crawler Water Well Drilling Machine For Water Drilling Projects 1

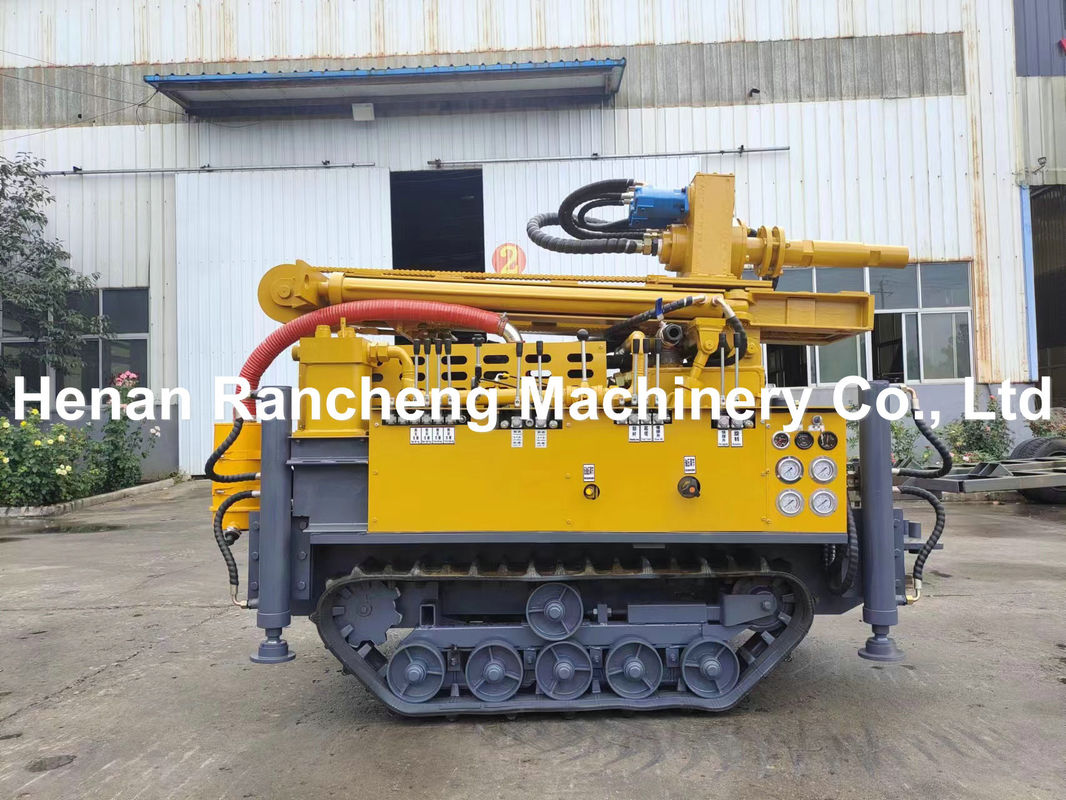

150m Deep Mini Portable Crawler Water Well Drilling Machine For Water Drilling Projects 2

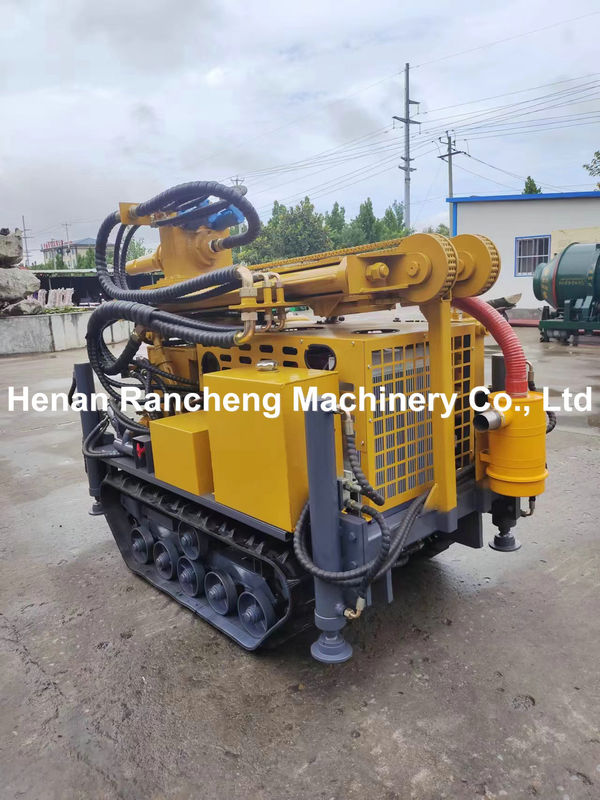

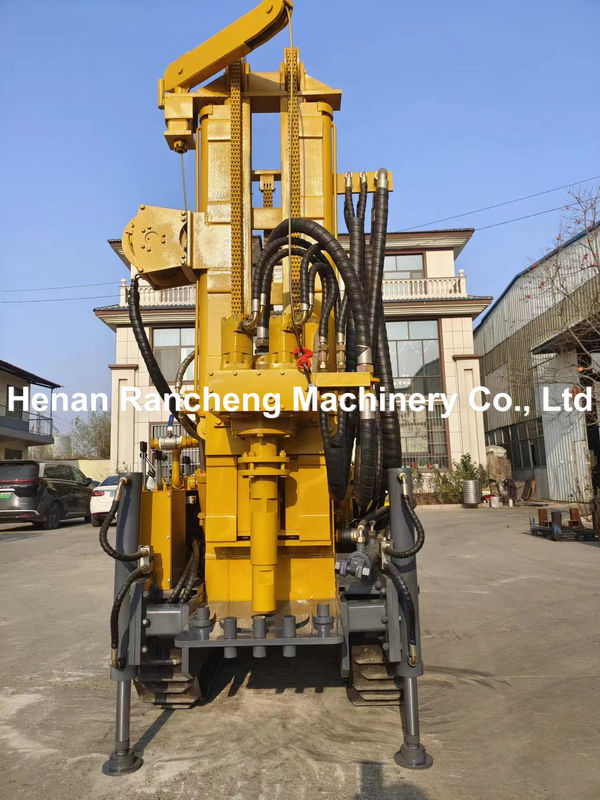

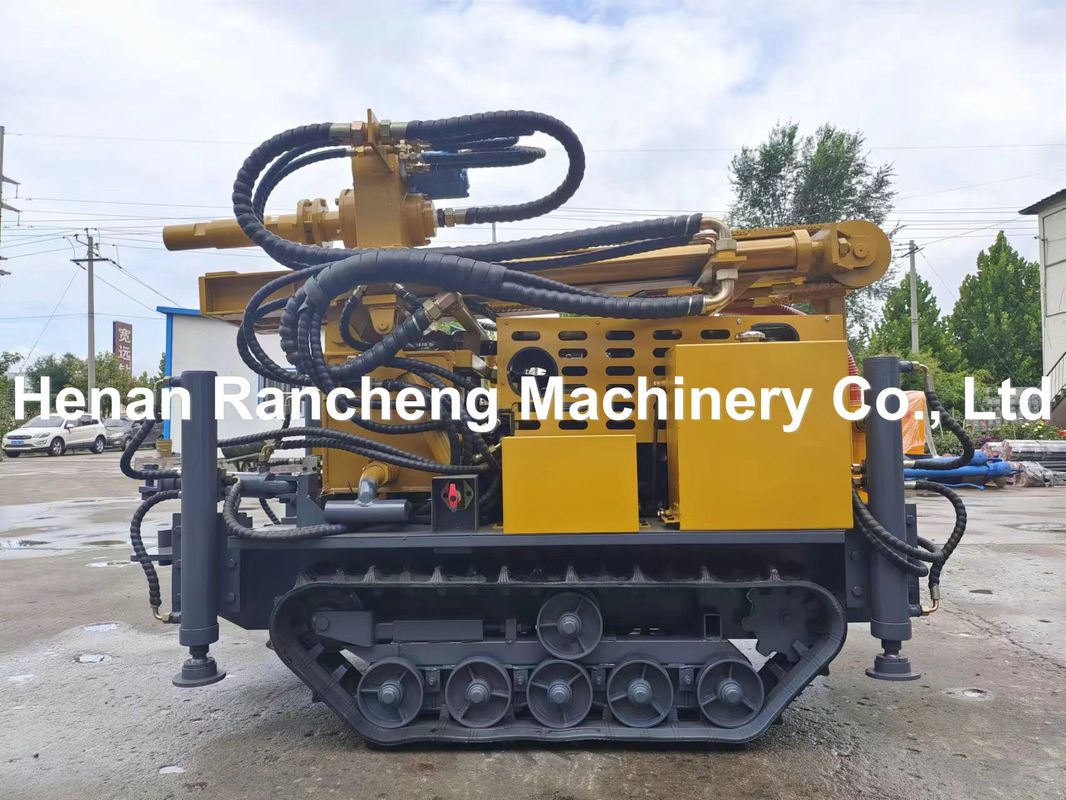

150m Deep Mini Portable Crawler Water Well Drilling Machine For Water Drilling Projects 3150m Deep Mini Portable Crawler Water Well Drilling Machine For Water Drilling Projects 4150m Deep Mini Portable Crawler Water Well Drilling Machine For Water Drilling Projects 5150m Deep Mini Portable Crawler Water Well Drilling Machine For Water Drilling Projects 6150m Deep Mini Portable Crawler Water Well Drilling Machine For Water Drilling Projects 7
Company Information

Henan Rancheng Machinery Co.,LTD is one professional supplier drilling rigs in China ,we are dedicated in designing and manufacture water well drilling rig ,rotary drilling rig ,anchor drilling rig ,core drilling rig,DTH drilling rig ,solar pile driver,mud pump ,air compressor and drilling tools etc,we have advanced technology ,Modern equipment, first-class team and rich experience ,our products passed ISO9001 ,CE etc certificated ,they are exported to around 200 countries and areas in the world ,get very good feedbacks from our clients.
We Pursue the principle of "Customer First, Integrity First", we are sincerely expecting to cooperate with you!!!

150m Deep Mini Portable Crawler Water Well Drilling Machine For Water Drilling Projects 8
