Wheel Type Auger Piling Hydraulic Rig 11m / 13m / 15m / 20m Depth
Product Description
RCQ series wheel type auger piling rig adopt pressurized drilling mode, enabling rotary drilling depth is 11-20m. matching the different specifications of drilling tools, pile hole diameter range up to 500-1500mm.
This pile driver has high drilling efficiency ,and After construction, It can quickly move to next work site . flexible, convenient and efficient, is a national high-speed rail construction-specific piling machinery equipment.
Application
This bored piling drilling machine Mainly used in soft soil piling, such as the foundation, seaports, Bridges, reservoirs station, and national defence construction and so on, widely used in rotary screw pile ,pile engineering, drilling engineering, geological prospecting, building projects, such as engineering blasting and so on.
Product Specifications
| Model |
RCQ-11W |
RCQ-13W |
RCQ-15W |
RCQ-20W |
| Working mode |
Pressure type drilling |
| Drilling diameter (mm) |
Φ500-Φ1500 |
| Max drilling depth (m) |
11 |
13 |
15 |
20 |
| Dimension (mm) |
7150X2120x2900 |
7000X2200X2950 |
7500X2200X2950 |
8200X2200X2950 |
| The total weight (t) |
7.6 |
9.5 |
9.8 |
10.2 |
| Chassis width(mm) |
400 |
| Powerhead torque (KN.m) |
17000-22000 |
| Powerhead rotary speed (r/min) |
30-50 |
| Max lifting power (KN) |
150 |
| Max stroke (m) |
11-12 |
| Wire-rope diameter (mm) |
16 |
| Rotation angle ( °) |
180 |
360 |
| Travel speed (km/h) |
30 |
| Max Grade ability ( °) |
25 |
| Diesel engine model |
Weichai 4108 |
Weichai 6105 |
| Diesel engine power (KW) |
88 |
110 |
| Diesel engine rotary speed (r/min) |
2400 |
2200 |
Product Features
1,Flexible: the whole tonnage is small, simple operating, moving fast, convenient transition, etc features.
2,High returns: small investment, quick gains, economic advantages can not be replaced.
3,Technology patents: patent uses a unique technology to achieve a small torque but big power characteristics, thus achieve a small machine to drill big piling hole .
4,wheel mounted type piling driver ,move by itself ,easy to move.
5,cab operation ,good comfort pile driver.
6,hydraulic system control ,easy operation ,one person operating pile drilling rig.
7,Pile driving speed,the average 3 minutes can realize piling 6 meters deep,namely a hole 3 minutes to play.
8,Oil province,is a common driver uses around half of a year can be a driver left money for you.
9,Bit using manganese steel manufacturing,through processing,are suitable for all kinds of geological environment.

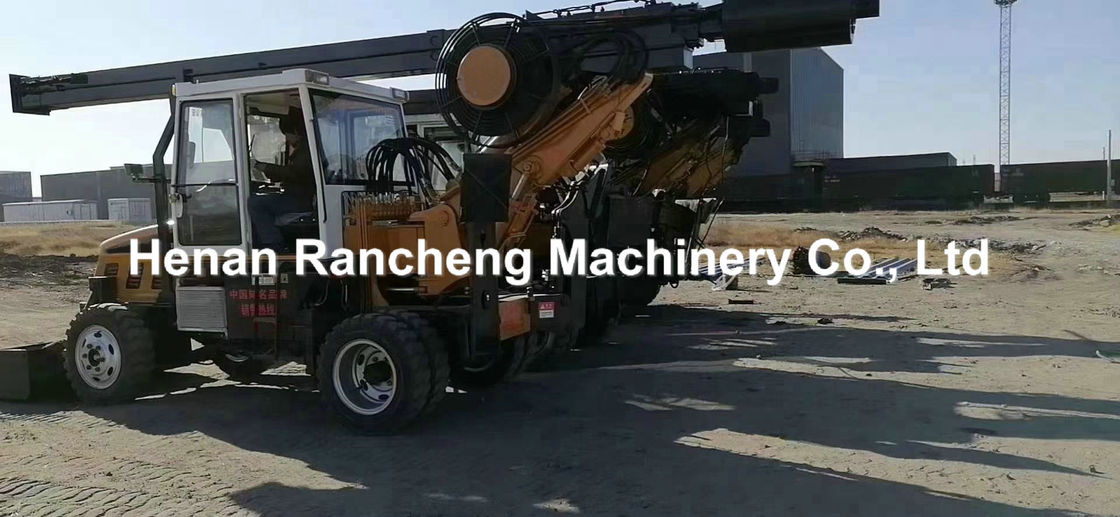

Product Image
