High Drilling Efficiency 150m Deep Diesel Hydraulic Drilling Rig Mountain And Rock Water Well Drilling Rig Machine

Rock Water Well Drilling Rig

Mountain Water Well Drilling Rig

150m Deep Water Well Drilling Rig

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCF150C

Request A Quote

Product Details

Name:

Crawler Mounted Water Well Drilling Machine

Model:

RCF150C

Bore Depth:

150m

Bore Diameter(hammer):

90-300mm

Weight:

4500Kg

Diesel Engine:

42KW

Dimension（L*W*H):

3500X1700X2250mm

Pipe Length:

Highlight:

Rock Water Well Drilling Rig

Mountain Water Well Drilling Rig

150m Deep Water Well Drilling Rig

Payment & Shipping Terms

Minimum Order Quantity

Price

Negotiable

Packaging Details

It can be shipped by one 20" container

Delivery Time

10-15 working days

Payment Terms

T/T, Western Union

Supply Ability

100sets per Month

Max 150 Meters Protable RCF150S Water Well Drilling Machine

Get Best Price

Video

350m Drilling Depth Rubber Caterpillar Track Water Well Drilling Rig Pneumatic Rubber Crawler Drilling Rig

Get Best Price

Video

350m Drilling Depth 91KW Yuchai Engine Water Well Drilling Rig 22T Lifting Force

Get Best Price

Video

Compact And High Efficiency 150 Meter Water Well Drilling Rig

Get Best Price

Contact Now

Product Description

High Drilling Efficiency 150m Deep Diesel Hydraulic Drilling Rig Mountain and Rock Water Well Drilling Rig machine

Product Description

RCF150C deep water well drilling rig is our independent research and development products. These new generation DTH are coupled to higher air power, and thus play a significant role in leading to faster drilling rates.

Adopting newest model & advanced hydro technology, low consumption, large rotary torque, convenient hole deflection,our water well drilling machine are mainly used for well drilling in resource exploration and hydrology wells, civil use water well, agriculture irrigation etc projects.

Technical Parameters

Bore diameter(Hammer)	90-300mm
Bore depth	150m
Air consumption	17-31m³/min
Air pressure	1.7-2.5Mpa
Pipe diameter	76mm/89mm
Pipe length	3m
Push force	4T
Lifting force	12T
Lifting speed	2.5m/min
feeding speed	0.5-5m/min
Fast lifting speed	18m/min
Fast feeding speed	35m/min
Max torque of rotary	3500-3800Nm
Rotary speed	40-65r/min
Mud Pump flow	200L/min (option)
Feeding efficiency	10-35m/h
Travel speed	2.5Km/h
Climb ability	30°
Dimension(LWH)	3500×1700×2250MM
Weight	3700kg
Diesel engine	42KW

Product advantages

Made from high quality materials, with fashion and compact design, that keeps our drilling rigs more efficiency and with low failure rate, more economic and durable, and with a high comprehensive cost performance. Our water drilling rigs have received the real market validation as the majority of our customers’ positive feedback.

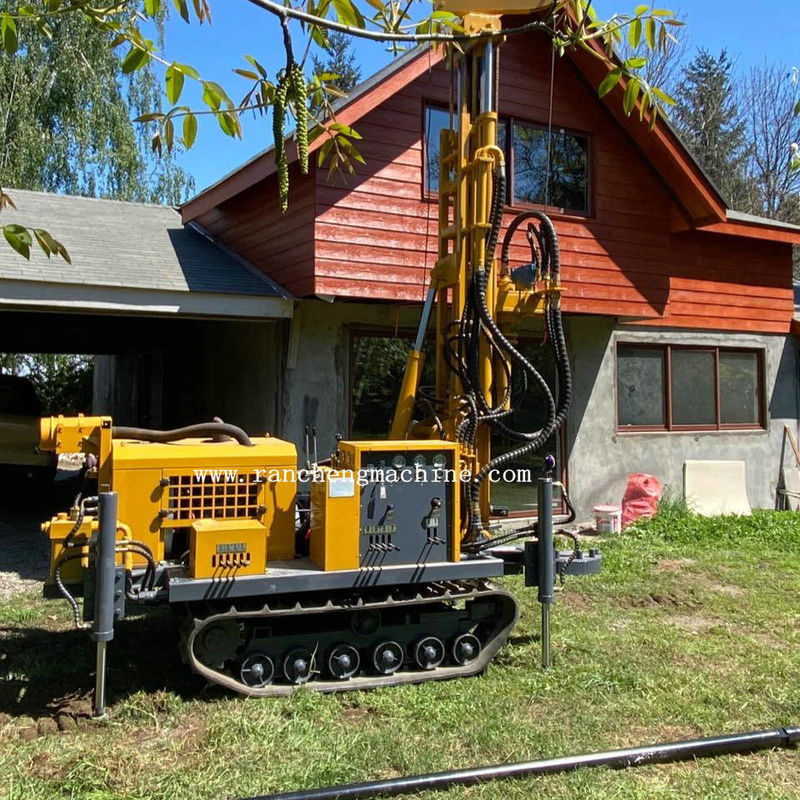

Machine pictures
