1500mm Wheel Type Auger Drill Rig Bore Pile Bored Pile Drilling Rig
Product Description
RCQ series wheel type auger piling rig adopt pressurized drilling mode, enabling rotary drilling depth is 11-20m. matching the different specifications of drilling tools, pile hole diameter range up to 500-1500mm.
The machine lock bar rotary pile drilling rig uses hydraulic crawler-type telescopic chassis, self-lifting and folding collapsible drilling mast, telescopic drilling rod and many other technical applications. It is a construction machine suitable for hole formation in building foundation engineering.
Compared with ordinary rotary drilling rigs, machine-locked rod rotary drilling rigs have many objective advantages, such as the ability to drill through special grounds such as cement ground, hard sandy soil layers, and rock layers. It is suitable for large-scale engineering construction, buildings, high-speed, high-speed rail 3. Railway engineering construction. The machine construction runs fast, has high efficiency, good drilling quality, and is fuel-efficient and durable.
Application
This bored piling drilling machine Mainly used in soft soil piling, such as the foundation, seaports, Bridges, reservoirs station, and national defence construction and so on, widely used in rotary screw pile ,pile engineering, drilling engineering, geological prospecting, building projects, such as engineering blasting and so on.
Mainly suitable for the construction of soil layers such as sandy soil, cohesive soil, silty soil, etc., it is widely used in various foundation constructions such as cast-in-situ piles, continuous walls, and foundation reinforcement.
Product Specifications
| Model |
RCQ-11W |
RCQ-13W |
RCQ-15W |
RCQ-20W |
| Working mode |
Pressure type drilling |
| Drilling diameter (mm) |
Φ500-Φ1500 |
| Max drilling depth (m) |
11 |
13 |
15 |
20 |
| Dimension (mm) |
7150X2120x2900 |
7000X2200X2950 |
7500X2200X2950 |
8200X2200X2950 |
| The total weight (t) |
7.6 |
9.5 |
9.8 |
10.2 |
| Chassis width(mm) |
400 |
| Powerhead torque (KN.m) |
17000-22000 |
| Powerhead rotary speed (r/min) |
30-50 |
| Max lifting power (KN) |
150 |
| Max stroke (m) |
11-12 |
| Wire-rope diameter (mm) |
16 |
| Rotation angle ( °) |
180 |
360 |
| Travel speed (km/h) |
30 |
| Max Grade ability ( °) |
25 |
| Diesel engine model |
Weichai 4108 |
Weichai 6105 |
| Diesel engine power (KW) |
88 |
110 |
| Diesel engine rotary speed (r/min) |
2400 |
2200 |
Product Features
1 It is economical and efficient, mainly used in media and small-diameter pile civil construction;
2 Diesel engine has load induction and output power auto-control; the fuel consumption drops 5-10%;
3 5-level anti-vibration technology absorbs drilling vibrational frequency all-directionally to guarantee high stability;
4 The special lubricating system makes sure that it can work under high-temperature environment;
5 The removable and symmetrical structure design doubles the service life of rotary drive key;a
6,hydraulic system control ,easy operation ,one person operating pile drilling rig.
7,Pile driving speed,the average 3 minutes can realize piling 6 meters deep,namely a hole 3 minutes to play.
8,Oil province,is a common driver uses around half of a year can be a driver left money for you.
9,Bit using manganese steel manufacturing,through processing,are suitable for all kinds of geological environment.

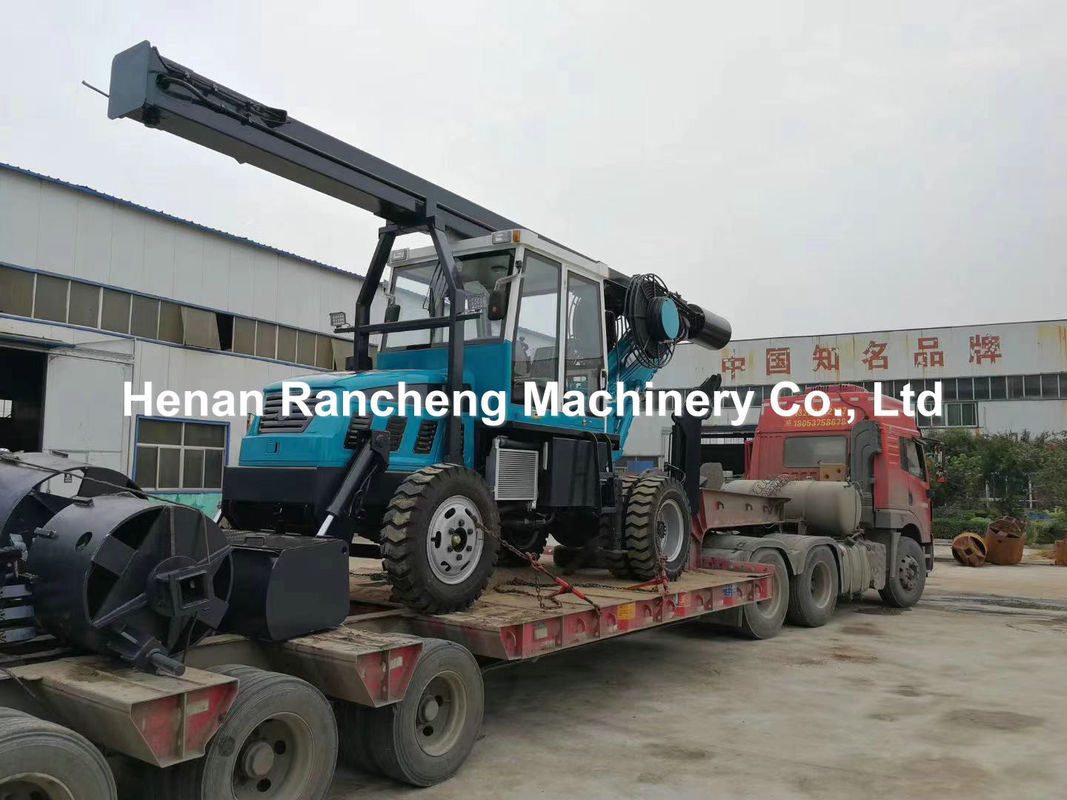

Product Image
