Name: 60-80m Depth Small Hydraulic Thrust Boring Machine With 32HP Diesel Engine
Brand: Henan Rancheng Machinery Co., Ltd.
SKU: RCHD-60D
Availability: InStock

Home > products > HDD Drilling Rig >

60-80m Depth Small Hydraulic Thrust Boring Machine With 32HP Diesel Engine

32HP Hydraulic Thrust Boring Machine

80m Hydraulic Thrust Boring Machine

Small Hydraulic Thrust Boring Machine

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCHD-60D

Request A Quote

Product Details

Pump Station Size:

1200*1000*1000mm

Product Category:

HDD Drilling Rig

Model:

RCHD-60D

Drilling Rig Weight:

150KGS

Pump Station Power:

32HP Diesel Engine

Highlight:

32HP Hydraulic Thrust Boring Machine

80m Hydraulic Thrust Boring Machine

Small Hydraulic Thrust Boring Machine

Payment & Shipping Terms

Minimum Order Quantity

Price

Negotiable

Packaging Details

Standard shipping

Delivery Time

10-15 working days

Payment Terms

T/T, Western Union

Supply Ability

100sets per Month

Drilling Depth 60-80m Hydraulic Thrust Boring Machine With 32HP Diesel Engine

Get Best Price

Video

60-80m Depth Small Hydraulic Thrust Boring Machine With 32HP Diesel Engine

Get Best Price

Video

60m Depth 32HP Diesel Engine Underground Horizontal Boring Machine Hdd Drilling Machine

Get Best Price

Video

150KGS Weight Small Directional Boring Machine For Trenchless Laying Of Various Pipelines

Get Best Price

Contact Now

Product Description

60-80m Depth Small Hydraulic Thrust Boring Machine With 32HP Diesel Engine

Product Description:

Hydraulic thrust boring machine is widely used in natural gas transformation, tap water transformation, sewage engineering, small sewage, pipeline installation, road trenchless water pipe transformation and other projects to open up the use, with fast drilling, not afraid of hard soil characteristics, so that construction is fast and labor-saving, drilling smooth and flat

Small pipe jacking machine is also called water drill pipe jacking machine. It is a special pipe jacking machine for water conservancy projects. The characteristics of water drill pipe jacking machine are small and flexible. Water drill pipe jacking machine has changed the working efficiency of hydraulic pipe jacking machine. The general soil jacking speed of water drill pipe jacking machine is m/5 seconds, which is more than ten times the speed of ordinary hydraulic pipe jacking. The jacking rod of water drill pipe jacking machine adopts high-strength water-injectable jacking rod. During the working process of water drill pipe jacking machine, water injection is used to change the residual soil into mud flow out, thereby reducing the friction of jacking force. Water drill pipe jacking machine also changes the toughness of soil.

Technical Parameters

Product Category:	HDD Drilling Rig
Model:	RCHD-60D
Max Drilling Distance:	60m
Max Drilling Diameter:	500mm
Drilling Bit Size (optional):	80, 100, 130, 150, 200, 250, 300, 350, 400, 450, 500mm
Drilling Rig Weight:	150KGS
Drilling Rig Power:	Hydraulic
Drilling Pipe Size:	42mm, 1m/pc
Pump Station Power:	32HP Diesel Engine
Torque:	1800N.m

Machine components

(1) The main part of the water drill pipe jacking machine: mainly composed of two double-acting hydraulic cylinders.

(2) A hydraulic pump station of the water drill pipe jacking machine, which is equipped with a diesel engine pump station and an electric motor pump station respectively.

(3) Two supporting plates for the water drill pipe jacking machine, which are used to fix the machine and support the pit wall.

(4) The top rod and pull head of the water drill pipe jacking machine: their function is to push in and pull back to expand the hole.

FAQ

Q:Are you the manufacturer?

A: Yes, we are the factory with more than 10 years of manufacturing experience.

Q:What is the warranty of our machine?
A:Our main machine enjoys a 1 year warranty. And we provide videos for machine install and operation.

Q: How long is your delivery time?
A: About 10-15 work days after receipt of the payment.

Q:How do you make our business long-term and good relationship?
A:We keep good quality and competitive price to ensure our customers benefits;

Q:Do you have any certificates for your machine?
A: All of our products coming with the certificates of CE and ISO 9001:2000.

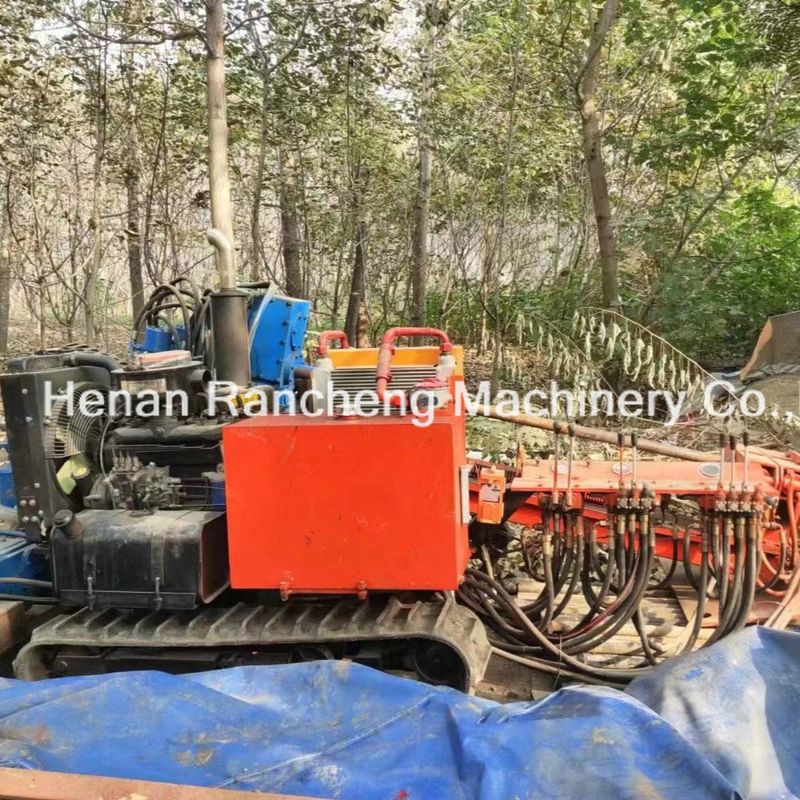

60-80m Depth Small Hydraulic Thrust Boring Machine With 32HP Diesel Engine 0
