Name: Backpack Type Portable Core Drill 26-28mm Diameter 3hp Gasoline Engine
Brand: Henan Rancheng Machinery Co., Ltd.
SKU: RCA-20
Availability: InStock

Home > products > Core Drilling Rig >

Backpack Type Portable Core Drill 26-28mm Diameter 3hp Gasoline Engine

28mm diameter Core Drill

Portable Core Drill

3hp gasoline engine Core Drill

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCA-20

Request A Quote

Product Details

Name:

Core Drilling Rig

Model:

RCA-20

Max Torque:

16N.m

Drill Depth:

20m

Size:

390X360X300mm

Highlight:

28mm diameter Core Drill

Portable Core Drill

3hp gasoline engine Core Drill

Payment & Shipping Terms

Minimum Order Quantity

Price

Negotiable

Packaging Details

Standard shipping

Delivery Time

10-15 working days

Payment Terms

T/T, Western Union

Supply Ability

100sets per Month

100-240RPM Winch Rated Rotary Speed Small Core Drilling Rig 96L/Min Hydraulic System Rated Flow

Get Best Price

Video

100-240RPM Winch Rated Rotary Speed Small Core Drilling Rig Portable Core Drilling Equipment For Intensity Drilling

Get Best Price

Portable Type RCH-3A Underground Core Drilling Rig Exploration Tunnel Mine Drilling Rig

Get Best Price

Video

Portable Hydraulic Core Drilling Rig Equipment For Geological / Gold / Rock Exploration

Get Best Price

Contact Now

Product Description

Backpack type Portable Core Drill 26-28mm diameter 3hp gasoline engine

Machine Introduction

RCA-20 backpack core drilling rig is a nearly ideal tool for environmental and geotechnical field investigation because it can be used in otherwise difficult of access locations behind buildings, fences and walls, trees, escarpments and much else. The diamond core bits of the system are easily capable of advancing borings through a large array of subsurface materials including steel reinforced concrete, hard rock and some kinds of cemented gravels.

The portable drilling rig has many field applications including precious and basic metals, academic, environmental, geotechnical investigation, construction, treasure hunting, fossil fuels, quarry stone, and well installation.

Technical Parameters

Rotating speed	1300-1720rpm
Max torque	16N.m
Drill depth	20m
Power	3HP gasoline engine,max 8600r/min
Feed method	Hand-holding, diamond drill bit and alloy bit high-speed rotation.
Drill pipe diameter	25mm ,0.6m/pc
Drill diameter	26mm
Core diameter	20mm
Stroke	0.6m
Weight of drill rig,including power	12kgs
Size	390X360X300mm

Machine Advantages

1,this drill rig is a small portable sampling drilling equipment which is mainly suitable for mountain, transportation and energy.

2,The portable core drilling machine can replace the traditional manual excavation, tank probe ,take samples and so on

3,this drilling machine is not only more efficient, but also reduces vegetation damage and protects the environment

4,this backpack core drilling rig is an indispensable technical means in shallow geological exploration, such as regional geological mapping, geophysical exploration sampling, ancient geomagnetic sampling, and geological disaster prevention.

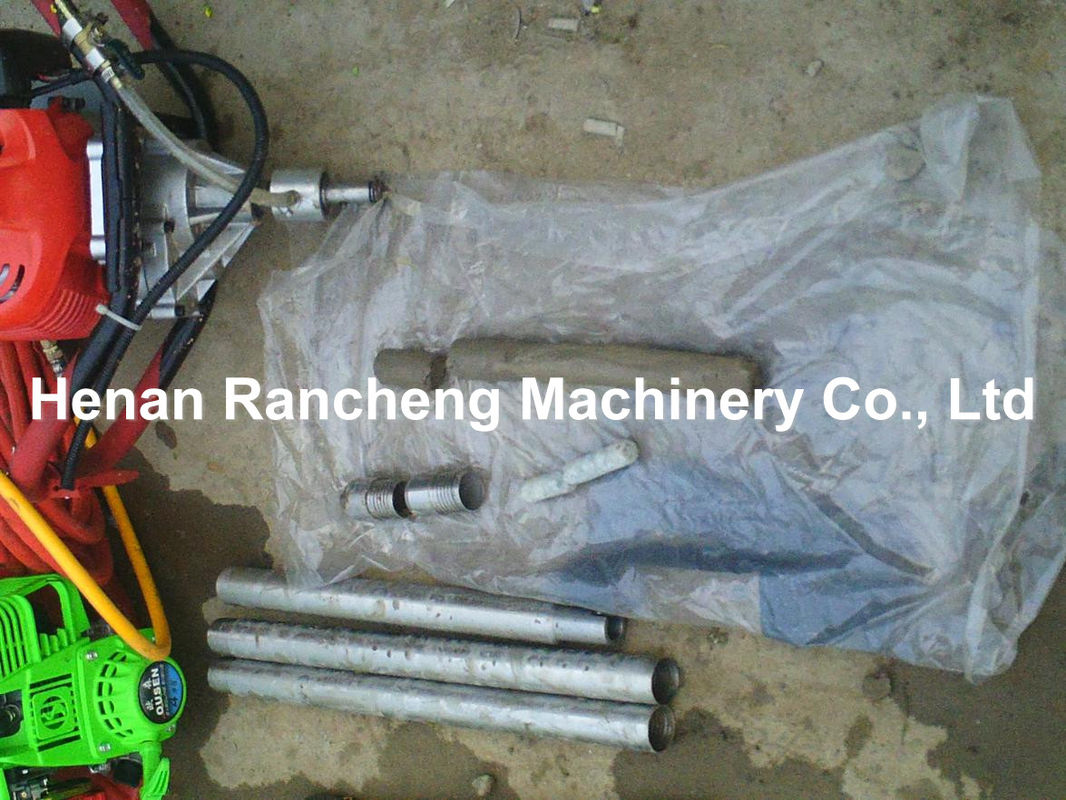

Machine Pictures
