RCF800C 800m Drilling Rig Cummins Engine Steel Crawler Type Well Drilling Rig

RCF800C 800m Drilling Rig Cummins Engine Steel Crawler Type Well Drilling Rig

800m Well Drilling Rig

Steel Crawler Type Well Drilling Rig

Cummins Engine Well Drilling Rig

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCF700C

Contact Us
Request A Quote
Product Details
Name:
Water Well Drilling Machine
Model:
RCF800C
Geology Drilled:
All Kind
Drill System And Operation:
Hydraulic
Max Hole Depth:
800m
Hole Diameter:
140-500m
Diesel Engine:
154KW Cummins
Dimension:
6300×2300×2650mm
Highlight:

800m Well Drilling Rig

,

Steel Crawler Type Well Drilling Rig

,

Cummins Engine Well Drilling Rig

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
It can be shipped by one 40" container
Delivery Time
10-15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
Product Description

RCF800C 800m Drilling Rig Cummins Engine Steel Crawler Type Well Drilling Rig



Machine Introduction



RCF800C deep water well drilling rig is our independent research and development products. These new generation DTH are coupled to higher air power, and thus play a significant role in leading to faster drilling rates.



Adopting newest model & advanced hydro technology, low consumption, large rotary torque, convenient hole deflection,our water well drilling machine are mainly used for well drilling in resource exploration and hydrology wells, civil use water well, agriculture irrigation etc projects.



Made from high quality materials, with fashion and compact design, that keeps our drilling rigs more efficiency and with low failure rate, more economic and durable, and with a high comprehensive cost performance. Our water drilling rigs have received the real market validation as the majority of our customers’ positive feedback.



Specification



Model RC800C
Drilling way Both mud pump drilling and air DTH drilling
Geology drilled All kind
Drill system and operation Hydraulic
Diesel engine 154KW Cummins
Max hole depth 800m
Hole diameter

140-500mm

Air consumption

17-42m³/min

Length of drilling pipe 1m/2m/3m/6m
Diameter of drilling pipe

102/108/114mm

Total Weight 13ton
Dimension (L * W * H)

6300×2300×2650mm



Applications


1. Water wells drilling
RCF800C is widely used for drilling water wells in remote areas with limited access to water sources. The drilling depth of 800 meters and the mobility of the machine make it possible to reach water sources in deep underground formations.

2. Geothermal drilling
RCF800C is also suitable for geothermal drilling, which involves drilling deep into the earth's crust to tap into the thermal energy that is stored beneath the earth's surface.

RCF800C is a powerful and versatile drilling machine that has revolutionized the way water wells, geothermal wells, and mineral exploration are carried out. The advanced features and innovative technology make it easy to operate and highly efficient. With its ability to drill deep into the earth's crust, the RCF800C water well drilling rig is a game-changer in the drilling industry.

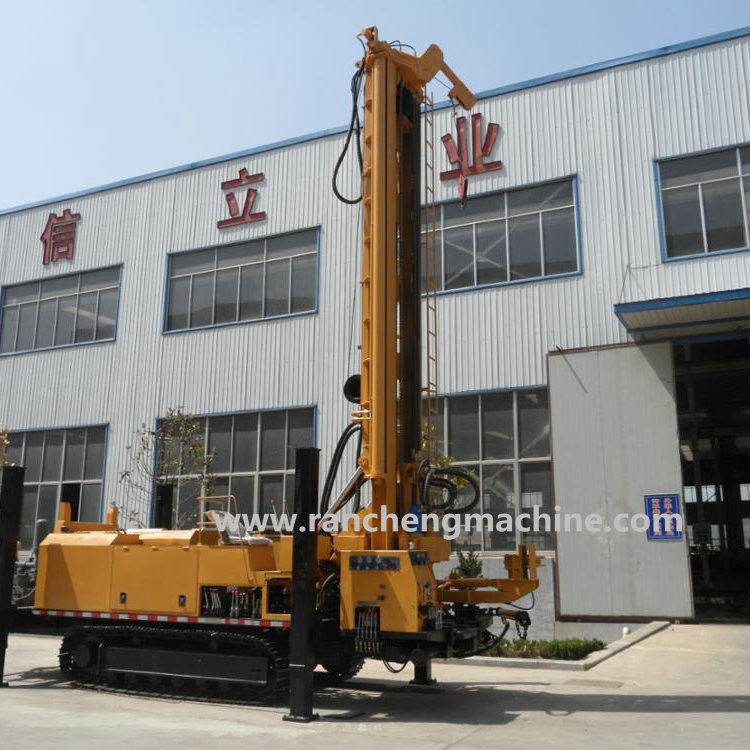

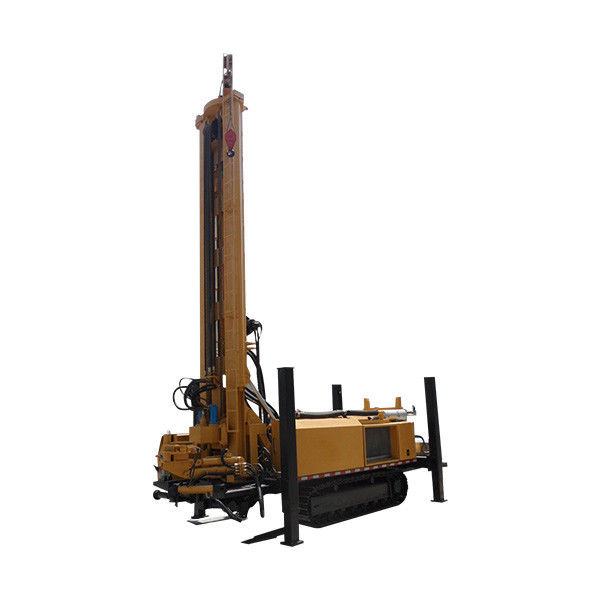

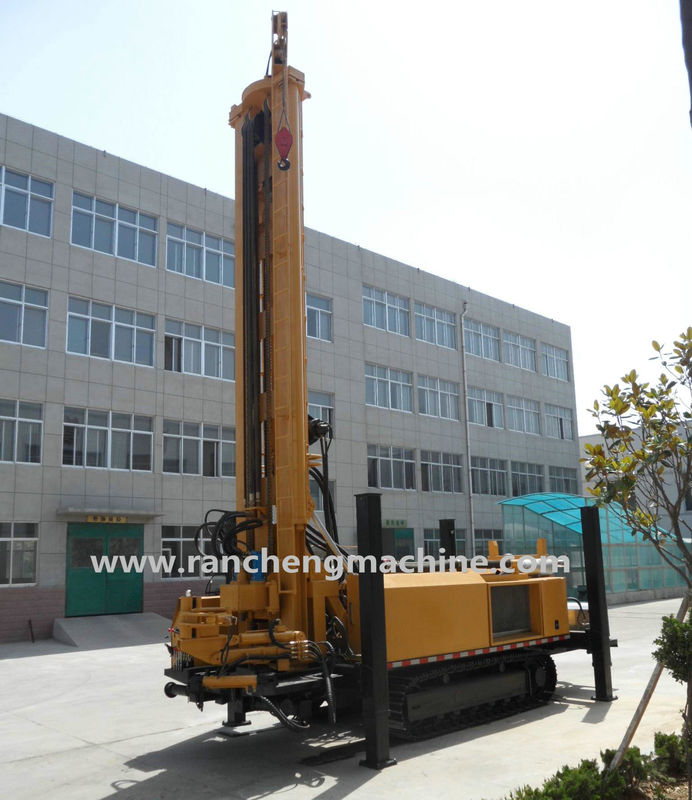

Machine Pictures



RCF800C 800m Drilling Rig Cummins Engine Steel Crawler Type Well Drilling Rig 0RCF800C 800m Drilling Rig Cummins Engine Steel Crawler Type Well Drilling Rig 1RCF800C 800m Drilling Rig Cummins Engine Steel Crawler Type Well Drilling Rig 2RCF800C 800m Drilling Rig Cummins Engine Steel Crawler Type Well Drilling Rig 3
