Name: 160m Small Portable Water Well Drilling Rig Machine With 35HP Engine
Brand: Henan Rancheng Machinery Co., Ltd.
SKU: RCS260C
Price: 3500 USD
Availability: InStock

Home > Products > Water Well Drilling Machine >

160m Small Portable Water Well Drilling Rig Machine With 35HP Engine

small portable water well drilling machine

35HP water well drilling rig

160m depth water well drilling machine

Place of Origin:

China

Brand Name:

Rancheng

Certification:

Model Number:

RCS260C

Request A Quote

160m Small Portable Water Well Drilling Rig Machine With 35HP Engine

Product Details

Condition:

New

Weight:

4000KG

Warranty:

One Year

Type:

Hydraulic

After-sales Service Provided:

1,24/7 Service By Chat Online And Phone. 2,Lifelong And Free Technical Support. 3,Service Overseas: If You Need, We Can Dispatch An Engineer To Your Door.

Usage:

Water Well Drilling Rig

Power Type:

Diesel Engine

Dimension(l*w*h):

2300*1080*2000

Power(w):

25HP

Drilling Depth:

150

Application:

Water Well

Highlight:

small portable water well drilling machine

35HP water well drilling rig

160m depth water well drilling machine

Payment & Shipping Terms

Minimum Order Quantity

Price

3500

Packaging Details

Wooden Crates

Delivery Time

7 work days

Payment Terms

L/C, T/T

Product Description

Specifications

Model of drilling machine	RCS260C
Walking way	Rubber crawler mounted
Drilling machine overall dimension(mm)	230010802000
Weight of Drilling machine (kg)	1000
Drill rod diameter (mm)	Ø64
Drill rod length(mm)	1500
Rod change method	Full automatic screw thread
Drilling depth(m)	160
Diesel Motor Power (Hp/kw)	35HP /25.8KW
Drilling method	Percussive and rotating type
Drilling hole diameter(mm)	Within Ø 450mm
Stroke distance (mm)	2000
Hosting capacity (kg)	4000KG

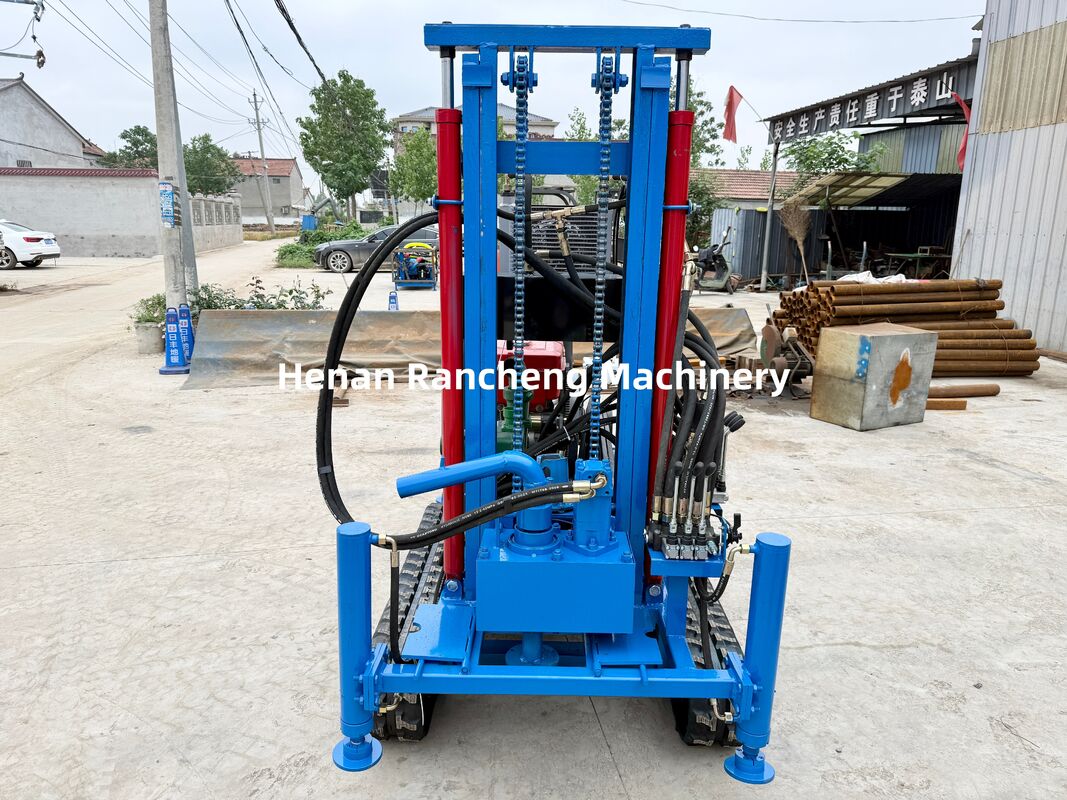

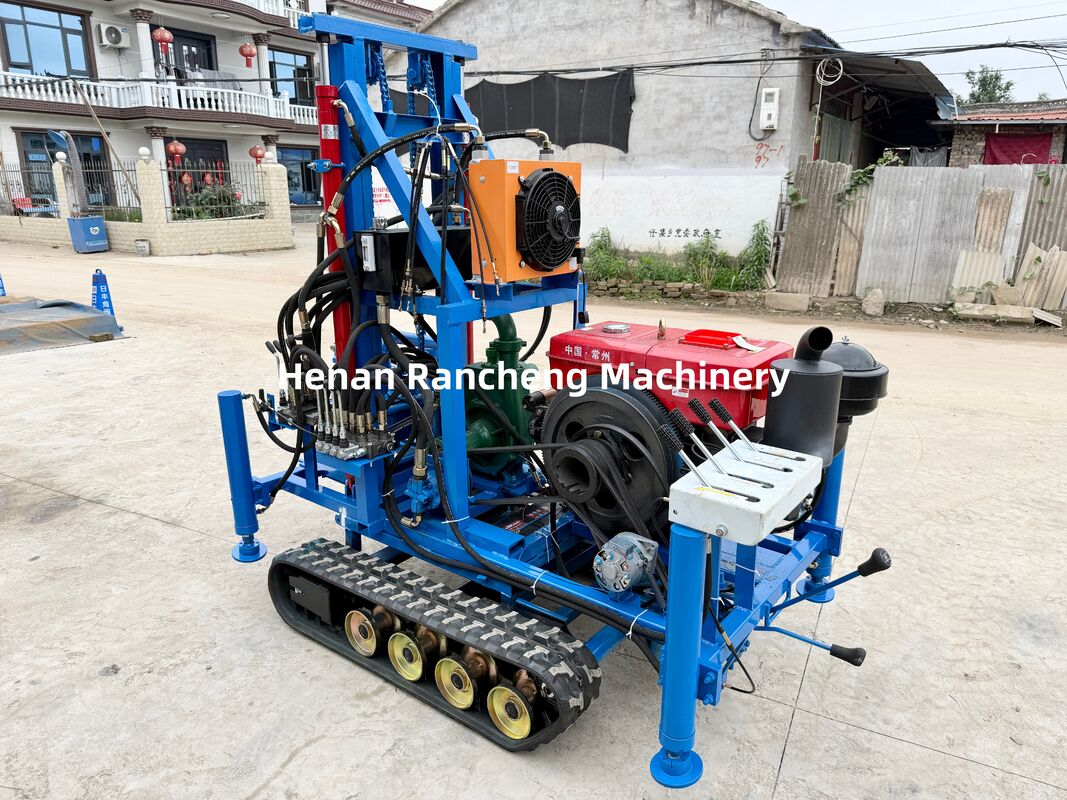

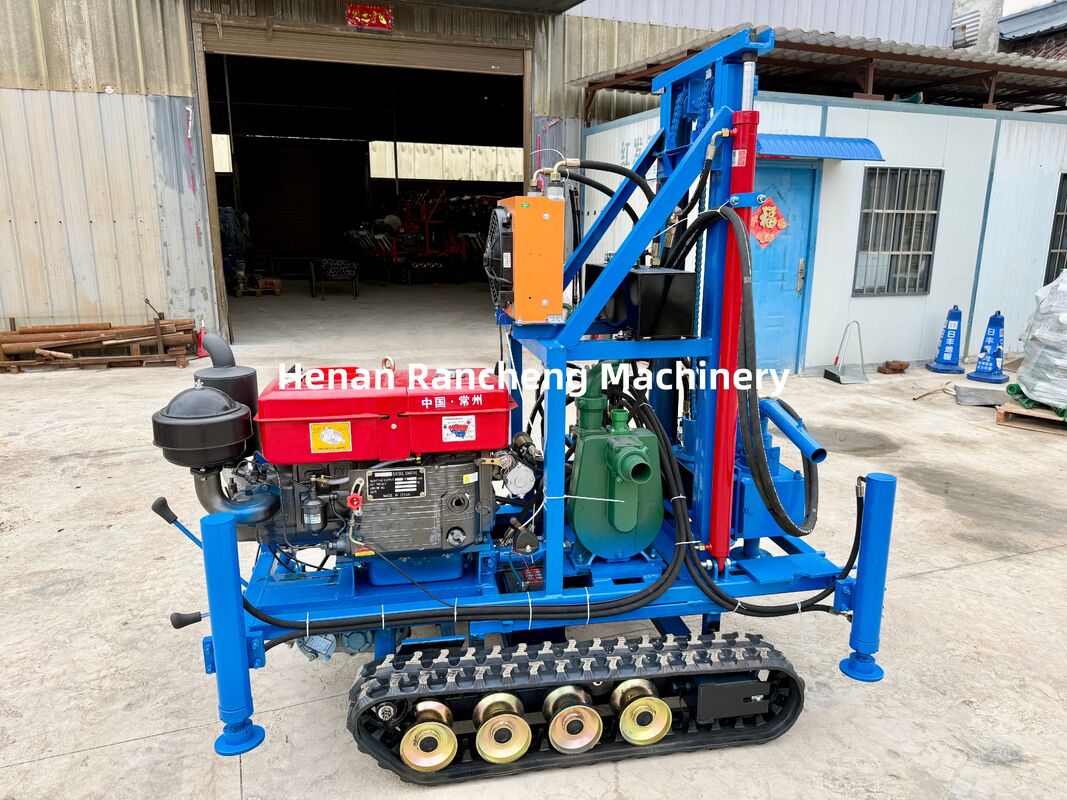

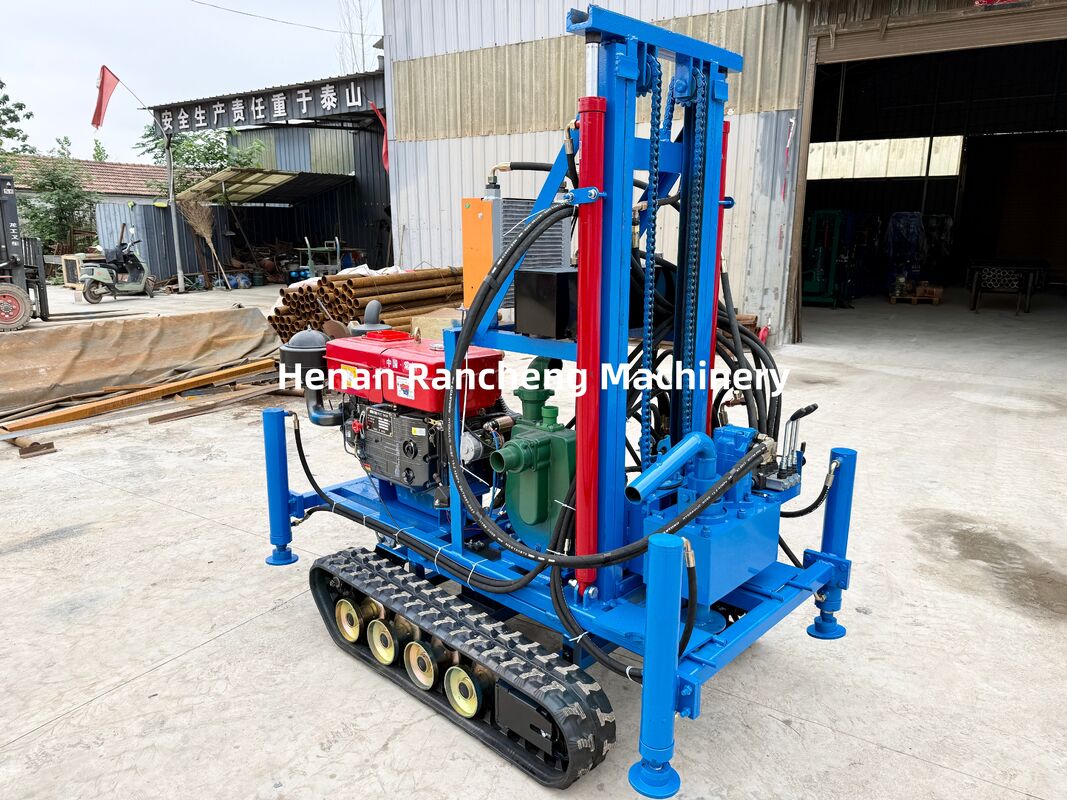

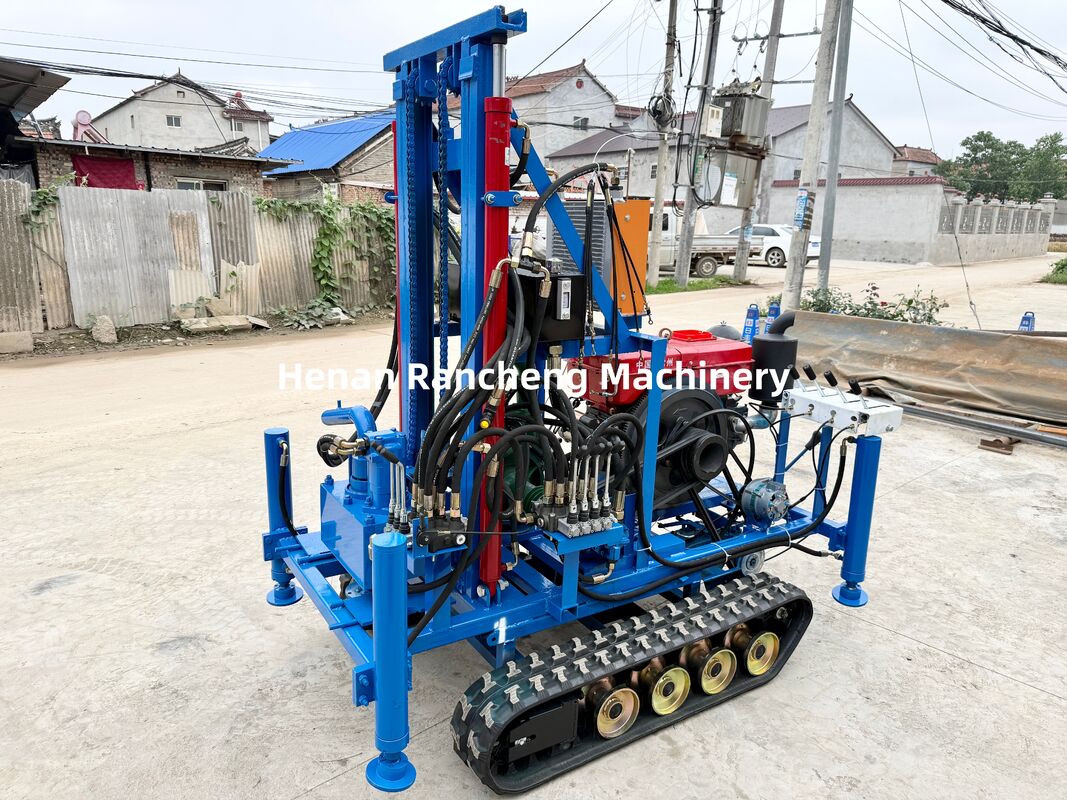

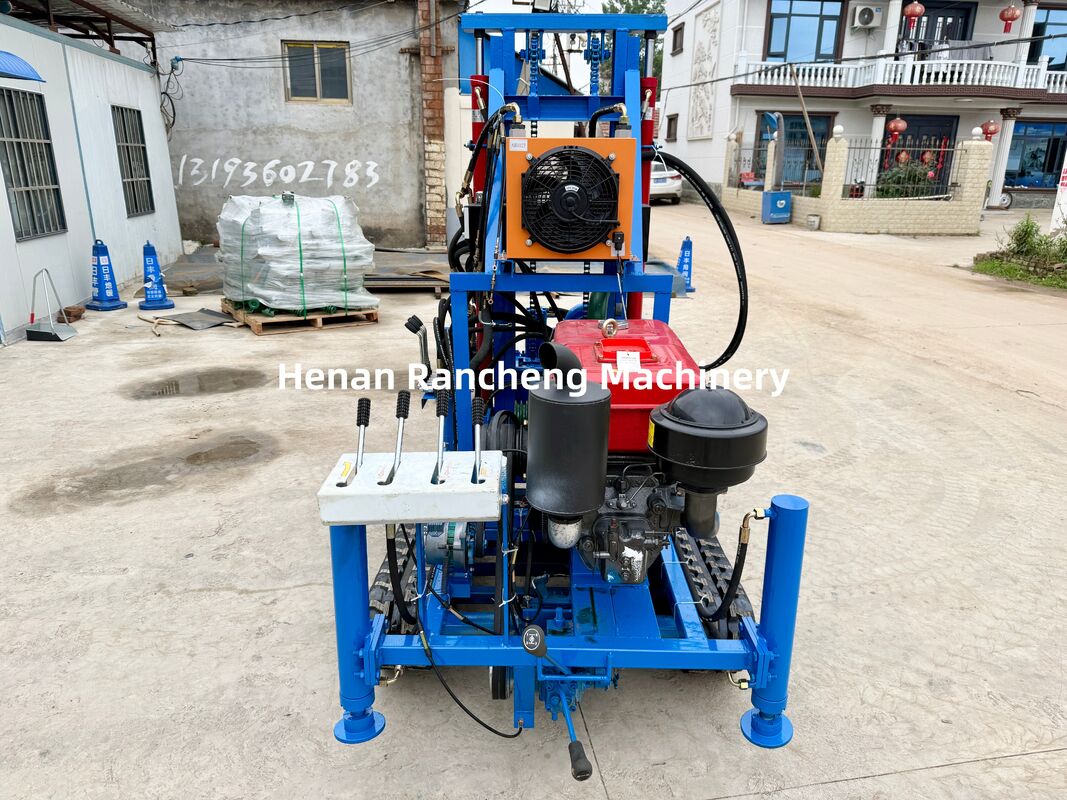

RCS260C small hydraulic rubber crawler mounted water drilling rig

I. Applications

This water well drilling machine mainly apply to geothermal drilling, farm irrigation,house yard, gardens ,water well drilling and boring drilling etc,it can drill 70-450mm diameter , Max 160m depth,It also can be used in small building piling, like farmhouse or factory, the drilling diameter can reach 450mm ,it can apply to different stratum, such as sand,soil,clay,soft rock and so on.

II. Features and Advantages

1. Light weight, energy saving.

2. Patented product, unique design and simple drilling structure;

3. Easy to transport and can learn how to handle the machine in short time;

4. Can drill through hard stratum, unless thick rock layer ;

5. One person operation, reduce the labor intensity ;

6. High efficiency and work fast;

7. Assure easily operation and long life service life.
