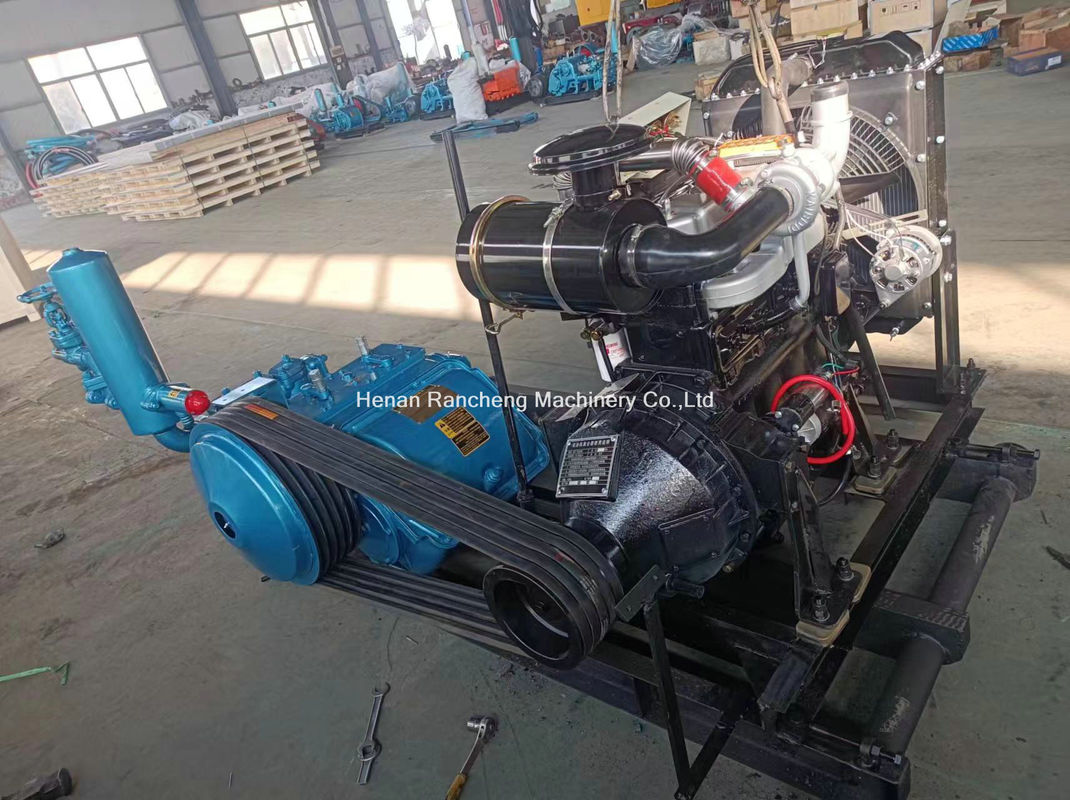

Diesel Engine Type Max 600L/Min Mud Pump By Electric Motor

Diesel Engine Type Max 600L/Min Mud Pump By Electric Motor

Electric Motor Mud Pump

Diesel Engine Mud Pump

Max 600L/Min Mud Pump

Place of Origin:

China

Certification:

CE, ISO 9001:2000

Model Number:

BW600 / 10

Contact Us
Request A Quote
Product Details
Name:
Drilling Mud Pump
Model:
BW600 / 10
Cylinder Diameter:
100mm
Piston Stroke:
110mm
Flow Rate:
600/415/280/195 L/min
Weight:
1400kg
Highlight:

Electric Motor Mud Pump

,

Diesel Engine Mud Pump

,

Max 600L/Min Mud Pump

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
It can be shipped by LCL
Delivery Time
10-15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
Product Description

Diesel Engine Type Max 600L/Min Mud Pump By Electric Motor



Machine Description



This mud pump is horizontal tri-cylinder dual role penthouse Detroit piston pump. It is mainly used to supply flushing fluid to the drilling well in core drilling or hole drilling. The pump can discharge not only clear water, but also thick mud. And for the specialty of small external dimension, light weight, the pump is suitable for transportation in mountain.



BW600 type mud pump has three bore and four gear speed. Displacement and hole depth can be adjusted according to the application,it also can be used cement perfusion.

Drilling rig and mud pump application range:
1.Projects: Construction drilling of the projects e.g. prospection, geotechnical investigation(geological exploring), railway, road, port, bridge, water conservancy and hydropower, tunnel, well, industrial and civil construction;
2. Exploration: Coal mining exploration, Ore exploration;
3. Water well : Small hole diameter water well drilling;
4. Pipe-installing : Geothermal pipe-installing for heat pump;
5. Foundation piling: Small-diameter hole foundation piling drilling.



Technical Parameters



Model BW600/10
Cylinder diameter 100mm
Piston Stroke 110 mm
frequency of stroke  232/162/109/76times/min
Flow rate  600/415/280/195L/min
Pressure  3.5/5/7.5/10Mpa
Power input 55KW
Diameter of suction pipe 127mm (5”)
Diameter of discharge pipe 63.5 mm (2-1/2”)
Overall dimensions (LxWxH)  1500X890X1230mm
Weight  1400kg



Characteristics



This mud pump are also the main equipment of the geological survey,the main role in the process of core drilling boreholes is to supply fluid(mud or water),making it circulate during drilling and carry rock waste back to the ground,in order to achieve and maintain the bottom hole clean and lubricate drill bits and drilling tools with cooling.


BW600 Mud Pumps is equipped with drilling rigs to drill holes with mud. During drilling ,mud pump slurry mud and water to the hole to provide coat to the wall, to lubricate the drilling tools and to carry the rock debris up to the ground. It is applied to geological core drilling and prospecting drilling with depth less than 1500 meter,it is also used for water well drilling with depth 300-500m


Machine Pictures



Diesel Engine Type Max 600L/Min Mud Pump By Electric Motor 0Diesel Engine Type Max 600L/Min Mud Pump By Electric Motor 1Diesel Engine Type Max 600L/Min Mud Pump By Electric Motor 2

Diesel Engine Type Max 600L/Min Mud Pump By Electric Motor 3

Diesel Engine Type Max 600L/Min Mud Pump By Electric Motor 4
