High-Performance Low Price 180m Small Crawler Water Well Drilling Rig Machine With 77.3KW YuChai Engine
Machine Description
The RCF180S mini well drilling rig is a compact crawler water well drilling machine capable of drilling up to 180 meters with a diameter of up to 300 mm. This mini rig boasts high drilling efficiency, ease of operation, energy savings, and durability, making it ideal for various applications such as water well drilling, borehole drilling, and farmland irrigation.
Equipped with a 2-meter-long drill pipe, the RCF180S allows for convenient loading and unloading. It is not only suitable for general water well drilling but also effective for geothermal wells, ground source heat pump wells, and other projects. Its user-friendly design and versatility make it an excellent choice for small-scale drilling needs.
Constructed from high-quality materials and utilizing advanced manufacturing processes, this mini well drilling rig features a robust structure that can withstand harsh drilling conditions, ensuring years of reliable performance with minimal maintenance.
Technical Parameters
| Bore diameter(hammer) |
90-300mm |
| Bore depth |
180m |
| Air consumption |
17-31m³/min |
| Air pressure |
1.7-2.5Mpa |
| Once-time advance length |
2.4m |
| Pipe diameter |
76mm/89mm |
| Pipe length |
2m |
| Push force |
4T |
| Lifting force |
15T |
| Max torque of rotary |
4000-4600Nm |
| Rotary speed |
45-65r/min |
| Mud Pump flow |
200L/min (option) |
| Feeding efficiency |
10-35m/h |
| Travel speed |
2.5Km/h |
| Climb ability |
30° |
| Dimension(L*W*H) |
2300×1200×1900mm |
| weight |
2700kg |
| Diesel engine |
77.3KW Yuchai engine |
Advantage
This mini water well drilling rig features a low-emission diesel engine paired with an energy-efficient hydraulic system. This combination not only reduces fuel consumption but also minimizes emissions, providing both environmental protection and cost savings. With its powerful hydraulic system and advanced drilling tools, the rig can reach depths of up to 180 meters, making it ideal for small water well projects or home use.
The crawler chassis ensures excellent stability and outstanding maneuverability, allowing the rig to operate smoothly across various challenging terrains and difficult drilling conditions. This design enhances safety and reliability, enabling efficient operation even on uneven ground.

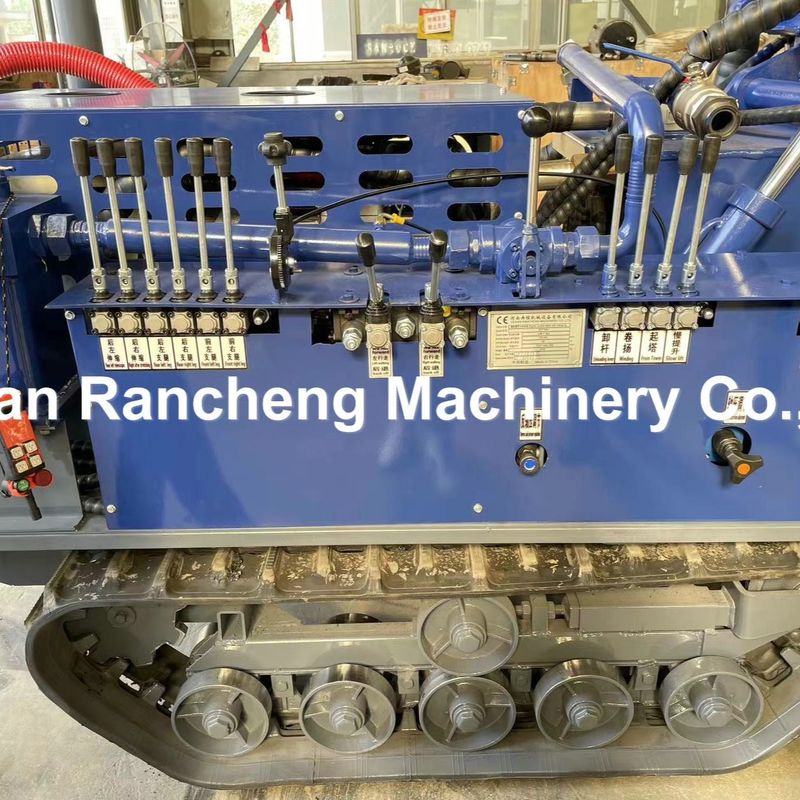

Additionally, the rig is equipped with an ergonomic control panel and an intuitive user interface, simplifying operation and improving work efficiency. This thoughtful design enhances operator comfort and makes it easy to monitor and manage drilling progress.
Overall, this mini water well drilling rig excels in performance, environmental friendliness, and ease of use, making it an excellent choice for any water well drilling project.

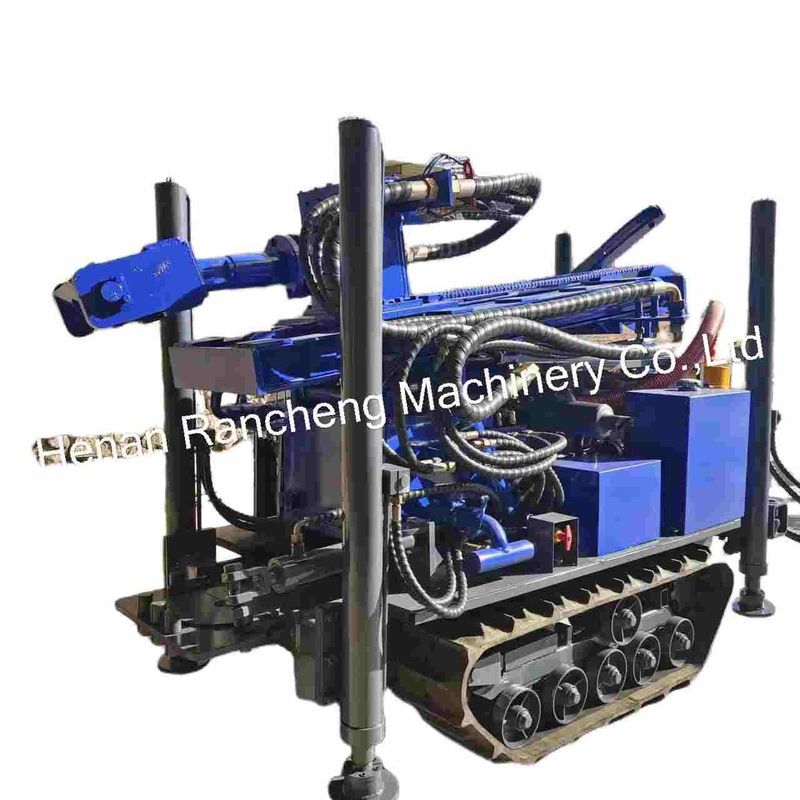

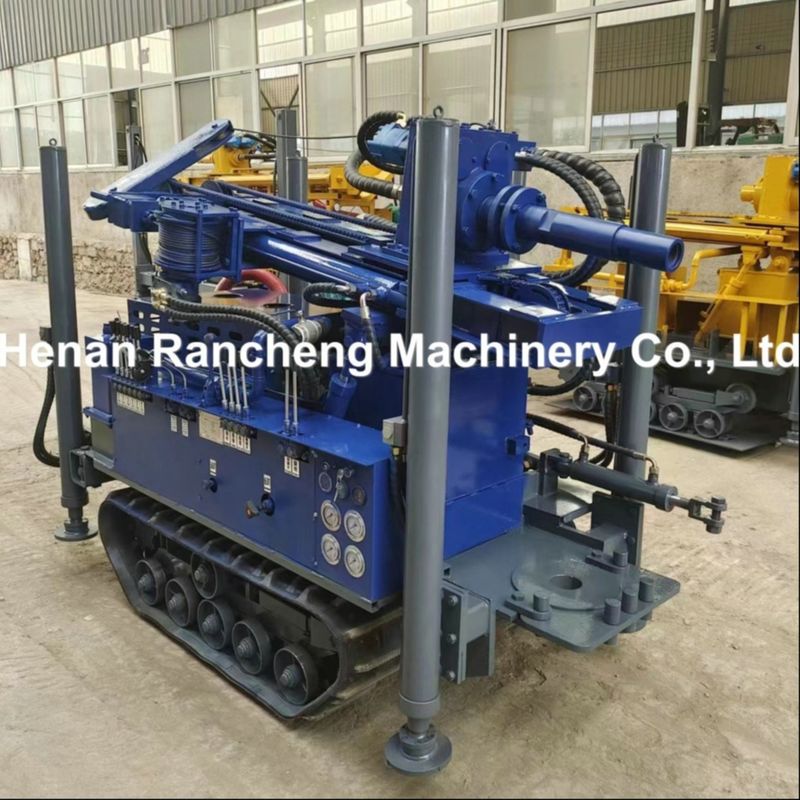

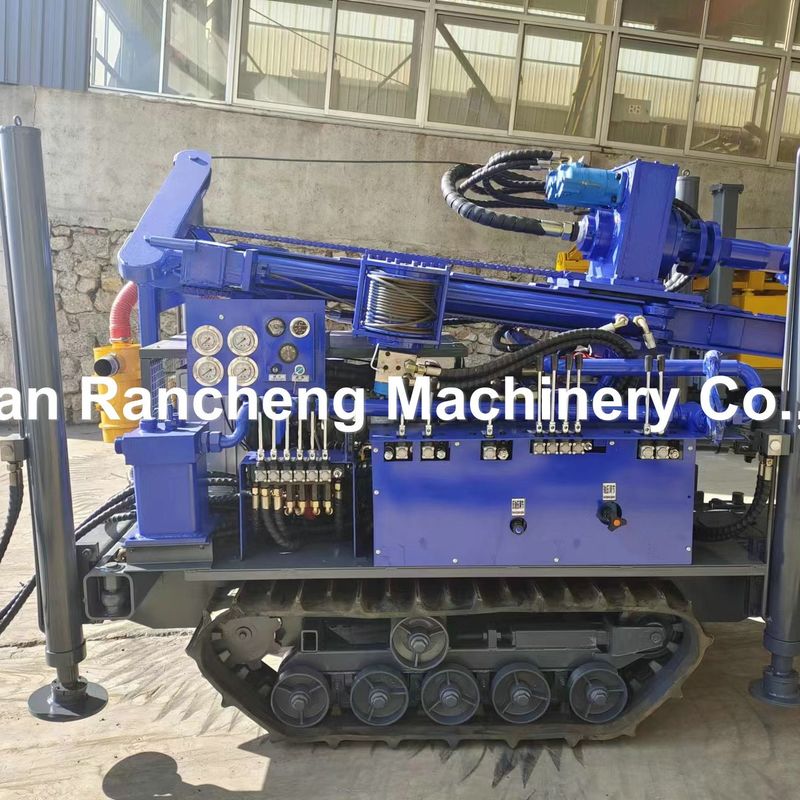

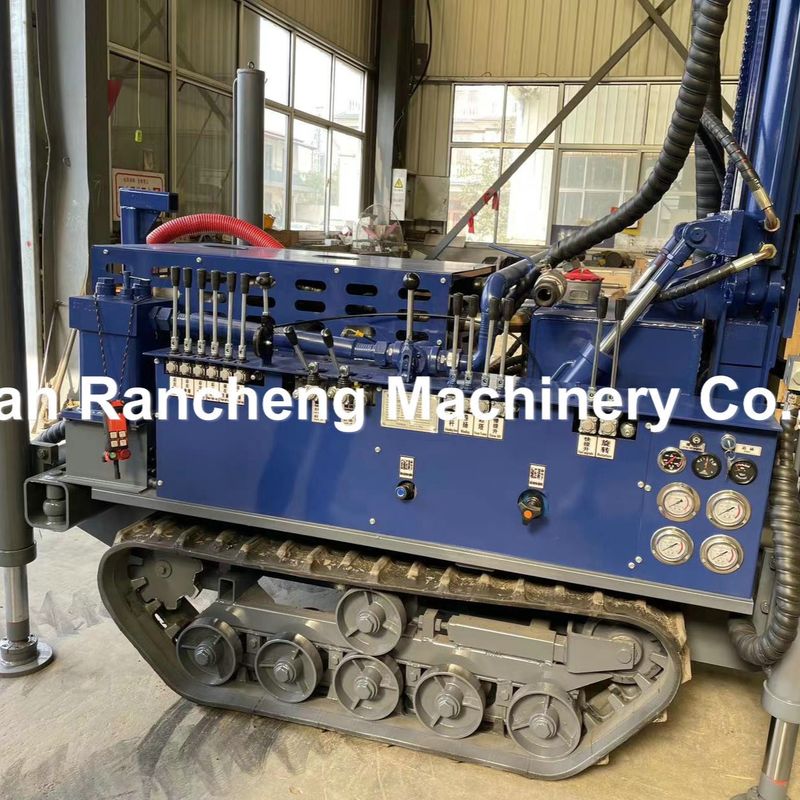

Image Display
