Portable Hydraulic Core Drilling Rig Machine 150m Exploration Geological Core Drill Rig

Portable Hydraulic Core Drilling Rig Machine 150m Exploration Geological Core Drill Rig

Portable Core Drilling Rig

150m Core Drilling Rig

Geological Core Drilling Rig

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCA150

Contact Us
Request A Quote
Portable Hydraulic Core Drilling Rig Machine 150m Exploration Geological Core Drill Rig
Portable Hydraulic Core Drilling Rig Machine 150m Exploration Geological Core Drill Rig Portable Hydraulic Core Drilling Rig Machine 150m Exploration Geological Core Drill Rig Portable Hydraulic Core Drilling Rig Machine 150m Exploration Geological Core Drill Rig Portable Hydraulic Core Drilling Rig Machine 150m Exploration Geological Core Drill Rig
Product Details
Drilling Depth:
150m
Drilling Diameter:
75mm-130mm
Diesel Engine:
10.6KW (15HP) Changchai
Rotational Speed:
2200r/min
Maximum Torque:
10KN.m
Maximum Feed Force:
15KN.m
Highlight:

Portable Core Drilling Rig

,

150m Core Drilling Rig

,

Geological Core Drilling Rig

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
Standard shipping
Delivery Time
10-15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
RELATED PRODUCTS
Good price 100-240RPM Winch Rated Rotary Speed Small Core Drilling Rig 96L/Min Hydraulic System Rated Flow online Video

100-240RPM Winch Rated Rotary Speed Small Core Drilling Rig 96L/Min Hydraulic System Rated Flow

Get Best Price
Good price 100-240RPM Winch Rated Rotary Speed Small Core Drilling Rig Portable Core Drilling Equipment For Intensity Drilling online Video

100-240RPM Winch Rated Rotary Speed Small Core Drilling Rig Portable Core Drilling Equipment For Intensity Drilling

Get Best Price
Good price Portable Type RCH-3A Underground Core Drilling Rig Exploration Tunnel Mine Drilling Rig online

Portable Type RCH-3A Underground Core Drilling Rig Exploration Tunnel Mine Drilling Rig

Get Best Price
Good price Portable Hydraulic Core Drilling Rig Equipment For Geological / Gold / Rock Exploration online Video

Portable Hydraulic Core Drilling Rig Equipment For Geological / Gold / Rock Exploration

Get Best Price
Contact Us
Contact Now
Product Description

Portable Hydraulic Core Drilling Rig Machine 150m Exploration Geological Core Drill Rig



Machine Introduction



The RCA150 portable core drilling rig is manufactured and sold by Henan Rancheng and is favored by geologists around the world. As a core sampling equipment for mineral survey and exploration, the RCA150 portable core drilling rig has a drilling depth of 150 meters, adopts a portable hydraulic design, has a compact structure, and is easy to assemble and transport quickly. The core drilling rig drill has the advantages of low noise and high reliability. It consists of a mast, a column, a power head, a feed device, a bracket, a winch, an engine, and an operating system, and is suitable for a variety of geological exploration tasks.



Technical Parameters



Main technical parameters
Drilling capacity Drilling diameter (mm) 75~130 Power part Power model Changchai195
  Drilling depth (m) 150(75mm)   Rated power kW 10.6
Rotatory parameters Maximum torque KN.m 10   Rotational speed r/min 2200
  Maximum feed force KN 15 Matching drill pipe Drill pipe diameter mm Ø42/Ø50
  Maximum lifting force KN 25   Drill pipe length m 1.5
  Feed stroke (mm) 1800 Hoist single rope lifting force KN 11
  Rotational speed r/min

Low speed: 142, 302, 716

High-speed: 475, 765, 960

 Dimensions

Shipping status mm

Working status mm

1950*1200*2550

1950*1200*4250
Matching mud pump BW160 single cylinder pump Whole machine weight(including power) kg 750



Machine Advantages





1. When drilling holes, RCA150 portable core drilling rig directly drives the casing or core tube to drill. The effective stroke of the rotator can reach 1.8m, which improves the efficiency of drilling holes.


2. Both auger drills and in-pipe impact drills are used to meet the drilling requirements of complex formations and significantly improve drilling efficiency.


3. The structure is very simple and easy to disassemble, maintain, and transport.



Application



The RCA150 portable core drilling rig is widely used in water well drilling and is suitable for industrial and civil construction, urban infrastructure construction and water conservancy projects.



Machine Pictures

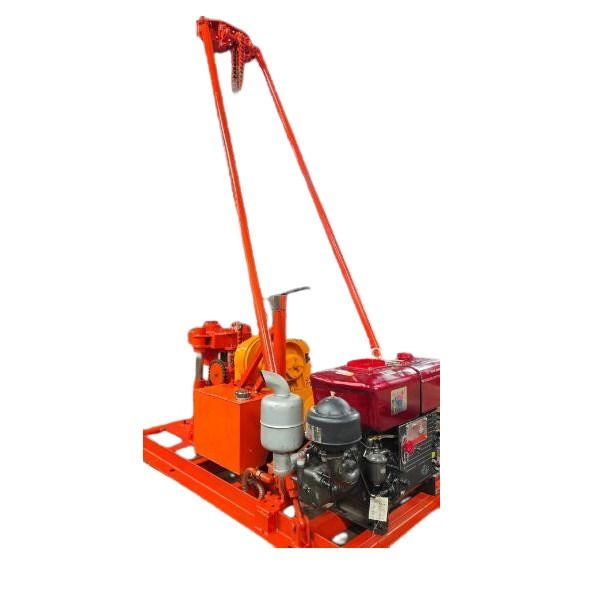

Portable Hydraulic Core Drilling Rig Machine 150m Exploration Geological Core Drill Rig 0

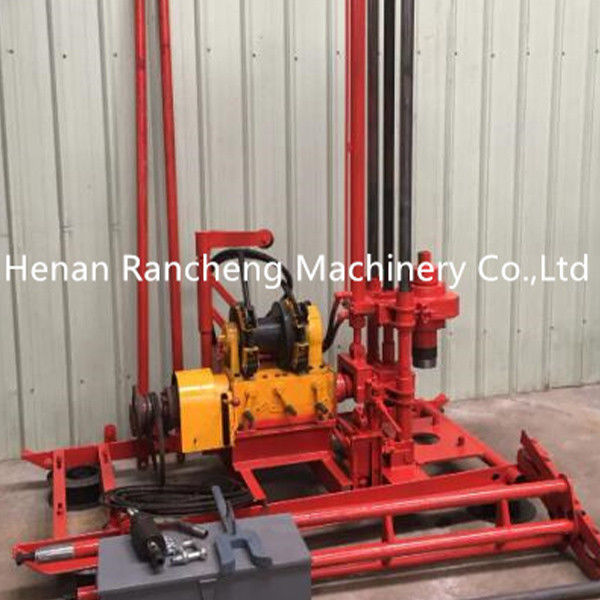

Portable Hydraulic Core Drilling Rig Machine 150m Exploration Geological Core Drill Rig 1

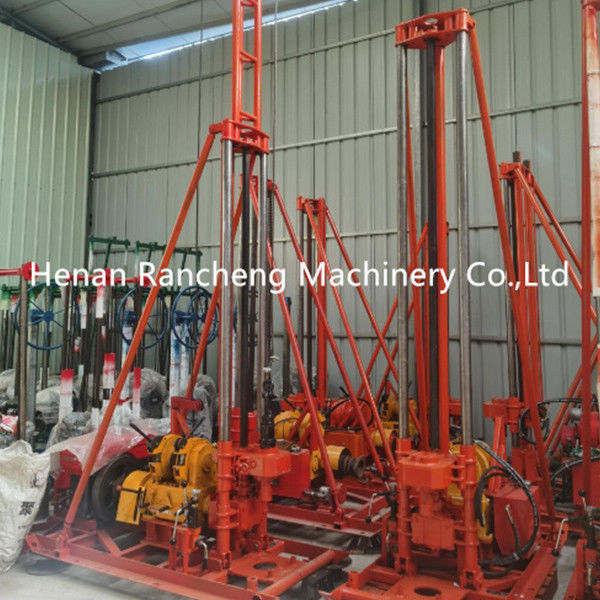

Portable Hydraulic Core Drilling Rig Machine 150m Exploration Geological Core Drill Rig 2Portable Hydraulic Core Drilling Rig Machine 150m Exploration Geological Core Drill Rig 3



Portable Hydraulic Core Drilling Rig Machine 150m Exploration Geological Core Drill Rig 4
