150m 42KW mini Water Well Drilling Machine Water Well Drilling Rig

150m Portable Water Well Drilling Machine/High Quality Water Well Drilling Rig

Products Description

drilling depth: 150m, drilling diameter :90-300mm
two rotary motor top head driving, it can drill with both mud pump and air compressor ,
walking way:hydraulic rubber crawler mounted ,easy to move and operate,diesel engine power:42KW

small size and light weight,size :2300X1700X1900mm weight:2300KGS ,

It can drill clay, soil, rock, hard rock etc stratum,When it drill with air compressor, it can drill 20-25m per hour in hard rock

Application

farm irrigation well drilling,yard well drilling,geothermal well drilling,industry well drilling etc water drilling projects ect


Machine Specifications

Machine Advantages


1: Small size, light weight and easy installation.

2: It is composed of three parts, the main engine, the pump station, and the console.

3: It can be put into production in the original transportation and prospecting roadway,

which protects the overall structure of the mine. It can also be used for 0-90 degree drilling on the surface.

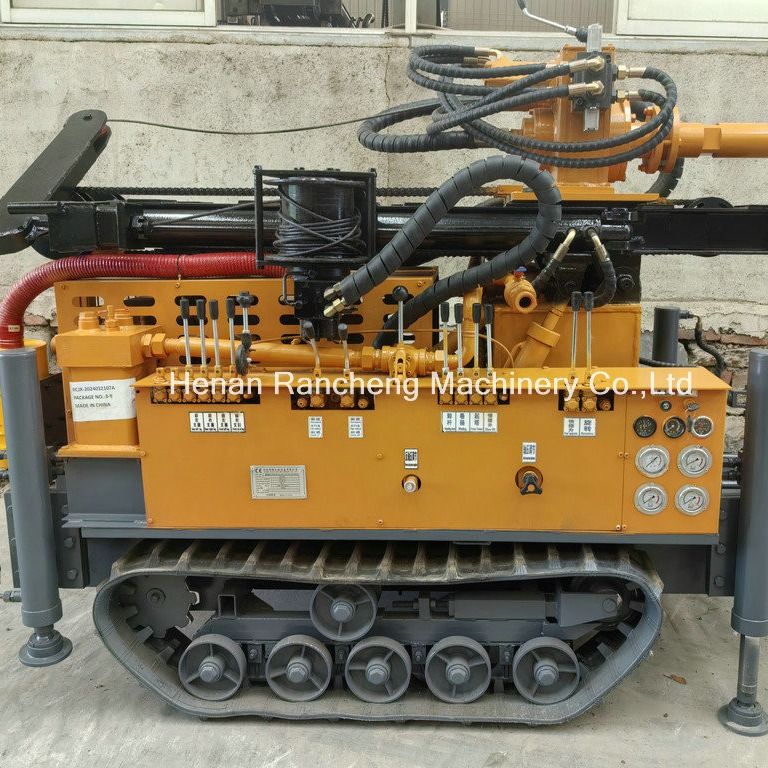

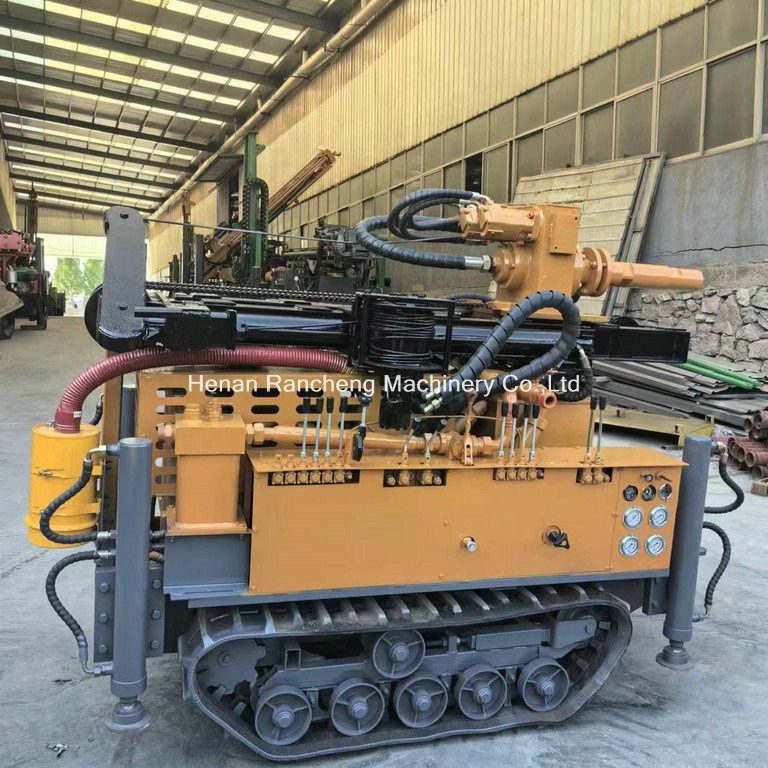

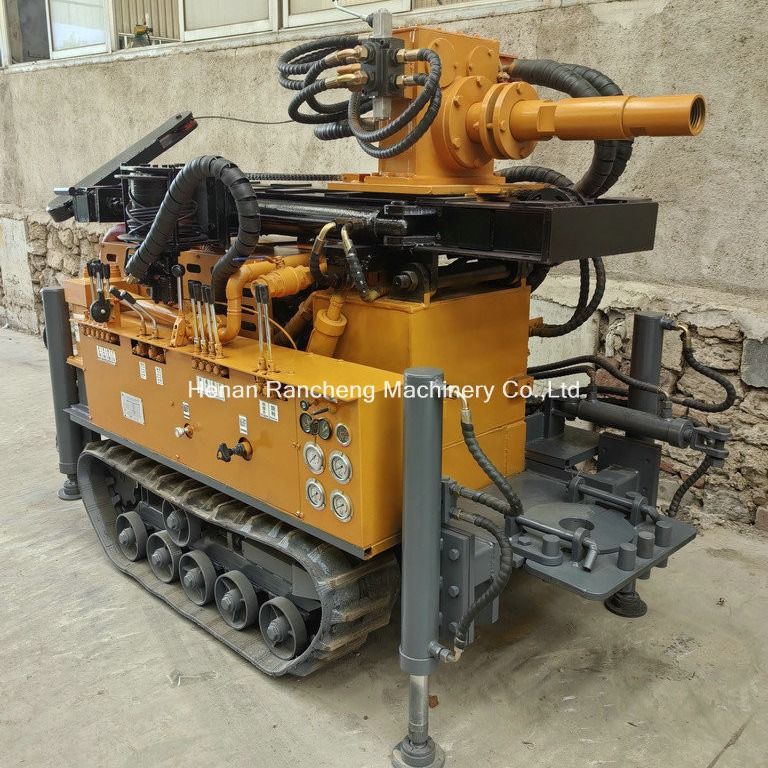

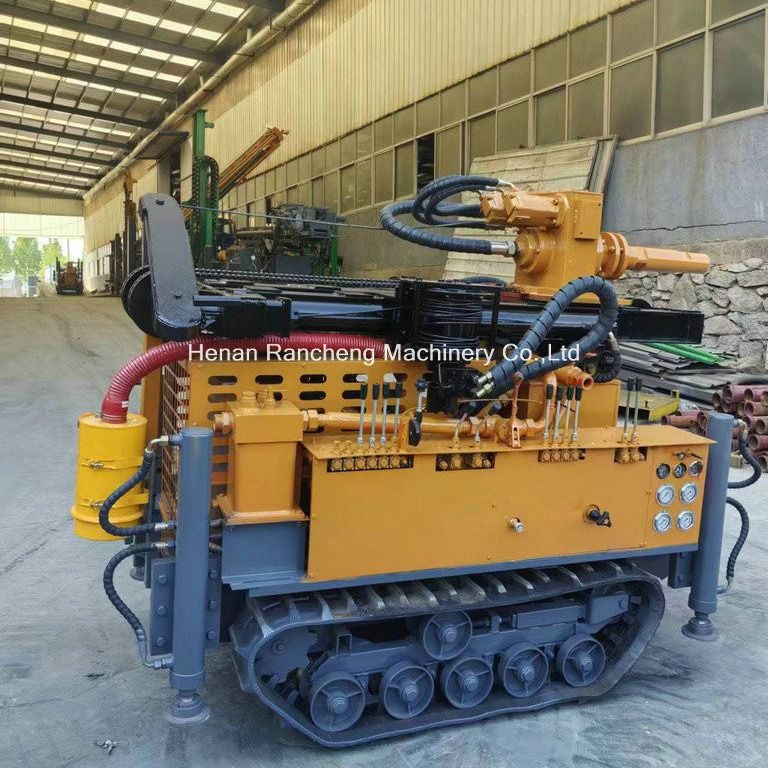

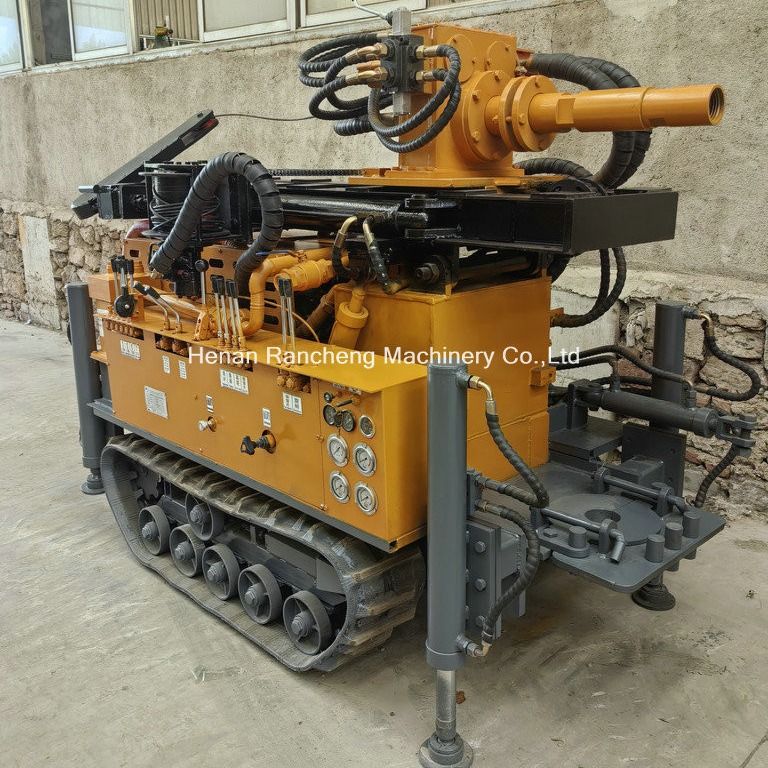

Machine Pictures

Company Information

Henan Rancheng Machinery Co.,LTD is one professional supplier drilling rigs in China ,we are dedicated in designing and manufacture water well drilling rig ,rotary drilling rig ,anchor drilling rig ,core drilling rig,DTH drilling rig ,solar pile driver,mud pump ,air compressor and drilling tools etc,we have advanced technology ,Modern equipment, first-class team and rich experience ,our products passed ISO9001 ,CE etc certificated ,they are exported to around 200 countries and areas in the world ,get very good feedbacks from our clients.

We Pursue the principle of "Customer First, Integrity First", we are sincerely expecting to cooperate with you!!!

Transportation

RCF150S can be loaded into a 20-foot container and transported by sea
