150m Depth Hydraulic Water Well Drilling Machine 90-300mm Diameter With 12T Lifting Force
Product Description
RCF150C deepwater drilling rig is a product independently developed by our company. These new generation down-the-hole drill bits are combined with higher air power, so they play an important role in achieving faster drilling speeds.
Using the latest models and advanced hydropower technology, low consumption, high torque, and convenient well guidance, it is mainly used for resource exploration and well drilling for hydrological wells, civil wells, agricultural irrigation projects, etc.
Made of high-quality materials and a modern and compact design, our drilling equipment is more efficient, has a low failure rate, is more economical and durable, and has high overall profitability. Our hydraulic drilling rigs have received real market verification and the most positive feedback from customers.
Technical Parameters
| Bore diameter(Hammer) |
90-300mm |
| Bore depth |
150m |
| Air consumption |
17-31m³/min |
| Air pressure |
1.7-2.5Mpa |
| Pipe diameter |
76mm/89mm |
| Pipe length |
3m |
| Push force |
4T |
| Lifting force |
12T |
| Lifting speed |
2.5m/min |
| feeding speed |
0.5-5m/min |
| Fast lifting speed |
18m/min |
| Fast feeding speed |
35m/min |
| Max torque of rotary |
3500-3800Nm |
| Rotary speed |
40-65r/min |
| Mud Pump flow |
200L/min (option) |
| Feeding efficiency |
10-35m/h |
| Travel speed |
2.5Km/h |
| Climb ability |
30° |
| Dimension(L*W*H) |
3500×1700×2250MM |
| Weight |
3700kg |
| Diesel engine |
42KW |
Product advantages
1: Small size, light weight and easy installation.
2: It is composed of three parts, the main engine, pumping station and console.
3: It can be put into production on the original transportation and prospecting path, which protects the overall structure of the
mine. It can also be used for surface drilling from 0 to 90 degrees.
4: Flexible arrangement of drilling rigs, mechanized twisting and unloading of drill rods, reduce the labor intensity of workers and improve work efficiency.
5: Adopt box-type power frame, tighten the handle, rotate the power head to drill, and the oil cylinder pulls and sends the drilling tool.
Save the bulky installation.
6: With linkage function, centralized console control, simple and safe, and stepless speed adjustment.
7: Hollow shaft design, the length of the drill rod is not limited by the progress of the drilling machine. It can be drilled at any inclination angle of 360°.

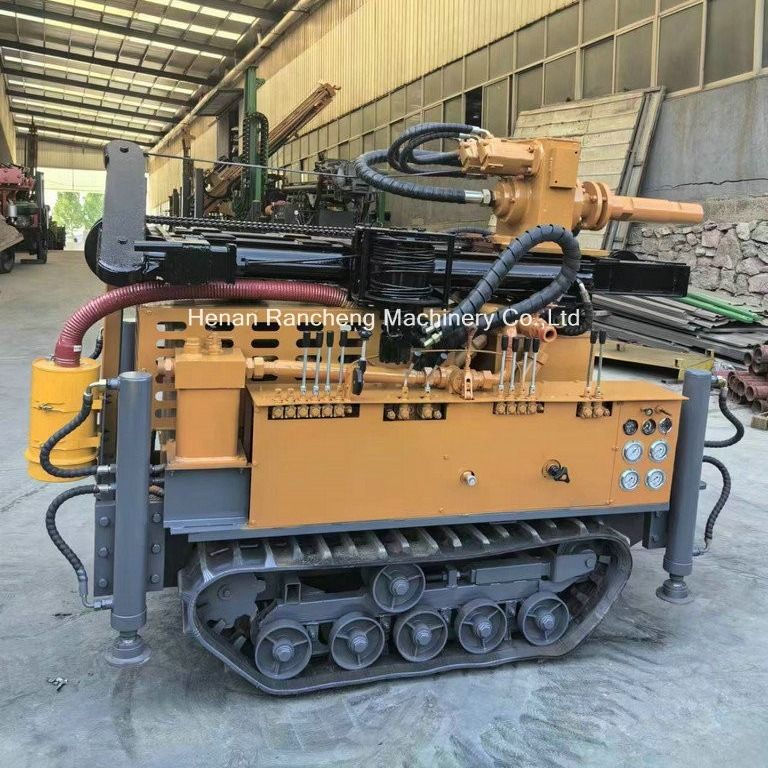

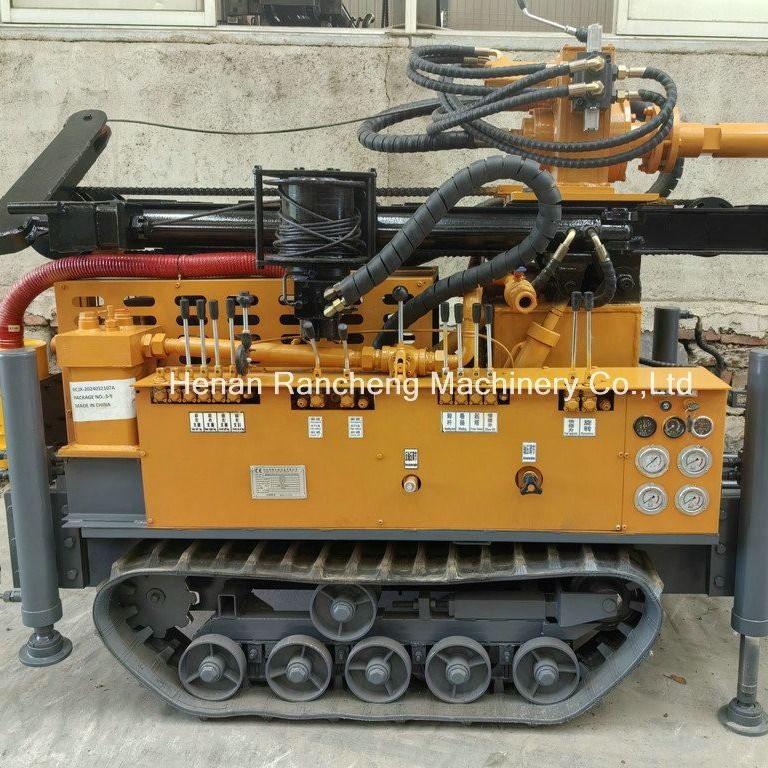

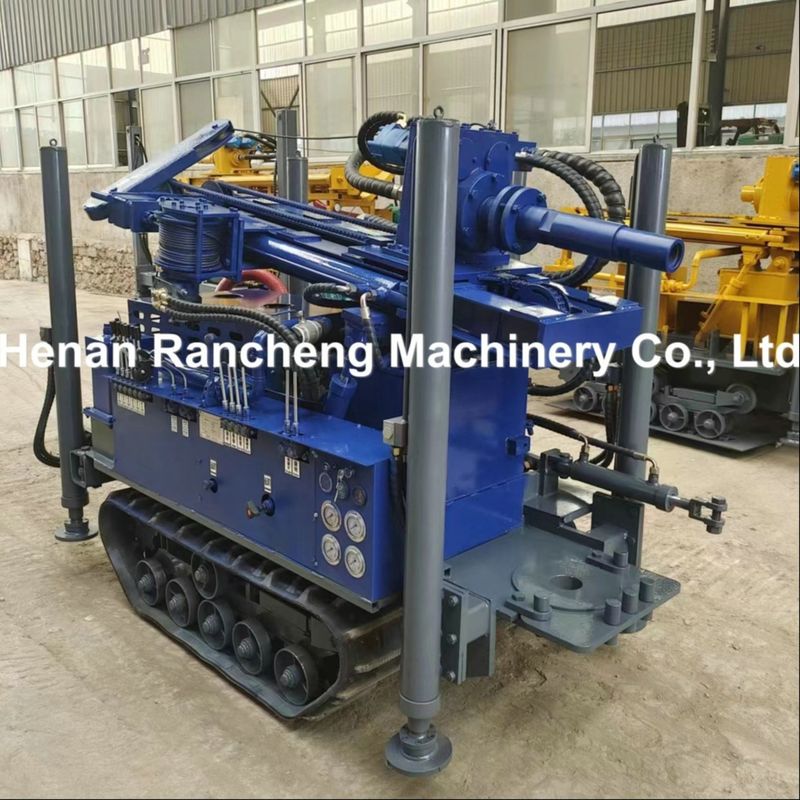

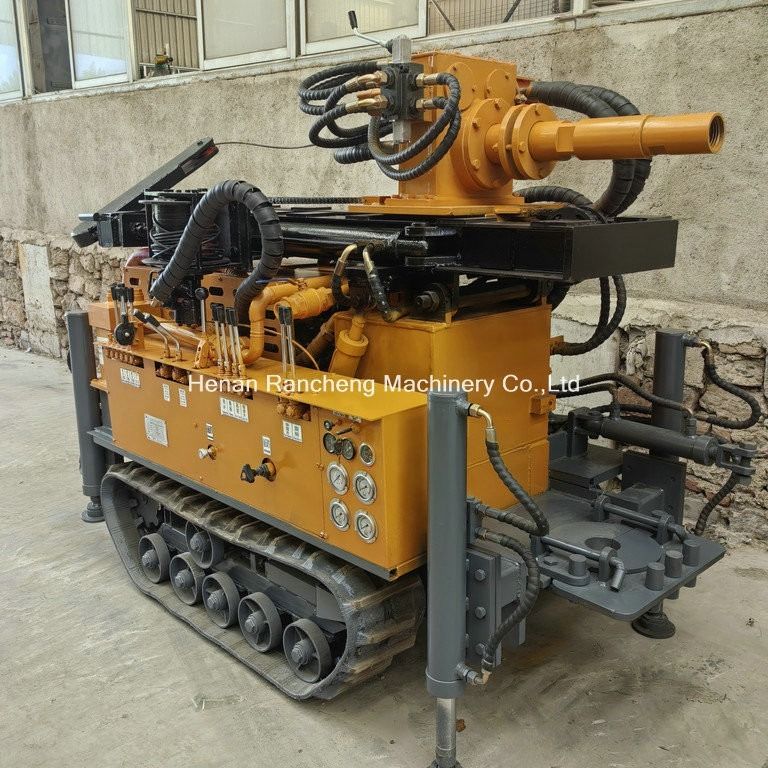

Machine pictures
