Europe 150m Deep Mini Crawler Mounted Water Well Drilling Rig Machine

Hot sale Europe 150m Deep Mini Crawler Mounted Water Well Drilling Rig Machine

Products Description

The RCF150S small water well drill is a reliable and versatile drilling equipment. Its lightweight design, weighing only 2,300 kg, is easy to carry and is particularly suitable for a variety of water well drilling projects, including farm irrigation wells, courtyard wells, geothermal wells and industrial wells.
The equipment can drill up to 150 meters deep and has a hole diameter range of 90 to 300 mm, which can meet different water well drilling needs. The RCF150S is equipped with two rotary motor drive heads and can be used in conjunction with a mud pump and air compressor to ensure smooth and efficient drilling operations in various soil conditions.
Machine Specifications



Machine Advantages

The RCF150S compact rubber tracked water well drill rig has many great features. First of all, the equipment is small in size, light in weight, compact in structure and flexible in operation. The entire machine weighs only 2300 kg and measures 2300x1200x1900 mm, making it easy to carry and quickly deploy.
Secondly, the RCF150S adopts the design of a downhole pneumatic water well drilling rig, equipped with a dual-motor rotating head and top drive system, as well as a mud pump and air compressor. Dual rotary motors significantly increase rotational torque and speed.
In addition, the drilling rig is powerful and equipped with a 42KW Yunnei engine, with a maximum drilling depth of 150 meters and is suitable for drilling diameters from 90 to 300 mm. The rubber track design makes movement more convenient, and the comprehensive hydraulic outriggers and operating system ensure the stability and convenience of drilling operations. The rig is also equipped with an optimized fully hydraulic operating system, which improves the hydraulic system, supporting configuration and appearance, thereby further improving performance and work efficiency.
Finally, thanks to its compact and flexible design, the RCF150S is particularly suitable for working in yards and tight spaces.

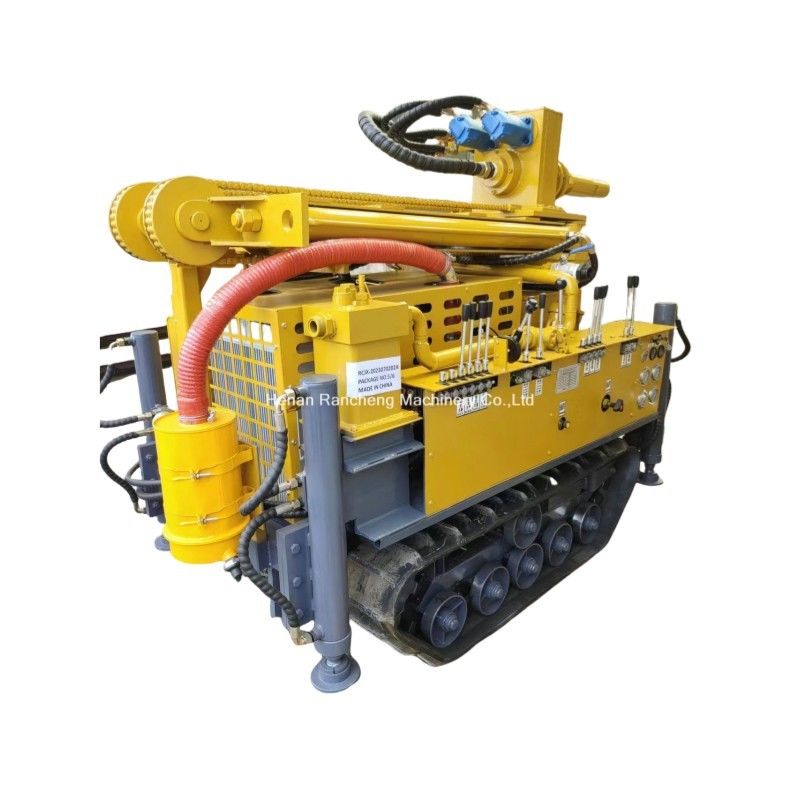

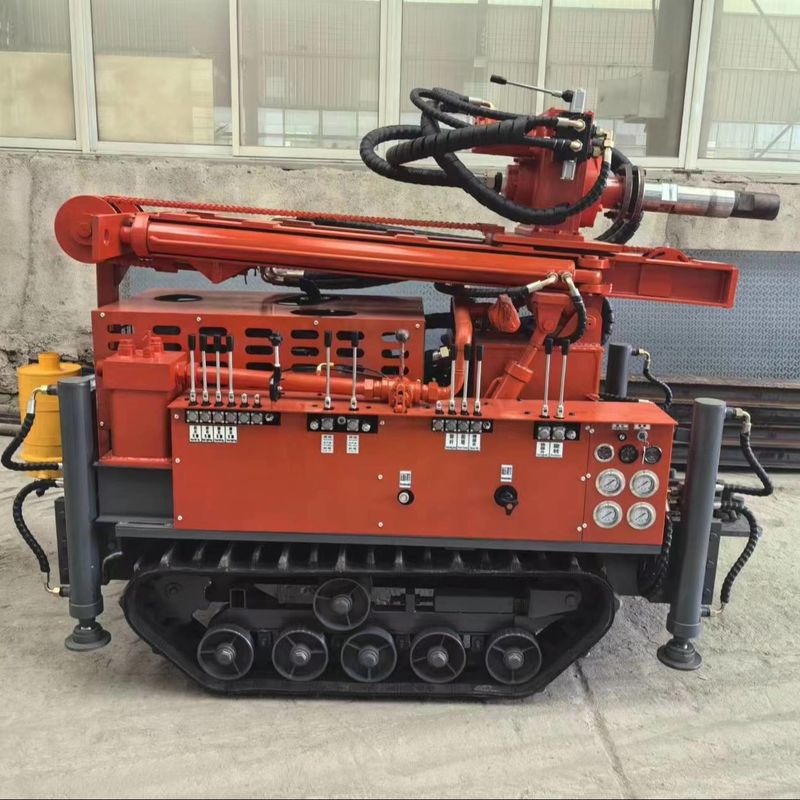

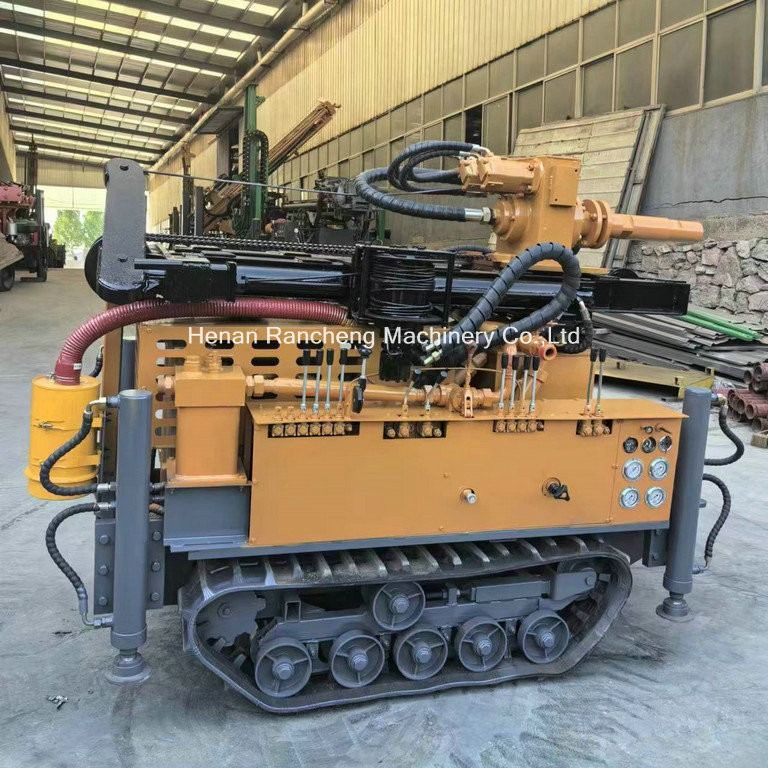

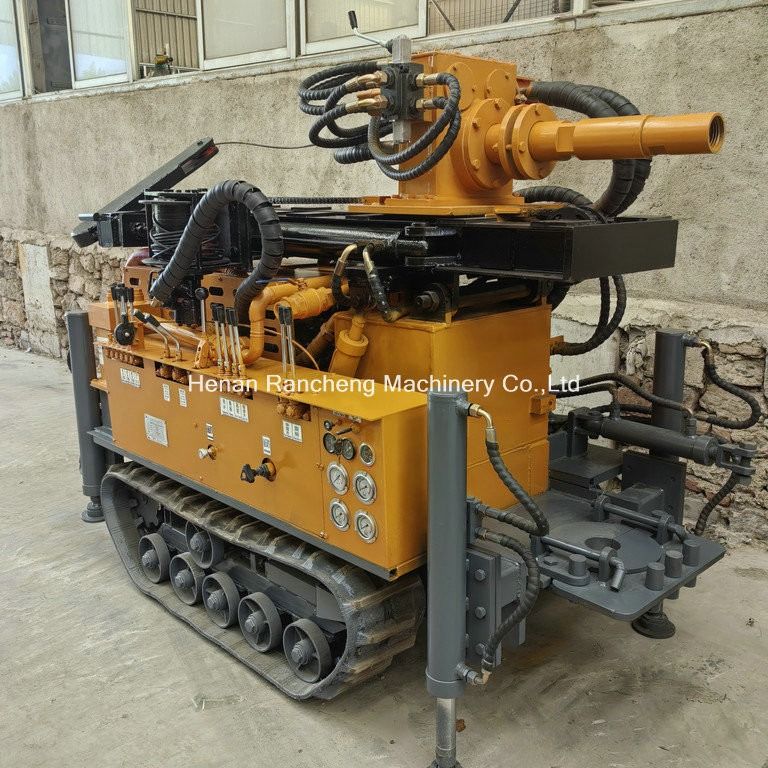

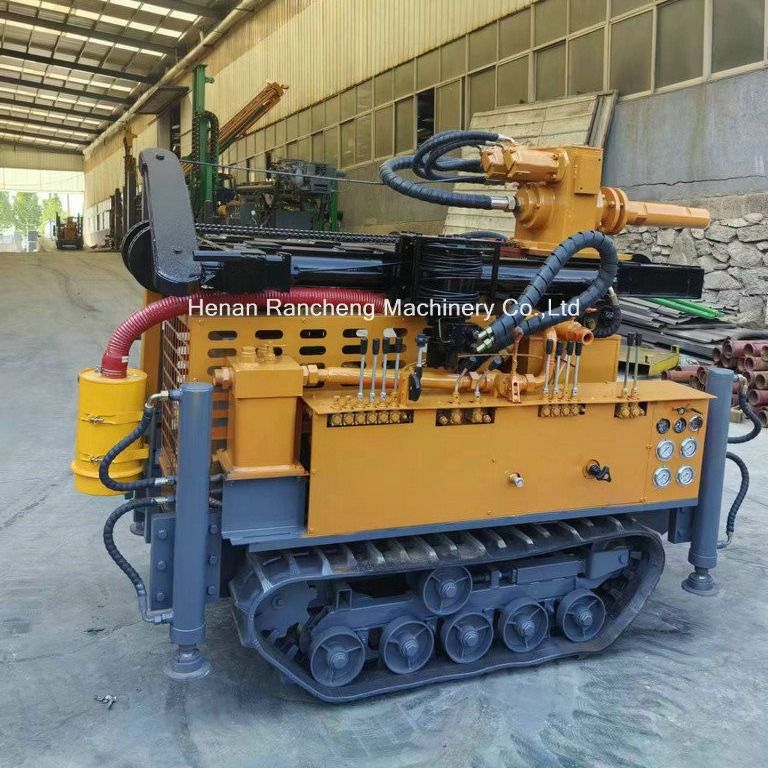

Machine Pictures
