Name: 150m Depth Percussive And Rotating Type Rubber Crawler Mounted Water Drilling Rig
Brand: Henan Rancheng Machinery Co., Ltd.
SKU: RCS200C Portable Water Well Drilling Machine
Availability: InStock

Home > products > Portable Water Well Drilling Machine >

150m Depth Percussive And Rotating Type Rubber Crawler Mounted Water Drilling Rig

Rubber Crawler Mounted Water Drilling Rig

150m Depth Water Drilling Rig

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCS200C Portable Water Well Drilling Machine

Request A Quote

Product Details

Name:

Portable Water Well Drilling Machine

Model:

RCS200C Portable Water Well Drilling Machine

Drill Rod Length:

1500mm

Bore Deep:

150m

Rod Change Method:

Full Automatic Screw Thread

Drilling Hole Diameter(mm):

Within Ø 450mm

Hosting Capacity (kg):

1500KG

Highlight:

Rubber Crawler Mounted Water Drilling Rig

150m Depth Water Drilling Rig

Payment & Shipping Terms

Minimum Order Quantity

Price

Negotiable

Packaging Details

Standard shipping

Delivery Time

10-15 working days

Payment Terms

T/T, Western Union

Supply Ability

100sets per Month

Drill Depth 100m Electric Portable Water Well Drilling Rig Main Machine With 22HP Engine

Get Best Price

Video

150m DTH Hydraulic Water Well Drilling Rig Machine Portable Pneumatic trailer Mounted Drilling Rig

Get Best Price

Video

Small Hydraulic Drill Cylinder 160m Depth Water Digger Machine Crawler Mounted Water Well Drilling Rig For Sale

Get Best Price

Video

100m Deep Electric Portable Water Well Drilling Rig With 22 HP Engine 40kg Maximum Load

Get Best Price

Contact Now

Product Description

150m Depth Percussive And Rotating Type Rubber Crawler Mounted Water Drilling Rig

Product Description

The RCS200C portable crawler drilling rig relies on a rubber track design to achieve easy operation and convenient one-person movement. Suitable for farm irrigation and drilling wells for domestic drinking water, with a drilling depth of 150 meters and a drilling diameter of 100 - 450 mm. The 22 hp diesel engine provides efficient performance and can handle different formations. It is the best seller in the whole country and is well received by users, which proves its high quality of work.

Product Specifications

Model of drilling machine	RCS200C
Walking way	Rubber crawler mounted
Drilling machine overall dimension(mm)	230010802000
Weight of Drilling machine (kg)	800
Drill rod diameter (mm)	Ø50
Drill rod length(mm)	1500
Rod change method	Full automatic screw thread
Drilling depth(m)	150
Diesel Motor Power (Hp/kw)	22/16.2
Drilling method	Percussive and rotating type
Drilling hole diameter(mm)	Within Ø 450mm
Stroke distance (mm)	2000
Hosting capacity (kg)	1500

Product Features

1. Lightweight and energy-saving;

2. Patented product, unique design, simple drilling structure;

3. Convenient transportation, allowing you to learn to operate the machine in a short time;

4. Can drill through solid layers, except thick layers of rock;

5. Single-person work, reducing work intensity;

6. High work efficiency and fast speed;

7. Ensure easy operation and long service life.

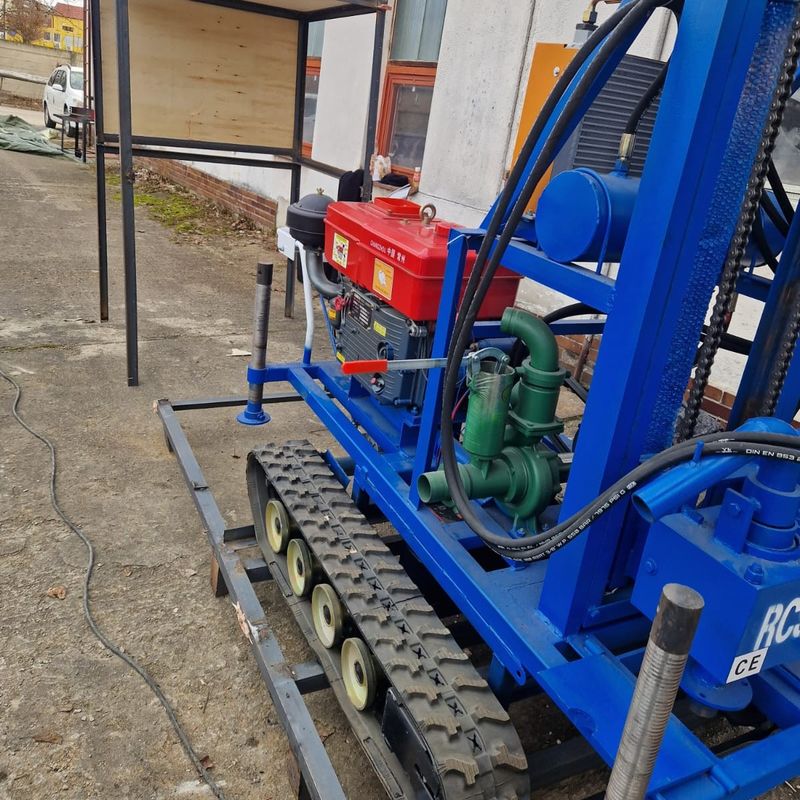

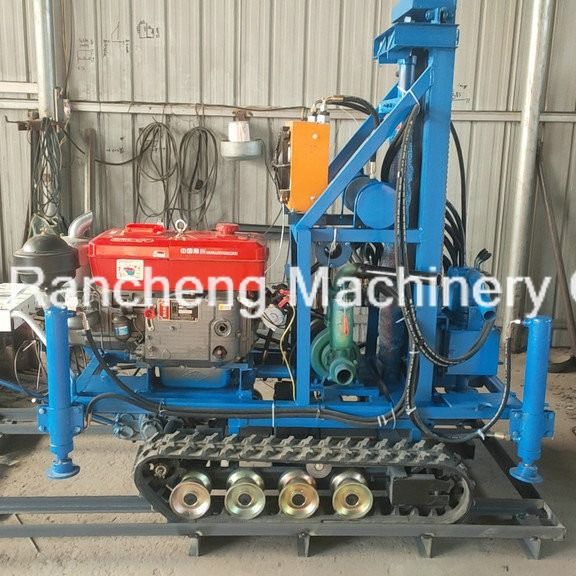

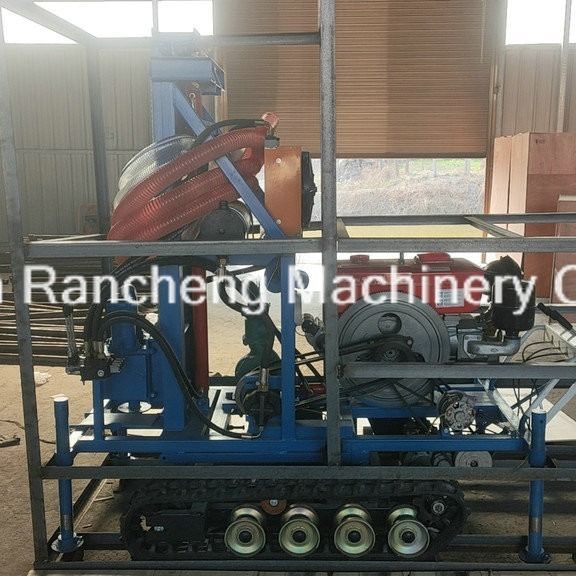

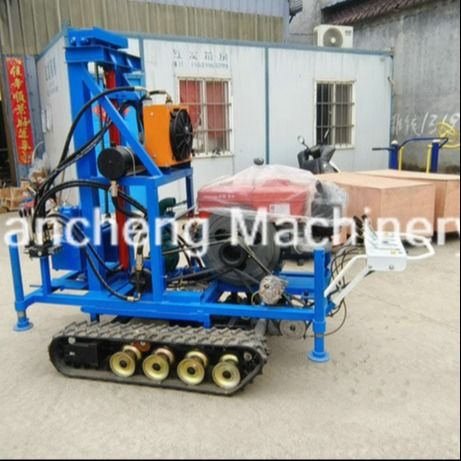

Product Image
