1000M Pneumatic Crawler Mounted Down Hole Mine Water Well Drilling Rig Machines

1000M Pneumatic Crawler Mounted Down Hole Mine Water Well Drilling Rig Machines

Mine Water Well Drilling Rig Machines

Crawler Mounted Water Well Drilling Rig

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCF1000C

Contact Us
Request A Quote
1000M Pneumatic Crawler Mounted Down Hole Mine Water Well Drilling Rig Machines
1000M Pneumatic Crawler Mounted Down Hole Mine Water Well Drilling Rig Machines 1000M Pneumatic Crawler Mounted Down Hole Mine Water Well Drilling Rig Machines 1000M Pneumatic Crawler Mounted Down Hole Mine Water Well Drilling Rig Machines 1000M Pneumatic Crawler Mounted Down Hole Mine Water Well Drilling Rig Machines
Product Details
Name:
Crawler Mounted Water Well Drilling Machine
Model:
RCF1000C
Bore Depth:
1000m
Max Torque Of Rotary:
9000-14000Nm
Rotary Speed:
45-140r/min
Diesel Engine:
194KW Cummins Engine
Highlight:

Mine Water Well Drilling Rig Machines

,

Crawler Mounted Water Well Drilling Rig

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
It can be shipped by one 40" container
Delivery Time
10-15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
RELATED PRODUCTS
Good price Upgrade RCF180S Water Well Drilling Rig Machine With 0.8t Excavator Arm For Water Borehole Drilling online Video

Upgrade RCF180S Water Well Drilling Rig Machine With 0.8t Excavator Arm For Water Borehole Drilling

Get Best Price
Good price Latest Upgrade RCF350C 350m Steel Track Water Well Drilling Machine With Pipe Rack online Video

Latest Upgrade RCF350C 350m Steel Track Water Well Drilling Machine With Pipe Rack

Get Best Price
Good price Fully hydraulic 800-meter water well drilling rig online Video

Fully hydraulic 800-meter water well drilling rig

Get Best Price
Good price Upgrade RCF350C Water Well Drilling Machine With Drill Rod Rack For Water Borehole Drilling online Video

Upgrade RCF350C Water Well Drilling Machine With Drill Rod Rack For Water Borehole Drilling

Get Best Price
Contact Us
Contact Now
Product Description

1000M Pneumatic Crawler Mounted Down Hole Mine Water Well Drilling Rig Machines



Machine Introduction



RCF1000C deep water well drilling rig is our self-developed product. These new generation of air hammers are coupled with higher aerodynamic forces and therefore play an important role in increasing drilling speeds.


The product is made of high-quality materials, stylish and compact design, which can improve the efficiency and reliability of drilling equipment, reduce the failure rate, be more economical and durable, and have a high comprehensive cost effectiveness. Our water well drilling RIGS have been proven in the market with positive feedback from most customers.



Technical Parameters



Bore diameter(Hammer) 140-500mm
Bore depth 1000m
Air consumption 17-42m³/min
Air pressure 1.7-3.5Mpa
Pipe diameter 102/108/114mm
Pipe length 1m/2m/3m/6m
Lifting force 36T
Lifting speed 3m/min
feeding speed 0.5-5m/min
Fast lifting speed 20m/min
Fast feeding speed 40m/min
One-time advance length 6.6m
Max torque of rotary 9000-14000Nm
Rotary speed 45-140r/min
Hoist lifting capacity 2T
Mud Pump flow 850L/min (option)
High hydraulic leg 1.7m
Feeding efficiency 15-35m/h
Travel speed 2.5Km/h
Climb ability 30°
Dimension(L*W*H) 6300×2300×2950mm
Weight 13000Kg
Diesel engine 194KW Cummins engine
Drilling way Air compressor drilling or mud pump drilling



Machine application



The water well drilling machine are mainly used for well drilling in resource exploration and hydrology wells, civil use water well, agriculture irrigation etc projects.

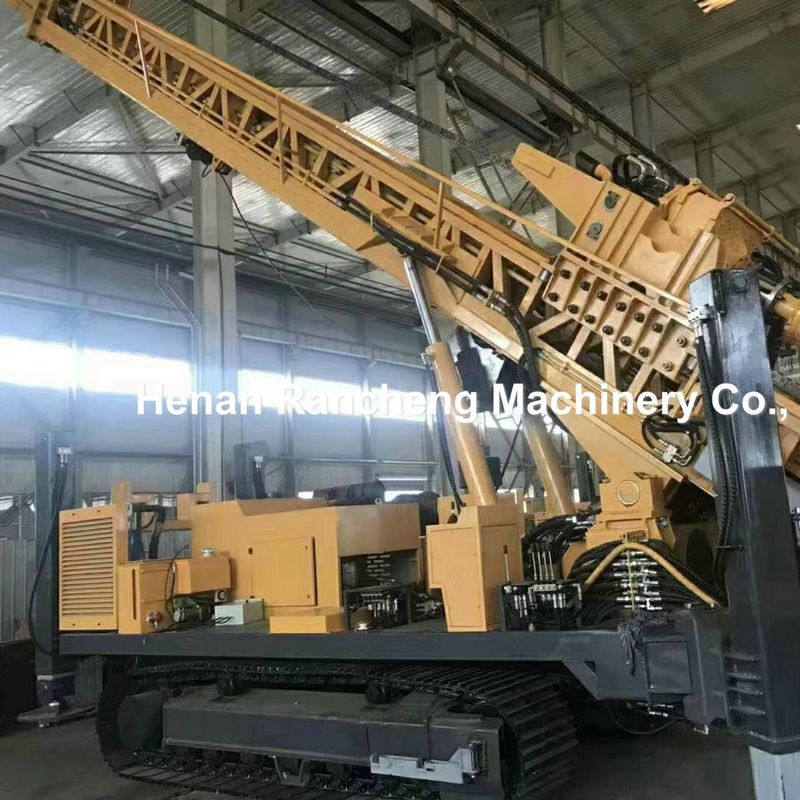

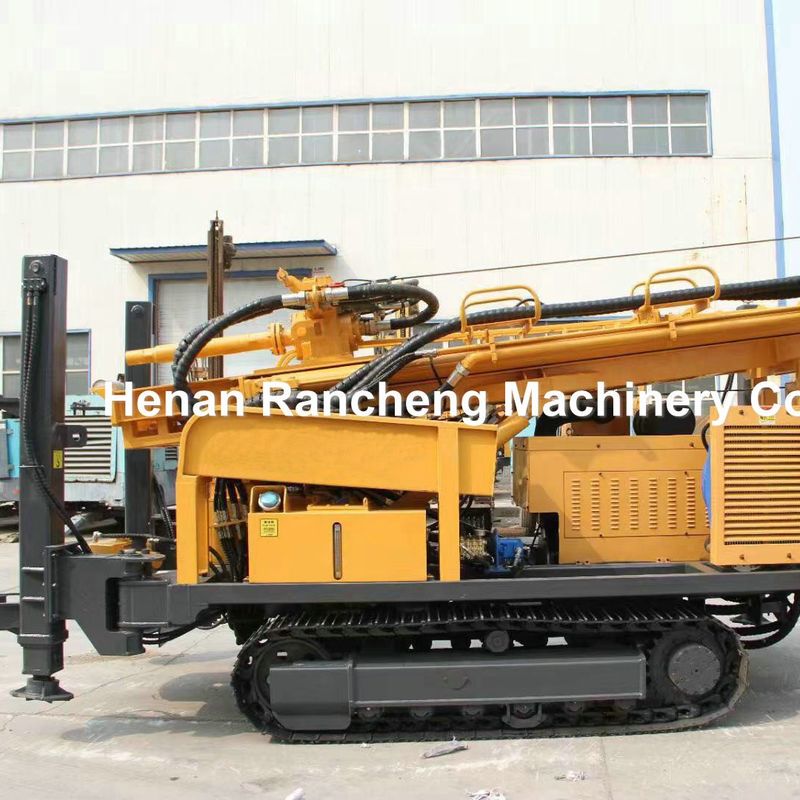

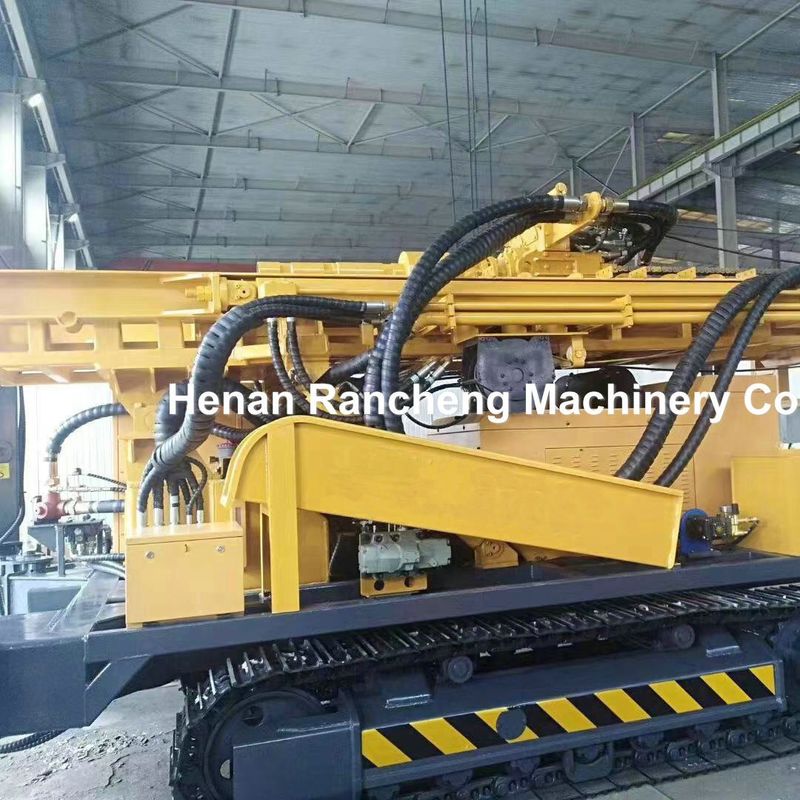

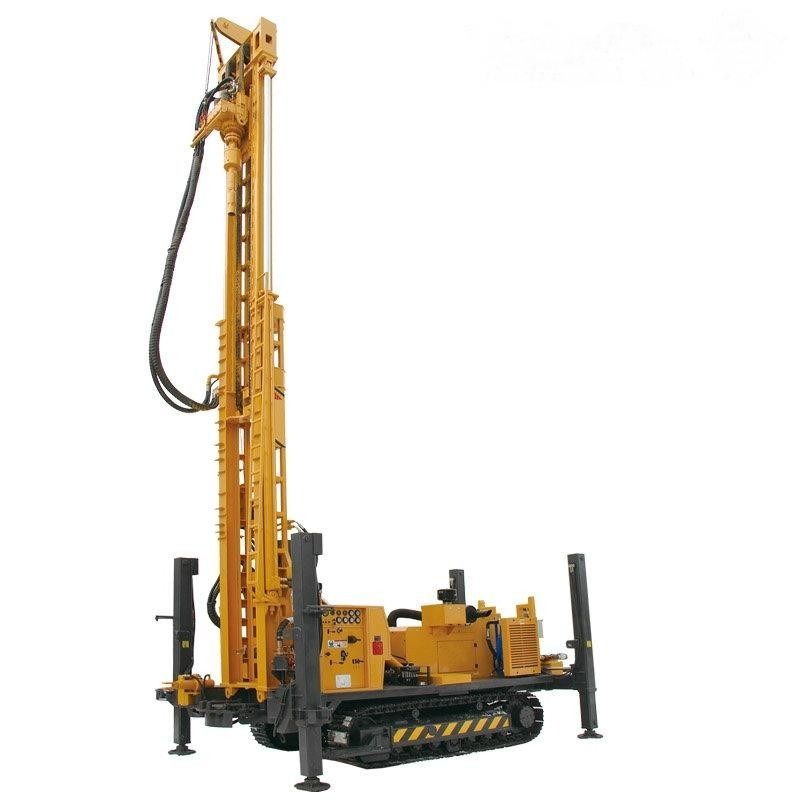

Machine Pictures



1000M Pneumatic Crawler Mounted Down Hole Mine Water Well Drilling Rig Machines 01000M Pneumatic Crawler Mounted Down Hole Mine Water Well Drilling Rig Machines 11000M Pneumatic Crawler Mounted Down Hole Mine Water Well Drilling Rig Machines 2

1000M Pneumatic Crawler Mounted Down Hole Mine Water Well Drilling Rig Machines 3
