RCQ530 Hydraulic Rotary Drilling Rig 30m Borehole Rock Drill Rotary Machine
Machine Introduction
The RCQ530 hydraulic small rotary drilling rig adopts high-pressure drilling method, which can achieve a maximum drilling depth of 30 meters. It can be equipped with drilling tools of different specifications, and the pile hole diameter ranges from 500-1500mm.
The hydraulic pile driver has high drilling efficiency and can be quickly transferred to the next construction site after the construction is completed. It is flexible, convenient and efficient, and is a pile driving machinery and equipment specially used for national high-speed railway construction.
Technical Parameters
| Model |
RCQ530 rotary drilling rig |
| Working mode |
Hydraulic oil cylinder pressure |
| Drilling diameter |
Φ500-Φ1500mm |
| drilling depth |
30m |
| Kelly bar diameter |
340mm |
| Dimension |
11500X3000X3350mm |
| Total weight |
26T |
| Power head max output torque |
120KN.m |
| Rotary speed |
10-50RPM |
| Pressurized oil cylinder max pressure |
120KN |
| Pressurized oil cylinder max lifting force |
120KN |
| Pressurized oil cylinder max stroke |
2500mm |
| Main winch max lifting force |
130KN |
| Main winch max lifting speed |
70m/min |
| Main winch wire rope diameter |
24mm |
| Assisting winch max lifting force |
30KN |
| Assisting winch max lifting speed |
55m/min |
| Assisting winch wire rope diameter |
12mm |
| Mast sidewards inclination |
±4° |
| Mast forwards inclination |
4° |
| Max working pressure |
30Mpa |
| pilot pressure |
3.5Mpa |
| Travelling speed (km/h) |
5km/h |
| Traveling clamp degree |
30° |
| Working radius |
4.3m |
| Diesel engine power (KW) |
150KW ,cummins ,water cooling ,turbo charger , |
Machine Advantages
1. Flexibility: small tonnage, simple operation, fast moving speed, convenient transportation and other characteristics.
2. High return: small investment, fast return, and irreplaceable economic advantages.
3. Brand-name accessories, Cummins engine, Kawasaki hydraulic pump, Hyundai or Dragon motor, Sany rotary reducer, Chinese brand hoist
4. Power head
The rotary head of the rotary drilling rig adopts a durable dual motor with high strength and high speed, which has many advantages under various working conditions and its working efficiency is 50% higher than that of similar products
5. Chassis
The rotary drilling rig adopts a self-developed hydraulic crawler professional chassis, which makes the machine work more smoothly, realizes 360-degree operation, and ensures center balance
6. Main winch
The rotary drilling rig adopts a large-diameter hydraulic motor, long wire rope life, large lifting force, fast speed, sensitive response, high stability, and improves pile efficiency

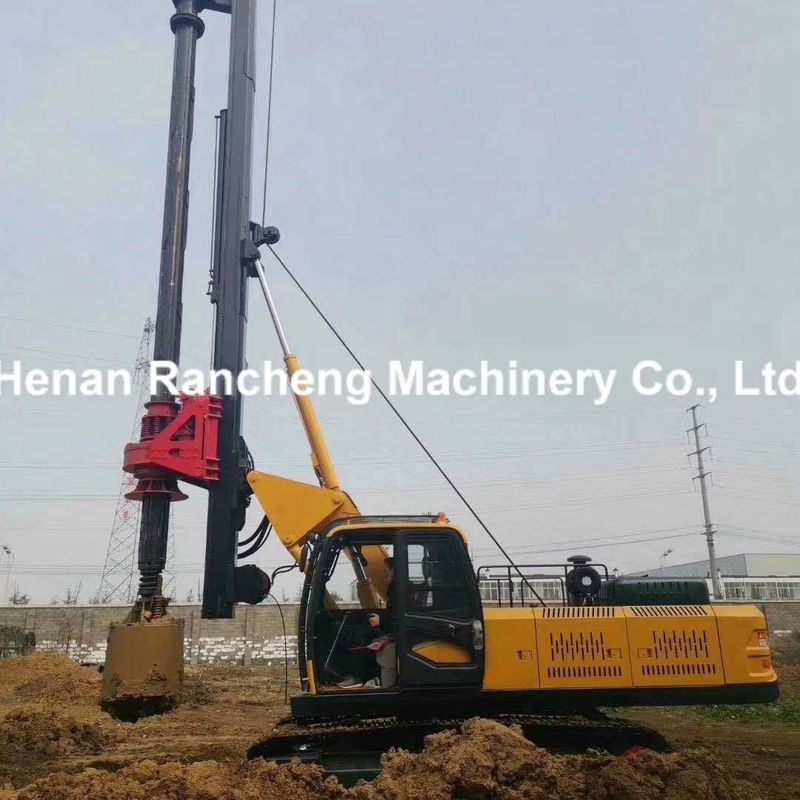

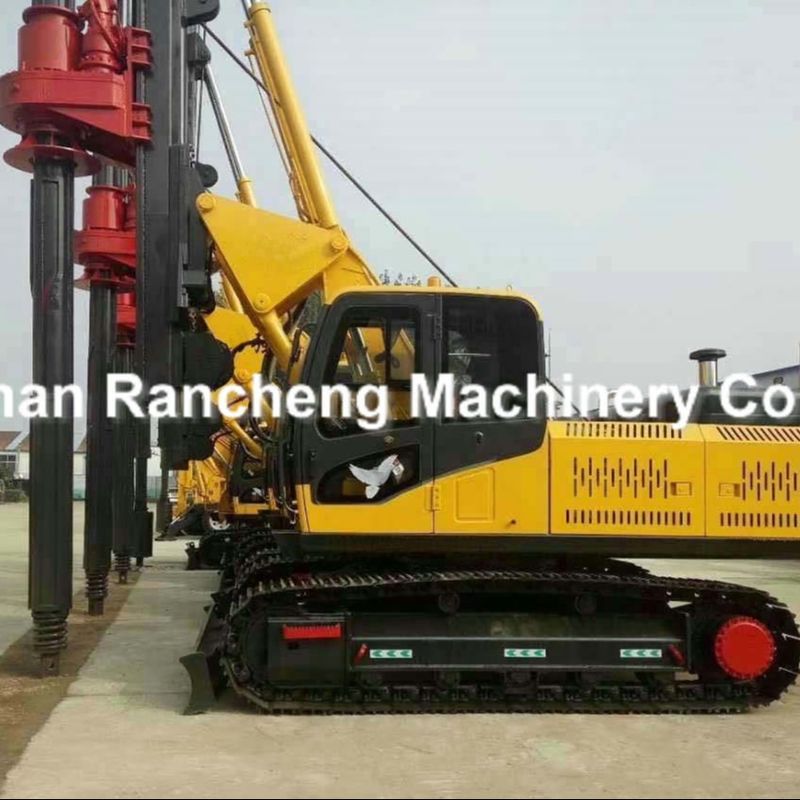

Machine Pictures
