550CFM 13Bar 180HP Air Compressor for Hammer Drilling Mining Industrial

550CFM 13Bar 180HP Air Compressor for Hammer Drilling Mining Industrial

13Bar Drilling Air Compressor

550CFM Drilling Air Compressor

Industrial Drilling Air Compressor

Place of Origin:

China

Brand Name:

Kaishan

Certification:

CE, ISO 9001:2000

Model Number:

KSCY-550/13

Contact Us
Request A Quote
Product Details
Name:
Air Compressor
Model:
KSCY-550/13
Air Capacity:
13m³/min
Pressure:
550Mpa
Diesel Engine:
Cummins180P
Weight:
2400kg
Dimensions:
3000*1520*2200mm
Highlight:

13Bar Drilling Air Compressor

,

550CFM Drilling Air Compressor

,

Industrial Drilling Air Compressor

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
It can be shipped by one 20" container
Delivery Time
10-15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
Product Description

550CFM 13Bar 180HP Diesel Screw Air Compressor for Hammer Drilling Mining Industrial



Machine Introduction



Diesel portable screw air compressors are widely used in highways, railways, mines, water conservancy, and shipbuilding, urban construction, energy, military and other industries.





Technical Parameters



KSCY-550/13 Diesel Driven portable Screw Air Compressor
Air compressor
Model No: KSCY-550/13
Air capacity(m³/min/cfm) 15 (530)
Work pressure(Bar/Psig) 13 (190)
Fluid capacity(L) 48
Compression Stage Single
Diesel Engine
Engine Model No. Cummins6BT5.9-C180
Cylinder bore stroke number of cylinders 102*120*6
Capacity (L) 5.9
Rated RPM (r/min) 1800
Unload RPM(r/min) 1400
Rated Power (KW/hp) 132(180)
Fuel Capacity(L) 150
Package
Noise level db (a) 80±3
Outlet connection G2*1,G¾*1
Wheel size * Qty 6.5-16x4
Dimension/mm 3450*1520*2220
Weight(KG)

2750





Machine Advantages



1.Air filtration system: High efficient air inlet filter to prevent motor and airend rotors damaged by dirt particles



2.High efficient airend: Large rotors design and large bearings are used to ensure low RPM. This ensured low operating sound minimal vibration and extended operating life



3.Modulation Control: Based on air demand, the modulation valve will control the inlet air capacity and diesel engine RPM to minimize fuel consumption. Its features maximum energy saving



4.Control panel: easy to control; high water temperature alarm, high-pressure alarm, high discharge air temperature alarm, and high RPM alarms are all part of its features



5.Diesel Engine: Using well-known diesel engines like Cummins, Steyr, Caterpillar, and Yuchai. This ensures superior performance and reliability of the compressor



6.Cooler: Larger cooler and fan design to ensure maximum cooling especially for the extreme operating environment.



Machine Pictures

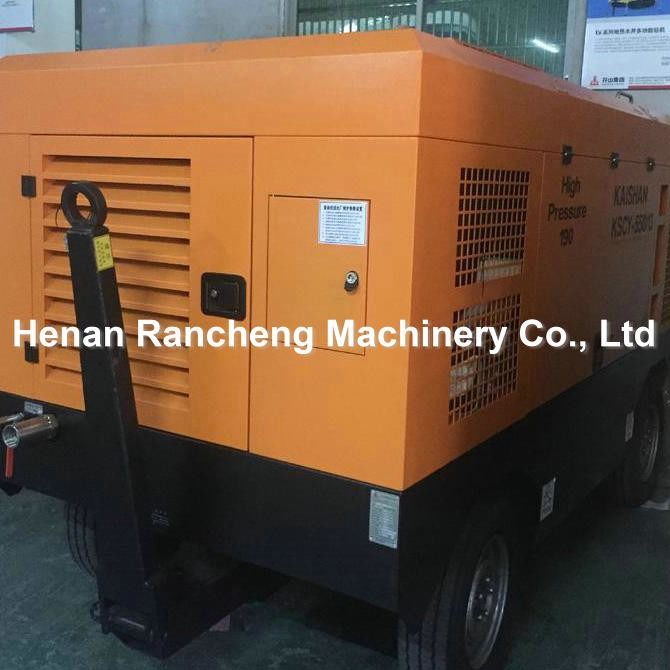

550CFM 13Bar 180HP Air Compressor for Hammer Drilling Mining Industrial 0

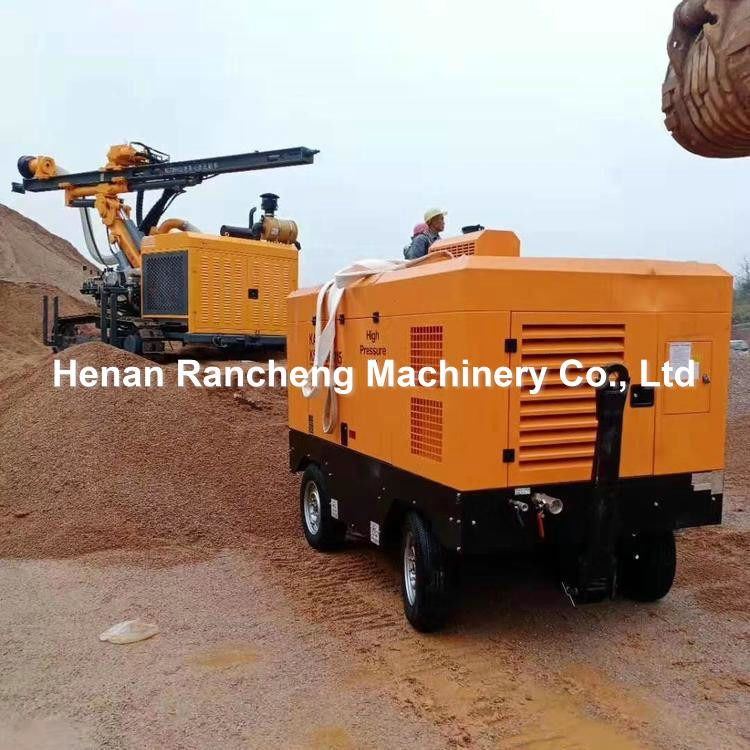

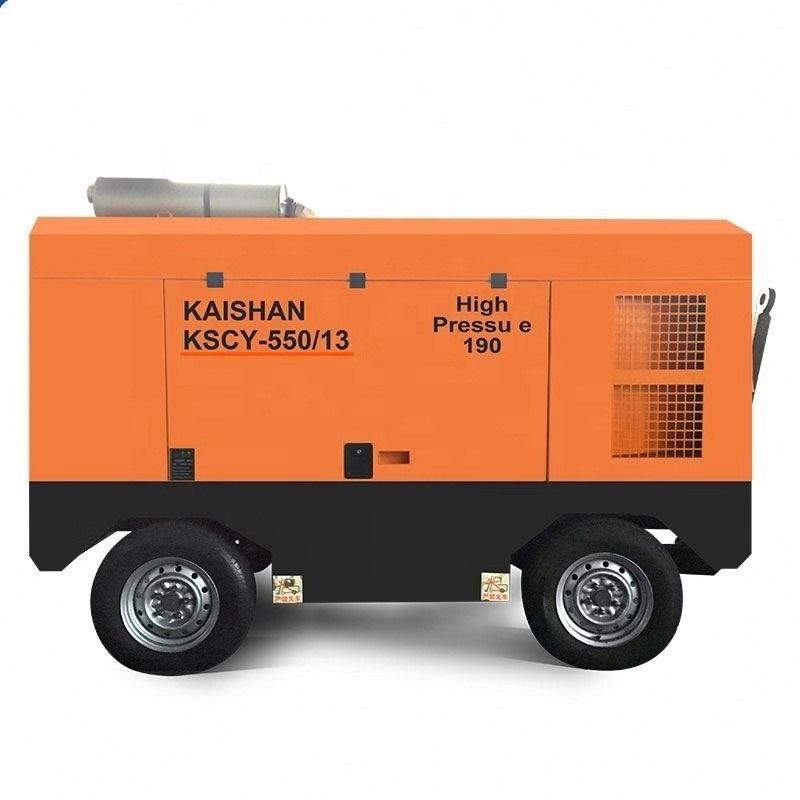

550CFM 13Bar 180HP Air Compressor for Hammer Drilling Mining Industrial 1550CFM 13Bar 180HP Air Compressor for Hammer Drilling Mining Industrial 2

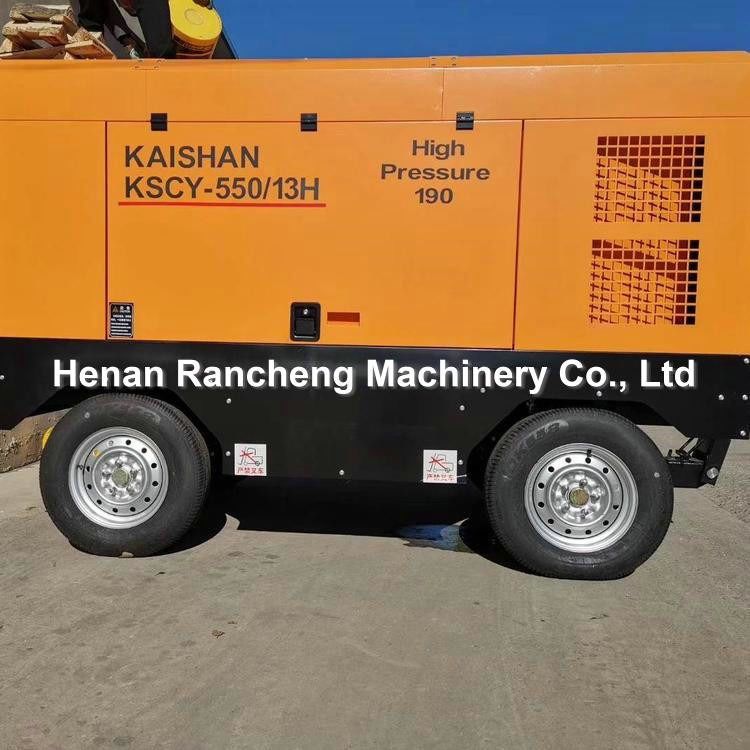

550CFM 13Bar 180HP Air Compressor for Hammer Drilling Mining Industrial 3

550CFM 13Bar 180HP Air Compressor for Hammer Drilling Mining Industrial 4
