Hydraulic 300m Depth Crawler Mounted Water Well Drilling Rig Machine with 85KW Diesel
Product Description
The RCF300C hydraulic crawler-mounted deepwater drilling machine is engineered for drilling depths of up to 300 meters. It features advanced hydraulic systems and a top head drive, delivering significant rotary torque for highly efficient drilling. Its compact design, along with an adjustable mast that includes a compensation function, ensures stability throughout operations. This allows the mast to support the ground during drilling, helping maintain borehole integrity and stability during the process.
Application
This deep well drilling rig is mainly used for irrigation well drilling, home water well drilling, geothermal well drilling, hydrology wells drilling, civil use water well drilling, industry well drilling, etc projects
Technical Parameters
| Model |
RCF300C |
| Bore diameter(Hammer) |
100-350mm |
| Bore depth |
300m |
| Air consumption |
17-35m³/min |
| Air pressure |
1.7-3.0Mpa |
| Pipe diameter |
89mm/102mm |
| Pipe length |
1m/2m/3m |
| Lifting force |
18T |
| Lifting speed |
3m/min |
| feeding speed |
0.5-5m/min |
| Fast lifting speed |
30m/min |
| Fast feeding speed |
50m/min |
| Max torque of the rotary |
7000-9000Nm |
| Rotary speed |
40-70r/min |
| Hoist lifting capacity |
2T |
| Mud Pump flow |
450L/min (option) |
| High hydraulic leg |
1.5m |
| Feeding efficiency |
10-35m/h |
| Travel speed |
2.5Km/h |
| Climb ability |
30° |
| Dimension(L*W*H) |
4200×2200×2600mm |
| Weight |
7200Kg |
| Diesel engine |
85KW Yuchai engine |
| Drilling way |
Air compressor drilling or mud pump drilling |
Advantages
1. high efficiency
With its fully hydraulic system and top-drive rotary propulsion, the drilling rig supports a variety of drilling processes and tools. The controls are easy to operate and flexible, leading to faster drilling speeds and shorter auxiliary times, making the overall operation more efficient.
2. low cost
The rig uses air DTH drilling technology, which is efficient in rock drilling while lowering the cost per meter, making it highly cost-effective.
3. high outrigger
The rig is equipped with four hydraulic legs that simplify loading and transportation. It can be directly loaded onto a truck without the need for a crane, providing convenience in different operational environments.
4. drilling rig chassis
It’s built on a professional excavator chassis, ensuring durability and longevity, especially in muddy or rough terrains.
5. high configuration
The rig’s main components and hydraulic system come from well-known brands. The main frame is made of high-strength low-carbon alloy steel, increasing its strength and wear resistance.
6. hydraulic oil pump
The rig has a parallel gearbox design that separates the oil pump unit, ensuring adequate power distribution. The hydraulic system is uniquely designed, making maintenance easy and cost-effective.
7. diesel engine
This hydraulic drilling rig is powered by an 85KW Yuchai engine, providing strong performance.
8. lifting force
The rig features a composite tower with a 3.4m long-stroke and a double cylinder lift capacity of 18 tons.

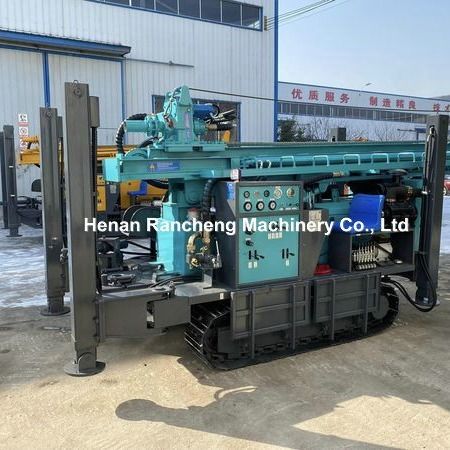

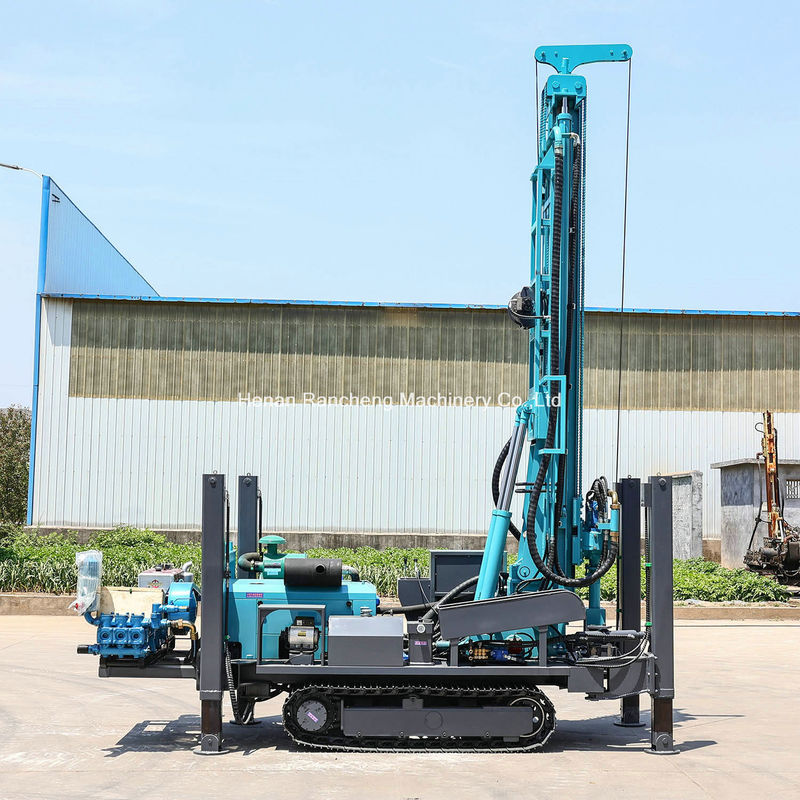

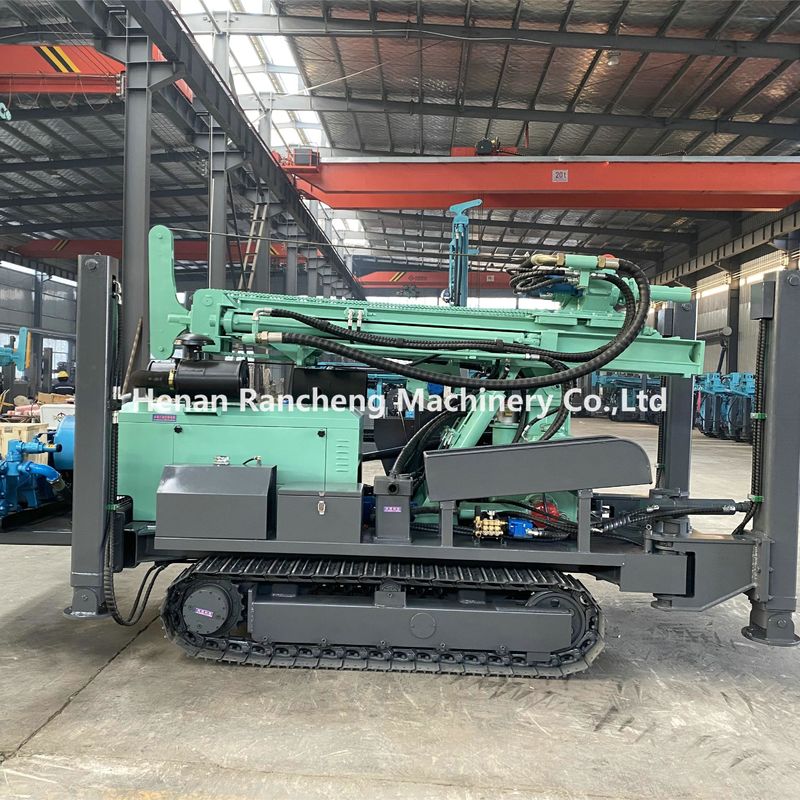

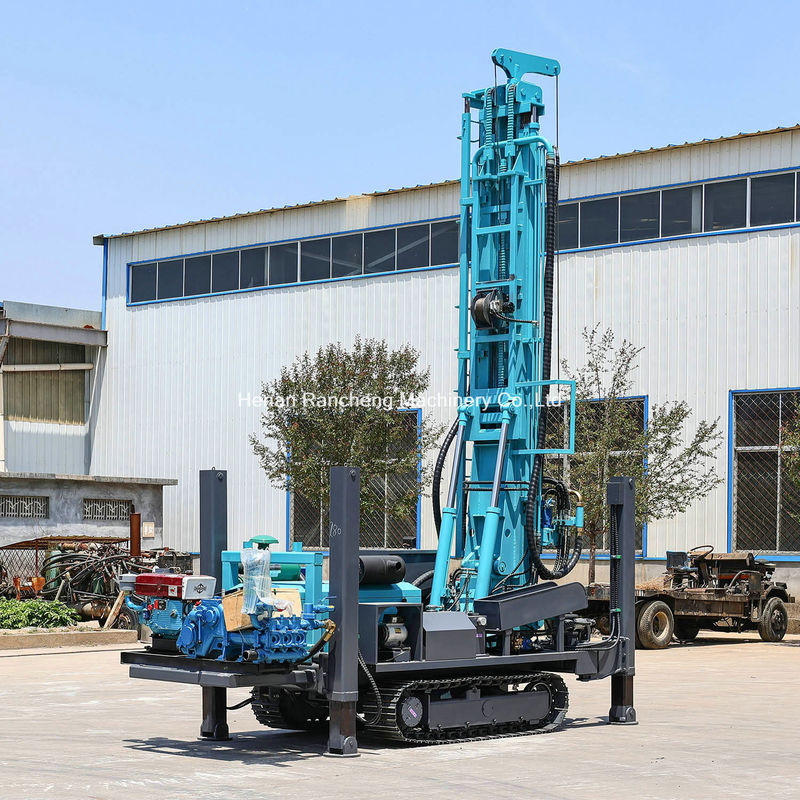

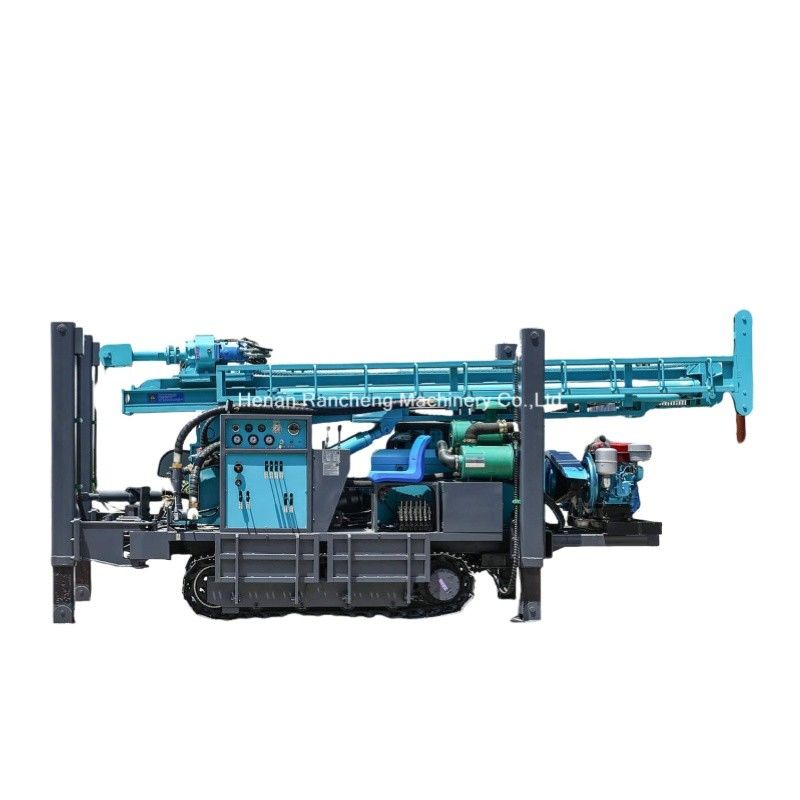

Machine picture display
