150m Portable Hydraulic Core Drilling Rig Machine With 10.6KW 15HP Changchai

150m Portable Hydraulic Core Drilling Rig Machine With 10.6KW 15HP Changchai

150m Portable Hydraulic Core Drilling Rig

10.6KW Portable Hydraulic Core Drilling Rig

Changchai Portable Hydraulic Core Drilling Rig

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCA150

Contact Us
Request A Quote
150m Portable Hydraulic Core Drilling Rig Machine With 10.6KW 15HP Changchai
150m Portable Hydraulic Core Drilling Rig Machine With 10.6KW 15HP Changchai 150m Portable Hydraulic Core Drilling Rig Machine With 10.6KW 15HP Changchai 150m Portable Hydraulic Core Drilling Rig Machine With 10.6KW 15HP Changchai 150m Portable Hydraulic Core Drilling Rig Machine With 10.6KW 15HP Changchai
Product Details
Drilling Depth:
150m
Drilling Diameter:
75mm-130mm
Diesel Engine:
10.6KW (15HP) Changchai
Rotational Speed:
2200r/min
Maximum Torque:
10KN.m
Maximum Feed Force:
15KN.m
Highlight:

150m Portable Hydraulic Core Drilling Rig

,

10.6KW Portable Hydraulic Core Drilling Rig

,

Changchai Portable Hydraulic Core Drilling Rig

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
Standard shipping
Delivery Time
10-15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
RELATED PRODUCTS
Good price 100-240RPM Winch Rated Rotary Speed Small Core Drilling Rig 96L/Min Hydraulic System Rated Flow online Video

100-240RPM Winch Rated Rotary Speed Small Core Drilling Rig 96L/Min Hydraulic System Rated Flow

Get Best Price
Good price 100-240RPM Winch Rated Rotary Speed Small Core Drilling Rig Portable Core Drilling Equipment For Intensity Drilling online Video

100-240RPM Winch Rated Rotary Speed Small Core Drilling Rig Portable Core Drilling Equipment For Intensity Drilling

Get Best Price
Good price Portable Type RCH-3A Underground Core Drilling Rig Exploration Tunnel Mine Drilling Rig online

Portable Type RCH-3A Underground Core Drilling Rig Exploration Tunnel Mine Drilling Rig

Get Best Price
Good price Portable Hydraulic Core Drilling Rig Equipment For Geological / Gold / Rock Exploration online Video

Portable Hydraulic Core Drilling Rig Equipment For Geological / Gold / Rock Exploration

Get Best Price
Contact Us
Contact Now
Product Description

150m Portable Hydraulic Core Drilling Rig Machine With 10.6KW (15HP) Changchai



Machine Introduction



The RCA150 portable drill is manufactured and sold by Henan Rancheng and is popular among geologists around the world. As a coring equipment for mine exploration and mining, the RCA150 portable drill can drill holes up to 150 meters deep. It has a portable hydraulic design, compact structure, easy assembly and fast transportation. The drill has the advantages of low noise and high reliability. It consists of a mast, column, power head, feeder, bracket, winch, motor and operating system, and is suitable for various geological exploration occasions.



Technical Parameters



Main technical parameters
Drilling capacity Drilling diameter (mm) 75~130 Power part Power model Changchai195
  Drilling depth (m) 150(75mm)   Rated power kW 10.6
Rotatory parameters Maximum torque KN.m 10   Rotational speed r/min 2200
  Maximum feed force KN 15 Matching drill pipe Drill pipe diameter mm Ø42/Ø50
  Maximum lifting force KN 25   Drill pipe length m 1.5
  Feed stroke (mm) 1800 Hoist single rope lifting force KN 11
  Rotational speed r/min

Low speed: 142, 302, 716

High-speed: 475, 765, 960

 Dimensions

Shipping status mm

Working status mm

1950*1200*2550

1950*1200*4250
Matching mud pump BW160 single cylinder pump Whole machine weight(including power) kg 750



Machine Advantages



1. When drilling, the RCA150 portable core drill directly drives the casing or core tube for drilling. The effective stroke of the rotor can reach 1.8m, which improves the drilling efficiency.



2. The use of pipe auger and impact drill meets the requirements of drilling in complex formations and greatly improves the drilling efficiency.



3. The structure is very simple and easy to disassemble, maintain and transport.



Application



The RCA150 portable core drill is widely used in water well drilling, suitable for industrial and civil construction, urban infrastructure construction and water conservancy projects.



Machine Pictures

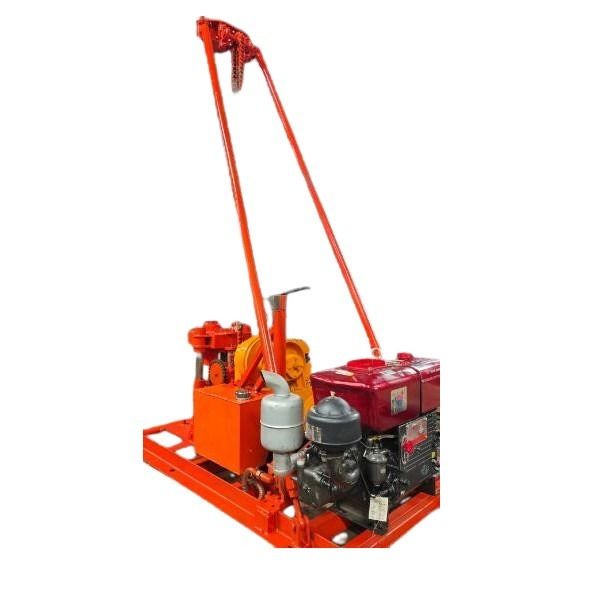

150m Portable Hydraulic Core Drilling Rig Machine With 10.6KW 15HP Changchai 0

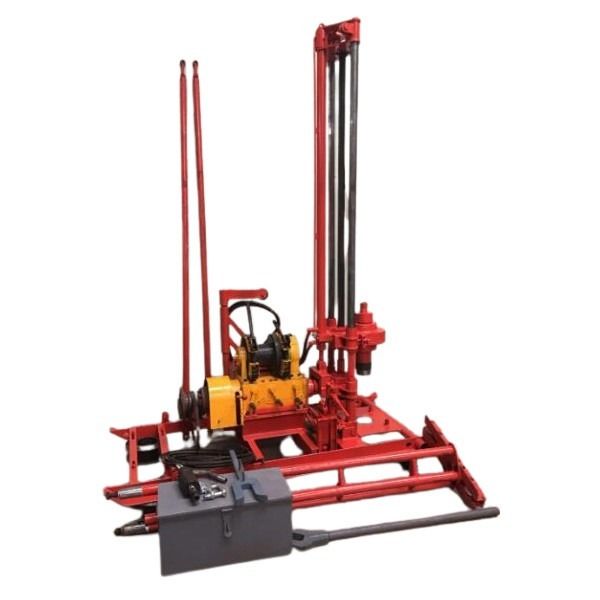

150m Portable Hydraulic Core Drilling Rig Machine With 10.6KW 15HP Changchai 1

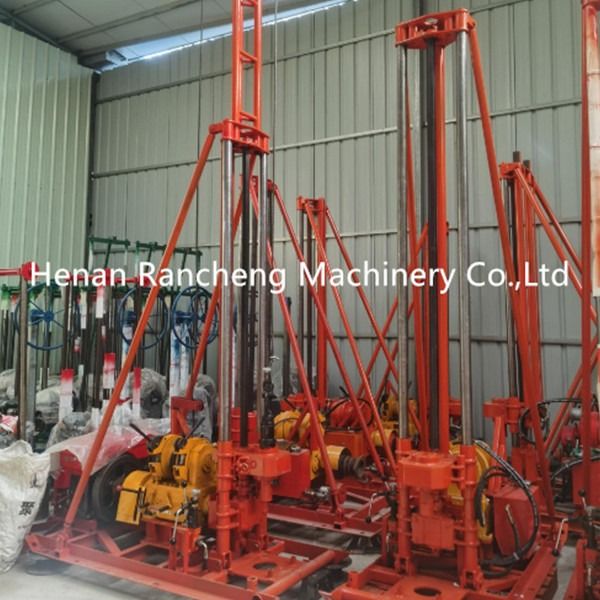

150m Portable Hydraulic Core Drilling Rig Machine With 10.6KW 15HP Changchai 2150m Portable Hydraulic Core Drilling Rig Machine With 10.6KW 15HP Changchai 3

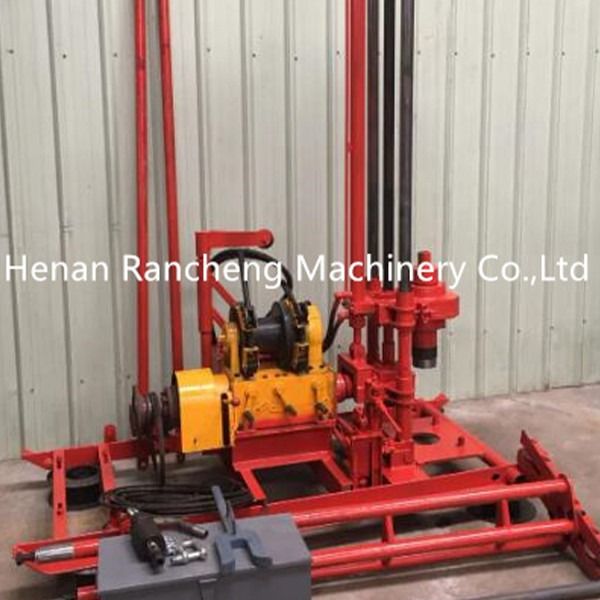

150m Portable Hydraulic Core Drilling Rig Machine With 10.6KW 15HP Changchai 4
