Place of Origin:
China
Brand Name:
RanCheng
Certification:
CE, ISO 9001:2000
Model Number:
RCF300C
Max Depth 300m diameter 350mm Crawler Mounted Water Well Drilling Rig Machine
Product Description
The RCF300C hydraulic crawler-mounted deepwater drilling rig is designed for drilling up to 300 meters. Its advanced hydraulic system, combined with a top head drive, provides strong rotary torque, making the drilling process highly efficient. The machine's compact build, along with an adjustable mast featuring a compensation function, ensures operational stability. This design allows the mast to anchor securely to the ground during drilling, maintaining borehole stability and integrity throughout the process.
Application
This deep well drilling rig is mainly used for irrigation well drilling, home water well drilling, geothermal well drilling, hydrology wells drilling, civil use water well drilling, industry well drilling, etc projects
Technical Parameters
Model | RCF300C |
Bore diameter(Hammer) | 100-350mm |
Bore depth | 300m |
Air consumption | 17-35m³/min |
Air pressure | 1.7-3.0Mpa |
Pipe diameter | 89mm/102mm |
Pipe length | 1m/2m/3m |
Lifting force | 18T |
Lifting speed | 3m/min |
feeding speed | 0.5-5m/min |
Fast lifting speed | 30m/min |
Fast feeding speed | 50m/min |
Max torque of the rotary | 7000-9000Nm |
Rotary speed | 40-70r/min |
Hoist lifting capacity | 2T |
Mud Pump flow | 450L/min (option) |
High hydraulic leg | 1.5m |
Feeding efficiency | 10-35m/h |
Travel speed | 2.5Km/h |
Climb ability | 30° |
Dimension(L*W*H) | 4200×2200×2600mm |
Weight | 7200Kg |
Diesel engine | 85KW Yuchai engine |
Drilling way | Air compressor drilling or mud pump drilling |
Advantages
1. High efficiency
The fully hydraulic system and top-drive rotary propulsion support various drilling processes and tools. Its flexible and user-friendly controls lead to faster drilling speeds and shorter auxiliary times, making the operation highly efficient.
2. Low cost
Using air DTH drilling technology, the rig is highly efficient for rock drilling, lowering the cost per meter and making it cost-effective.
3. High outrigger
Equipped with four hydraulic legs, the rig can be loaded and transported easily, without needing a crane, making it convenient in various environments.
4. Drilling rig chassis
Built on a professional excavator chassis, the rig is durable and ideal for muddy or rough terrains, offering longevity in challenging conditions.
5. High configuration
The main components and hydraulic system are from well-known brands. The main frame is made of high-strength, low-carbon alloy steel, increasing its durability and resistance to wear.
6. Hydraulic oil pump
The rig features a parallel gearbox design, separating the oil pump unit to ensure proper power distribution. The hydraulic system is designed for easy maintenance and reduced costs.
7. Diesel engine
Powered by an 85KW Yuchai engine, the rig offers robust performance.
8. Lifting force
The rig has a composite tower with a 3.4m long-stroke and a double cylinder lifting capacity of 18 tons.

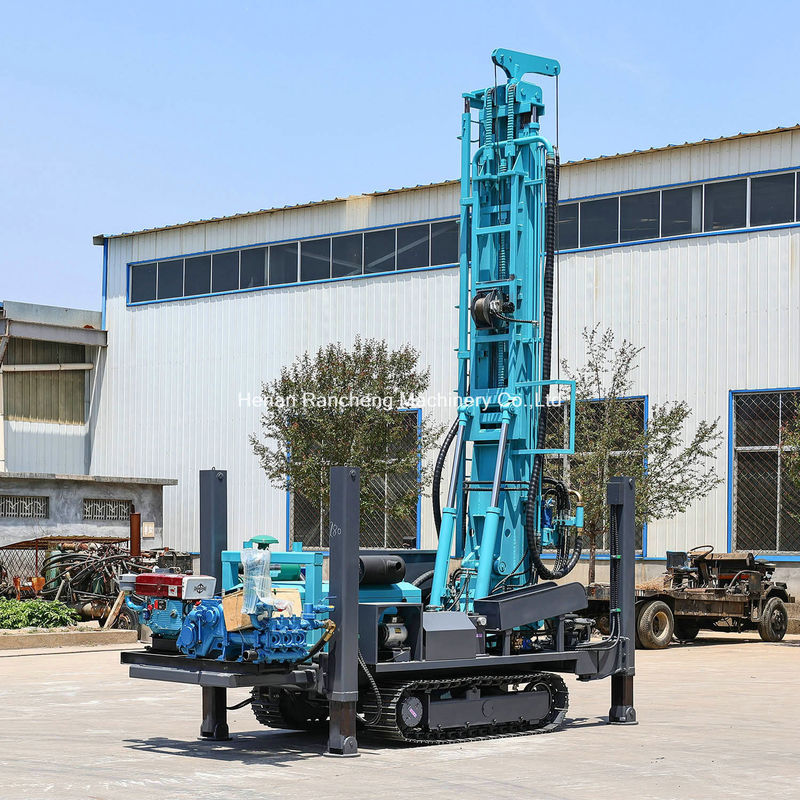

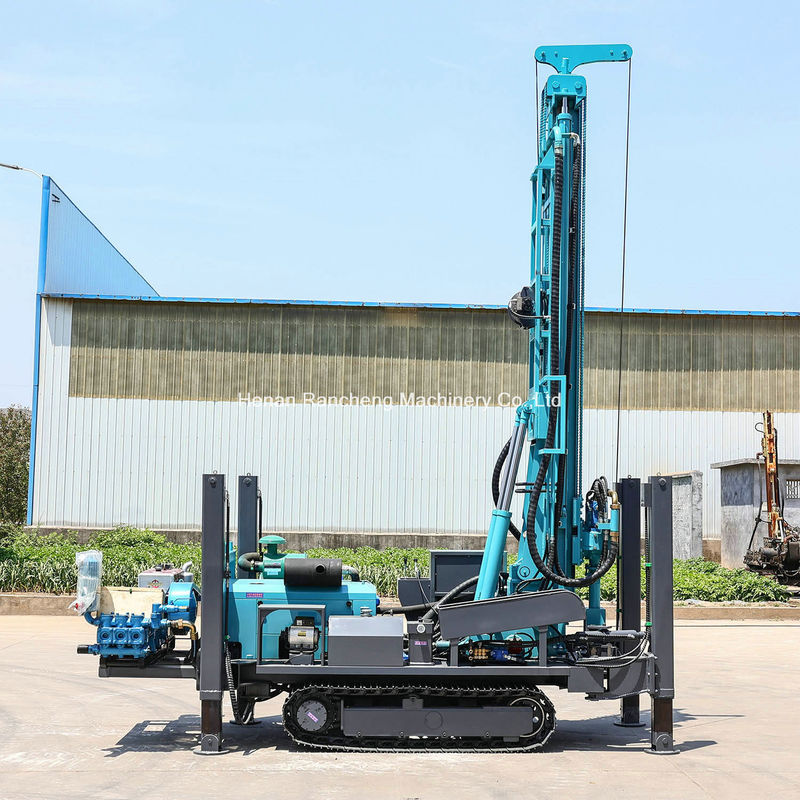

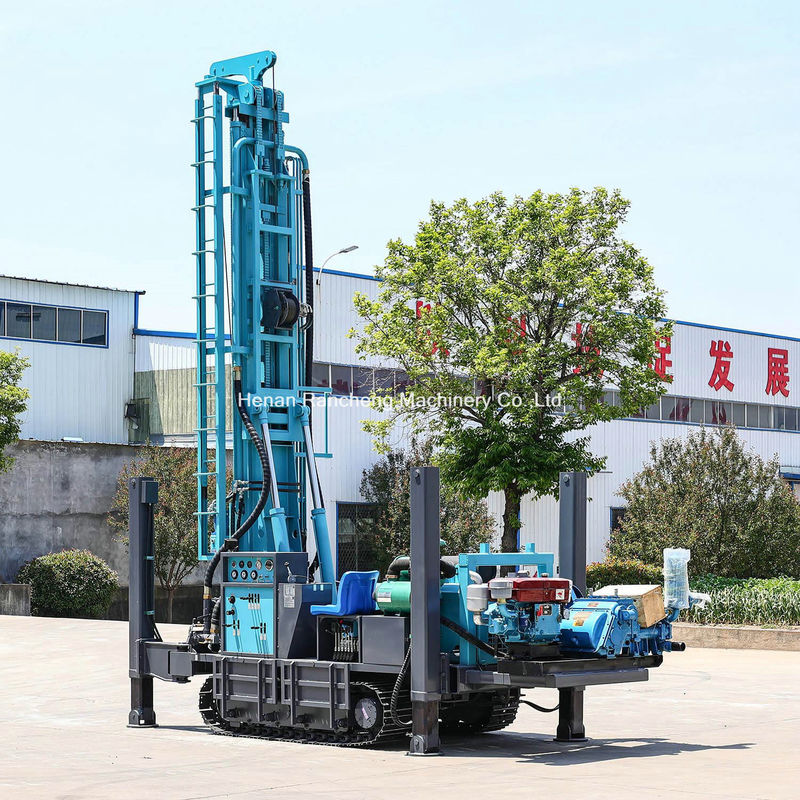

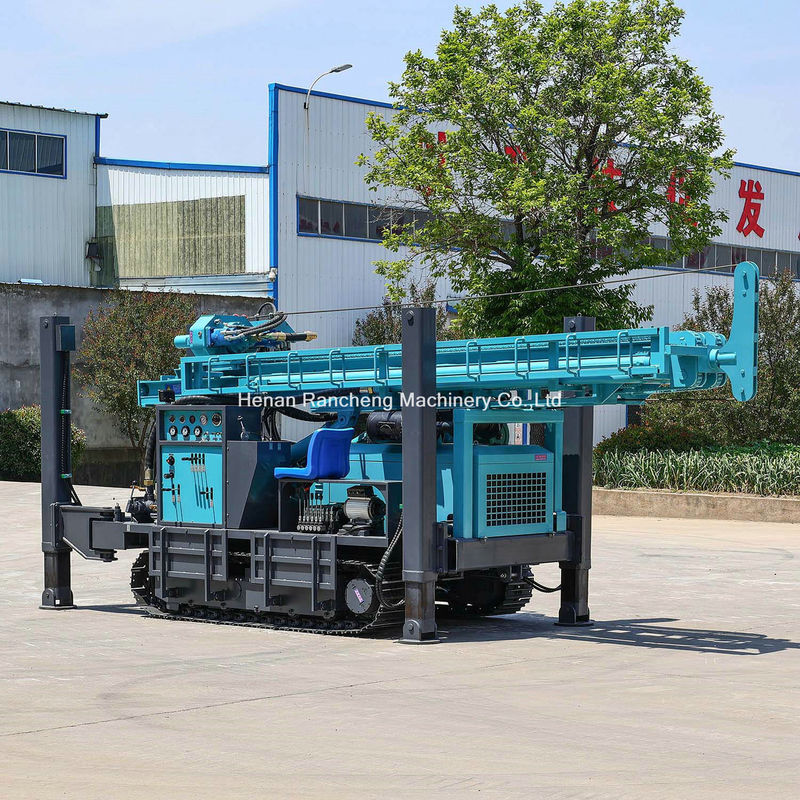

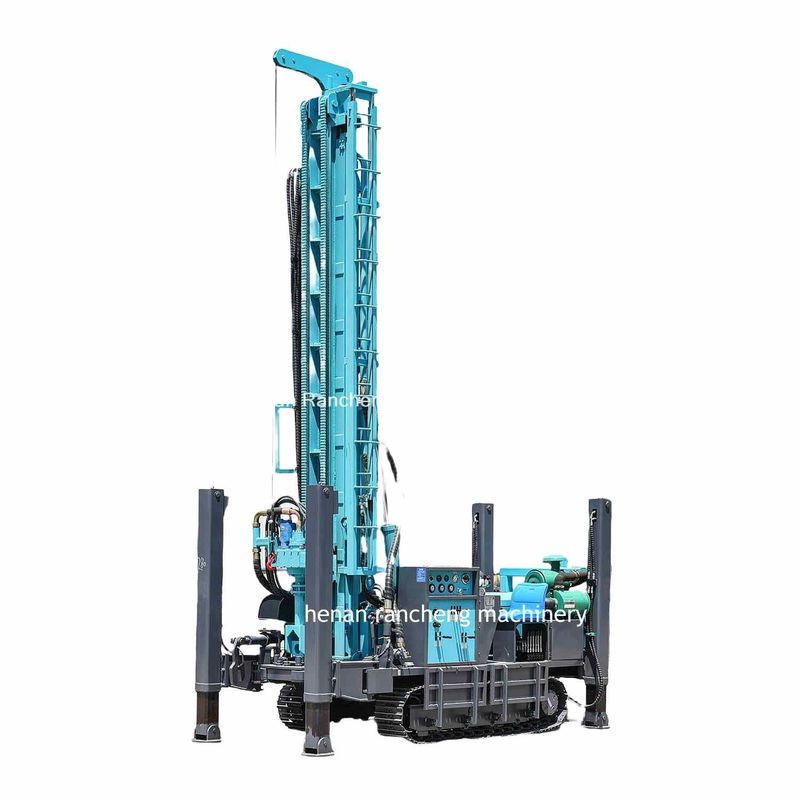

Machine picture display
