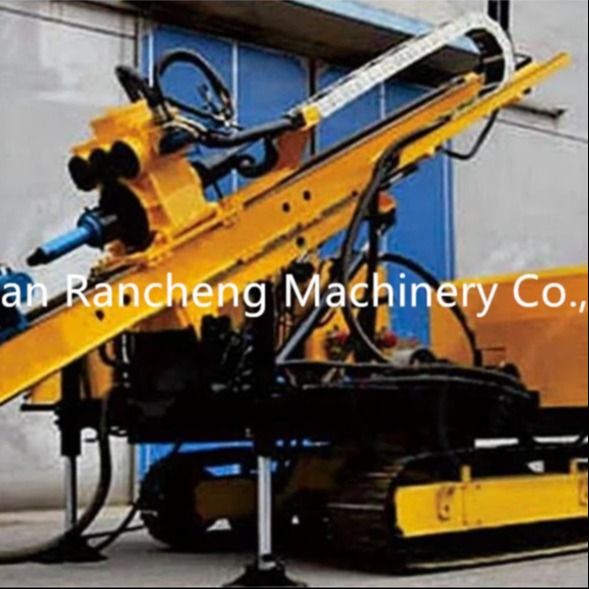

150m Multifunctional Engineering Drilling Rig RCJ150RC RC Drilling Machine

150m Multifunctional Engineering Drilling Rig RCJ150RC RC Drilling Machine

Multifunctional RC Drilling Machine

150m RC Drilling Machine

RC Drilling Machine

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCJ150RC

Contact Us
Request A Quote
Product Details
Name:
RC Drilling Rig
Model Of Machine:
RCJ150RC
Nominal Drill Depth:
150m
End-hole Diameter:
110-250mm
Horizontal Hole Height:
1.85-2.8m
Max Output Torque:
8000N.m
Feeding:
3500mm
Highlight:

Multifunctional RC Drilling Machine

,

150m RC Drilling Machine

,

RC Drilling Machine

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
It can be shipped by one 40" container
Delivery Time
10-15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
Product Description

150m Multifunctional Engineering Drilling Rig RCJ150RC RC Drilling Machine



Product Description



The RCJ150RC drilling rig is mounted on a crawler chassis and operates with a fully hydraulic system. It is capable of drilling both vertical and inclined holes, using various drilling techniques, including:

  • Auger drilling
  • Down-The-Hole (DTH) hammer drilling
  • Mud forward circulation drilling
  • ODEX tools (casing pipe following) drilling with DTH hammer
  • Medium reverse circulation drilling
  • Wireline core drilling (after switching to a core drilling rotary head)



Product Specifications



Model RCJ150RC
Drill rig weight(crawler mounted) kg 9000
Engine Power kW 125
Length × Width × Height (normal) mm 6750x2200x2950
Ambient Temperature Range °C -10~38
Drill Ability
Nominal Drill Depth m 150
End-hole Diameter mm 110-250
Drill angle ° -10-90
Horizontal hole height m 1.85-2.8
Drill head output
Max Output Torque N.m 8000
Output Rotation Speed(continuity) rpm 30 / 60, 54/108rpm



Output Rotation Speed(interval)

rpm

62 / 124

105/210rpm

Feeding mm 3500
Thrust Force kN 45
Lifting Capacity kN 65
Pipe-puller Device Output
Output Rotation Speed rpm 40
Max Output Torque N.m 30000
Hole-through Diameter mm 370
Auxiliary Winch
Pull Force of the first Layer kN 11
Rope Diameter mm 14
Rope Capacity m 60
Engine(Cummins) 6BTA5.9-C125
Power kW 125
Rotary Speed (Max.) rpm 2200
Track Chassis Base
Walk Speed Km/h 1.2
Unit Pressure MPa <0.05
Climb Ability ° ≯20



Product Features



● The hydraulic RC drilling rig has large output torque and wide speed range, which can meet various drilling methods. It has a wide range of applications.

● The hydraulic RC drilling rig’s feeding stroke is large, with no active drilling rod, which reduces the auxiliary time of reducing or adding rod, so that it can improve the drilling efficiency.

● The hydraulic drilling rig’s thrust force and lifting force are very large, which can meet the effective drill and have a super ability to handle accidents.

● This RC drilling rig is equipped with pipe puller device which can meet the requirements of twisting the drill rod, and reduces the labor strength.

● The RC drilling rig is crawler mounted, which makes the machine move easily.

● Important hydraulic parts on the drilling rig are selected from the world high-end technical products or well-known brand products, and the corresponding monitoring system is configured to ensure the good reliability of the system and the low failure rate.

● It can be used by various drilling methods, such as: Non-cycle liquid dry auger drill DTH hammer drill in rock layer by air Mud circulation drill in sand soil layer DTH hammer with tube drill in broken rock area by air,wireline core drilling



Product Image

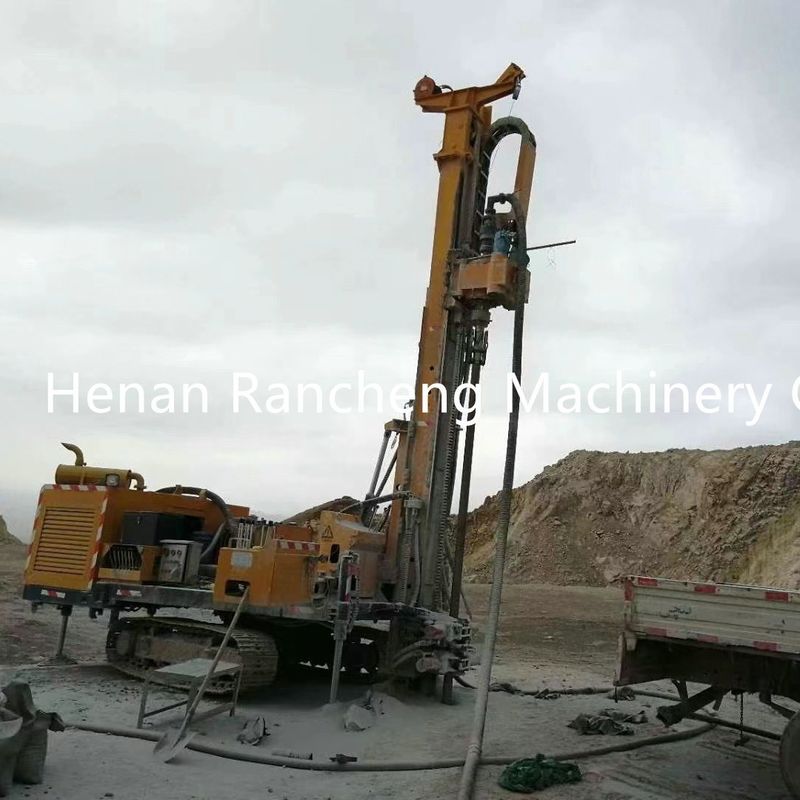

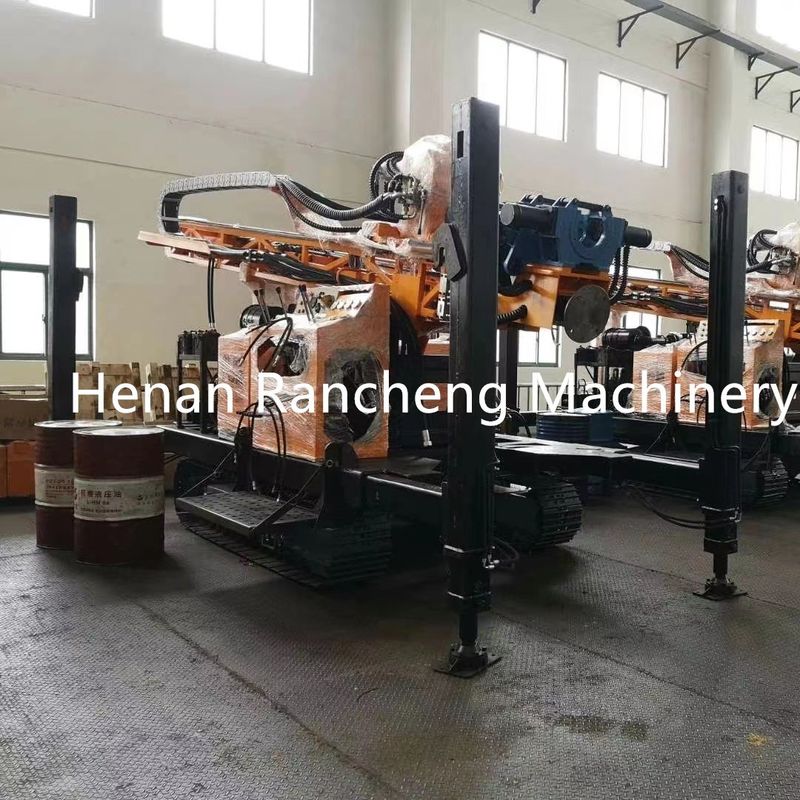

150m Multifunctional Engineering Drilling Rig RCJ150RC RC Drilling Machine 0

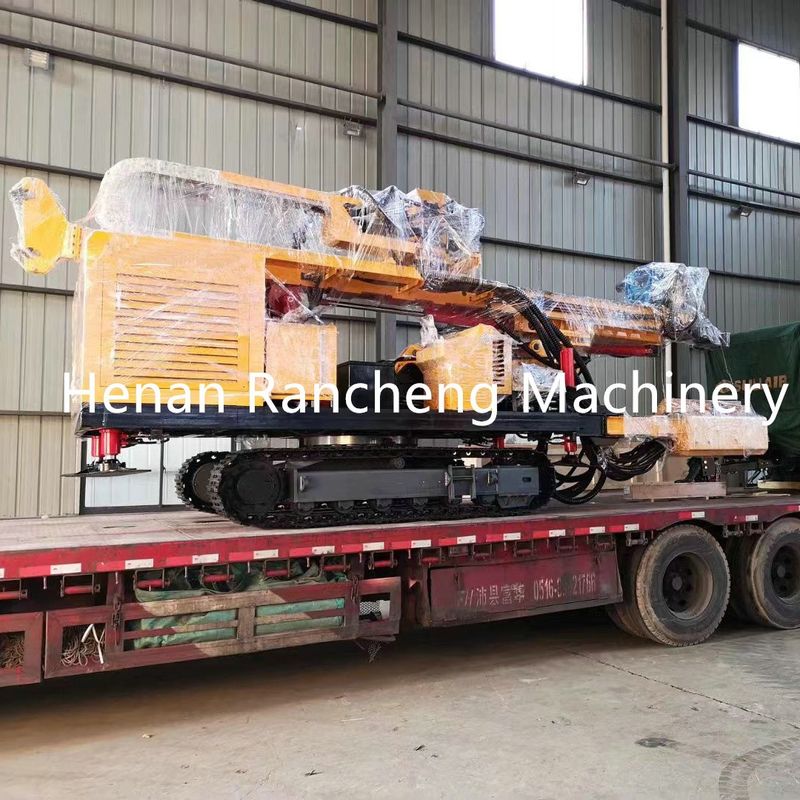

150m Multifunctional Engineering Drilling Rig RCJ150RC RC Drilling Machine 1150m Multifunctional Engineering Drilling Rig RCJ150RC RC Drilling Machine 2
