Intelligent And Flexible Deep Physical Exploration Groundwater Detector

Intelligent And Flexible Deep Physical Exploration Groundwater Detector

Intelligent Groundwater Detector

Deep Physical Exploration Groundwater Detector

Flexible Groundwater Detector

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RC-M300/500/1200/2000/3000-16D

Contact Us
Request A Quote
Product Details
Channel Input:
16 Channels Input Simultaneously, Maximum Electrode Spacing 2.5m
Channel Options:
1-14
Depth Options:
100/200/300/400/500/600/800/1200/2000
Scan Interval:
10-80
Connections:
Serial Port, Wifi, Bluetooth 4.0, USB (optional 4G)
Display:
10.1-inch IPS Wide-angle 178° Visual Touch Screen (1024×600)
Highlight:

Intelligent Groundwater Detector

,

Deep Physical Exploration Groundwater Detector

,

Flexible Groundwater Detector

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
Standard shipping
Delivery Time
10-15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
Product Description

Intelligent and flexible deep physical exploration groundwater detector



Product Description:



The 16-channel real-time visualization water detector is an intelligent real-time visualization water detector jointly developed with the Guilin Hydrogeological Survey Institute. It uses 16 channels for simultaneous input measurement to obtain a stable field source, which not only solves the problem of natural changes in the electric field at any time, but also avoids the error caused by repeated displacement of the electrode within the same contour, eliminating the shortcomings of repeated measurement of the data contour of a single-channel device.



The 16-channel real-time viewing water detector is equipped with a 10.1-inch Android system touch screen for real-time viewing, and is compatible with the instrument screen, mobile phone screen, and computer screen. You can choose 1 to 14 measurement channels, and you can choose wireless probes or water search. The ring rod can change the measurement mode of the MN electrode and TT probe, which is very convenient for on-site operation and is generally recognized by customers.



Main advantages:



1. Automatic image:

10.1-inch Android touch screen can capture intelligent, real-time 2D, 3D and curved images.



2. Accurate and stable:
The shortcomings of inconsistent size and time-varying natural electromagnetic field sources are eliminated, and the accuracy is significantly improved.



3. Three-screen interoperability:
The instrument screen, mobile phone screen, and computer screen can all be transparently transmitted.



4. Intelligent and flexible:

1-14 channels can be selected, and the electromagnetic probe can be selected in the TT probe measurement mode. It also supports wireless connection to find water.

Technical Parameters:



Versions 300m-16D 500m-16D 1200m-16D 2000m-16D 3000m-16D
Max Depth (m) ≤300 ≤500 ≤1200 ≤2000 ≤3000
Channel Input 16 channels input simultaneously, maximum electrode spacing 2.5m
Channel Options 1-14
Depth Options Optional within the maximum depth, refer to 100/200/300/400/500/600/800/1200/2000/3000m
Scan Interval 10-80
Connections

Serial port, Wifi, Bluetooth 4.0, USB (optional 4G)

Display 10.1-inch IPS wide-angle 178° visual touch screen (1024×600)
OS Android 6.0.1
CPU ARM Cortex-A7 8-core CPU 2.0Hz
GPU OpenGL ES 2.0
Core Features Multiple options of depths, 2D/3D plotting, removable battery
Sensing Mode MN/TT
Frequency Range (hz) 1-8K 0.01-6K
Filtering Preset or intelligent frequency selection, analog + data filtering 1-16 times superposition optional
Discrim. 0.1mV±3% 0.01mV±2%
Acquisition Time (s) 60-3600 120-5400
Battery 800mA/H
Console Weight 1.85kg



Applications:



The groundwater detector is a professional equipment for measuring the location, depth and output of groundwater, monitoring well drilling, pumping and other operations, and improving the success rate of well drilling.

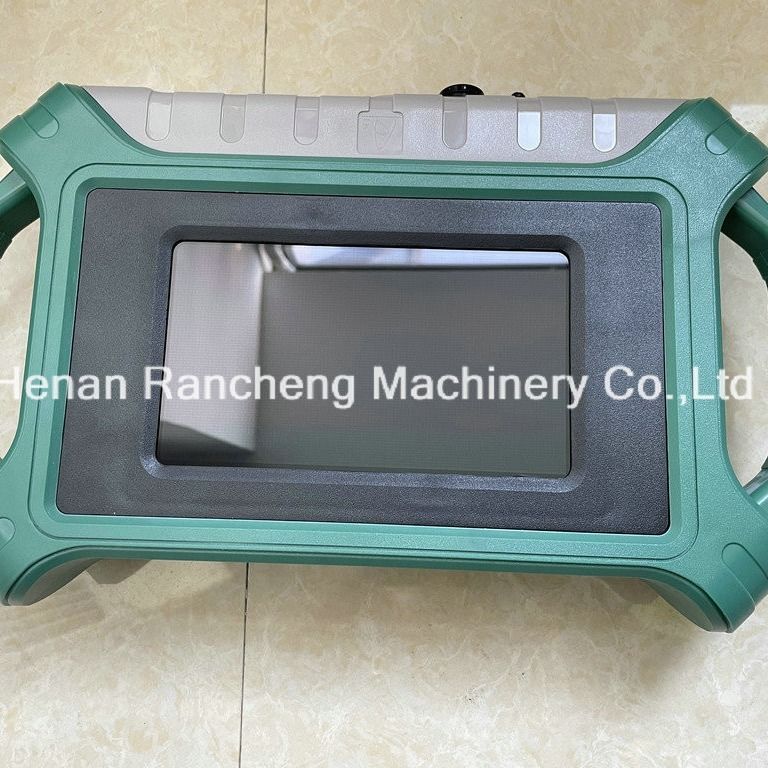

Intelligent And Flexible Deep Physical Exploration Groundwater Detector 0

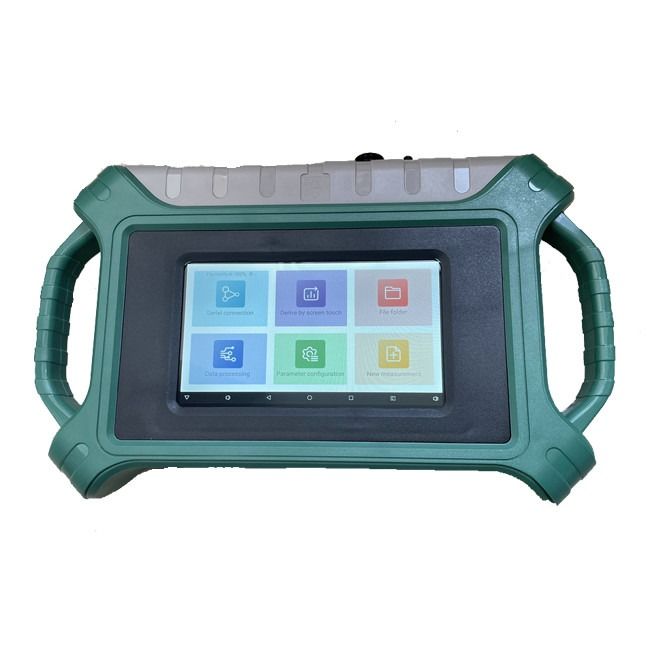

Intelligent And Flexible Deep Physical Exploration Groundwater Detector 1

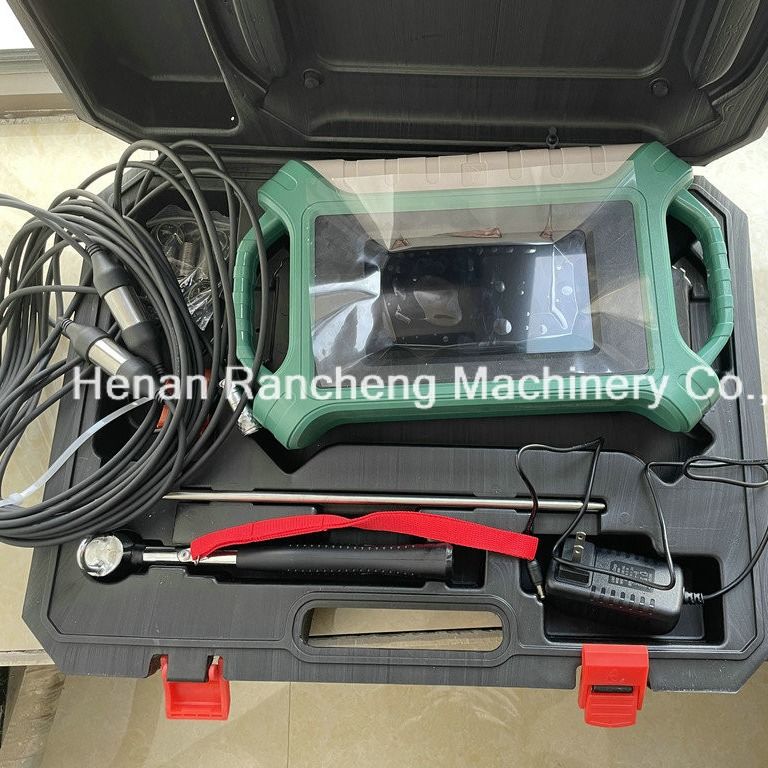

Intelligent And Flexible Deep Physical Exploration Groundwater Detector 2

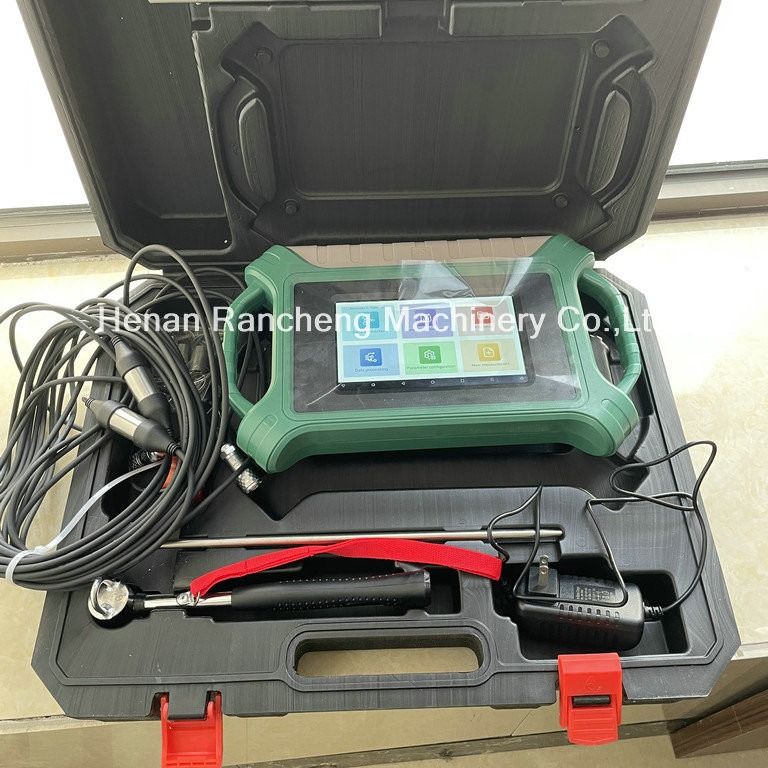

Intelligent And Flexible Deep Physical Exploration Groundwater Detector 3
