280m Deep Hydraulic Borehole Water Well Drilling Rig Machine with 350mm diameter
Product Description
The RCF280C deep water well drilling rig represents one of our independently developed innovations. This next-generation DTH rig boasts enhanced air power, which significantly boosts both drilling speed and efficiency.
Utilizing cutting-edge hydraulic technology, the rig offers low energy consumption, high rotary torque, and excellent hole deflection capabilities. It is perfectly suited for a variety of applications, such as resource exploration, hydrological wells, civil water projects, and agricultural irrigation.
Crafted from high-quality materials and designed with a sleek, compact form, our drilling rigs provide outstanding efficiency, low failure rates, and exceptional durability. Their impressive cost-performance ratio has garnered overwhelmingly positive feedback from our customers, validating their performance in the market.
Technical Parameters
| Model |
RCF280C |
| Bore diameter(Hammer) |
100-350mm |
| Bore depth |
280m |
| Air consumption |
17-35m³/min |
| Air pressure |
1.7-3.0Mpa |
| Pipe diameter |
89mm/102mm |
| Pipe length |
3m/6m |
| Lifting force |
18T |
| Lifting speed |
3m/min |
| feeding speed |
0.5-5m/min |
| Fast lifting speed |
30m/min |
| Fast feeding speed |
50m/min |
| Max torque of the rotary |
7000-9000Nm |
| Rotary speed |
40-70r/min |
| Hoist lifting capacity |
2T |
| Mud Pump flow |
450L/min (option) |
| High hydraulic leg |
1.5m |
| Feeding efficiency |
10-35m/h |
| Travel speed |
2.5Km/h |
| Climb ability |
30° |
| Dimension(L*W*H) |
4100×1900×2600mm |
| Weight |
7000Kg |
| Diesel engine |
70KW Yuchai engine |
Product Advantages
Thanks to its fully hydraulic and top-drive slewing propulsion system, this rig is designed for various drilling processes and tools. It offers convenient and flexible control, enabling fast drilling speeds and reduced auxiliary times, which significantly enhances operational efficiency.
The rig utilizes DTH (Down-the-Hole) drilling technology, which not only provides high efficiency but also reduces the cost per meter of drilling.
The high outriggers facilitate easy loading and transportation, allowing the rig to be loaded directly without the need for a crane. Its tracked walking mechanism is particularly well-suited for movement in muddy terrains.
Each impactor achieves optimal efficiency when paired with the appropriate shaft pressure and speed. As the number of drill pipes increases during the drilling process, the axial pressure on the impactor also rises. To maintain peak performance, positive and negative axial pressure valves are adjusted in real-time. This ensures the impactor receives the ideal axial pressure, resulting in improved impact efficiency.

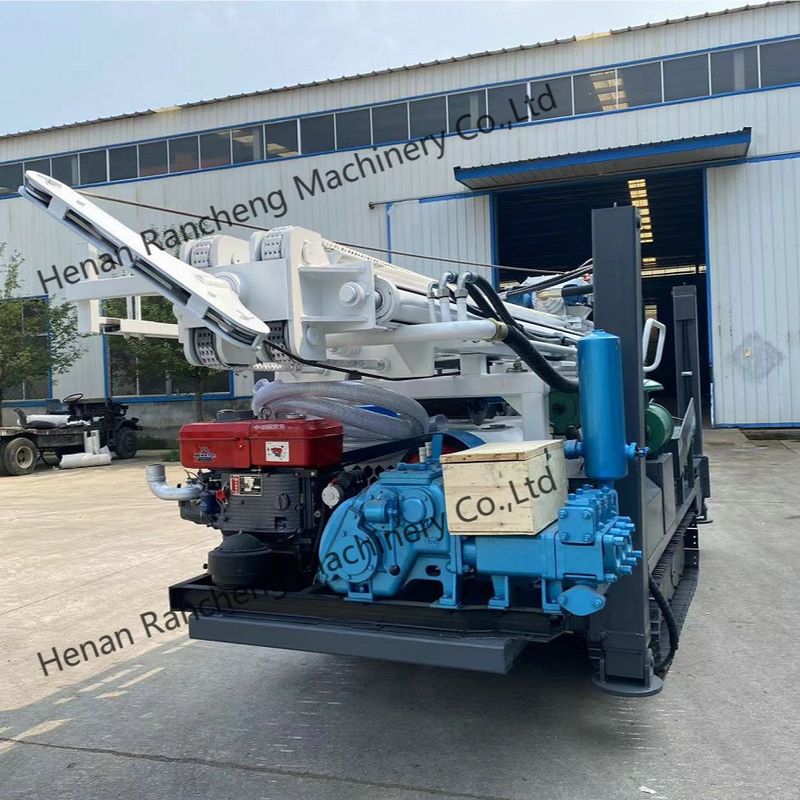

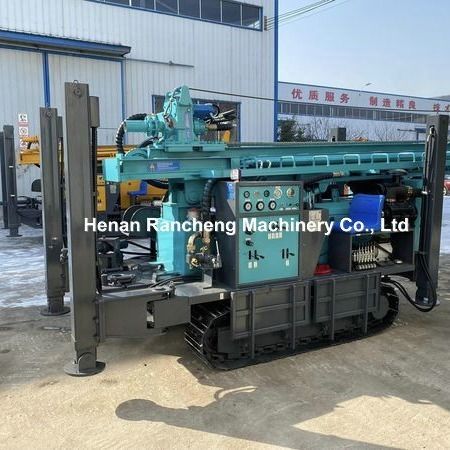

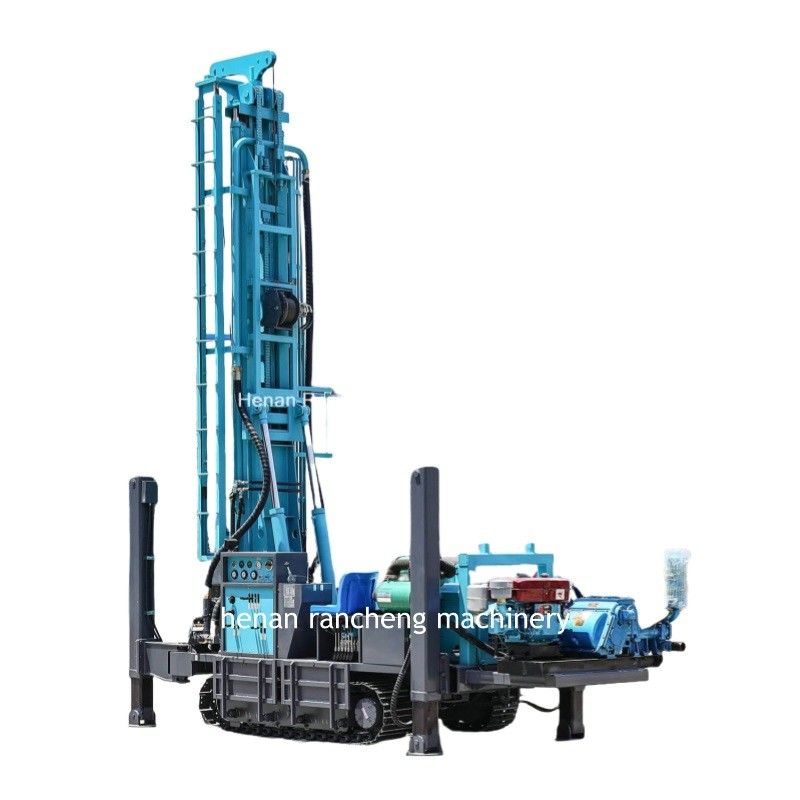

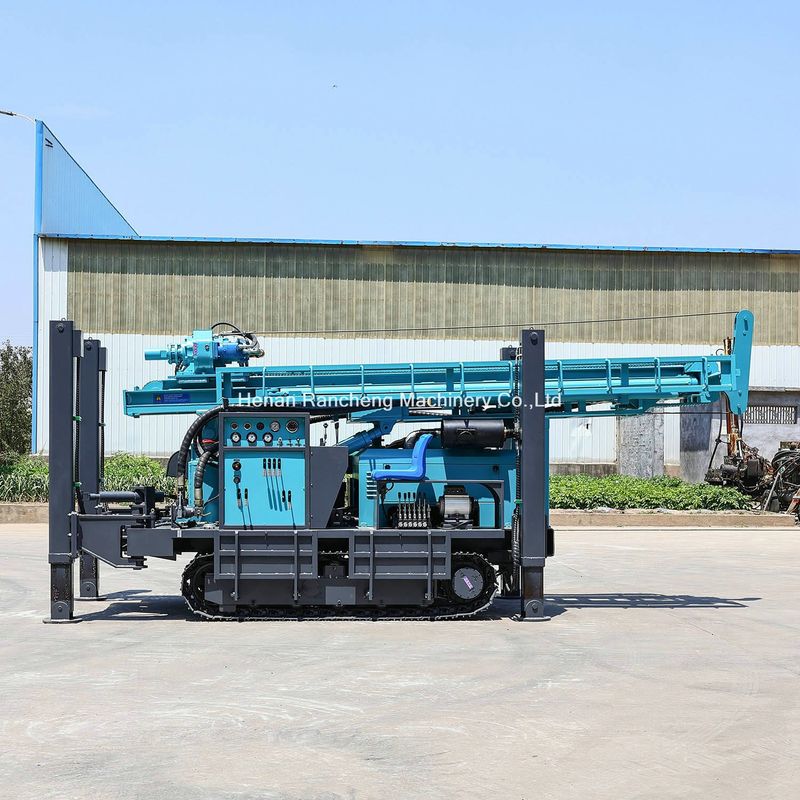

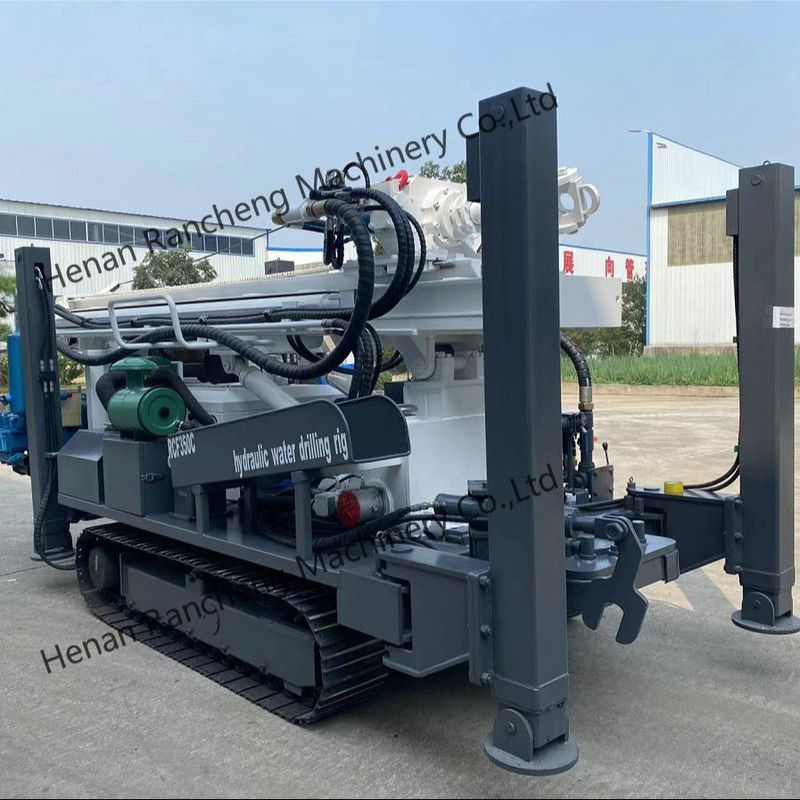

Machine Picture Display
