300m Borehole Logging Equipment Measure Than 20 Kinds Parameters

300m Borehole Logging Equipment Measure Than 20 Kinds Parameters

Product Description:

The main unit of this equipment has a 1-year warranty, including videos on the installation and operation of the machine. Its long mean time between failures (MTBF), small size of underground probe and resistance to high pressure ensure excellent quality and durability. This geophysical drill is rugged and can withstand harsh underground conditions.

We also provide lifetime free technical support and overseas service. Our team is always ready to answer any questions or concerns you may have.

Features:

1. RCQ-2D integrated digital control signal acquisition system Whether it is sensor or ground block, measurement or signal transmission, the concepts of hardware and software, standardization and modularization are applied. Benefits of standardization and modularization The products are consistent, maintainable and reliable. Easy operation and maintenance. The accessories are 100% universal and can be expanded at any time.

2. All signals from underground probes are converted by analog-to-digital converters and sent to the ground after encoding. The underground detector has a two-way street communication function. Digital code transmission measurement greatly improves the anti-interference ability, and the system can correct the code by itself, ensuring the quality of signal transmission.

3. The RCQ-2D system adopts a sampling method to collect reservoir information. The amount of oversampling increases with the decrease of acquisition rate, and oversampling provides the need for digital filtering, improving spatial resolution and filtering useful information.

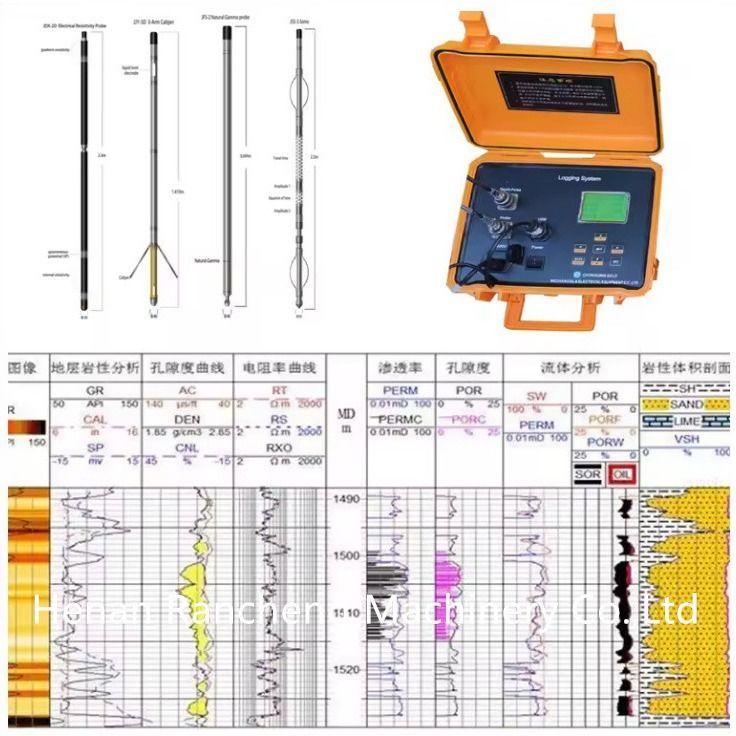

4. The diameter of the RCQ-2D probe is about 40 and 50 mm, and the length is 1000-1500 mm. The probe is made of stainless steel. Water pressure resistance 20-40 MPa, temperature 70-90℃. Special customization can withstand 60MPa water pressure and 120℃ temperature.

Technical Parameters:
