Place of Origin:
China
Brand Name:
RanCheng
Certification:
CE, ISO 9001:2000
Model Number:
RCS200P Portable Well Drilling Machine
Hydraulic Water Drilling Machine For 150m Deep Farm Irrigation Wells
Product Description
With an impressive drilling depth of up to 150 meters, the RCS200P is engineered to tackle even the most challenging projects. Its versatile drilling diameter ranges from 100 to 450 mm, allowing you to customize your approach based on specific requirements. Whether you’re drilling for residential water supply, agricultural needs, or industrial applications, this rig is equipped to deliver results that exceed expectations.
Applications
This powerful machine excels in various applications, including geothermal drilling, house yard installations, garden projects, and boring drilling. With the capability to drill diameters ranging from 70mm to an impressive 450mm, it can reach depths of up to 150 meters, ensuring you can access the water or resources you need, no matter the challenge.
Whether you’re working on a small-scale project like a farmhouse or a larger endeavor such as a factory, this drilling machine is versatile enough to handle it all. Its robust design allows it to penetrate different strata, including sand, soil, clay, and soft rock, making it suitable for diverse geological conditions.
Product Specifications
Model of drilling machine | RCS200P |
Drilling machine overall dimension(mm) | 1800*1000*2000 |
Weight of Drilling machine (kg) | 1000 |
Drill rod diameter (mm) | Ø50 |
Drill rod length(mm) | 1500 |
Rod change method | Full automatic screw thread |
Drilling depth(m) | 150 |
Diesel Motor Power (Hp/kw) | 22/16.2 |
Drilling method | Percussive and rotating type |
Drilling hole diameter(mm) | Within Ø 450mm |
Stroke distance (mm) | 2000 |
Hosting capacity (kg) | 1500 |
Product Features
1. Light weight, energy saving;
2. Patented product, unique design and simple drilling structure;
3. Easy to transport and can learn how to handle the machine in short time;
4. Can drill through hard stratum, unless thick rock layer ;
5. One person operation, reduce the labor intensity ;
6. High efficiency and work fast;
7. Assure easily operation and long life service life.

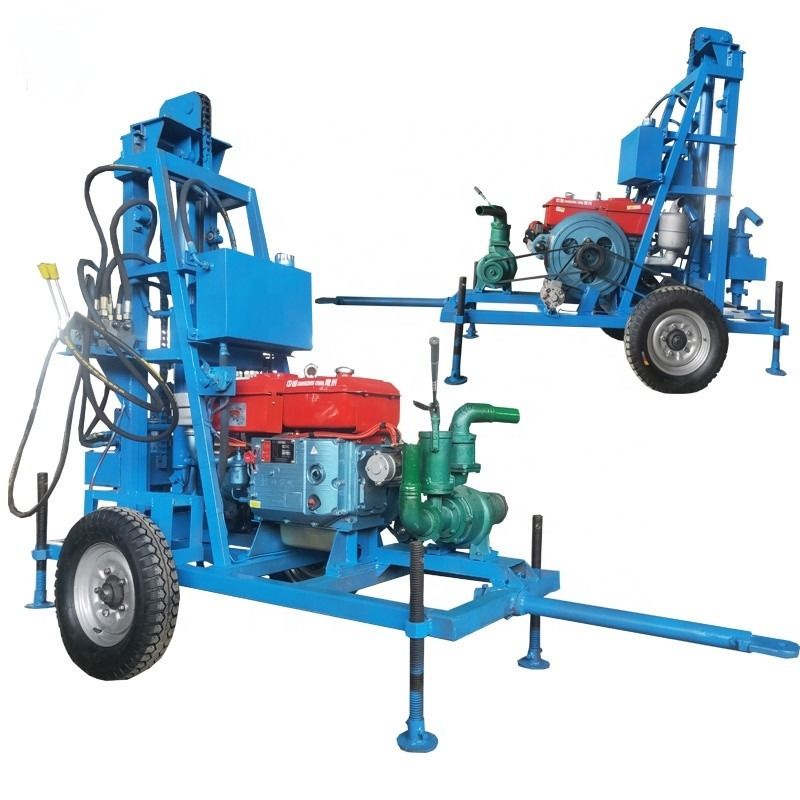

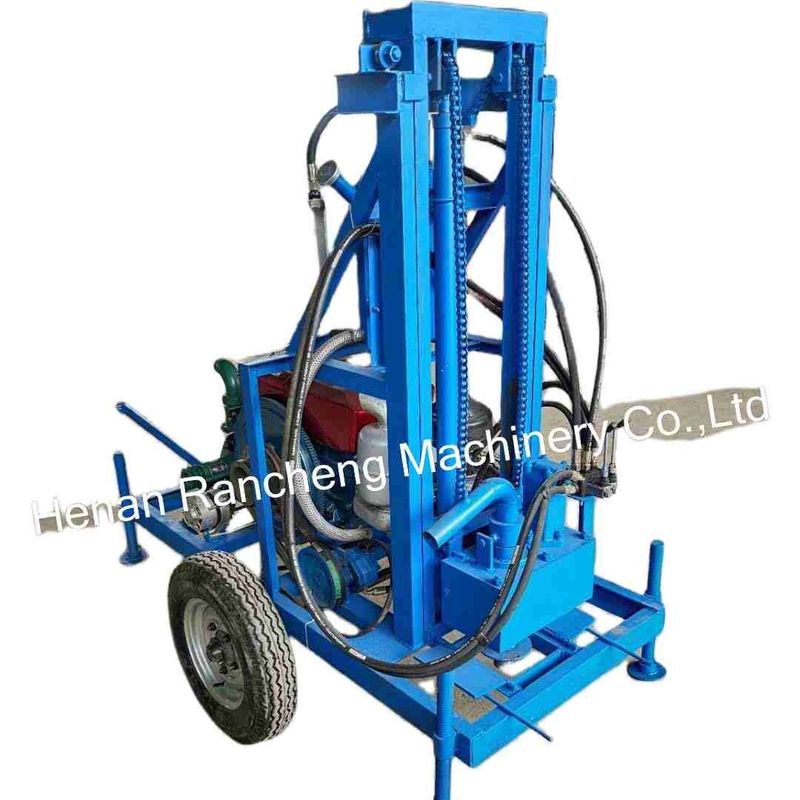

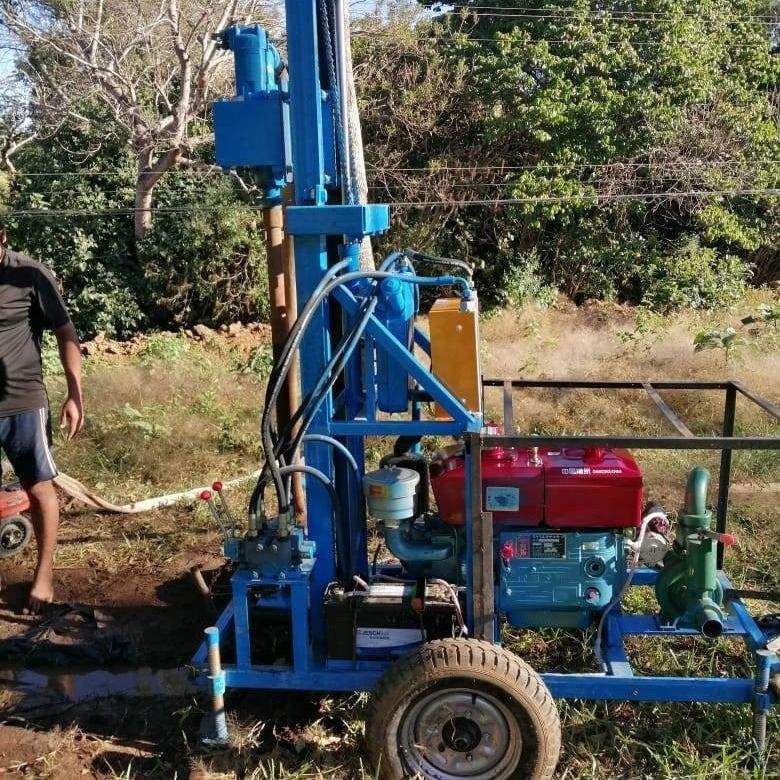

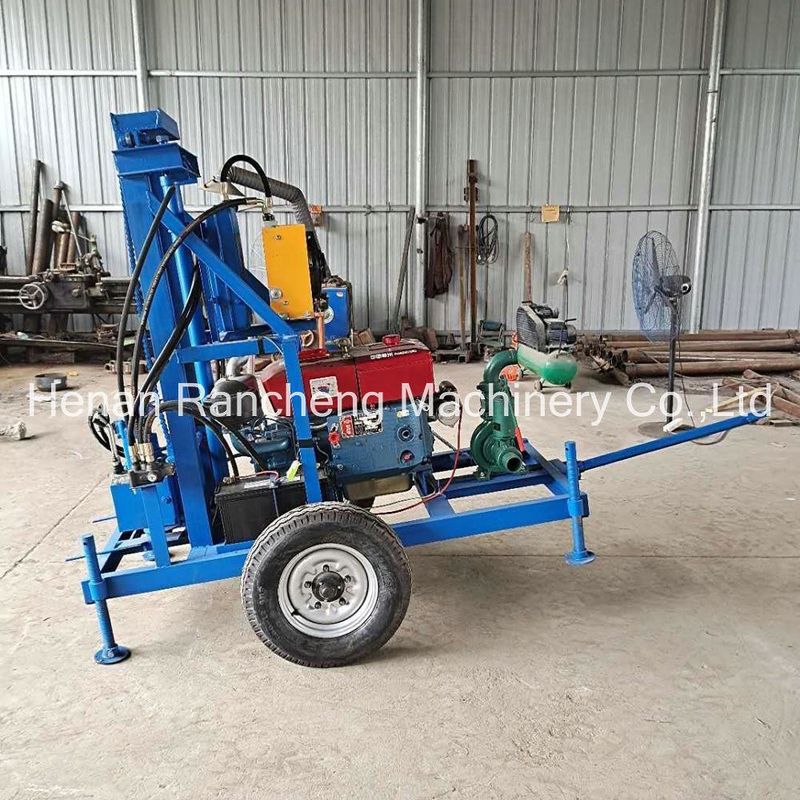

Product Image
