Max 17 Inch Steel Gear Tricone Drill Bit For Drilling Rig Water Well Projects

Max 17 Inch Steel Gear Tricone Drill Bit For Drilling Rig Water Well Projects

Drilling Rig Tricone Drill Bit

Max Tricone Drill Bit

17 Inch Tricone Drill Bit

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

Tricone Drill Bit

Contact Us
Request A Quote
Max 17 Inch Steel Gear Tricone Drill Bit For Drilling Rig Water Well Projects
Max 17 Inch Steel Gear Tricone Drill Bit For Drilling Rig Water Well Projects Max 17 Inch Steel Gear Tricone Drill Bit For Drilling Rig Water Well Projects Max 17 Inch Steel Gear Tricone Drill Bit For Drilling Rig Water Well Projects Max 17 Inch Steel Gear Tricone Drill Bit For Drilling Rig Water Well Projects Max 17 Inch Steel Gear Tricone Drill Bit For Drilling Rig Water Well Projects
Product Details
Name:
Drilling Rig Tools
Model:
Tricone Drill Bit
Size:
100-400mm
Application:
Used For Water Well Projects
Highlight:

Drilling Rig Tricone Drill Bit

,

Max Tricone Drill Bit

,

17 Inch Tricone Drill Bit

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
Standard shipping
Delivery Time
10-15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
RELATED PRODUCTS
Good price High-efficiency Three-wing Tungsten Carbide Drag Drill Bit Special For Water Wells online Video

High-efficiency Three-wing Tungsten Carbide Drag Drill Bit Special For Water Wells

Get Best Price
Good price High Performance 3 Wing Tungsten Carbide Drag Bit For Complex Strata online Video

High Performance 3 Wing Tungsten Carbide Drag Bit For Complex Strata

Get Best Price
Good price Spiral Drill Rod / Auger Drill Pipe For Water Drilling And Gas Coal Mine Exploring online Video

Spiral Drill Rod / Auger Drill Pipe For Water Drilling And Gas Coal Mine Exploring

Get Best Price
Good price 108mm - 508mm Drilling Rig Tools Concentric Bits For DTH Water Drilling Projects online

108mm - 508mm Drilling Rig Tools Concentric Bits For DTH Water Drilling Projects

Get Best Price
Contact Us
Contact Now
Product Description

Whole Sale Max 17 Inch Steel Gear Tricone Drill Bit For Drilling Rig



Product Description



Introducing our high-performing tricone drill bit, designed for a range of drilling projects including oil and gas well drilling, geothermal well drilling, water well drilling, and trenchless drilling. Made with durable materials and advanced engineering, this tricone drill bit is built to withstand tough drilling conditions and deliver exceptional results. Its precision-cut teeth and optimized design ensure efficient and seamless drilling, making it an ideal choice for professionals in the industry. Trust our tricone drill bit to deliver the performance you need for your drilling projects.




Advantage



Bearing Structure

High precision journal bearing with two thrust faces. Ball locked cone. Hardfaced head bearing surface. Cone bearing inlaid with friction reducing alloy and then silver-plated. Abrasion resistance and seizure resistance of the bearing are improved, and suitable for high rotary speed.



Cutting Structure

Reinforcing the comprehensive mechanical properties of cutting tooth by using high quality tungsten carbide inserts of new formula and new techniques of insert bit. Widened crest insert improved the bit aggressivity and penetration rate.



Gauge Structure

The multiple heel position with gauge trimmer on the heel, tungsten carbide and hardfacing on the shirttail, strengthened spear point will enhance the gauge protection.



Product Specifications



IADC WOB(kn/mm) RRM(r/min) Applicable Formations
116 117 0.35~0.8 150~80 Very soft formations with low compressive strength and high drillability. such as clay, mudstone, chalk, etc.
126 127 0.35~0.9 150~70 Soft formations with low compressive strength and high drillability, such as mudstone, gypsum, salt, salt, soft shale, soft limestone, etc.
136 137 0.35~1.0 120~60 Soft to medium soft formations with low compressive strength and high drillability, such as medium-soft shale, hard gypsum, medium soft limestone, medium soft sandstone, soft formation with harder interbeds, etc.
216 217 0.4~1.0 100~60 Medium-hard formations with high compressive strength, such as medium-soft shale, hard gypsum, medium soft limestone, medium soft sandstone, soft formations with harder interbeds, etc.
246 247 0.4~1.0 80~50 Medium-hard formations with high compressive strength,such as abrasive shale,limestone,sandstone,dolomite,hadr gypsum,marble,etc.
417 437 447 0.35~0.9 150~70 Very soft formations with low compressive strength and high drillability, such as clay, gypsum, salt, soft shale, soft limestone, etc.
517 527 0.5~1.0 140~60 Soft formations with low compressive strength and high drillability such as mudstone, gypsum, salt, soft shale, soft limestone, etc.
537 547 0.45~1.0 120~50 Soft to medium formations with low compressive strength, such as medium-soft shale, medium soft limestone, medium soft limestone, medium soft sandstone, medium formation with harder and abrasives interbeds. etc.
617 627 0.45~1.1 190~50 Medium-hard formations with high compressive strength such as hard shale, limestone, sandstone, dolomite, etc.
637 0.5~1.2 180~40 Hard formations with high compressive strength, such as sandstone, limestone, dolomite, hard gypsum, marble, etc.

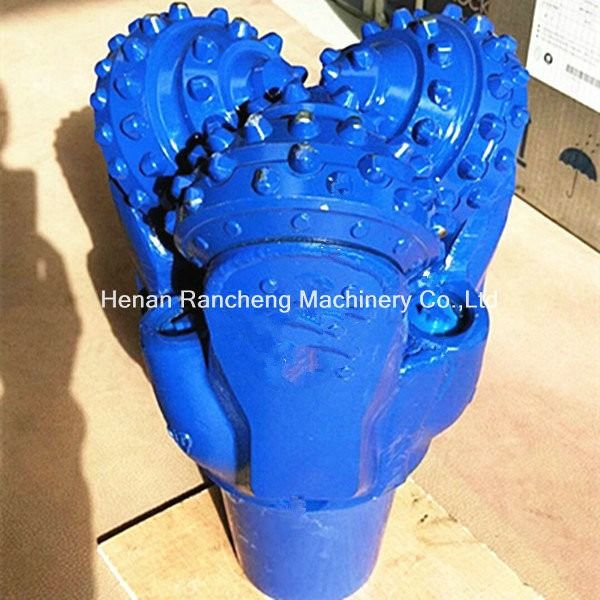

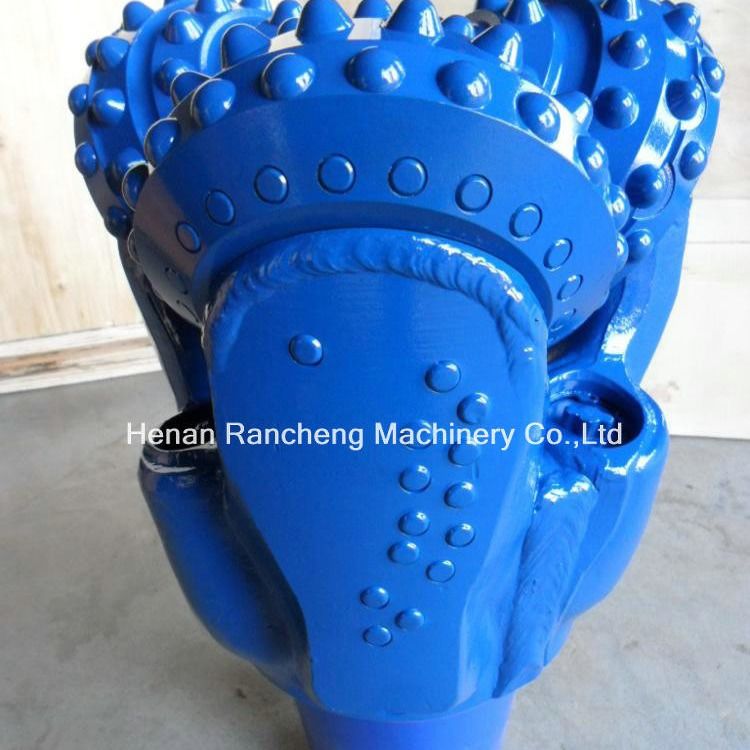

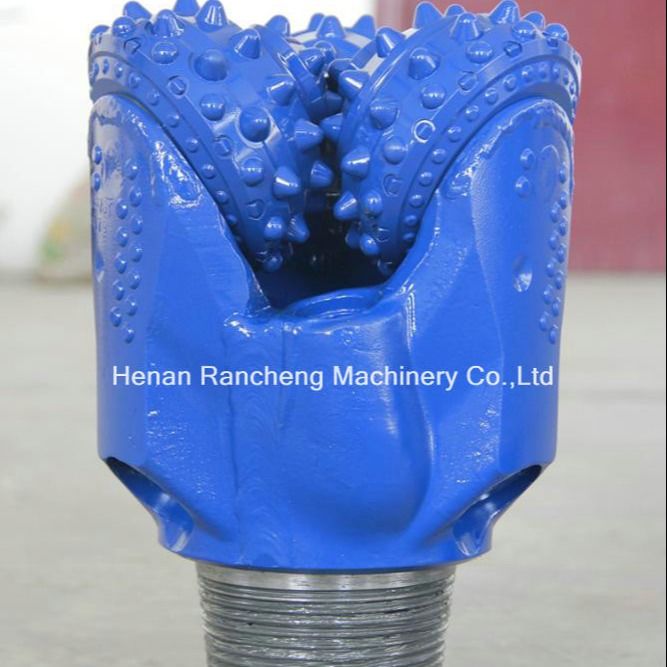

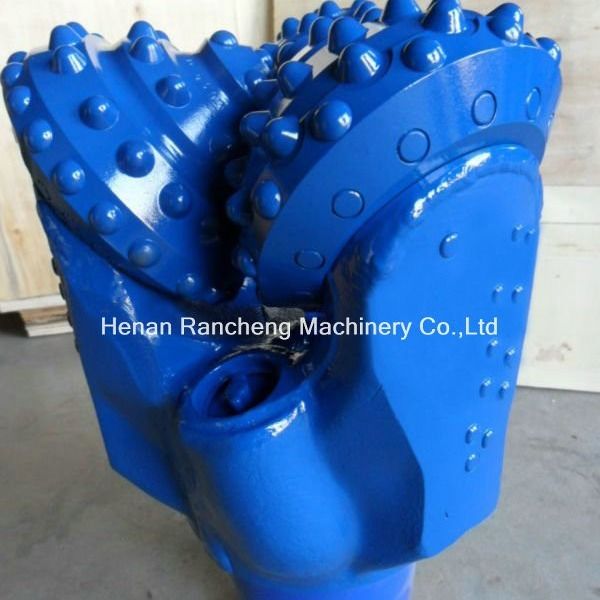

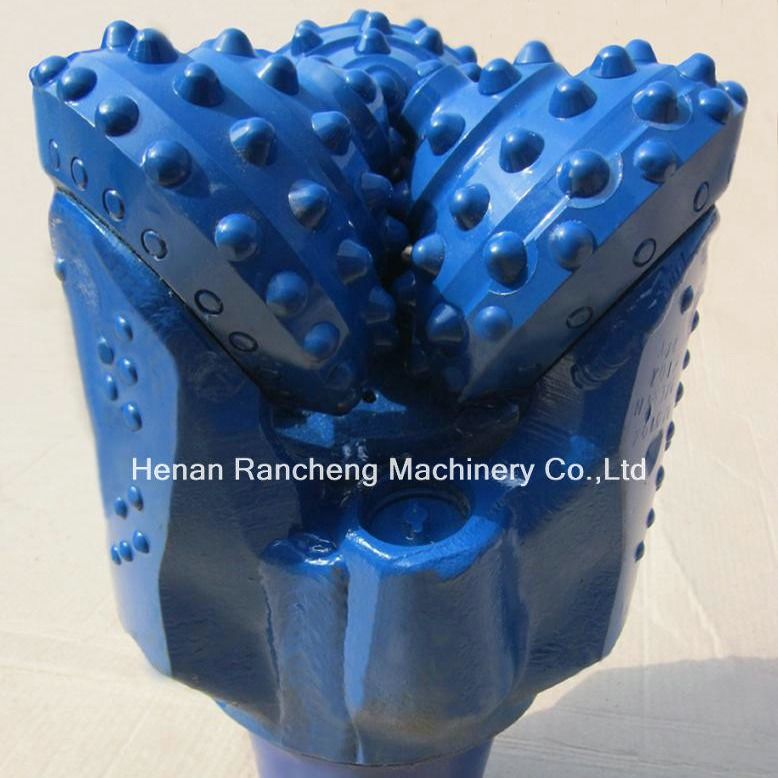

Product Image



Max 17 Inch Steel Gear Tricone Drill Bit For Drilling Rig Water Well Projects 0

Max 17 Inch Steel Gear Tricone Drill Bit For Drilling Rig Water Well Projects 1Max 17 Inch Steel Gear Tricone Drill Bit For Drilling Rig Water Well Projects 2Max 17 Inch Steel Gear Tricone Drill Bit For Drilling Rig Water Well Projects 3Max 17 Inch Steel Gear Tricone Drill Bit For Drilling Rig Water Well Projects 4
