150m Hydraulic Water Well Drilling Machine For 40 - 65r/Min Rotary Speed
Product Description
We are proud to unveil the RCF150C Deepwater Drilling Rig, a cutting-edge solution independently developed by our company. This state-of-the-art rig represents the pinnacle of innovation in the drilling industry, designed to meet the demanding needs of resource exploration and well drilling across various applications.
At the heart of the RCF150C is its new generation of down-the-hole drill bits, engineered to deliver unparalleled performance. With enhanced air power, these drill bits significantly increase drilling speeds, allowing for quicker project completion and reduced operational costs. Whether you are engaged in hydrological well drilling, civil engineering projects, or agricultural irrigation, the RCF150C is your go-to solution for efficiency and reliability.
Utilizing the latest models and advanced hydropower technology, the RCF150C boasts low energy consumption while providing high torque capabilities. This combination not only ensures optimal performance but also minimizes environmental impact, making it a sustainable choice for modern drilling operations. The rig’s convenient well guidance system further enhances its usability, allowing operators to achieve precise drilling results with ease.
Designed for versatility, the RCF150C is ideal for a wide range of applications, including resource exploration, hydrological wells, civil wells, and agricultural irrigation projects. Its robust construction and advanced features make it suitable for deepwater environments, ensuring that you can tackle even the most challenging drilling conditions with confidence.
Experience the future of drilling with the RCF150C Deepwater Drilling Rig—where innovation meets efficiency. Elevate your drilling operations and unlock new possibilities in resource exploration today!
Technical Parameters
| Bore diameter(Hammer) |
90-300mm |
| Bore depth |
150m |
| Air consumption |
17-31m³/min |
| Air pressure |
1.7-2.5Mpa |
| Pipe diameter |
76mm/89mm |
| Pipe length |
3m |
| Push force |
4T |
| Lifting force |
12T |
| Lifting speed |
2.5m/min |
| feeding speed |
0.5-5m/min |
| Fast lifting speed |
18m/min |
| Fast feeding speed |
35m/min |
| Max torque of rotary |
3500-3800Nm |
| Rotary speed |
40-65r/min |
| Mud Pump flow |
200L/min (option) |
| Feeding efficiency |
10-35m/h |
| Travel speed |
2.5Km/h |
| Climb ability |
30° |
| Dimension(L*W*H) |
3500×1700×2250MM |
| Weight |
3700kg |
| Diesel engine |
42KW |
Product advantages
1: Small size, light weight and easy installation.
2: It is composed of three parts, the main engine, pumping station and console.
3: It can be put into production on the original transportation and prospecting path, which protects the overall structure of the
mine. It can also be used for surface drilling from 0 to 90 degrees.
4: Flexible arrangement of drilling rigs, mechanized twisting and unloading of drill rods, reduce the labor intensity of workers and improve work efficiency.

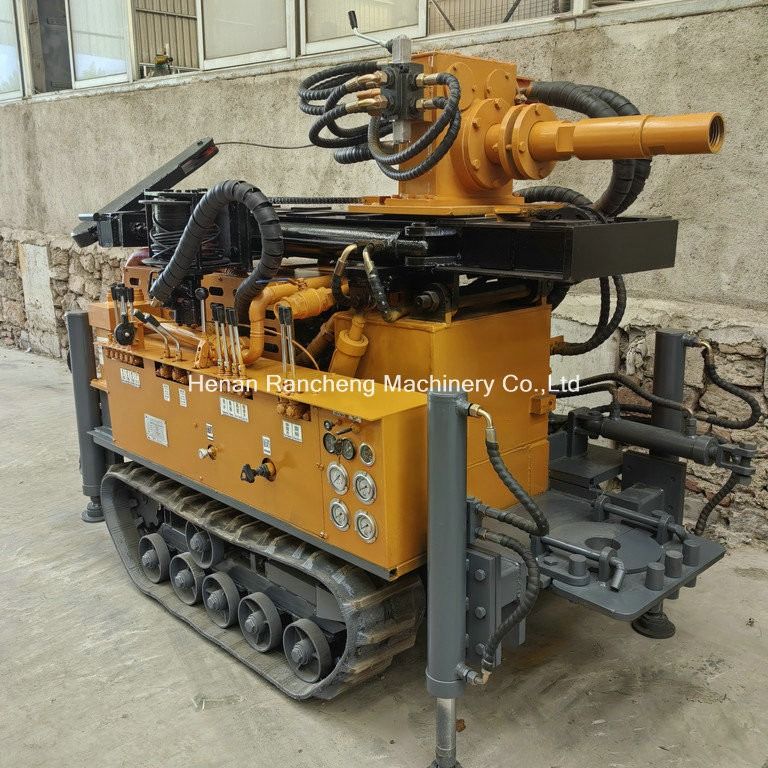

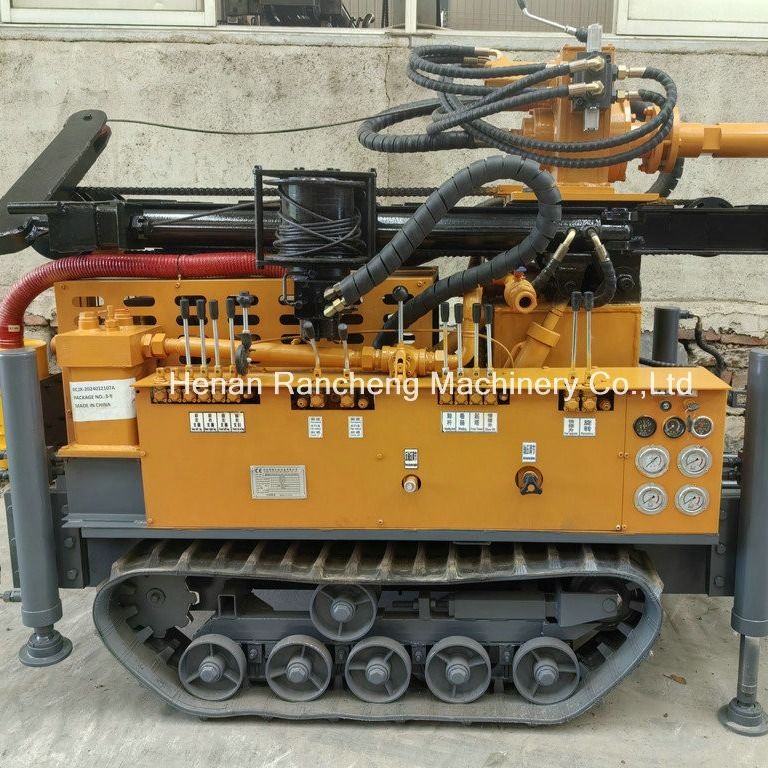

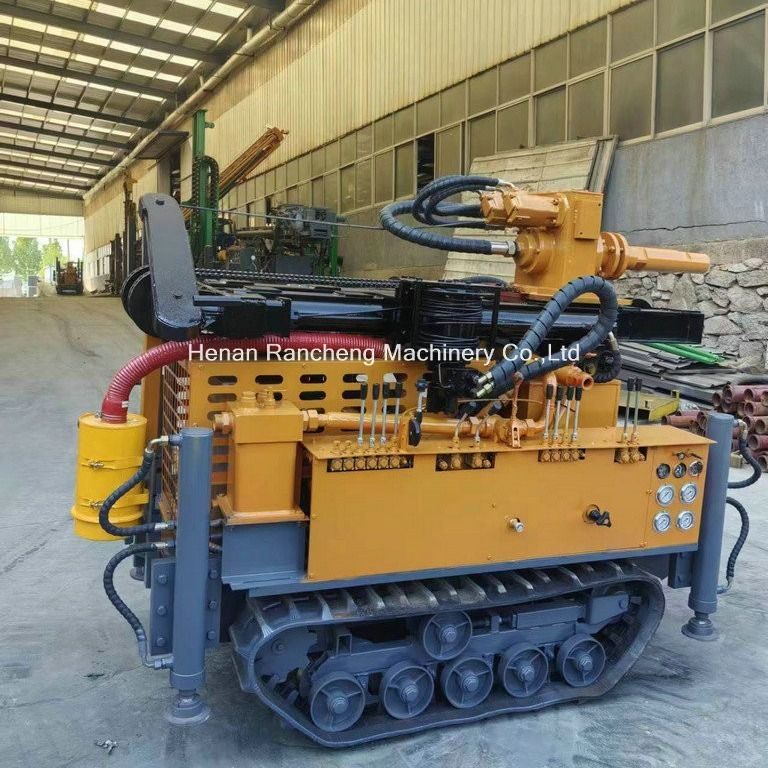

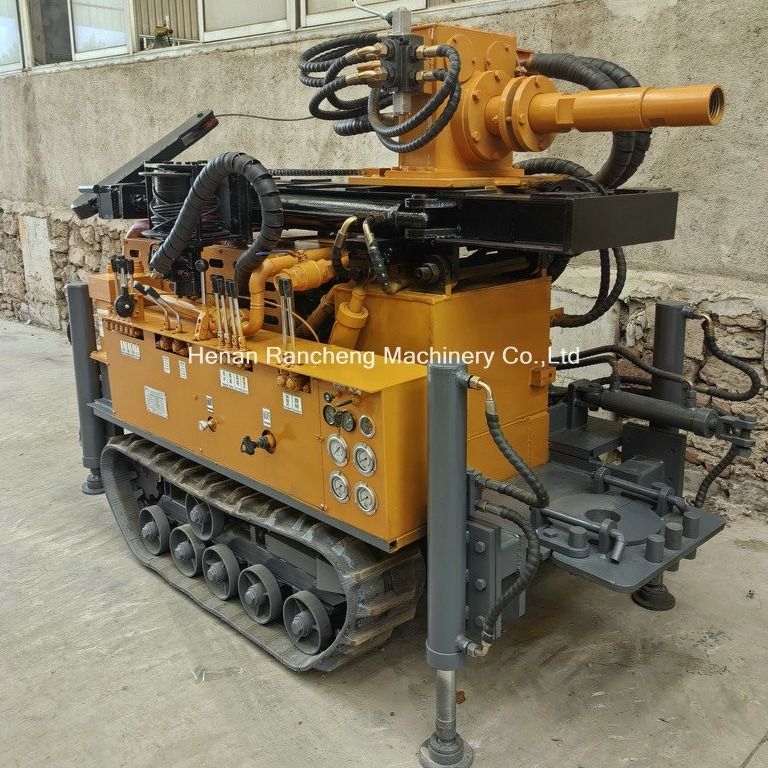

Machine pictures
