Product Description

Whole Sale Max 17 Inch Steel Gear Tricone Drill Bit For Drilling Rig

Product Description

The tri-cone drill bit is a versatile tool in the drilling field. It is mainly used in various fields such as drilling, exploration, and petroleum. It is an indispensable guide drill bit in trenchless technology.
According to the cutting material, it is divided into two main types: TCI drill bits and steel tooth drill bits, each of which provides specialized advantages for specific applications. TCI drill bits use high-strength and high-toughness carbide teeth, and the tooth row structure, number of teeth, and tooth exposure height are optimized. Its unique alloy tooth shape can maximize wear resistance and improve cutting efficiency.

Features:

1. Bearing polishing process improves the service life

2. Hardfacing and Tungsten Carbide Inserts for Leg and shirttail protection

3. Heel Inserts and Build up welding on the Steel milled teeth

Product Specifications

IADC	WOB(kn/mm)	RRM(r/min)	Applicable Formations
116 117	0.35~0.8	150~80	Very soft formations with low compressive strength and high drillability. such as clay, mudstone, chalk, etc.
126 127	0.35~0.9	150~70	Soft formations with low compressive strength and high drillability, such as mudstone, gypsum, salt, salt, soft shale, soft limestone, etc.
136 137	0.35~1.0	120~60	Soft to medium soft formations with low compressive strength and high drillability, such as medium-soft shale, hard gypsum, medium soft limestone, medium soft sandstone, soft formation with harder interbeds, etc.
216 217	0.4~1.0	100~60	Medium-hard formations with high compressive strength, such as medium-soft shale, hard gypsum, medium soft limestone, medium soft sandstone, soft formations with harder interbeds, etc.
246 247	0.4~1.0	80~50	Medium-hard formations with high compressive strength,such as abrasive shale,limestone,sandstone,dolomite,hadr gypsum,marble,etc.
417 437 447	0.35~0.9	150~70	Very soft formations with low compressive strength and high drillability, such as clay, gypsum, salt, soft shale, soft limestone, etc.
517 527	0.5~1.0	140~60	Soft formations with low compressive strength and high drillability such as mudstone, gypsum, salt, soft shale, soft limestone, etc.
537 547	0.45~1.0	120~50	Soft to medium formations with low compressive strength, such as medium-soft shale, medium soft limestone, medium soft limestone, medium soft sandstone, medium formation with harder and abrasives interbeds. etc.
617 627	0.45~1.1	190~50	Medium-hard formations with high compressive strength such as hard shale, limestone, sandstone, dolomite, etc.
637	0.5~1.2	180~40	Hard formations with high compressive strength, such as sandstone, limestone, dolomite, hard gypsum, marble, etc.

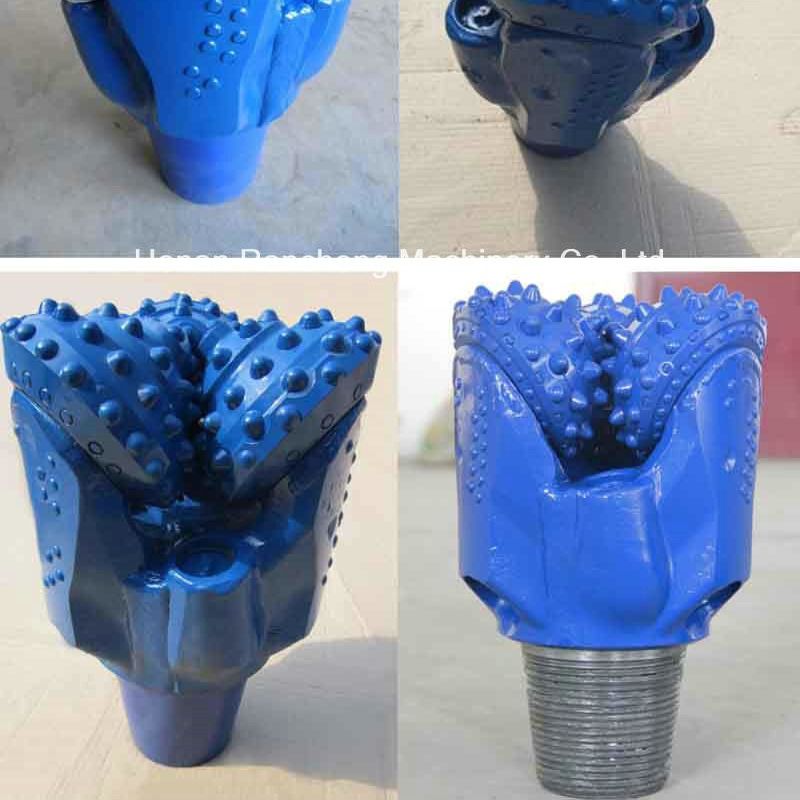

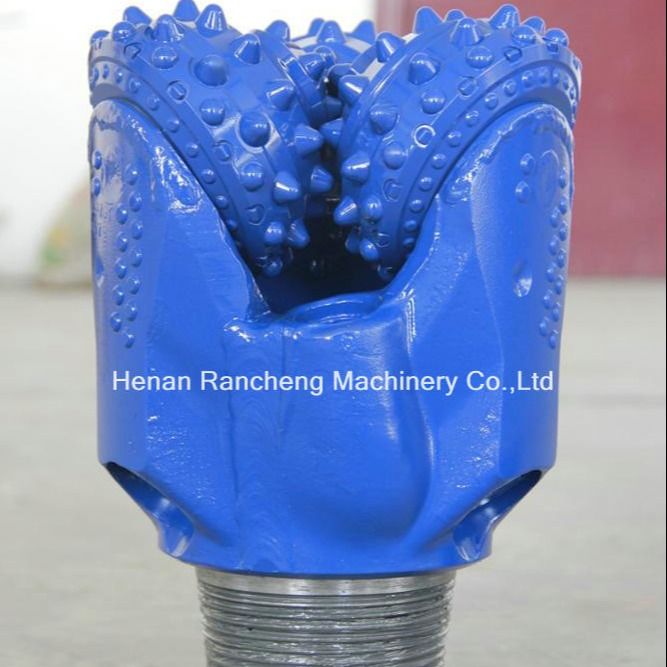

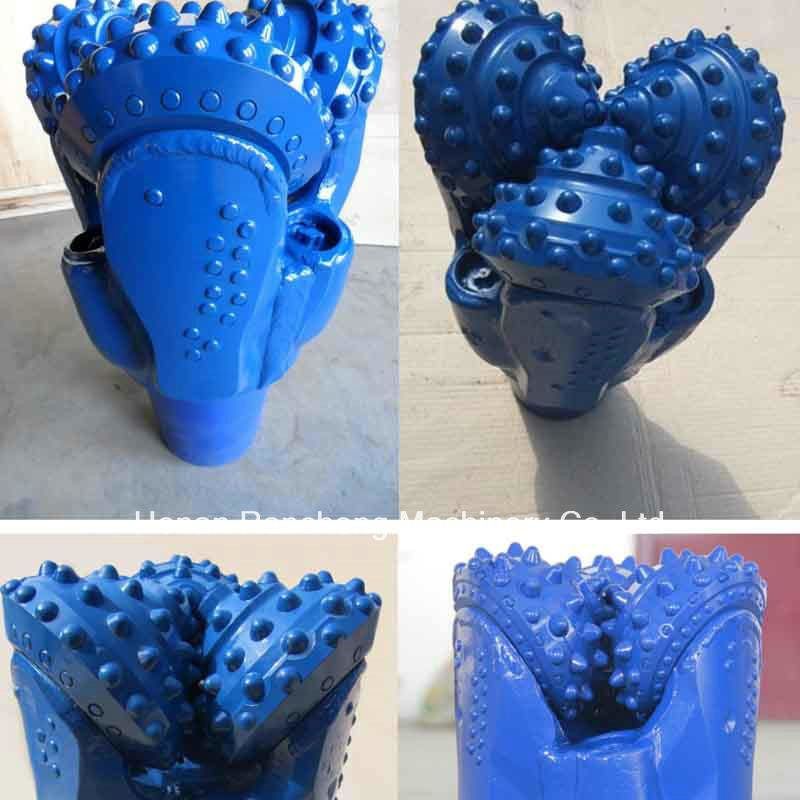

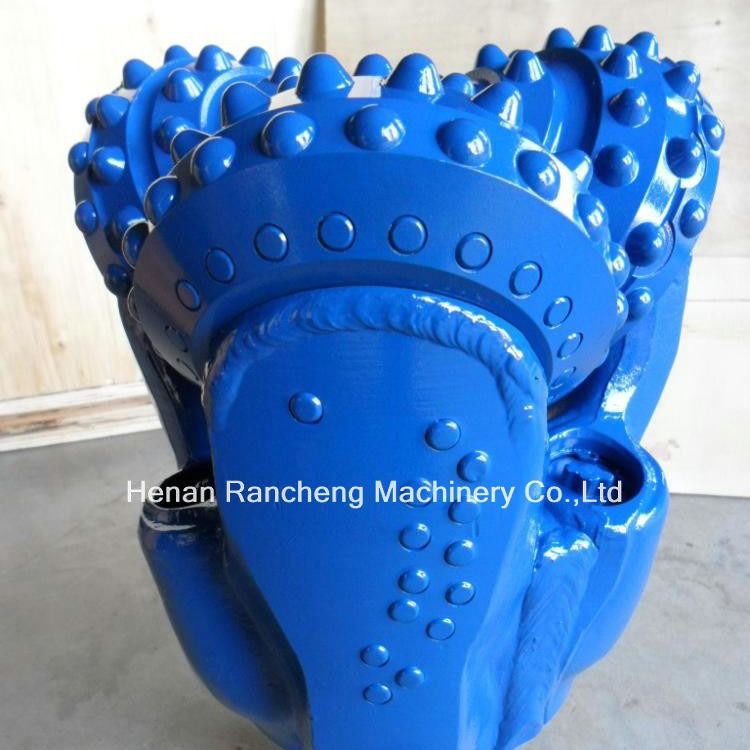

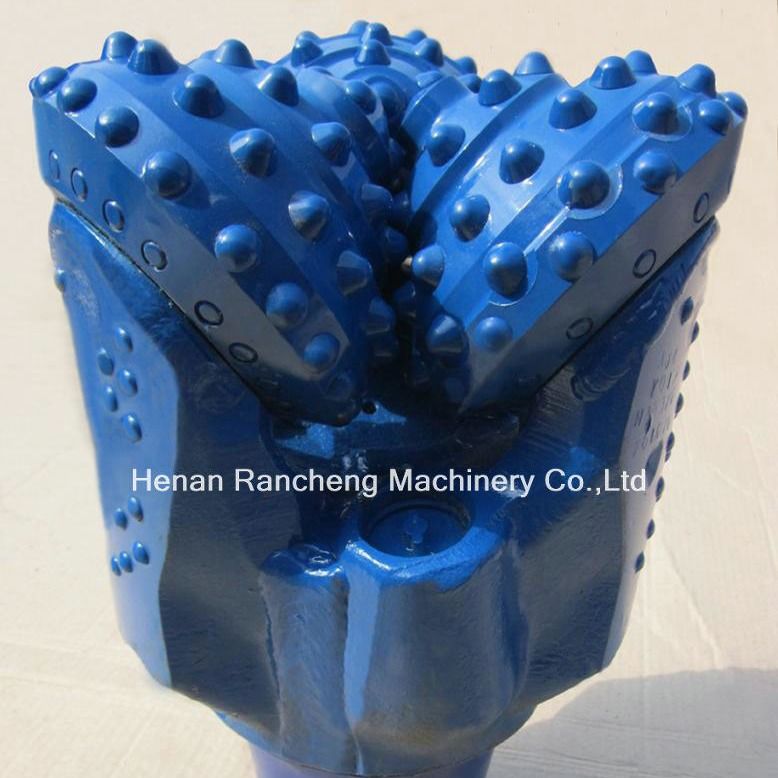

Product Image
