Name: API 7-1 24inch Steel Body PDC Bit For Oil Gas And Water Well Drilling
Brand: Henan Rancheng Machinery Co., Ltd.
SKU: PDC Drill Bits
Availability: InStock

Home > products > Drilling Rig Tools >

API 7-1 24inch Steel Body PDC Bit For Oil Gas And Water Well Drilling

24 inch Steel Body PDC Bit

Steel Body PDC Bit

PDC Bit For Water Well Drilling

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

PDC Drill Bits

Request A Quote

API 7-1 24inch Steel Body PDC Bit For Oil Gas And Water Well Drilling

Product Details

Name:

Drilling Rig Tools

Model:

PDC Drill Bits

Size:

76-445mm

Application:

Used For Water Well Drilling Projects

Highlight:

24 inch Steel Body PDC Bit

Steel Body PDC Bit

PDC Bit For Water Well Drilling

Payment & Shipping Terms

Minimum Order Quantity

Price

Negotiable

Packaging Details

Standard shipping

Delivery Time

10-15 working days

Payment Terms

T/T, Western Union

Supply Ability

100sets per Month

High-efficiency Three-wing Tungsten Carbide Drag Drill Bit Special For Water Wells

Get Best Price

Video

High Performance 3 Wing Tungsten Carbide Drag Bit For Complex Strata

Get Best Price

Video

Spiral Drill Rod / Auger Drill Pipe For Water Drilling And Gas Coal Mine Exploring

Get Best Price

108mm - 508mm Drilling Rig Tools Concentric Bits For DTH Water Drilling Projects

Get Best Price

Contact Now

Product Description

API 7-1 24inch Steel Body PDC Bit For Oil Gas And Water Well Drilling

Product Description

Matrix body PDC bits are primarily used for these application :

---Soft to medium-hard formations

---High volume

---High sand

---Applications where the same bit will need to be used for several bit runs

Steel body PDC bits are primarily used for these applications:

---Drilling in shale formations

---Soft limestone sites

---Fast drilling in the stratum

---Natural gas drilling

---Deep wells

---Abrasive formations

specifications

specifications	Inch	Model of pdc cutter	Thread
98mm	3 7/8 inch	13mm	2 3/8REG
114mm	4 1/2 inch	13mm16mm19mm	2 3/8REG 2 7/8REG
130mm	5 1/8 inch	13mm16mm19mm	2 3/8REG 2 7/8REG
140mm	5 1/2 inch	13mm16mm19mm	2 3/8REG 2 7/8REG
152mm	6 inch	13mm16mm19mm	2 3/8REG 2 7/8REG 3 1/2REG
165mm	6 1/2 inch	13mm16mm19mm	2 3/8REG 2 7/8REG 3 1/2REG
171mm	6 3/4 inch	13mm16mm19mm	2 3/8REG 2 7/8REG 3 1/2REG
178mm	7 inch	13mm16mm19mm	2 3/8REG 2 7/8REG 3 1/2REG
190mm	7 1/2 inch	13mm16mm19mm	2 3/8REG 2 7/8REG 3 1/2REG 4 1/2REG
200mm	7 7/8 inch	13mm16mm19mm	2 3/8REG 2 7/8REG 3 1/2REG 4 1/2REG
215mm	8 1/2 inch	13mm16mm19mm	2 7/8REG 3 1/2REG 4 1/2REG

Our Advantages

We are a professional manufacturer of TCI tricone drill bits, steel thread tricone drill bits, and PDC drill bits. We offer customization services to meet specific drilling requirements, whether related to size or type. Our products follow strict API standards to ensure high quality and reliability. We promise to provide the best service at reasonable prices and guarantee on - time delivery to meet our customers' needs and expectations.

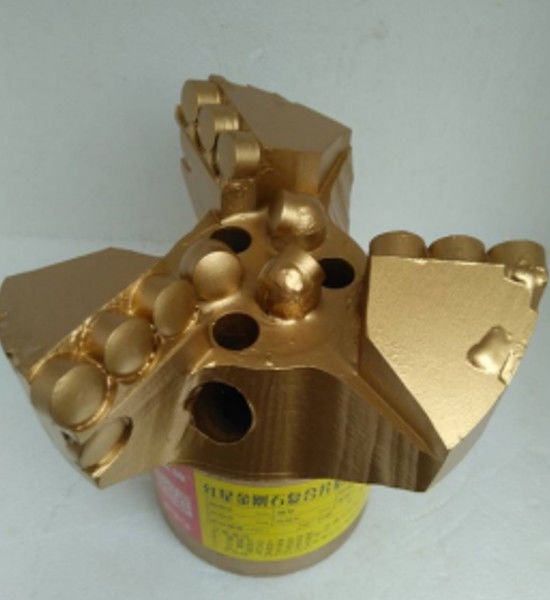

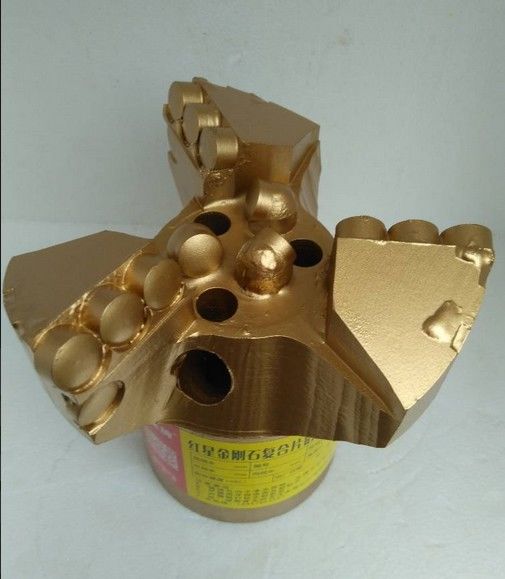

Machine Pictures
